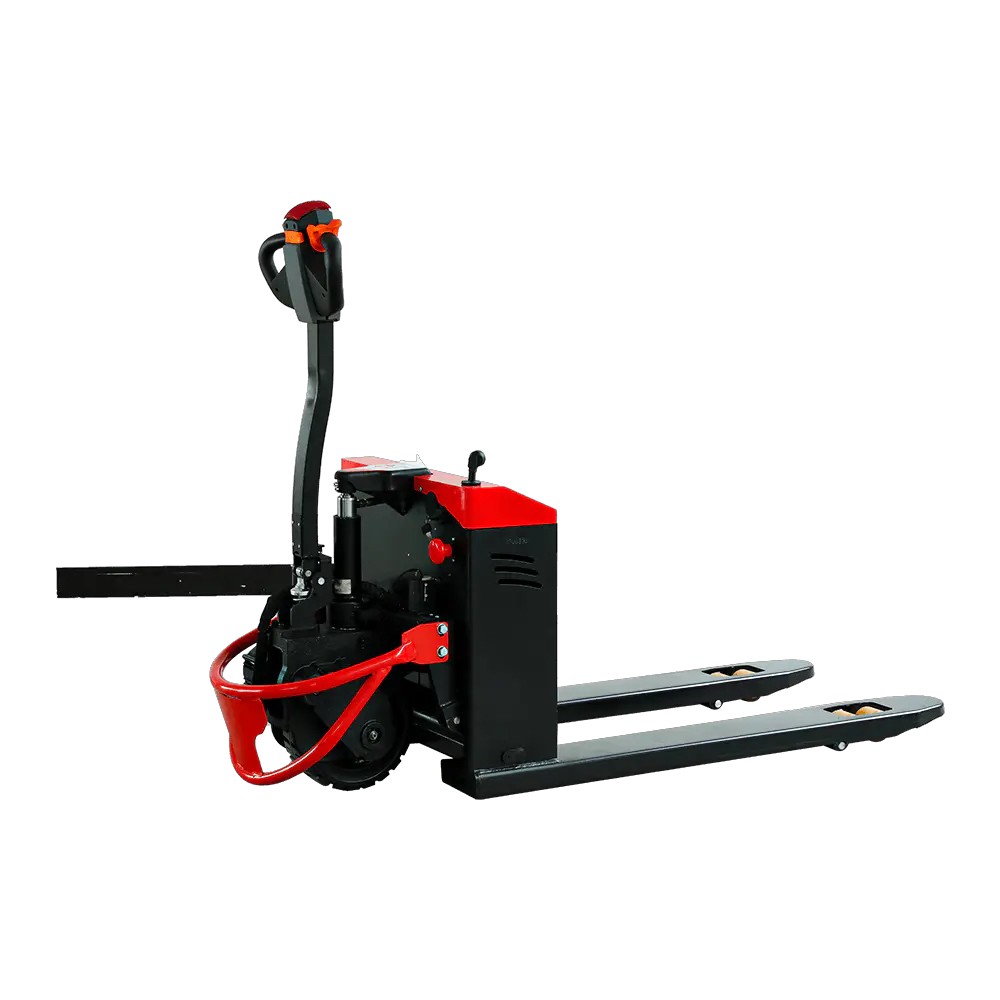

ZGLOADER / MYZG MYCBD-Y All-Terrain Outdoor Electric Pallet Truck

Outdoor pallet movement built around the real route

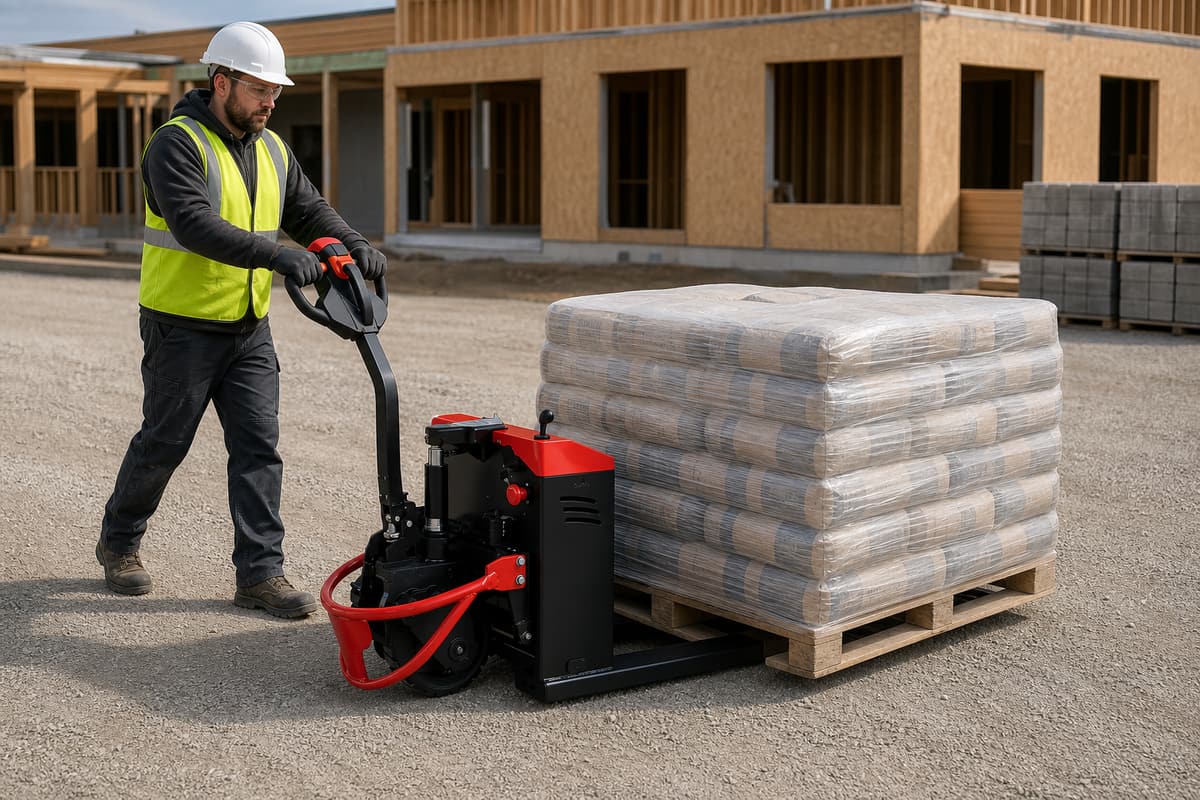

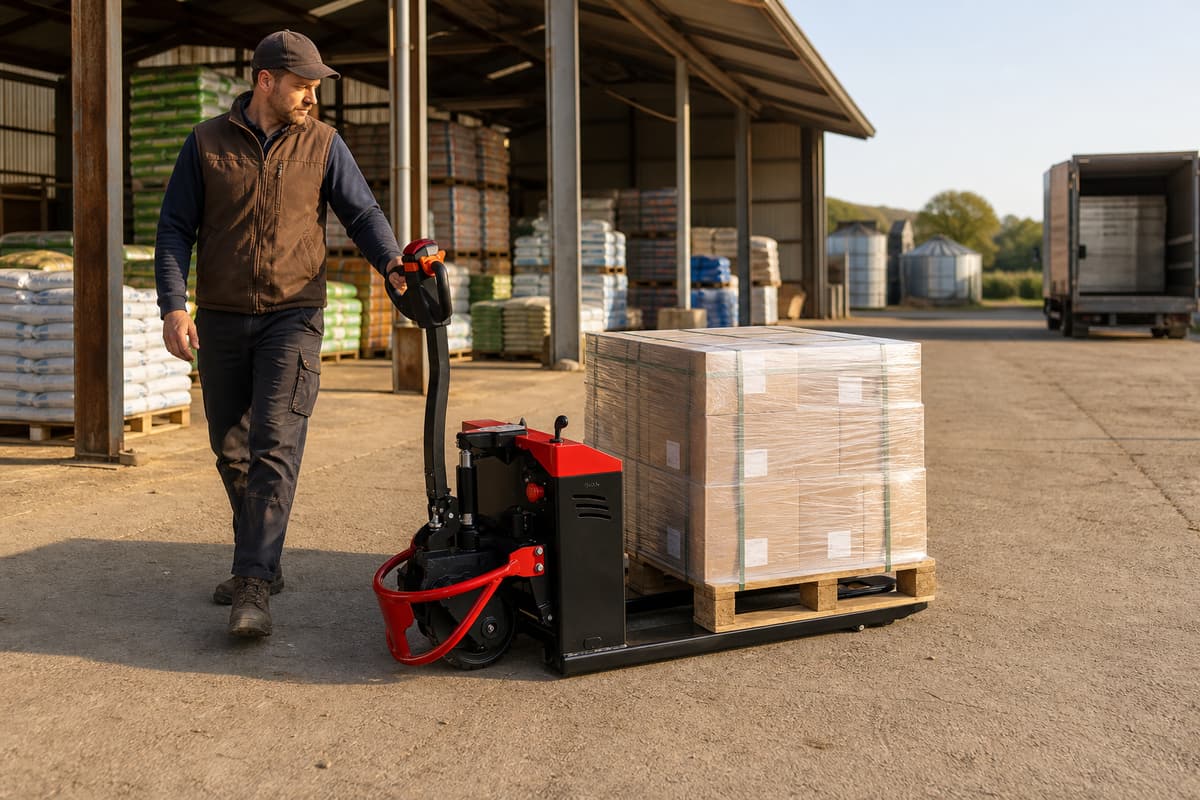

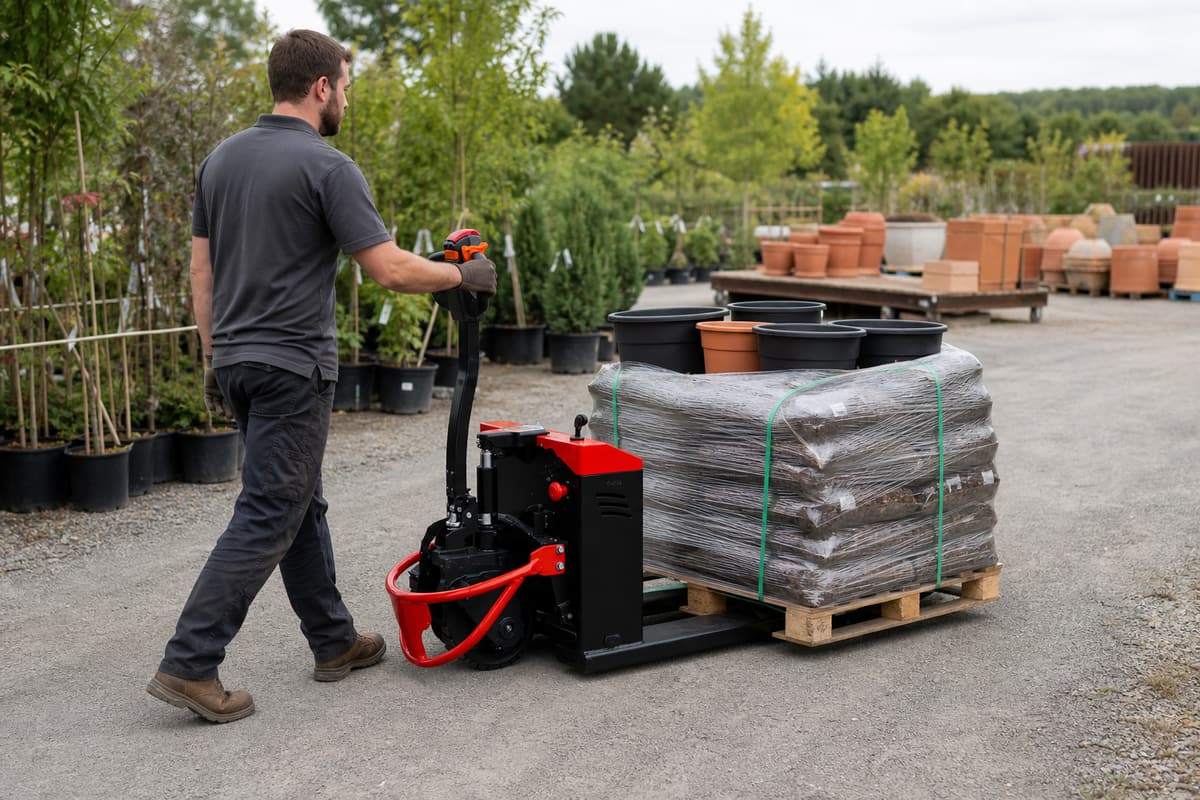

The ZGLOADER / MYZG MYCBD-Y all-terrain outdoor electric pallet truck is designed for customers who must move palletized materials beyond the smooth floor of a conventional warehouse. Typical needs include transferring bagged materials around a construction supply area, moving soil and containers in a nursery, supporting agricultural stores, or connecting an indoor warehouse with an outdoor dispatch point. Its powered travel reduces manual pulling effort, while the compact walk-behind arrangement helps operators work in tighter yards. The machine is not a substitute for a forklift and it does not lift pallets to racks. Its value comes from moving a compatible pallet over a surveyed, firm route with fewer handling steps. browse the material-handling product category.

review the verified MYCBD-Y source product.

Verified MYCBD-Y specifications and configuration control

The verified source identifies model MYCBD-Y with a maximum load capacity of 3000 kg. Published overall frame length and width are 1792/720 mm, published weight without battery is 330 kg, and published fork size is 1200*170*60 mm. These facts define the reference product used for this page. Battery chemistry, voltage, charger, travel speed, gradient limit, turning radius, wheel material, braking arrangement and ingress protection are not assumed from photographs and must be confirmed for the ordered configuration. The supplied written quotation, nameplate, manual and packing list should agree before shipment. read application and purchasing guidance

Applications, customer needs and equipment selection

A useful buying process begins with the application rather than the rated capacity alone. Record the actual pallet type, fork pockets, entry direction, maximum combined load, load center, route length, daily cycles, turning space, gates, joints, thresholds and loading-area layout. Inspect whether the route is compacted gravel, packed earth, concrete or a transition between surfaces. A 3000 kg rating does not make every pallet, gradient or soft ground acceptable. Loads must remain stable and centered, and the route must support the truck, battery and pallet without sinking. If the job needs stacking, long travel, severe slopes, loose deep mud or high-speed transport, compare another equipment class.

Route planning and safe operating practice

Before each shift, inspect the forks, frame, welds, tiller, controls, wheels, rollers, guards, fasteners, battery connections and visible cables. Test travel, steering, braking and emergency functions in a clear area according to the delivered manual. Approach squarely, insert both forks completely, raise only enough to clear the surface and keep a safe walking position with an escape path. Reduce speed at corners, transitions and pedestrian areas; never carry riders or exceed the confirmed load. Outdoor capability still requires route management: repair potholes, remove debris, avoid standing water and stop work when traction, visibility or stability is uncertain.

Battery care, inspection and preventive maintenance

Battery and charging choices affect uptime and total cost. Confirm the delivered battery type, capacity, connector, charger input, charging location, ambient-temperature limits and replacement plan. Use only approved charging equipment, keep connectors clean and dry, and follow the supplier instructions for charging, storage and isolation. Maintenance should include cleaning packed debris from wheels and rollers, checking tyre or tread condition, tightening specified fasteners, inspecting hydraulic components and recording faults before they become downtime. Service intervals depend on load, distance, surface and environment, so a construction yard may need closer inspection than a clean paved distribution site.

Total ownership cost, parts and dealer support

Total ownership cost includes purchase price, battery and charger, wheels, load rollers, bearings, seals, controls, cables, brakes, freight, documents, planned service, downtime and operator time. A lower initial price can be lost if the forks do not match local pallets, the wheel package does not suit the route, or no replacement parts are stocked. Dealers and rental partners can add value through site surveys, commissioning, operator familiarization, documented parts lists and a clear escalation path. Shandong Zhuogong Machinery equipment Co.,Ltd supports configuration review, export communication and after-sales coordination for ZGLOADER / MYZG equipment without inventing named customers or unsupported performance results.

Compliance, export service and cooperation

CE-related documentation, declarations, labels and manuals depend on the final configuration and destination and must be confirmed in the contract. Because MYCBD-Y is battery-electric, EPA engine-emission requirements do not apply in the same way as they do to diesel equipment; battery transport, electrical safety, workplace rules and local product requirements still need review. Export experience is most useful when documents, spare parts, packaging and service responsibilities are agreed before shipment. Cooperation cases should be evaluated through verifiable references and job matching, not through unconfirmed certificate numbers or marketing claims.

Request a job-matched quotation

Send pallet dimensions, maximum load, route surface and distance, gradients, daily cycles, turning space, battery and charger requirements, destination, delivery terms and required documents for a comparable quotation. contact the MYZG export team.
