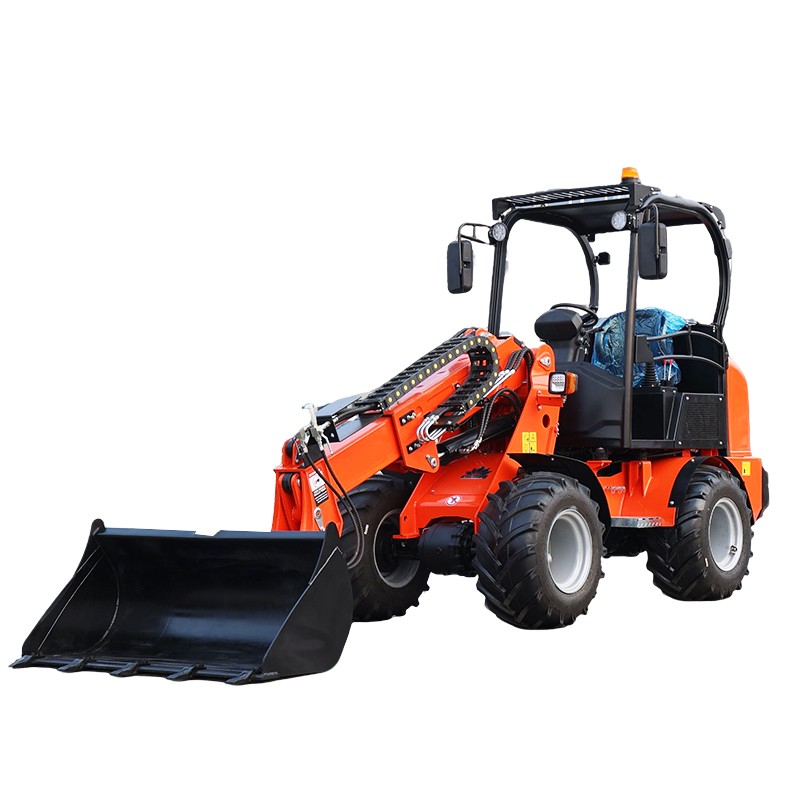

MYJ30 Telescopic Wheel Loader
MYJ30 Compact Telescopic Wheel Loader: The Ultimate Multi-Functional Powerhouse
Equipped with a world-class KUBOTA V1505 engine, the MYJ30 offers the lifting height of a telehandler with the agility of a compact wheel loader. Whether you are stacking hay, moving aggregates, or navigating tight job sites, this machine delivers high-performance results with a minimal footprint.
⚡ Premium Power: Powered by KUBOTA
At the heart of the MYJ30 is a legendary powertrain known for its reliability and fuel efficiency.
Genuine KUBOTA V1505 Engine: Delivering a rated power of 18.5kW at 2300R/min, this engine ensures consistent hydraulic flow and travel speed.
Eco-Friendly Performance: Optimized for low emissions and quiet operation, making it ideal for indoor agricultural use or noise-sensitive residential areas.
Reliable Cold Start: Engineered to perform in diverse climates, ensuring your work never stops due to weather conditions.
Technical Specifications: MYJ30 Series
Performance Category
Specification Detail
Unit
Rated Loading
1000
kg
Overall Weight
2500
kg
Rated Bucket Capacity
0.38
m³
Maximum Dump Height
2029
mm
Maximum Dump Reach
608
mm
Ground Clearance
240
mm
Wheel Base
1550
mm
Minimum Turning Radius
3336
mm
Overall Dimension
4210*1310*2316
mm
Superior Design and Precision Engineering
The MYJ30 is built to handle heavy loads while maintaining maximum stability and operator comfort.
1. Telescopic Reach Advantage
The standout feature of the MYJ30 is its telescopic boom, which allows for a maximum dump height of 2029mm and a reach of 608mm. This allows you to load high-sided trucks and stack materials at heights standard compact loaders simply cannot reach.
2. Compact and Maneuverable
With an overall width of only 1310mm and a minimum turning radius of 3336mm, the MYJ30 can navigate through narrow barn doors and tight garden paths with ease. The 1550mm wheel base provides the perfect balance between agility and lifting stability.
3. Off-Road Traction
Rolling on heavy-duty 31X15.5-15 tires, the MYJ30 maintains superior grip on mud, sand, and turf. With a 240mm ground clearance, it clears obstacles effortlessly, protecting the undercarriage during off-road transit.
Built for the Operator: Safety & Ergonomics
High-Visibility ROPS/FOPS Canopy: The open-view design ensures the operator has a 360-degree view of the bucket and surroundings, critical for safety in congested sites.
Intuitive Controls: The ergonomic cockpit features responsive joysticks and a clear instrument panel for precise material handling.
Easy Maintenance Access: The rear-opening engine hood provides quick access to filters and fluid checks, reducing downtime and service costs.
