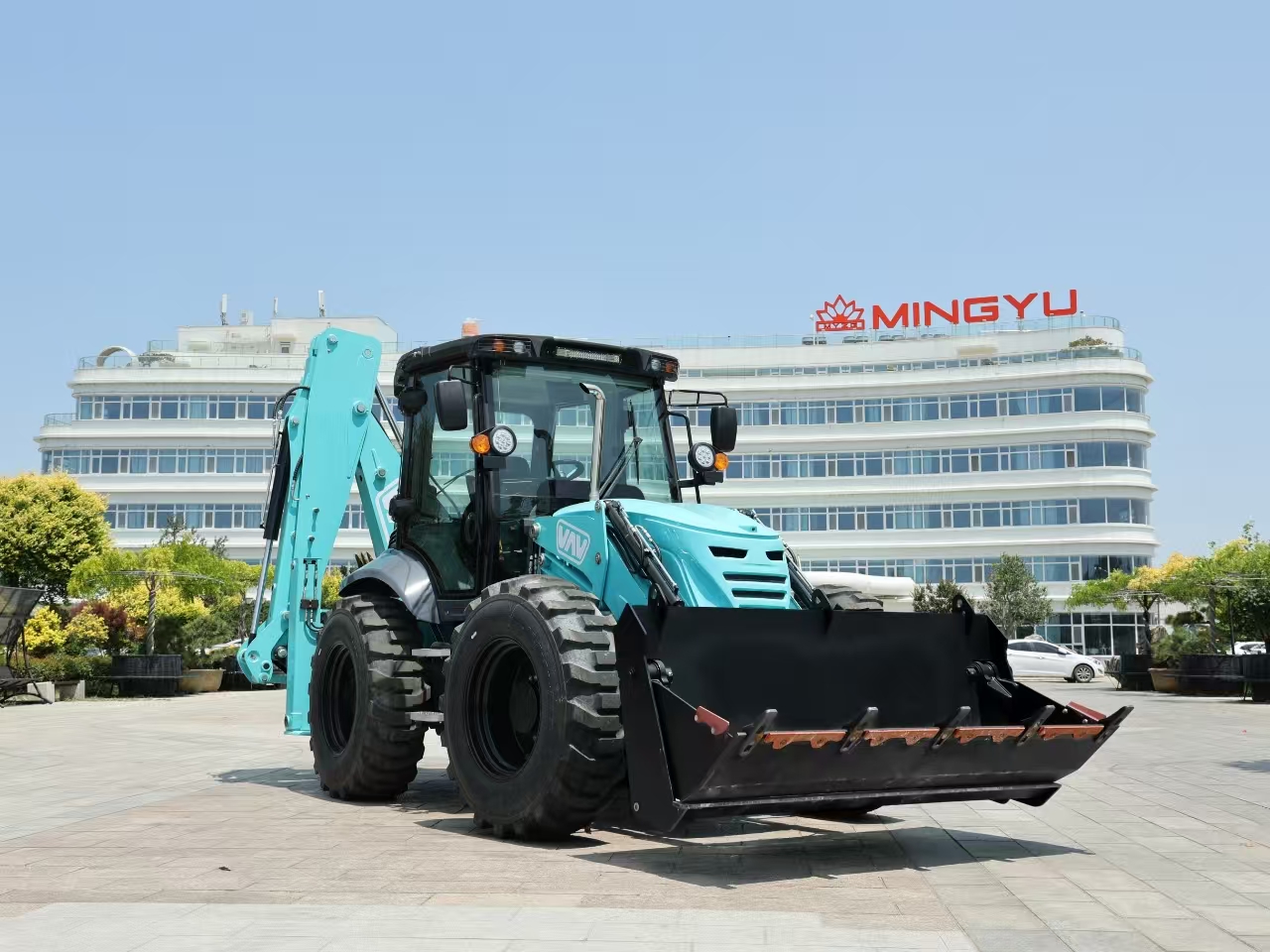

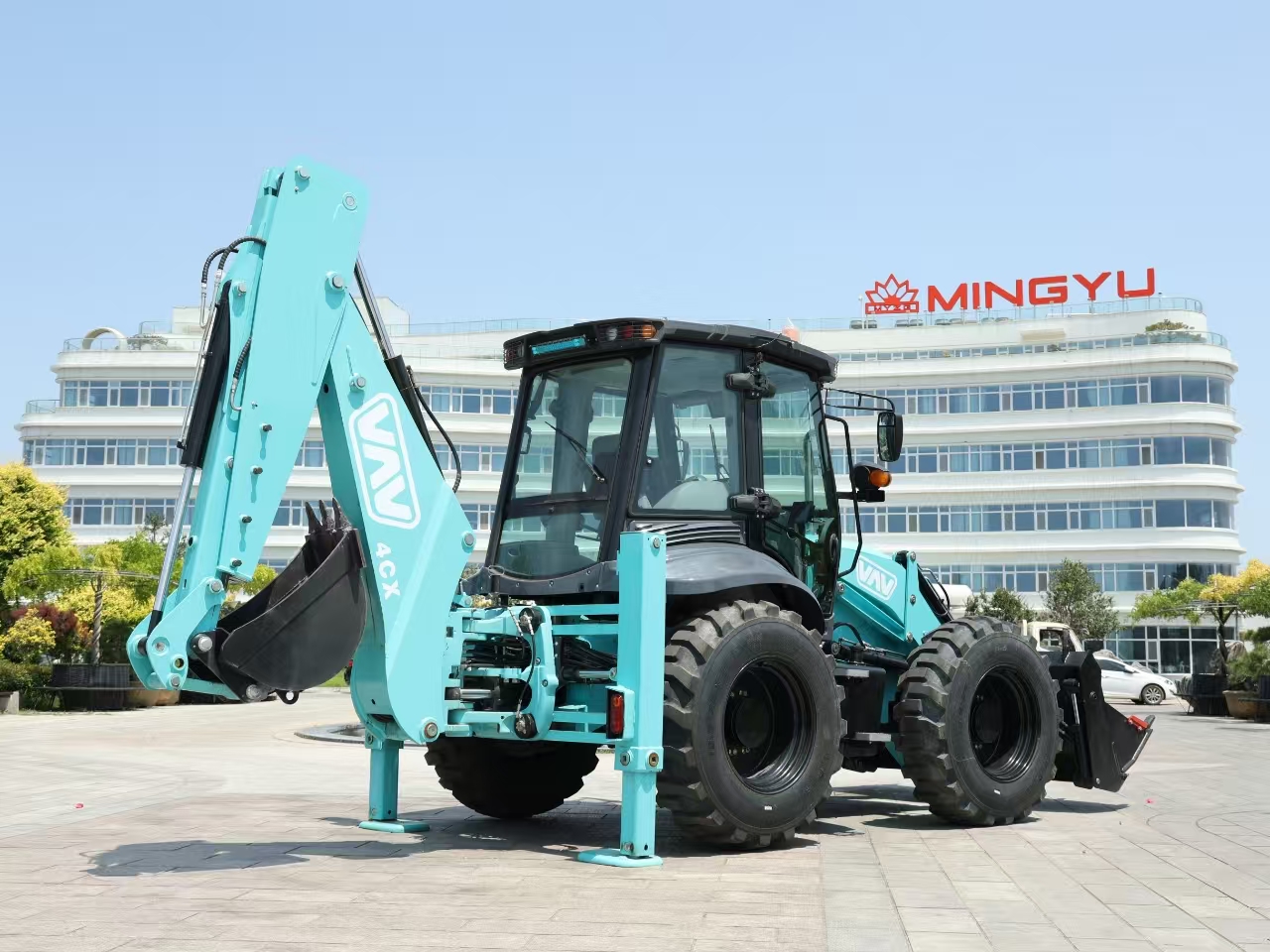

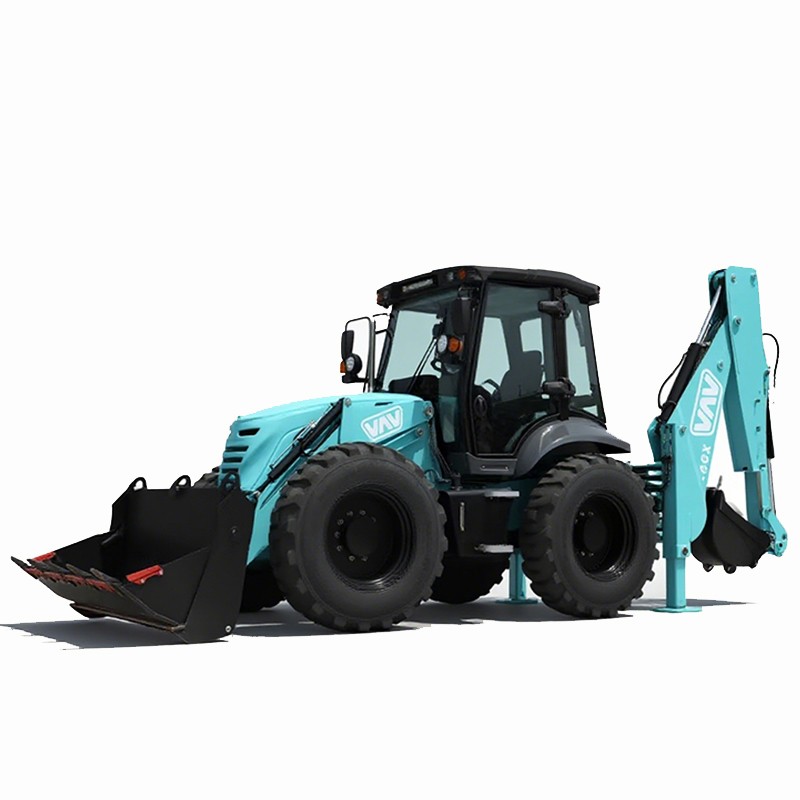

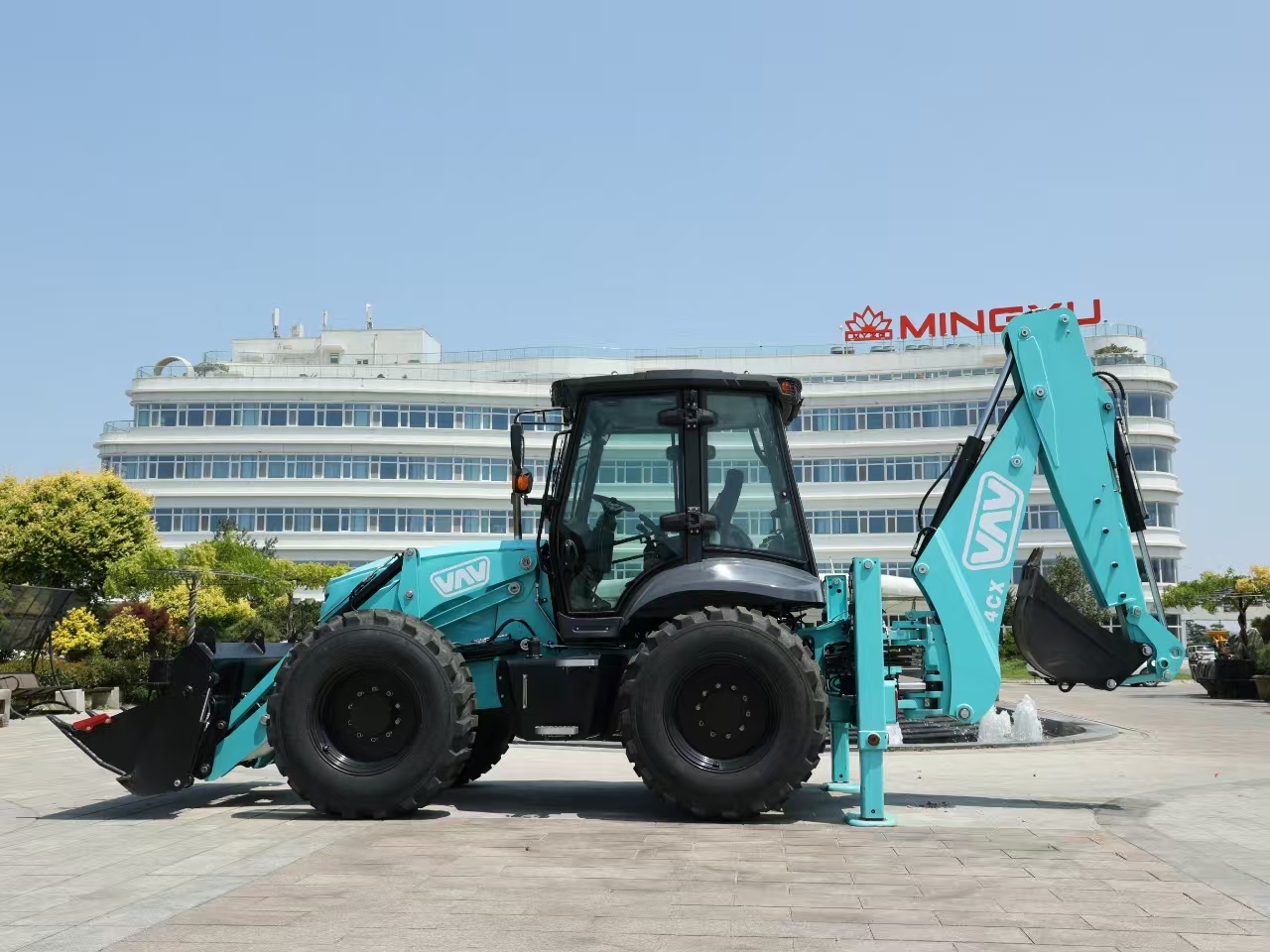

MYZG388H-2 backhoe loader
MYZG ZG388H Heavy-Duty 10-Ton Backhoe Loader (75kW / 102HP)
Heavyweight Earthmoving Performance: 10050kg Operating Weight, 1.2m³ Large Front Bucket, Upgraded YJ320 Transmission, and High-Torque Yuchai Turbocharged Engine.
Executive Overview: Ultimate 10-Ton Heavy Construction & Excavation Workhorse
The MYZG ZG388H Heavy-Duty Backhoe Loader represents the flagship heavy-capacity model in MYZG Machinery's backhoe loader lineup. Built specifically to deliver superior digging breakout force, high loading capacity, and supreme ground stability on demanding jobsites, the ZG388H combines the functions of a heavy-duty wheel loader and a high-reach excavator into a single robust machine.
Powered by a high-efficiency 75kW (102HP) Yuchai YC4A105Z-T20 engine, the ZG388H stands out with an impressive 10050 kg total operating weight. Equipped with an enlarged 1.2 m³ front loader bucket supporting a 2500 kg lift capacity up to a 3050 mm dumping height, an upgraded YJ320 hydraulic torque converter, a heavy-duty WZL100DF driving axle, and high-flotation 16.9-28 tires, the ZG388H handles tough mining, quarrying, highway construction, and bulk trenching operations with ease.
MYZG ZG388H Factory Technical Specifications
Explore the complete factory technical parameters and structural specifications for the MYZG ZG388H Heavy-Duty Backhoe Loader:
| Engineering & Operational Parameter | Factory Specification Detail |
|---|---|
| Model Identification | ZG388H Backhoe Loader |
| Overall Operating Weight | 10050 kg (10.05 Tons) |
| Engine Model & Manufacturer | Yuchai YC4A105Z-T20 |
| Rated Engine Power Output | 75 kW / 102 HP |
| Overall Machine Dimensions (L × W × H) | 6450 × 2530 × 3120 mm |
| Wheelbase | 2335 mm |
| Front Loader Bucket Capacity | 1.2 m³ |
| Loader Lifting Capacity | 2500 kg |
| Front Bucket Dumping Height | 3050 mm |
| Backhoe Bucket Capacity | 0.3 m³ |
| Maximum Digging Depth | 3820 mm |
| Backhoe Dumping Height | 4050 mm |
| Hydraulic Torque Converter | YJ320 |
| Driving Axle Model | WZL100DF |
| Minimum Turning Radius | 6950 mm |
| Tyre Specification (Front & Rear) | 16.9-28 (Equal-Sized Heavy Tyres) |
Engineering Breakdown & Key Product Advantages
1. Heavy-Duty YJ320 Torque Converter & WZL100DF Driving Axle
Engineered to handle a 10-ton machine mass, the ZG388H upgrades its transmission system to the heavy-duty YJ320 hydraulic torque converter paired with a reinforced WZL100DF driving axle. Driven by the proven 75kW / 102HP Yuchai YC4A105Z-T20 engine, this drivetrain setup provides massive rimpull force, enabling the front bucket to slice smoothly into hard clay, packed gravel, and rocky soil mounds without engine stalling.
2. Enlarged 1.2m³ Front Bucket & 4050mm High-Reach Backhoe Dumping Height
Efficiency on the jobsite comes down to bucket volume and reach. The ZG388H features an expanded 1.2 m³ capacity front bucket (2500 kg lift rating) with an impressive 3050 mm dumping height, allowing seamless loading into high-sided tri-axle dump trucks. On the rear excavator boom, while maintaining a deep 3820 mm maximum digging depth, it achieves an extraordinary 4050 mm backhoe dumping height—giving operators the reach needed to clear high embankment edges and oversized soil haulers.
3. 10050kg Operating Weight & High-Flotation 16.9-28 Heavy-Duty Tyres
Weighing in at 10050 kg with a wide 2335 mm wheelbase, the ZG388H offers rock-solid operational stability during heavy digging without requiring excessive stabilizer deployment. The machine is equipped with large, equal-sized 16.9-28 heavy-duty construction tires, offering exceptional ground clearance, low ground pressure, superior flotation on soft muddy terrain, and high traction on rough quarry slopes.
4. Spacious ROPS/FOPS Operator Cabin & 6950mm Turning Radius
The updated luxury cab features panoramic curved glass windows, an adjustable suspension seat, high-output lighting, and ergonomic pilot control levers. Despite its 10-ton mass and overall dimensions of 6450 × 2530 × 3120 mm, a minimum turning radius of 6950 mm ensures excellent agility when working on narrow highway shoulders or confined urban infrastructure sites.
Target Heavy-Duty Application Scenarios
With its 10-ton operating weight, 1.2m³ loader bucket, and high dumping heights, the MYZG ZG388H excels in demanding earthmoving sectors:
Mining & Quarry Operations
Moving blasted stone, clearing quarry haul roads, loading aggregate trucks, and clearing overburden.
Heavy Highway Construction
Digging deep roadside drainage culverts, excavating rock foundations, and loading earthwork trailers.
Municipal & Water Pipeline Projects
Trenching deep water pipelines, backfilling earth mounds, and lifting heavy concrete drainage pipes.
Frequently Asked Questions (FAQ)
Q: What are the main upgrades on the ZG388H compared to standard backhoe loader models?
A: The ZG388H features an increased operating weight of 10050 kg, a larger 1.2 m³ front bucket, an upgraded YJ320 hydraulic torque converter, a higher backhoe dumping height of 4050 mm, and larger 16.9-28 heavy tires.
Q: What is the maximum front loader bucket capacity and dumping height?
A: The front loader is fitted with a 1.2 m³ heavy-duty bucket with a rated lift capacity of 2500 kg and a dumping height of 3050 mm.
Q: Can hydraulic hammers or quick couplers be installed on the ZG388H?
A: Yes, MYZG provides factory auxiliary hydraulic lines to support a wide range of attachments including hydraulic rock breakers, augers, quick couplers, and 4-in-1 multi-purpose buckets.
Get a Direct Factory Price Quote on the MYZG ZG388H Backhoe Loader!
Contact MYZG Machinery today for direct manufacturer pricing, custom options (cabin air conditioning, pilot joysticks, attachments), and international container shipping arrangements!
