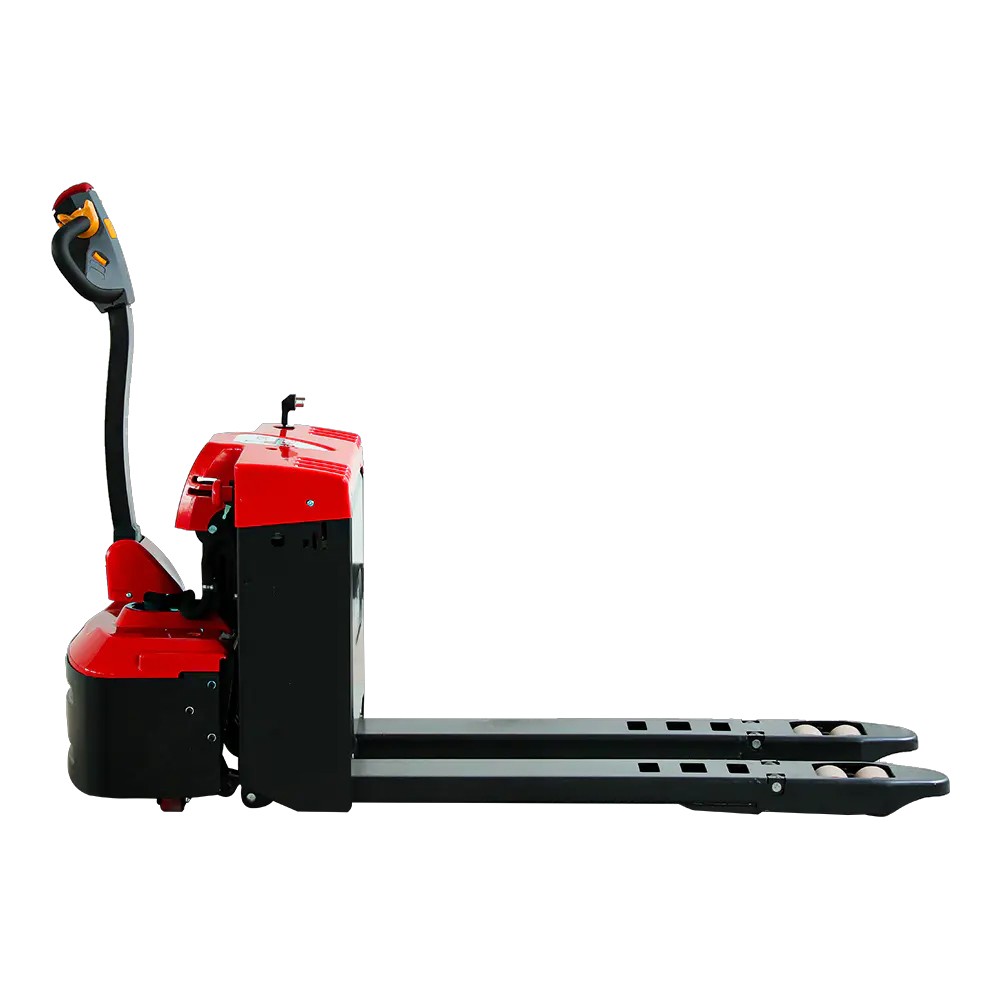

ZGLOADER / MYZG CBD-B Electric Pallet Truck

A 3-ton walkie solution for horizontal pallet flow

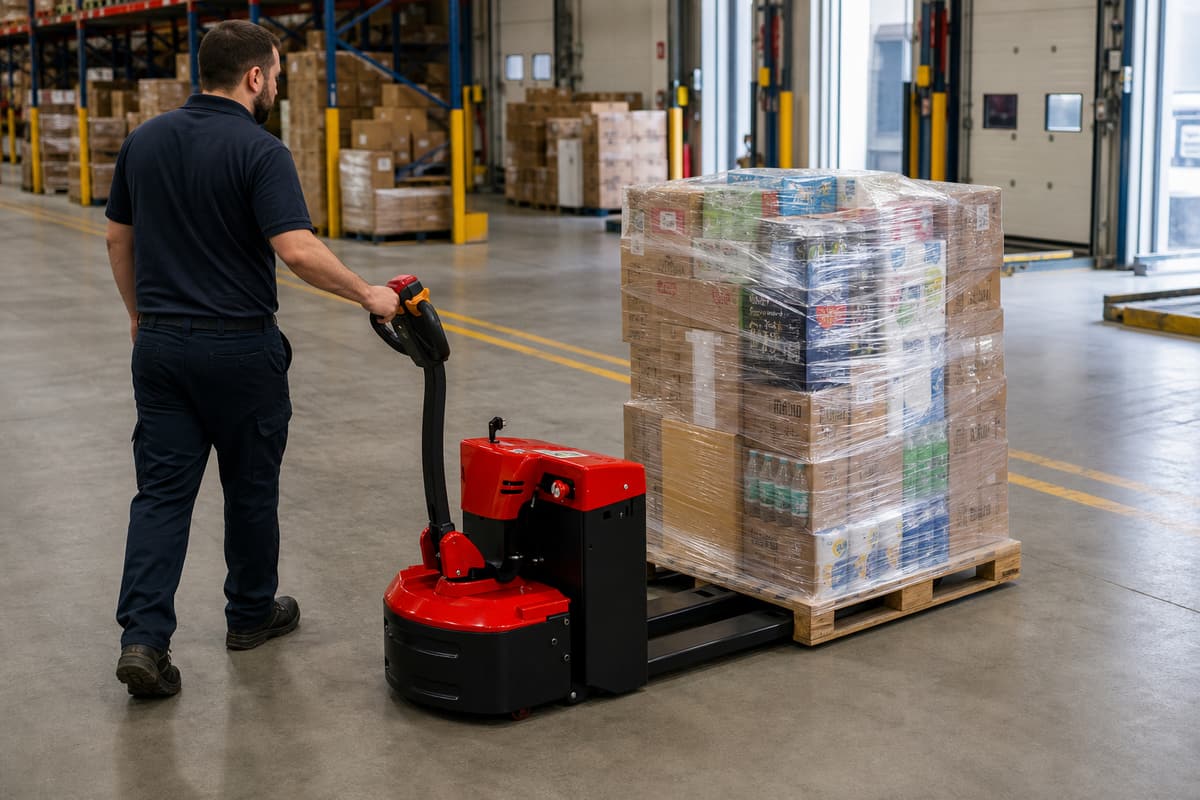

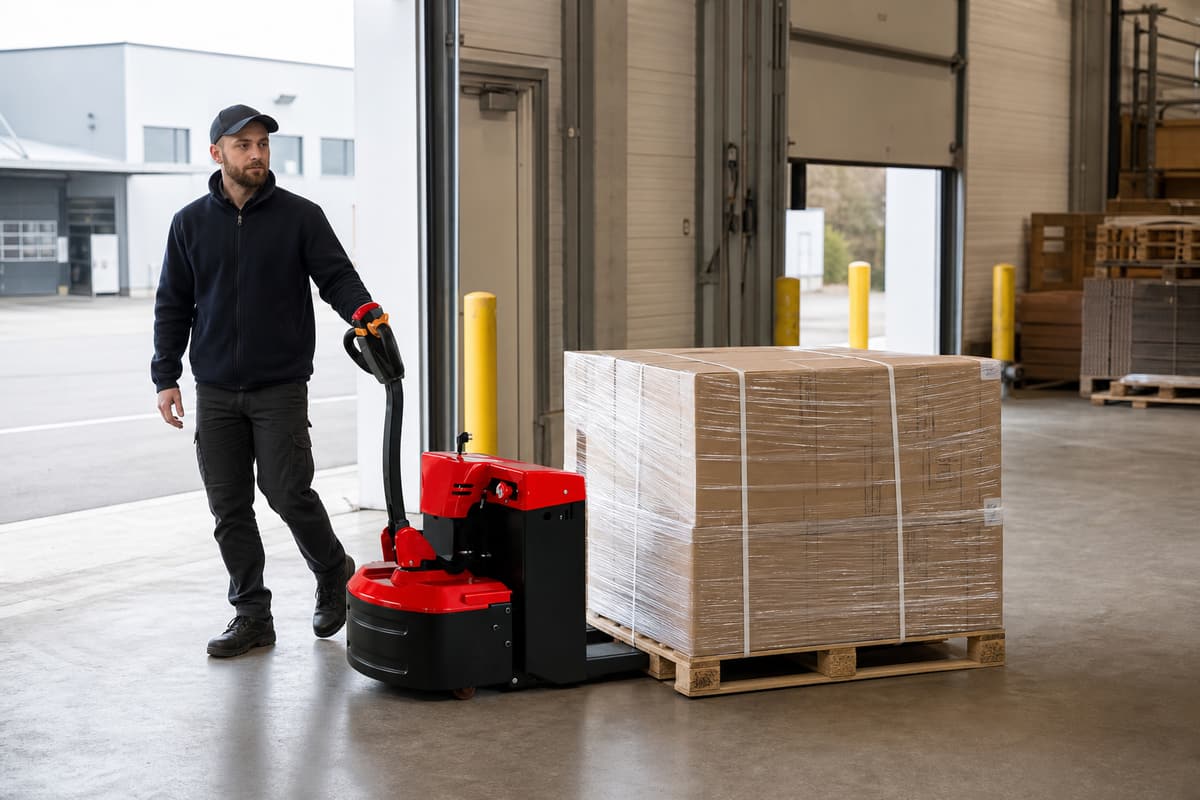

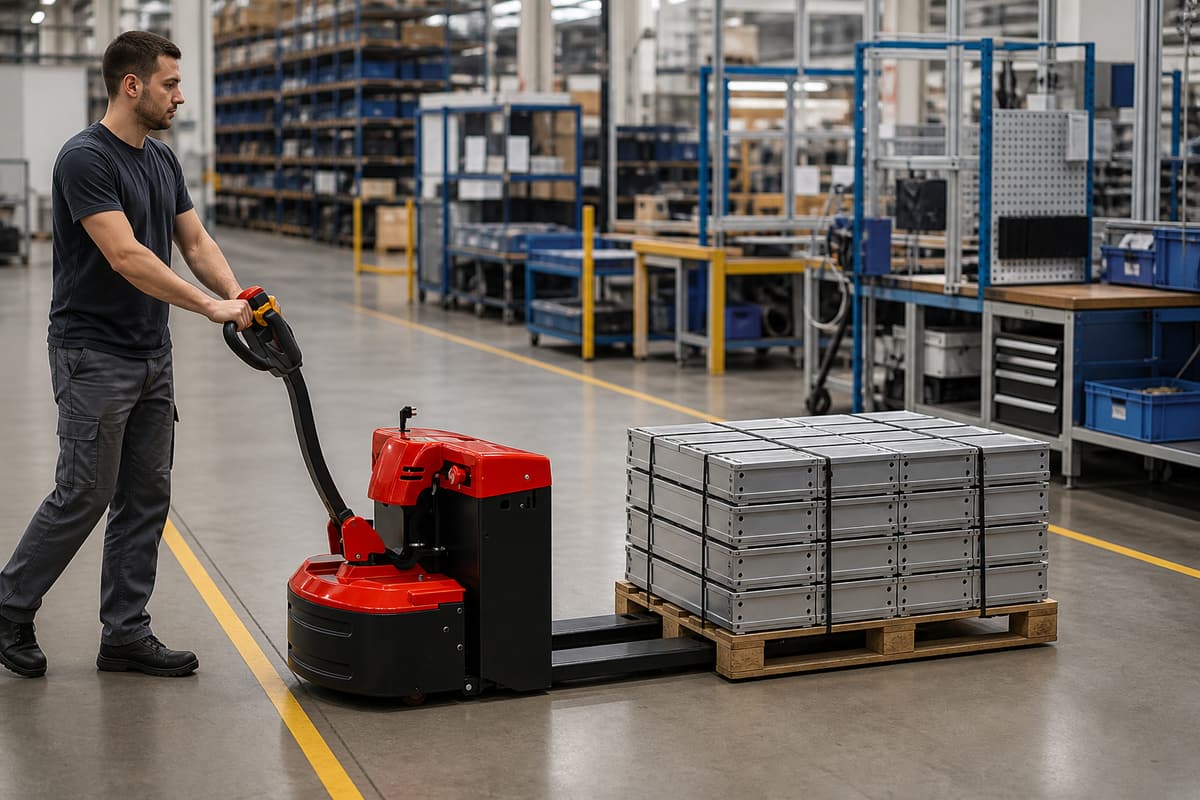

The ZGLOADER / MYZG CBD-B electric pallet truck is intended for customers who repeatedly move heavy palletized goods at floor level in receiving, warehousing, manufacturing supply and dispatch operations. Powered travel reduces the pulling effort associated with a manual pallet jack, while the walk-behind tiller arrangement supports controlled positioning at docks, staging lanes and production points. It is a horizontal transport machine, not a forklift or stacker, so it does not place pallets on racks. Its business value comes from matching a compatible pallet, a suitable level route and a realistic shift plan to a robust 3-ton handling task. browse the warehouse equipment category.

review the verified CBD-B source product.

Verified CBD-B data and configuration control

The verified source identifies model MYCBD-B with maximum load capacity of 3000 kg, overall frame length and width of 1792/720 mm, weight without battery of 330 kg and fork size of 1200*170*60 mm. The source also describes continuous use of more than seven hours, but working time depends on battery specification, battery condition, load, distance, starts, gradients, temperature and charging practice. Therefore no unconditional runtime guarantee is made here. Battery chemistry, voltage, capacity, charger, travel speed, gradeability, turning radius, braking system and wheel material must be confirmed in the written quotation and delivered documents. read application and purchasing guidance

Applications, customer needs and equipment selection

Selection begins with the actual pallet and route. Record pallet dimensions, fork pockets, entry direction, maximum combined load, load center, aisle width, turning space, travel distance, daily cycles, doorways, floor joints, dock plates, thresholds and any gradients. A 3000 kg rating alone does not prove suitability for every pallet or route. The pallet must be sound, both forks fully engaged, the mass centered and the floor rated for the combined load. For stacking, elevated loading, rough outdoor ground or very long high-throughput travel, compare a stacker, forklift, rider pallet truck or other appropriate equipment instead of forcing one machine into the wrong duty.

Safe workflow, battery care and maintenance

Before each shift inspect forks, frame, welds, load rollers, drive and support wheels, tiller, travel controls, horn, emergency functions, guards, fasteners, battery connector, cables and visible hydraulic parts. Test steering, braking and control response in a clear area according to the delivered manual. Approach the pallet squarely, insert both forks completely, raise only enough to clear the floor and move at a controlled walking speed. Maintain visibility, slow before turns and dock transitions, keep pedestrians outside the operating zone, never carry riders and park on level ground with forks lowered. Charging and isolation procedures must follow the supplied instructions and local workplace rules.

Safe workflow, battery care and maintenance

Battery care, planned inspection and parts availability determine uptime. Confirm battery type, connector, charger input, charging window, ventilation or site requirements, ambient temperature and replacement route before ordering. Keep connectors clean and dry, avoid unauthorised charger combinations and record charge cycles or faults according to the battery supplier guidance. Maintenance includes cleaning debris from wheels and rollers, checking wear and damage, tightening specified fasteners, monitoring hydraulic leakage and replacing safety-related components promptly. Service intervals follow load, distance, floor condition and shift intensity; a documented checklist supports consistent maintenance across a fleet.

Total ownership cost and parts planning

Total ownership cost includes purchase price, battery, charger, energy, wheels, rollers, bearings, seals, switches, contactors, cables, brakes, freight, documents, planned service, downtime and operator time. A lower initial price can be offset by wrong fork fit, insufficient charging time or unavailable wear parts. Dealers and rental partners create value through site surveys, commissioning, operator familiarization, configuration records, local parts stocking and a clear technical escalation route. Shandong Zhuogong Machinery equipment Co.,Ltd supports ZGLOADER / MYZG configuration review, export coordination and after-sales communication without inventing customer names, certificate numbers or unsupported performance figures.

Compliance, export service and dealer support

CE-related documentation, labels, manuals and destination requirements depend on the final configuration and market and must be confirmed before contract. EPA engine-emission requirements do not apply to a battery-electric pallet truck in the same way as diesel equipment, but battery transport, electrical safety, product labeling and workplace rules still require review. A useful quotation request includes pallet and load data, route drawing, floor and ramp details, shift pattern, charging window, destination, delivery terms, documents and spare-parts expectations. This turns the product page into a practical selection step and helps the supplier, dealer and end user agree on a verifiable solution.

Request a job-matched quotation

Send pallet dimensions, maximum load, route distance, aisle and floor conditions, daily cycles, battery and charger needs, destination, delivery terms and required documents for a comparable quotation. contact the MYZG export team.
