ZGLOADER / MYZG 2-3T Electronic Scale Pallet Truck

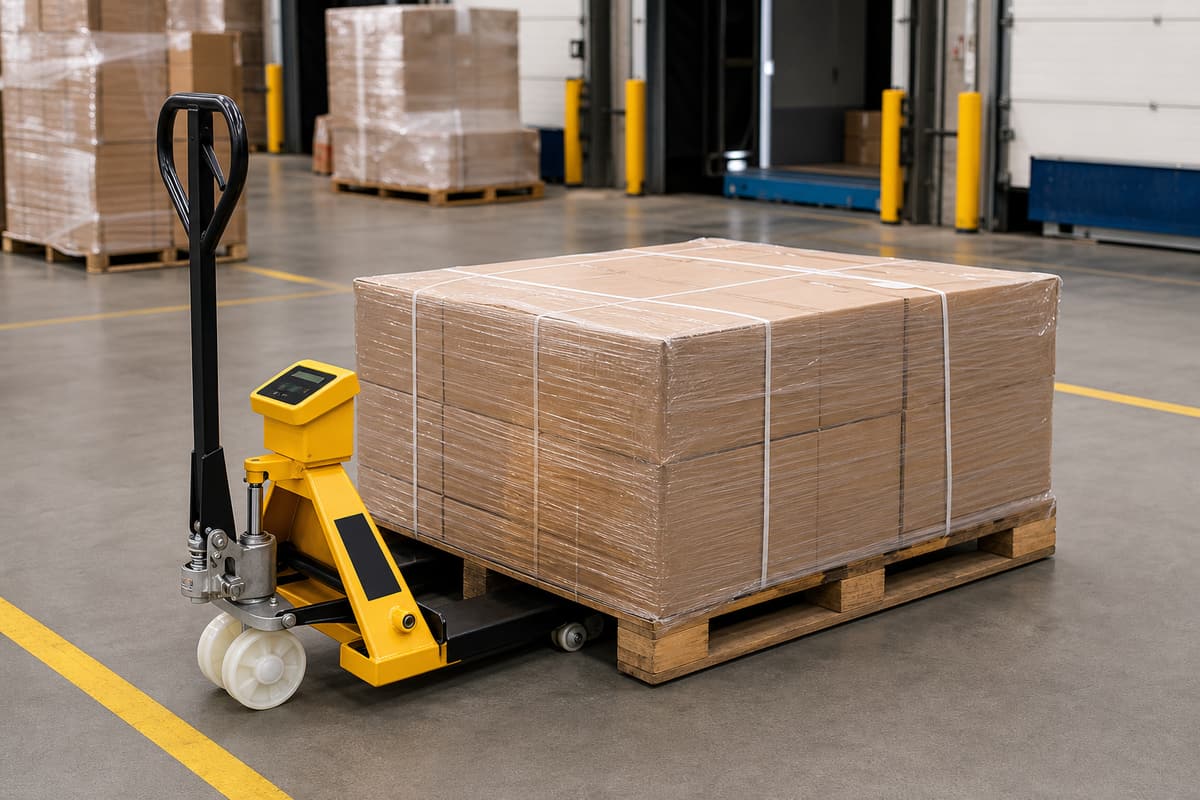

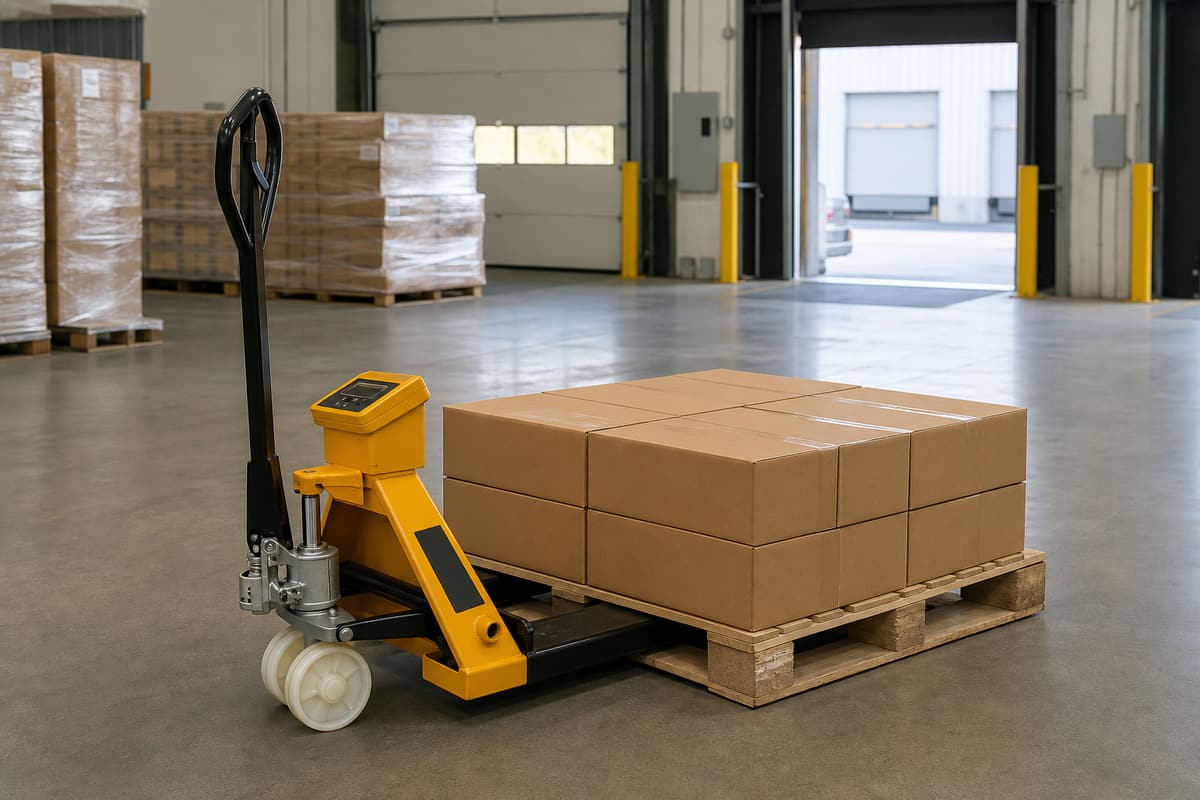

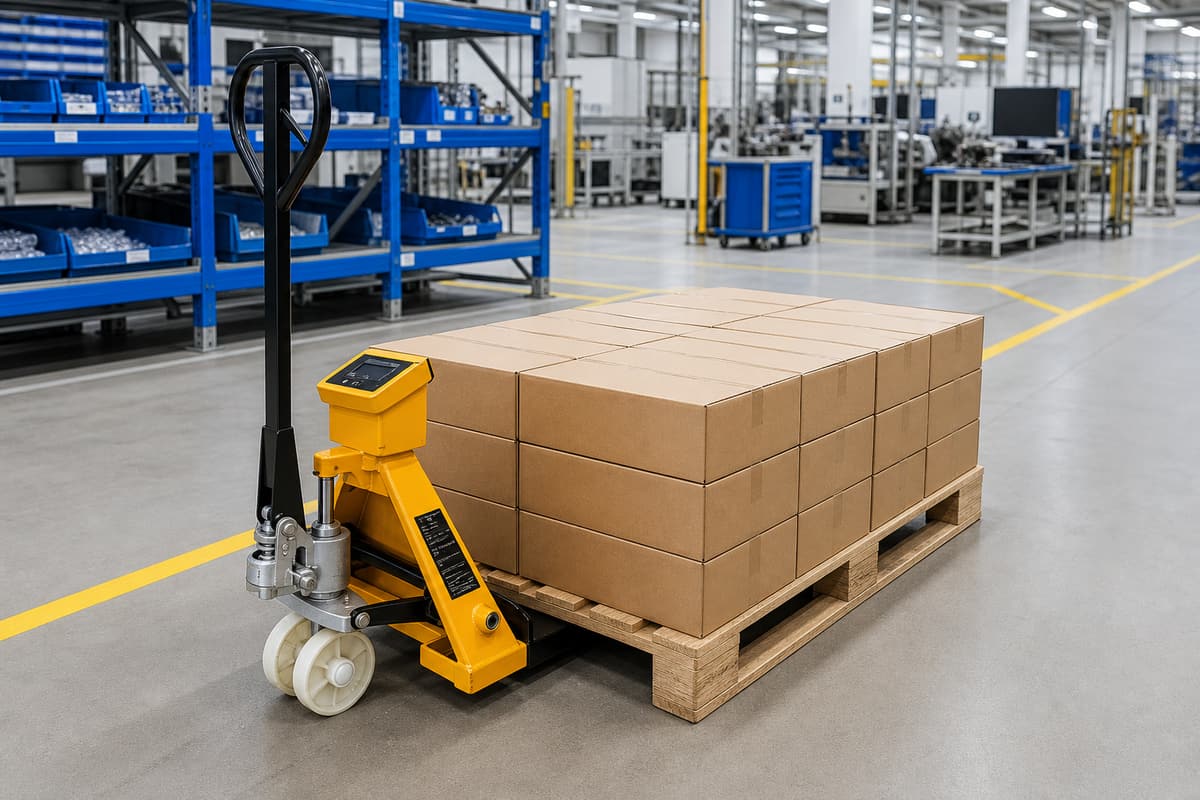

Move and weigh in one controlled workflow
A mobile scale pallet truck can reduce duplicate handling when receiving, production supply, stock control or dispatch requires a weight check close to the pallet. It remains a manual hydraulic handling device, so route length, floor condition, operator effort and pallet entry must be evaluated together with the weighing function. The display supports process checks, but trade-approved or legal-for-trade use must be confirmed separately for the destination and application. view the material-handling category.
review the verified source product.

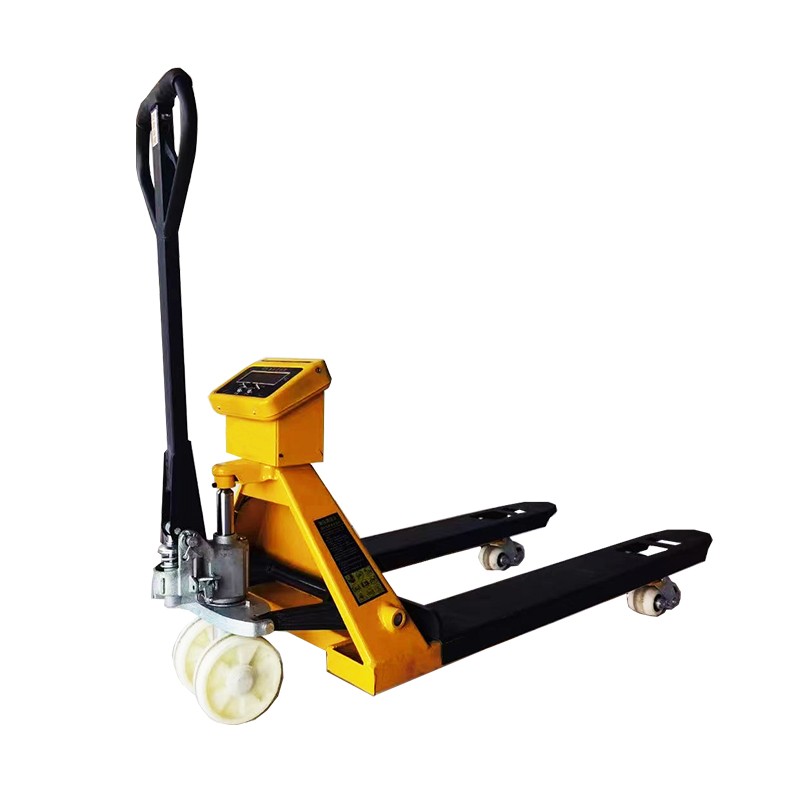

High Quality 2000kg 3000kg Electronic scale pallet truck
PRODUCT FEATURE
Description:
The distinctive structural design of key components not only can accept strong impact, but also makes the height as lower as 75mm when the hydraulic part is released. Applicable to industrial and mining enterprises and it's the best choice for weighing moving cargo in short distance The nylon wheels are suitable to for low drag efforts, high resistance to chemicals and non-marking traces. The polyurethane wheels are suitable to the light floor, quiet and durable. Various indicators are available and it can be used in different situation Stainless steel extends the using range to factory plant, chemical industries, etc.
2000//3000KG
- Maximize efficiency when loading & unloading goods
- Minimize floor space
- Accurate, Flexible & Mobile Weighing system
- Suitable for industrial use
- Intelligent auto back-light
- Large screen,easy to view
- Foot brake(optional)
- Bulit-in printer(optional)
THE MAIN PARAMETER
| Rated load | kg | 2000 | 3000 |
| Carrying wheel | mm | φ75x60 | φ80x70 |
| Steering wheel | mm | φ160x50 | φ180x50 |
| Fork lowest height | mm | 85 | 88 |
| Max.fork height | mm | 200 | 203 |
| Fork size | mm | 55/160 | |
| Fork length | mm | 1150/1220 | |
| Overall height | mm | 1200 | |
| Fork width | mm | 540/685 | |
| Overall length | mm | 1550/1620 | |
| Battery | V/Ah | 7.4/4 | |
| Battery life | h | 40 | |
| Battery type | DL | Lithium | |
| Display mode | FS | L C D | |
| N.W | kg | 95 | 97 |
Key Features:
High Capacity: Effortlessly handles loads from 2 to 3 tons, accommodating a wide range of materials.
Integrated Scale: Precisely weighs loads during lifting and transportation, eliminating the need for separate weighing stations.
Digital Display: Easy-to-read digital display provides accurate weight readings in real-time.
Ergonomic Design: Comfortable and easy to operate with ergonomic handles and smooth hydraulic lifting.
Durable Construction: Built with robust materials for long-lasting performance in demanding environments.
Battery Powered: Offers convenient and efficient operation with a reliable battery system.
Data Logging and Connectivity: (Optional) Integrate with data logging and connectivity options for seamless data management and integration with existing systems.
1. Certificate: CE&GS
2. Safe&Easy to operate: Full adjustable push rods under forks ensure stability of forks.
3. Durable: Top quality hydraulic is made by investment casting, Hard chrome plated position and pump Plunger ensure wear-resistant and corrosion reistance.
4. Environmental: Hand pallet truck, more environmental.
5. Customer's demands: Special specification can be manufactured according to customer's demands.
Advantages of a Manual Pallet Truck with an Electronic Scale
Precision and Efficiency
A manual pallet truck with an electronic scale allows for precise weight measurements directly at the point of loading. This enhances efficiency by combining two functions into one, reducing the need for separate weighing stations and minimizing time spent on material handling tasks.
Improved Accuracy
The integrated electronic scale provides accurate weight readings, helping to avoid overloading and ensuring compliance with weight regulations. This accuracy is essential for maintaining the integrity of shipping and receiving processes, as well as for inventory management.
Cost Savings
By integrating weighing capabilities into the pallet truck, businesses can save on the cost of purchasing separate scales and reduce labor costs associated with additional handling steps. This all-in-one solution streamlines operations and enhances productivity.
Enhanced Safety
Knowing the exact weight of loads reduces the risk of accidents caused by overloading. The electronic scale helps operators make informed decisions about load handling, contributing to a safer work environment.
Verified product reference
Start selection with the heaviest pallet, pallet dimensions, fork-entry direction, minimum fork height, route distance, floor joints, thresholds and turning space. Confirm whether the process needs gross weight only, tare and net functions, accumulation, printing or data output. These options must be written into the quotation; they should never be assumed from a product photograph. The verified source capacity range is 2000–3000 kg, unladen weight 95–97 kg and scale battery reference 7.4 V / Ah. read application and buying content
Applications and operating fit
Good weighing practice begins with a level, stable surface and a centered pallet fully supported by both forks. Avoid shock loading, side contact, uneven floors and weighing while the load is moving. Allow the display to stabilize and follow the delivered zero, tare and calibration instructions. When accuracy affects billing, regulated trade or quality release, verify the required certification, tolerance and inspection method with the responsible authority before purchase.
Buying and configuration checklist
Daily checks cover forks, welds, steering wheels, load rollers, hydraulic leakage, lowering control, handle return, scale housing, cables, connectors and battery condition. Keep the platform clean and dry, protect the display from impacts and do not pressure-wash electrical components unless the delivered instructions explicitly allow it. Periodic verification with approved reference weights helps identify drift; service and calibration intervals follow duty severity and local requirements.
Accuracy care and maintenance
Total ownership cost includes wheels, rollers, hydraulic seals, bearings, scale battery, load cells, display components, calibration or verification, downtime and operator time. Dealers and rental companies can create value by surveying the application, recording the delivered configuration, training users and maintaining a local wear-parts plan. A customer buys a more reliable receiving or dispatch process, not only a pallet jack with a screen.
Ownership, dealer and export support
CE-related documentation and destination requirements depend on the final configuration and market and must be confirmed before contract. EPA engine-emission programs do not apply to a manual hydraulic pallet truck in the same way as diesel machinery, but destination rules, battery transport, labels, manuals and weighing regulations still require review. Shandong Zhuogong Machinery equipment Co.,Ltd does not invent certificate numbers, named customers or unsupported accuracy claims.
Request a job-matched quotation
Send pallet size, maximum mass, fork-entry direction, route and floor conditions, daily cycles, required weighing functions, accuracy or legal-for-trade needs, destination and documents for a comparable quotation. contact the MYZG export team.
