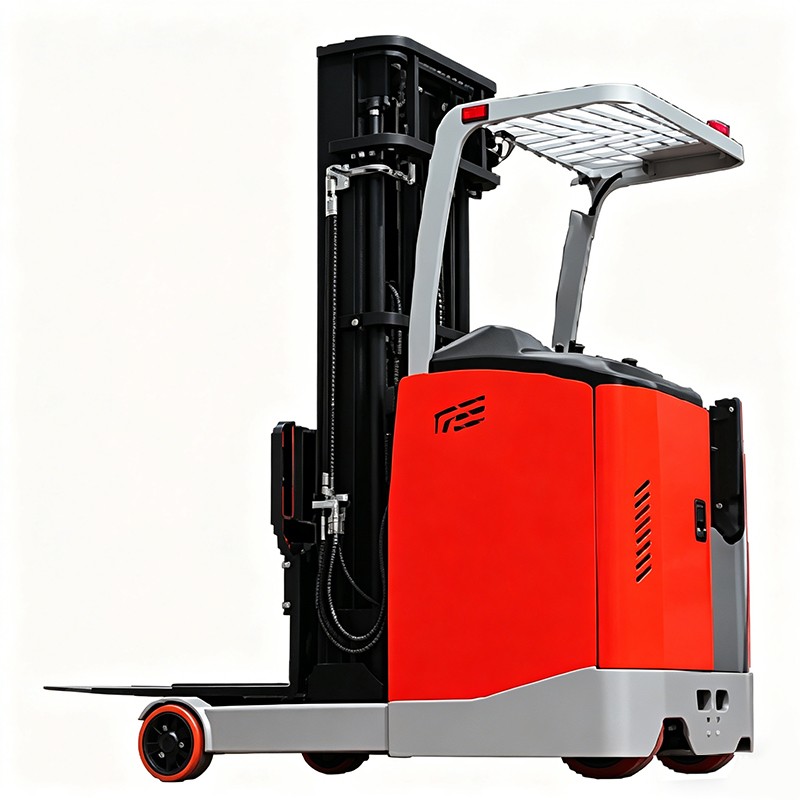

ZGLOADER / MYZG CQD15M-80S Electric Reach Truck
ZGLOADER / MYZG CQD15M-80S Electric Reach Truck
Application-led narrow-aisle solution
The CQD15M-80S is designed for high-density warehouses that must place palletized goods accurately while preserving aisle space. The verified source model combines a 1500 kg rated load, 500 mm load center and 8000 mm lift reference in a compact electric reach-truck format. This page connects those facts to route planning, rack work, purchasing and long-term support. view All Products stacker solutions.
Verified source specifications
review the verified CQD15M-80S source product.
MYZG CQD15M-80S Electric Reach Truck: Elevate Your Warehouse Productivity
Manufactured by Shandong Zhuogong Machinery equipment Co.,Ltd — ZGLOADER / MYZG, the CQD15M-80S is the ultimate solution for operators who require precision, safety, and zero-emission power in narrow-aisle environments.
⚡ High-Performance AC Drive & Energy Efficiency
The CQD15M-80S is built on a cutting-edge AC electric platform, delivering instantaneous torque and smooth control.
Powerful AC Motors: Equipped with a 6.5kW AC drive motor and a robust 15kW AC lift motor, providing the lifting speed and travel power needed for high-intensity work cycles.
Massive Battery Capacity: Powered by a high-endurance 48V/400Ah lead-acid battery, designed to sustain long shifts without frequent recharging.
Intelligent AC Control: The advanced AC controller ensures precise micro-movements, allowing for surgical placement of pallets at maximum height.
Standard Industrial Charging: Includes a matched 48V/50Ah charger, ensuring your fleet is ready for action after a standard charge cycle.
Technical Specifications: CQD15M-80S Model
Characteristic
Model
CQD15M-80S
Power
Electric
Operation Mode
Standing type
Load Capacity
Q(kg)
1500
Load Center
C(mm)
500
Wheelbase
Y(mm)
1693
Reach Distance
L(mm)
565
Weight
Service Weight（With Battery）
kg
3355
Wheels,
Chassis
Wheel Type
Polyurethane
Front Wheel
∅×w(mm)
267*114
Drive Wheel
∅×w(mm)
382*142
Specification of balance wheel
∅×w(mm)
180*76
Wheel Tread, Front wheel
b10(mm)
1155
Dimensions
Mast Height Lowered
h1(mm)
3210
Free Lift
h2(mm)
2320
Lifting Height
h3(mm)
8000
Height,mast entended
h4(mm)
8965
Height of overhead guards
h14(mm)
2305/2260
Fork face min.ground clearance
h13(mm)
40
Fork tilting angle Front/Rear
α/β（°）
3/5
Overall length (Without/With fork)
l2(mm)
2060/2550
Overall Width
b1(mm)
1270
Fork Size
s/e/l(mm)
40/122/1070
Fork Spread
b5(mm)
244-700
Min.ground clearance
m2(mm)
80
Aisle Width for Pallet 1000*1200 crossways
Ast(mm)
3042
Min.turning radius
Wa(mm)
1996
Performance
Max.travel speed (Unladen/Laden)
km/h
8/7
Lifting speed (Unladen/Laden)
m/s
0.280/0.200
Lowering speed (Unladen/Laden)
m/s
0.330/0.400
Max.gradeability (Unladen/Laden)
％
≤10
Service Brake
Electromagnetic
Motor,
Charger
Drive Motor
kw
6.5AC
Lift Motor
kw
15AC
Battery Type
Lead-acid
Battery voltage/nominal capacity
V/Ah
48V400Ah
Charger
V/Ah
48V/50A
Other
Type of Drive Control
AC
Sound level at the driver's ear acc. to EN12053
dB(A)
75
Superior Safety & Structural Engineering
At an 8-meter reach, stability is not optional. The CQD15M-80S is engineered with multiple layers of operator and load protection.
1. Robust Mast Construction
The multi-stage mast is designed with high-strength manganese steel to minimize swaying at full extension. With a free lift height of 2320mm, it can operate efficiently in areas with low overhead clearance before full extension is required.
2. Intelligent Braking System
Equipped with an electromagnetic service brake, the CQD15M-80S provides reliable, instantaneous stopping power, crucial for safety when moving heavy 1500kg loads in tight corridors.
3. Operator Protection
The Standing Type operation mode is designed for ergonomics and visibility. The overhead guard (2305mm height) ensures the operator remains protected from falling debris while maintaining a clear line of sight to the racking tiers.
Performance Features for Narrow-Aisle Excellence
Polyurethane (PU) Wheels: High-durability, non-marking wheels provide excellent traction and floor protection, making this reach truck ideal for high-end warehouse floors.
Mast Tilting Capability: Features a 3/5 degree front/rear tilt, allowing for easier pallet engagement and increased load stability during transit.
Compact Maneuverability: With a width of only 1270mm and a turning radius of 1996mm, this machine thrives in aisles where standard forklifts cannot navigate.
Zero Emissions: Being 100% electric, it is the premier choice for food, pharmaceutical, and indoor logistics hubs, where air quality is a priority.

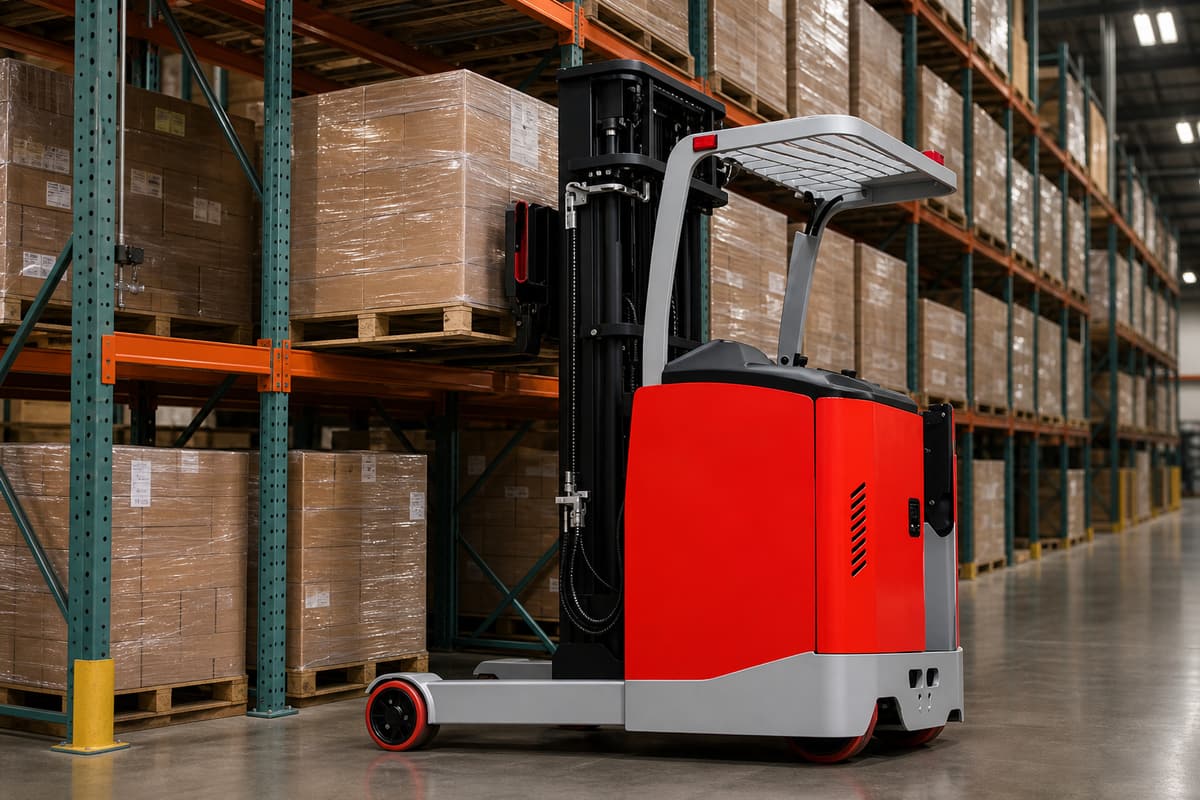

Ideal Industry Applications
The MYZG CQD15M-80S is the preferred choice for:
Third-Party Logistics (3PL): High-speed picking and stacking in high-density facilities.
Cold Storage: Compact design reduces the space required for aisles, lowering cooling costs.

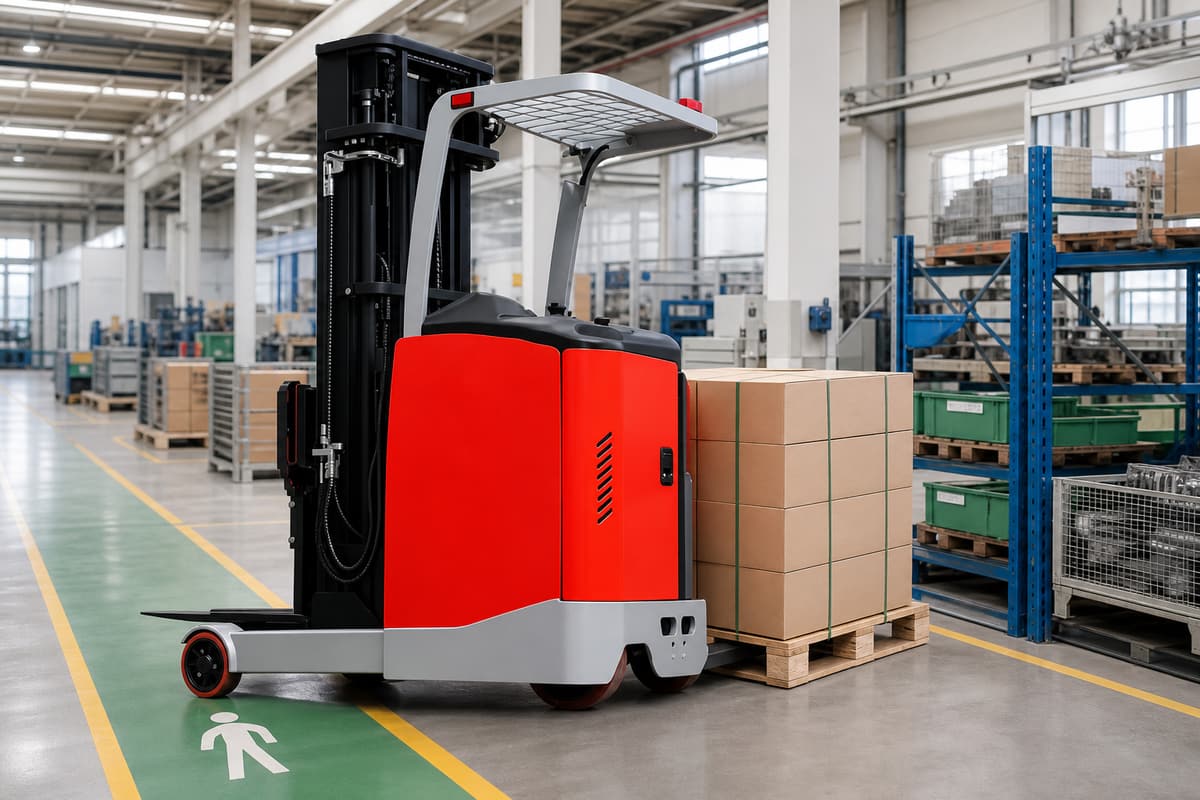

Manufacturing Parts Storage: Efficient handling of components in narrow lineside storage areas.
E-commerce Fulfillment: Rapidly reaching high-tier racking for inventory management.
Buying, ownership and service guidance

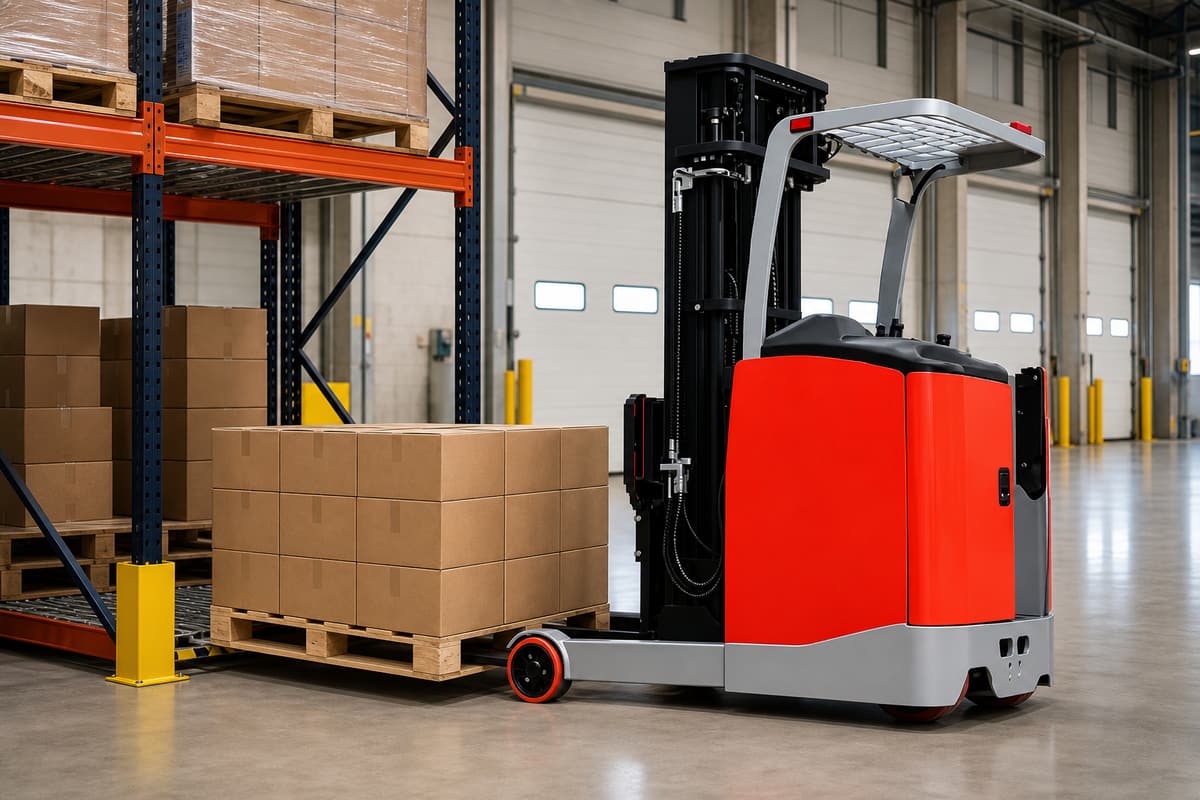

Use the machine for receiving, pallet staging, rack replenishment, production supply and dispatch only after the pallet, aisle, floor and residual capacity have been checked. Measure the heaviest load, pallet depth, fork-entry direction, target beam, doorway, overhead obstruction and turning envelope. The nominal rating is not a promise at every height; request the load chart for the proposed mast and battery configuration before approving the order.
A comparable quotation should state the selected mast, residual capacity at the required height, battery and charger, fork dimensions, wheel material, documentation, packing, spares, warranty scope and destination power supply. Maintenance planning should cover daily inspections, mast chains, rollers, forks, wheels, hydraulic leakage, battery care and safe charging. Dealers and rental operators can build repeat business by qualifying the application, documenting handover and stocking confirmed wear parts rather than selling only a capacity figure. read application and buying content.
Request a job-matched quotation
Send pallet dimensions, maximum mass, target height, aisle and doorway measurements, operating hours, floor condition, destination and document requirements for a job-matched quotation. contact the MYZG export team.
