Faster pallet movement with a compact rider platform

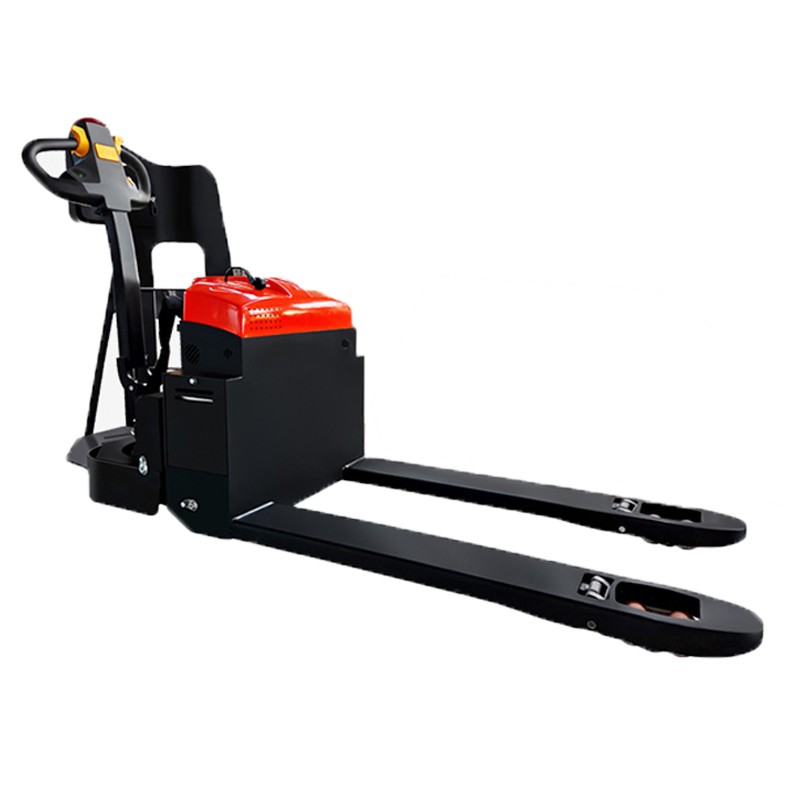

The CBD15 electric pallet truck is built for horizontal pallet movement where repeated walking, tight aisles and dispatch pressure reduce productivity. Its foldable rider platform lets an operator travel with the machine during suitable longer runs, while the compact tiller layout supports controlled positioning near racks, production lines and loading doors. The verified source states a 1500 kg load capacity, 232 kg unladen weight and 1750 × 690 × 1130 mm outline dimensions. These are the only dimensional and capacity facts used here; battery, speed, gradeability, fork dimensions and optional equipment must be confirmed in the final quotation. browse the material-handling category.
review the verified CBD15 source product.
THE WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE
The rider pallet truck is one of the A series pallet truck models. Using the latest AC drive technology, advanced performance, comfort, safe, reliable, low maintenance cost, is the ideal tool for heavy duty and long distance transport operations.
The pedal applies shock absorption design, greatly improve the operator's comfort, reduce the fatigue
Optimized designing structure to offer a good visibility and easy entrance of the pallet
Side battery change is standard feature
Simple and beautiful tiller designed to make the operator feel comfortable, all the operation can be completed by one hand
THE MAIN PARAMETER
| Tramp type | |||
| Model | CBD15 | max. lifting height | 200MM |
| Power source | Electric | fork lowing height | 80MM |
| Load capacity | 1500KG | fork length | 1160MM |
| Outline dimension | 1750x690x1130mm | single fork width | 165MM |
| Steering type | Mechanical | fork outside width | 680MM |
| Battery type | Lead-acid maintenance-free battery | min. ground clearance | 30MM |
| Operation type | Mechanical | turning radius | 1475MM |
| Weight unladen | 232KG | driving speed | 4/4.5km/h |
| Load capacity | 1500KG | lifting speed | 50/60km/h |
| Load centre distance | 600MM | declining speed | 45/40km/h |
| wheel base | 1360MM | max. grade ability | 6/15% |
| drive wheel size | 210*70MM | drive motor power | 0.75 |
| bearing wheel size | 80*60MM | lifting motor power | 0.8 |
| balance wheel size | 70*40MM | battery voltage | 2*12*70v/Ah |
STANDARD FEATURES
Reliability
Top quality hydraulic power unit applied to provide low noise, low vibration, smooth lifting and landing reliable operation. Punch formed forks to provide more strength and tip guide to provide higher efficient operation.
Appearance
Applied steel stamping and injection molding processes for front and back guard, which is robust, durable, and also environmental compliance.
Comfort
The compact body and semicircular design provide an ideal operation in limited space, and the wedge designed chassis greatly increases the passing ability.
Maintenance
AC motor without carbon brushes, maintenance-free, cost saving.
High performance
Powered by AC traction motor not only has good acceleration and climbing performance, but also low heat, brushless, maintenance-free.
Verified CBD15 product reference

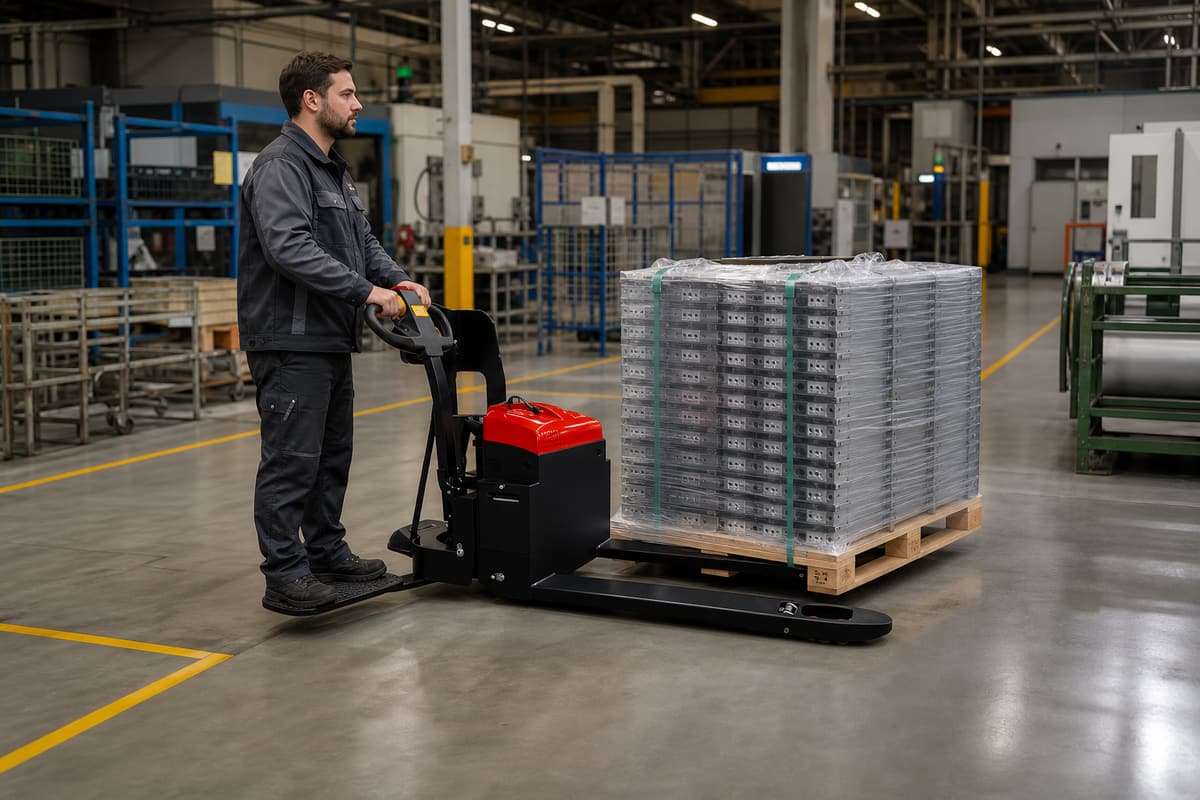

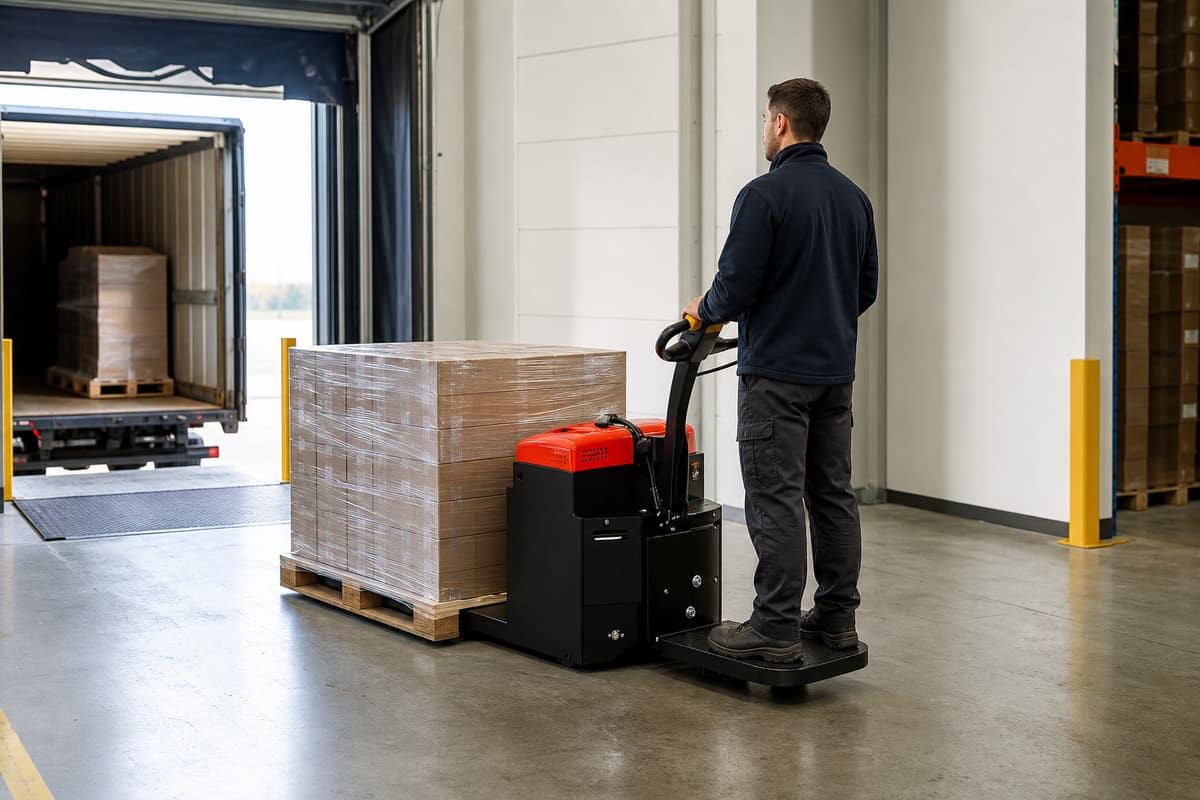

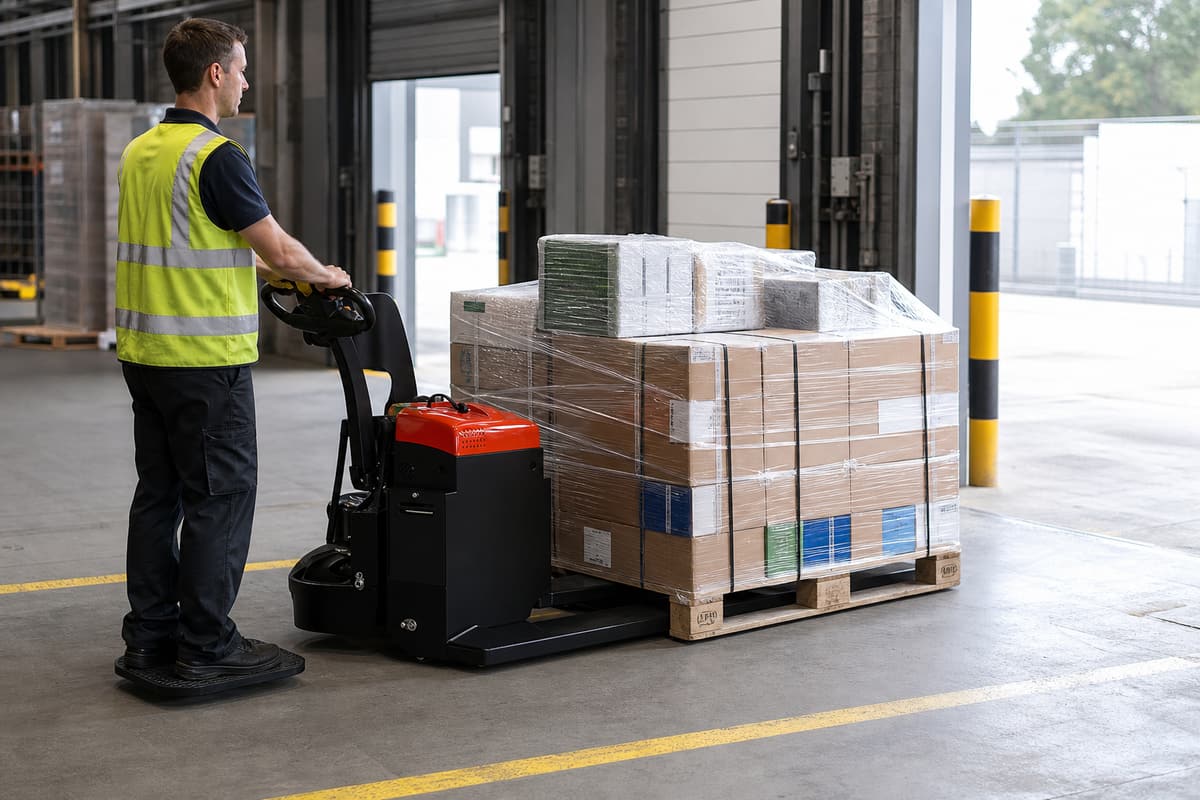

Typical applications include inbound pallet transfer, production-line replenishment, warehouse cross-aisle transport, order consolidation and outbound staging. Choose this configuration when the load stays on a pallet and the main task is horizontal movement rather than stacking. Start the buying process with pallet type, fork-entry direction, maximum verified load, route length, aisle width, turning space, dock plates, thresholds, ramps and floor quality. A site survey prevents choosing by rated capacity alone and helps define whether pedestrian or rider operation is appropriate for each part of the route. read application and purchasing guidance
Applications and equipment selection
Safe work begins with a route free of pedestrians and loose debris, a stable pallet, a centered load and forks inserted completely. Operators should use the platform only where the delivered instructions and site rules permit, reduce speed before turns and dock transitions, maintain visibility and park with the forks lowered. Daily care includes checking forks, load rollers, drive and steering wheels, tiller functions, emergency controls, platform hinge, guards, fasteners, battery connector, cable condition and charging area. Cleaning, charging and inspection routines should follow the delivered manual and local safety rules.
Operating workflow and maintenance
Total ownership cost is shaped by energy use, battery care, wheels and rollers, brakes, switches, contactors, seals, bearings, charger condition, planned service and downtime. Buyers should compare route productivity and operator travel time instead of looking only at purchase price. A practical parts plan identifies normal wear items and the configuration delivered to each serial-numbered unit. Dealers and rental partners can add value through application surveys, commissioning, operator familiarization, scheduled inspection, parts stocking and clear escalation channels for technical questions.
Total ownership cost and parts planning
CE-related documentation and market requirements depend on final configuration and destination and must be checked before contract. EPA engine-emission requirements do not apply to a battery-electric pallet truck in the same way as diesel equipment, but battery transport rules, electrical standards, labels, manuals and local workplace requirements still need review. Shandong Zhuogong Machinery equipment Co.,Ltd provides export coordination and service communication without inventing certificate numbers, named customers, performance figures or options that are not confirmed for the supplied unit.
Trust, export and dealer support
A useful quotation request includes pallet dimensions and openings, maximum load, average and peak travel distance, floor and ramp details, shift pattern, charging window, ambient temperature, doorway and aisle limits, destination, requested documents and after-sales expectations. This information allows ZGLOADER / MYZG to match the actual workflow and explain what is standard, optional or market-dependent. The objective is a dependable material-flow solution with measurable operating fit, not an unsupported list of claims.
Request a job-matched quotation
Send your pallet, load, route, floor, shift, charging, destination and documentation requirements to receive a clear configuration review and quotation. contact the MYZG export team.
