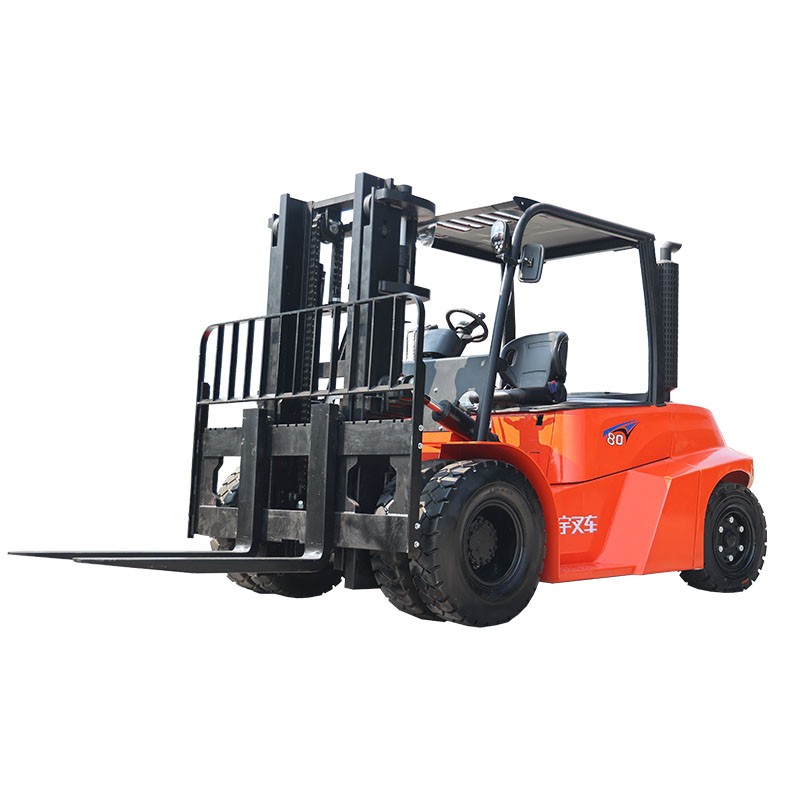

ZGFORKLIFT / MYZG CPC80 8 Ton Diesel Forklift
ZGFORKLIFT / MYZG CPC80 8 Ton Diesel Forklift for Industrial Material Handling
A robust 8000 kg counterbalance forklift with multiple diesel engine options, 22 km/h full-load travel speed, 20% gradeability and a stable 9780 kg chassis for demanding outdoor shifts.
Overview: dependable diesel torque for productive material handling
The ZGFORKLIFT / MYZG CPC80 is a 8 ton industrial diesel forklift manufactured by Shandong Zhuogong Machinery Equipment Co., Ltd. for logistics yards, building-material plants, timber depots, factories, farms and distribution centers. Its straightforward diesel powertrain is designed for continuous work where fast refueling, strong low-speed torque and outdoor durability are operational priorities.
The available diesel engine packages supply the torque required to lift a rated 8000 kg at a 500 mm load center. A 9780 kg unladen mass, 2300 mm wheelbase, 200 mm ground clearance, dual 8.25-15-16 front tyres and 250-15-16 rear tyres give the CPC80 a stable base for controlled operation in industrial yards.
MYZG CPC80 factory technical specifications
The table presents the mechanical, dimensional and performance data for this 8000 kg diesel counterbalance forklift. Final mast, fork, tyre, cab, engine-emission and attachment selections should be confirmed for the destination market and actual load.
| Model | CPC80 (8.0T-D series) |
| Power type | Internal-combustion diesel engine |
| Engine options | Mitsubishi / Isuzu / Xinchai / Quanchai / Cummins |
| Rated capacity | 8000 kg |
| Load center | 500 mm |
| Operator position | Seated operator |
| Overall length with/without forks | 4990 / 3470 mm |
| Overall width | 1980 mm |
| Lowered mast/overhead guard height | 2240 / 2380 mm |
| Maximum working height | 4210 mm |
| Standard lift | 3000 mm |
| Minimum turning radius | 3200 mm |
| Mast tilt forward/backward | 6° / 12° |
| Full-load lifting speed | 340 mm/s |
| Full-load travel speed | 22 km/h |
| Maximum gradeability | 20% |
| Unladen net weight | 9780 kg |
| Transmission options | Manual or electromagnetic hydraulic |
| Fork adjustment range | 300–1845 mm |
| Front/rear tyre size | 8.25-15-16 dual / 250-15-16 |
| Fully loaded mass | 17780 kg |
| Wheelbase/ground clearance | 2300 / 200 mm |
| Front overhang | 550 mm |
| Front/rear wheel track | 1500 / 1750 mm |
Engineering design and principal advantages
1. Multiple diesel engine and transmission options
The CPC80 can be configured with Mitsubishi, Isuzu, Xinchai, Quanchai or Cummins diesel power. Manual hydraulic or electromagnetic hydraulic transmission options support different operating preferences. The hydraulic system delivers 340 mm/s full-load lifting speed, while full-load travel speed reaches 22 km/h.
2. 3200 mm turning radius with stable 9780 kg weight
A 1980 mm overall width, 3470 mm length without forks and 3200 mm turning radius define the CPC80 working envelope. The 9780 kg chassis, 1500 mm front track, 1750 mm rear track and 2300 mm wheelbase provide a stable counterbalance foundation when the approved load chart is followed.
3. Dual front tyres and practical ground clearance
Dual 8.25-15-16 front tyres and 250-15-16 rear tyres provide traction and load support for this outdoor diesel forklift. Minimum ground clearance is 200 mm, helping the machine cross normal yard joints and prepared surface irregularities while the operator maintains a safe controlled speed.
4. 3000 mm standard lift and operator-focused mast design
The standard mast lifts 3000 mm, with a 6° forward and 12° backward tilt. The lowered mast is 2240 mm high, the overhead guard is 2380 mm high, and the maximum working height reaches 4210 mm. A wide-view mast and clear instrumentation support safe operation.
Recommended application environments
The CPC80 combines durable construction, diesel endurance and 8000 kg capacity for heavy-duty outdoor and mixed industrial handling when ventilation, floor strength, traffic control and load stability have been assessed.
Construction materials and stone yards
Move brick pallets, bagged cement, formwork, tools, tiles and prepared stone products between storage areas, production lines and transport vehicles.
Timber, agriculture and manufacturing
Handle lumber packs, farm supplies, machinery parts, steel components and palletized raw materials on prepared surfaces using suitable forks or approved attachments.
Warehouses, logistics yards and truck loading
Transfer export cargo, containers, pallets and packaged products where a diesel truck can be refueled quickly and operated in properly ventilated or outdoor work zones.
Frequently asked questions
Which engine is used in the CPC80?
Available engine packages may include Quanchai, Xinchai, Mitsubishi, Isuzu or Cummins. The final engine and emission package should be confirmed for the destination market and operating conditions.
What is the turning radius of this 8 ton diesel forklift?
The documented minimum turning radius is 3200 mm. Buyers should add clearance for the actual pallet, attachment, fork length, rack protection and operator skill.
Can the CPC80 be supplied with hydraulic attachments?
Yes. MYZG can discuss side shifters, fork positioners, clamps, rotators, duplex or triplex masts and cab options. Residual capacity must be recalculated for the selected mast, load center and attachment.
Configure a ZGFORKLIFT / MYZG CPC80 for your site
Send the load weight and dimensions, lift height, aisle width, operating surface, ramp gradient, working hours, engine-emission requirement, destination port and attachment needs. The factory team can prepare a configuration, quotation, packing plan and shipping proposal.
