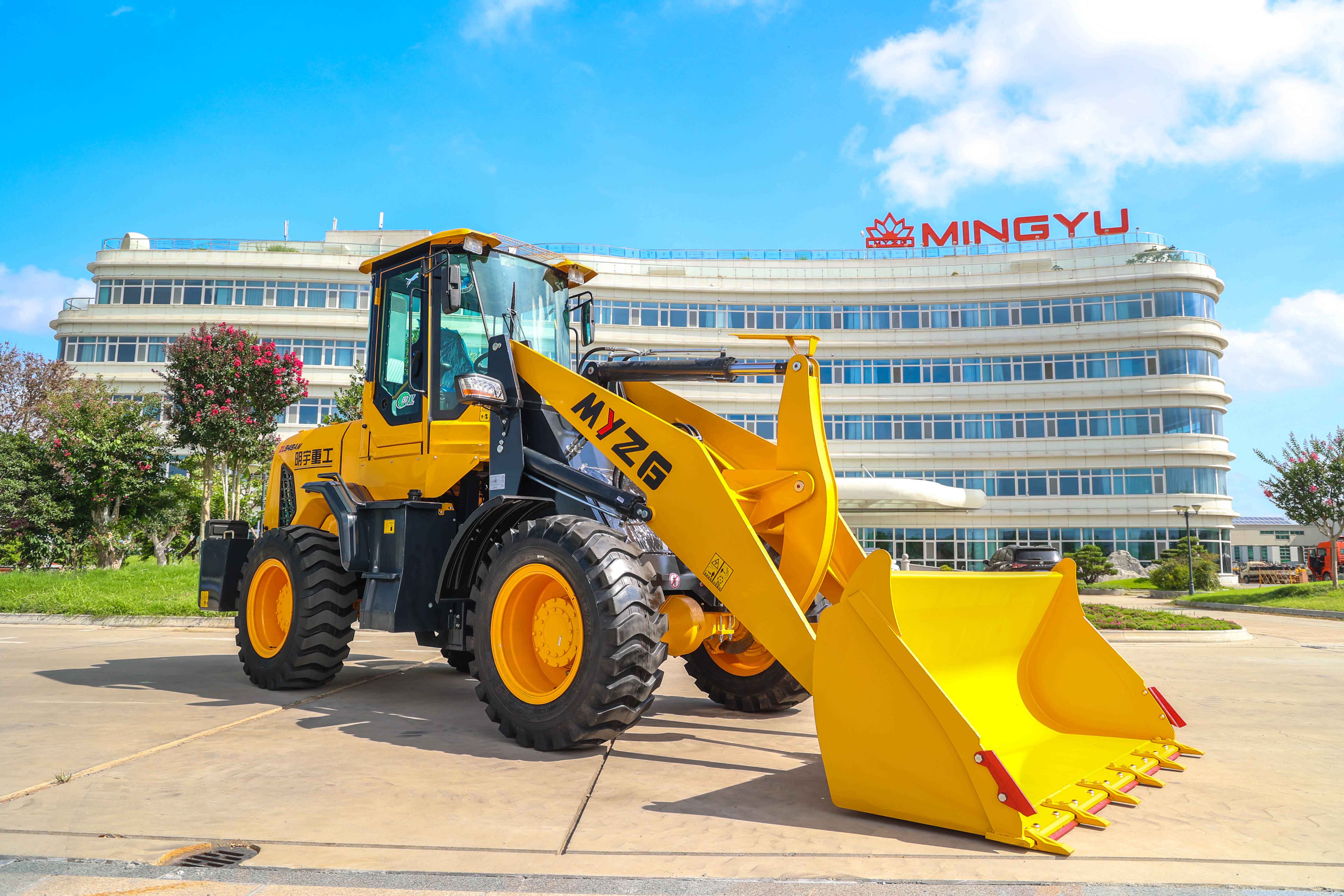

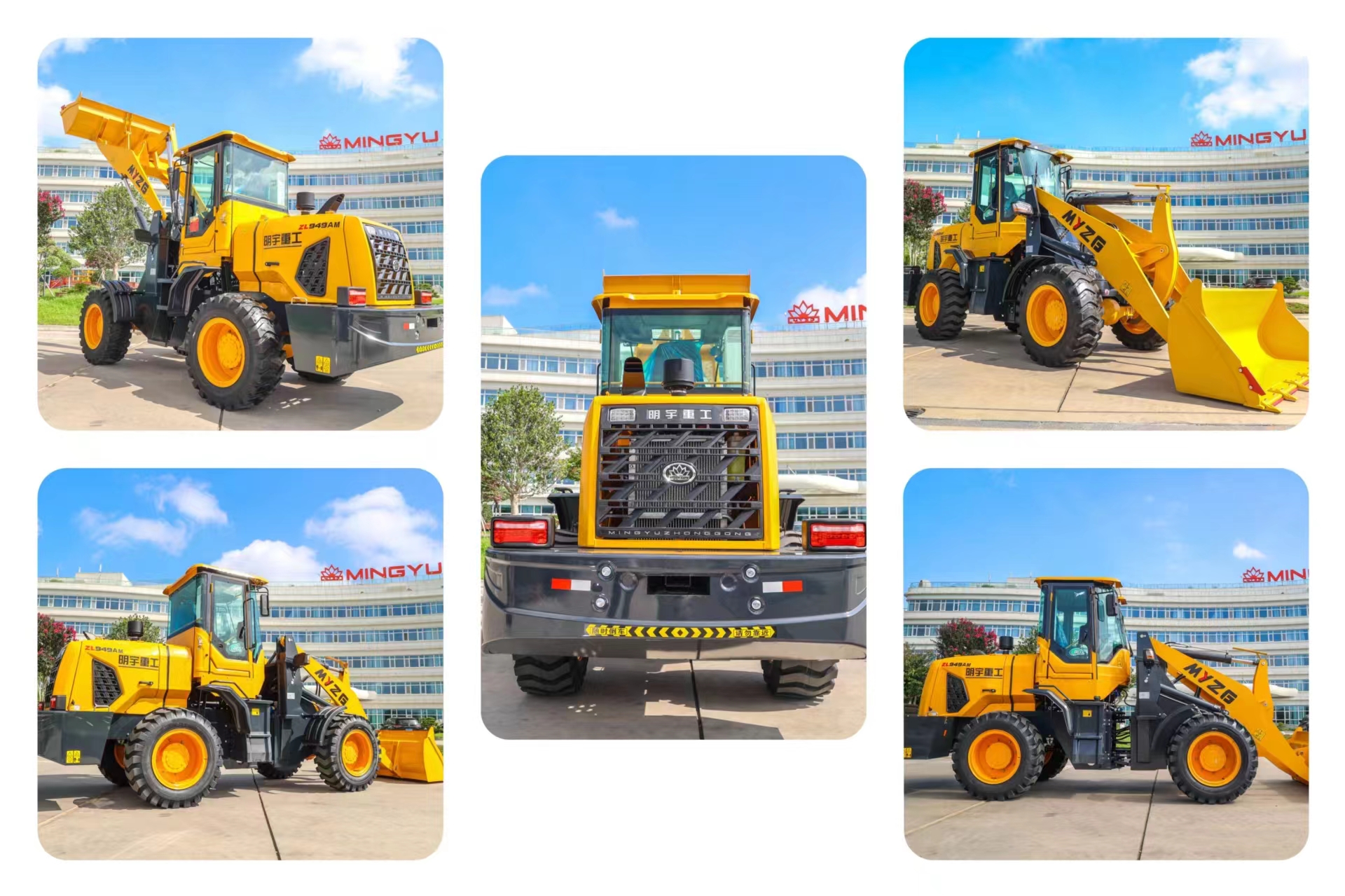

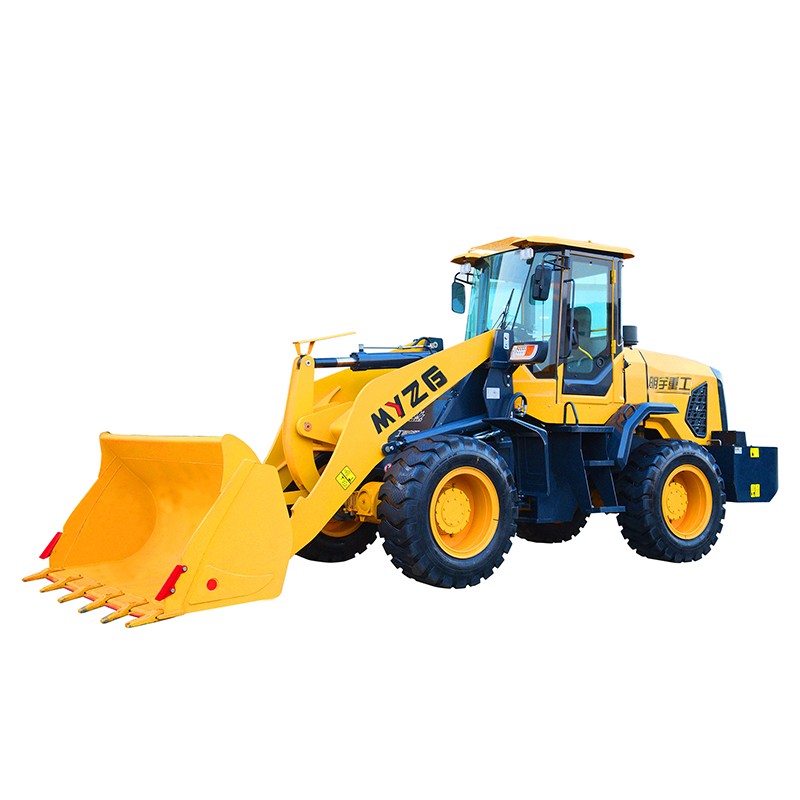

ZL-946 wheel loader
Product Feature
ZL946A loader of Mingyu Heavy Industry, the front and rear frame adopts the special box structure of Mingyu, the center of gravity of the whole machine is reasonable distribution, strong bearing capacity, equipped with 1.2-1.7 cubic large capacity bucket for different working conditions.
·Traction force ≥ 40KN, rising force 40KN, outstanding capability.
·Turning radius 3380 mm, strong adaptability
· Extra long wheelbase, more heavy duty
Parameter
YUCHAI YCD4J22T-115
rated load capacity
2200kg
Bucket width
1.2m³ （big bucket:1.8m³）
operating weight
6280kg
engine model
rated power
85kw
rated speed
2400r/min
dimensions
6700*2210*2990mm
dump height
3500mm
dump distance
870mm
min.turning radius
3600mm
wheel base
2680mm
wheeltrack
1700mm
tyre size
16/70-20 / 16/70-24
HIGH EFFICIENCY
· YUCHAI Engine Tier 2, higher power to 85kW，optional Yunnei, Xichai,Cummins engine.
· The energy-saving low-speed engine fits well with the high-efficiency and realizes a comprehensive energy saving of more than 10%
· 2nd generation engine body, more robust and can lengthen the maintenance period, reduce the operating cost
HIGH RELIABILITY
· Axis-Fixed power shift gearbox with high/low speed, F4/R2
· Easy operation, high reliability, convenient maintenance
HEAVYDUTY
· MYZG second generation enhanced driving axle is the best in performance, with large bearing capacity to meet the driving force and escape ability of bad conditions
· Stable and reliable performance, convenient operation and maintenance
COMFORTABILITY
· Arc shape front glass, giving more operating spaces and good vision
· New ZL series cab, larger space, better sealing performance, more comfort and low noise
· More air vents and new rock switch arrangement bring you good driving experience
SERVICEABILITY
· New Engine hood provides larger opening angle, enable the technician do the service and repair easily
· The standard is made of special engineering plastic material, which is not perishable compared with iron, and the noise is minimized. The machine will not resonate like iron when running, and the iron can also be replaced according to customer requirements Oil filters, air filters are all arranged in one side, which enable the maintenance at one stop

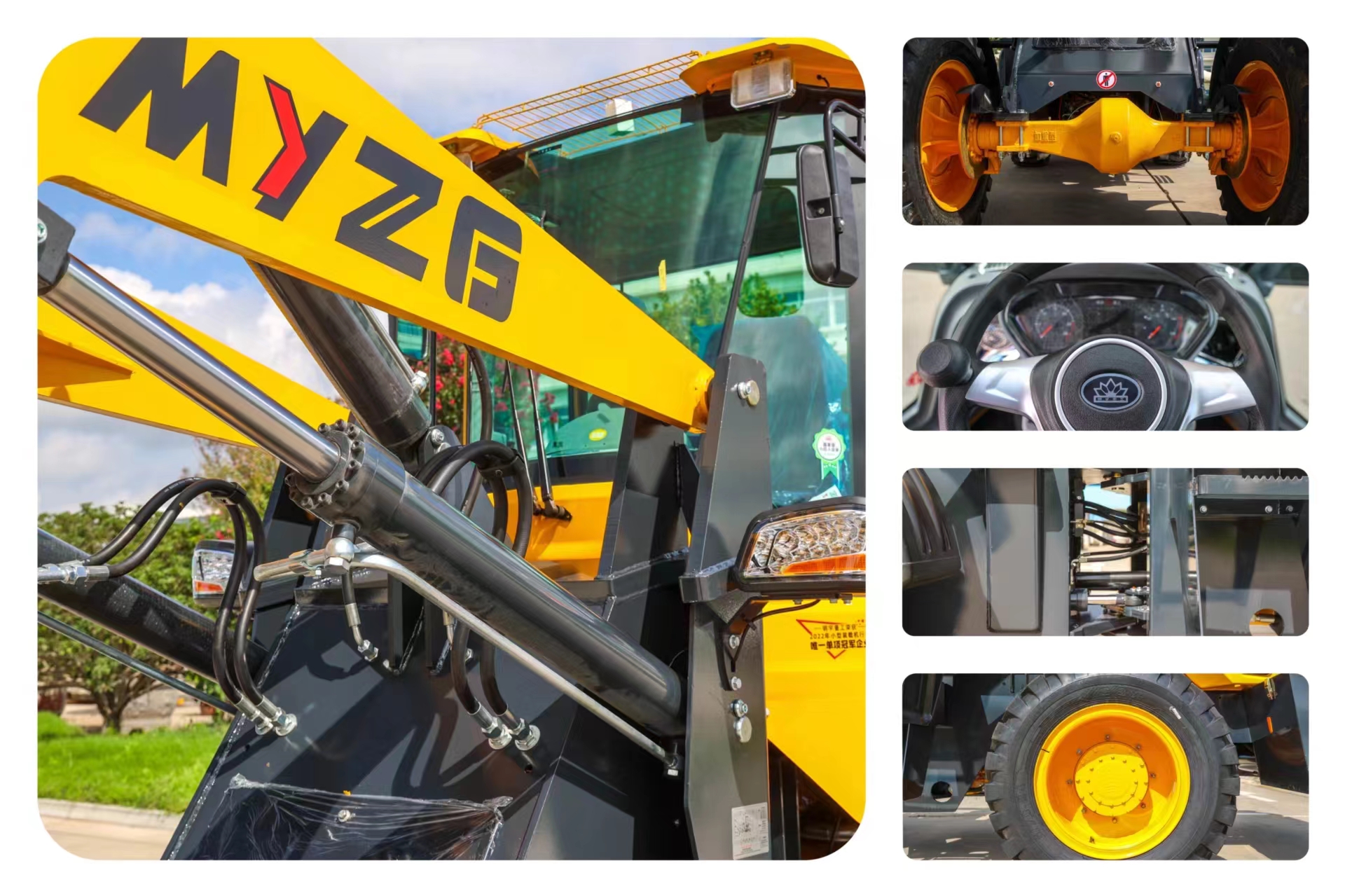

Detail
DIFFERENTIATED PRODUCTS

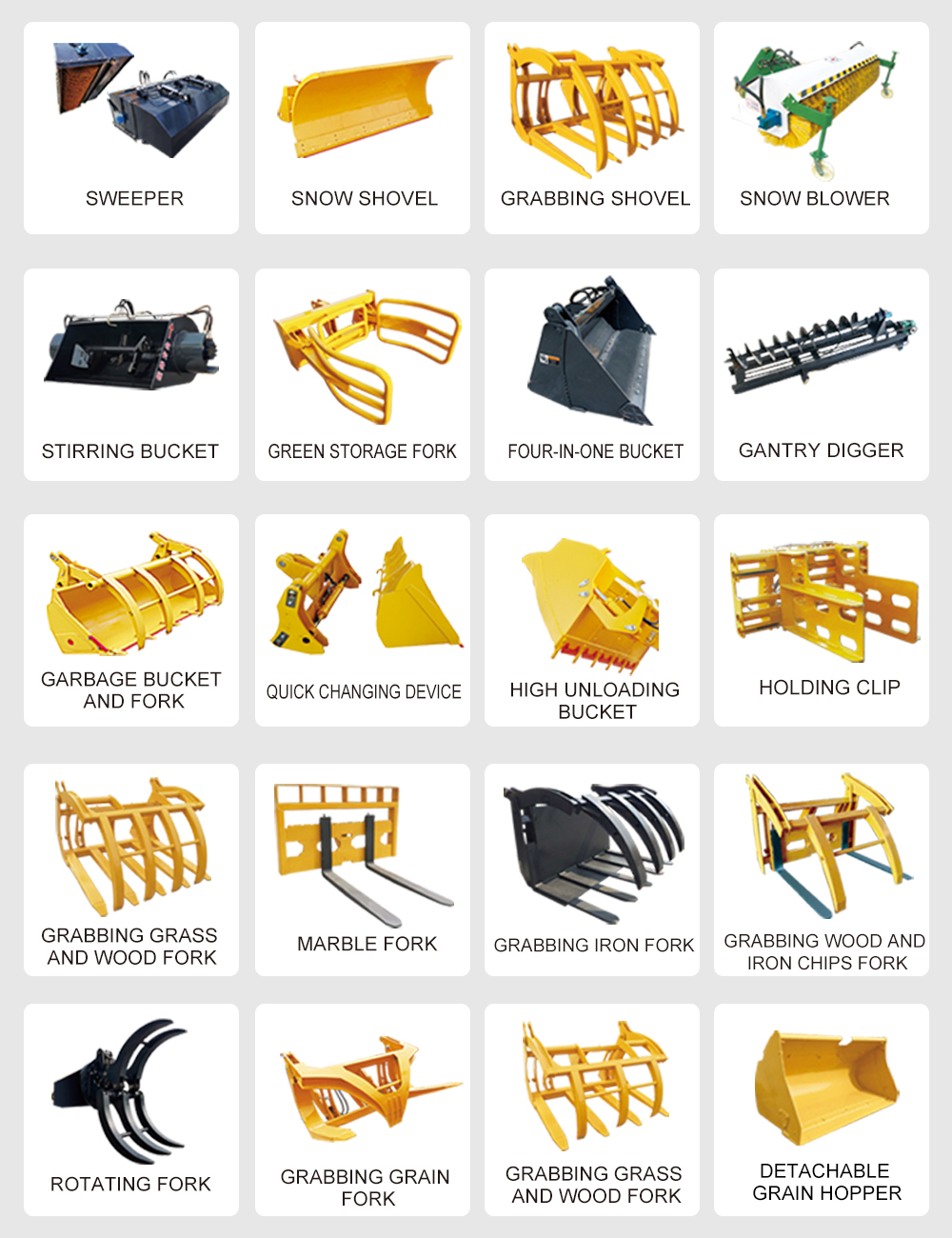

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Quanchai,Yunnei, Huadong, Deutz,Huafeng,Huangdong,Cummins, Changchai, Xinchai,Yanmar, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

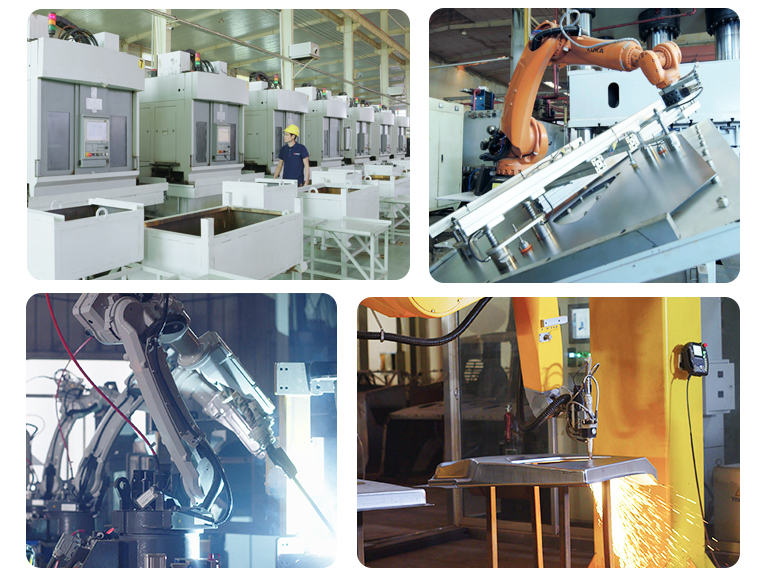

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
