MY-CPCY50 Rough Terrain Trucks

MYZG Y50 Integrated Rough Terrain Forklift: Dominate Every Terrain with 5-Ton Power

In the world of outdoor logistics and rugged construction, standard forklifts often fall short. Enter the MYZG Y50, a next-generation Integrated Rough Terrain Forklift designed to bridge the gap between heavy industrial lifting and off-road mobility. Engineered by Shandong Mingyu Heavy Industry, the Y50 is built to thrive where the pavement ends, offering unparalleled stability on mud, gravel, and uneven gradients.

With a formidable 5000 kg (5-Ton) rated lifting capacity, the Y50 is the ultimate workhorse for timber yards, mining operations, and large-scale infrastructure projects.

Parameter

High-Torque Diesel Performance

The core of the MYZG 4.5T's dominance lies in its specialized off-road architecture. Unlike urban forklifts, this model features a 290mm ground clearance, allowing it to clear obstacles, rocks, and thick mud without bottoming out.The heart of the MYZG Y50 is its high-performance diesel engine, specifically tuned for the low-end torque required for off-road maneuvers.

Engine Power: Equipped with the robust V35A-50C42 engine, delivering a rated power of 36.8 kW.

Precision RPM: Operates at a rated speed of 2400 r/min, ensuring a perfect balance between fuel efficiency and raw lifting force.

Climbing Dominance: Boasts an impressive 30% maximum climbing slope under full load, allowing it to navigate steep embankments and rugged hillsides with ease.
Exceptional Gradeability: With a 30% maximum climbing slope under full load, the MYZG 4.5T can conquer ramps and natural hills that would stop other machines.

Engineered for Extreme Conditions

The MYZG Y50 isn't just a forklift with bigger tires; it is an integrated off-road machine designed from the chassis up for stability and durability.

All-Terrain Ground Clearance
With a massive 325 mm minimum ground clearance, the Y50 glides over rocks, debris, and deep ruts that would beach a traditional forklift. This high-clearance design protects the undercarriage and critical hydraulic components during intense outdoor use.

Specialized 4WD Tire Architecture
Equipped with heavy-duty 16/70-20 pneumatic tires on both the front and rear, the Y50 provides a massive contact patch. These deep-tread tires offer the necessary traction to maintain a 4325 mm turning radius, ensuring maneuverability even in tight, muddy job sites.

Precision Load Control
The mast is designed for the unpredictability of outdoor work. With a gantry inclination angle of 10° forward and 12° backward, operators can secure loads safely against the carriage when traversing uneven slopes. The 3000 mm standard lifting height provides ample reach for loading trucks or stacking materials in yard environments.

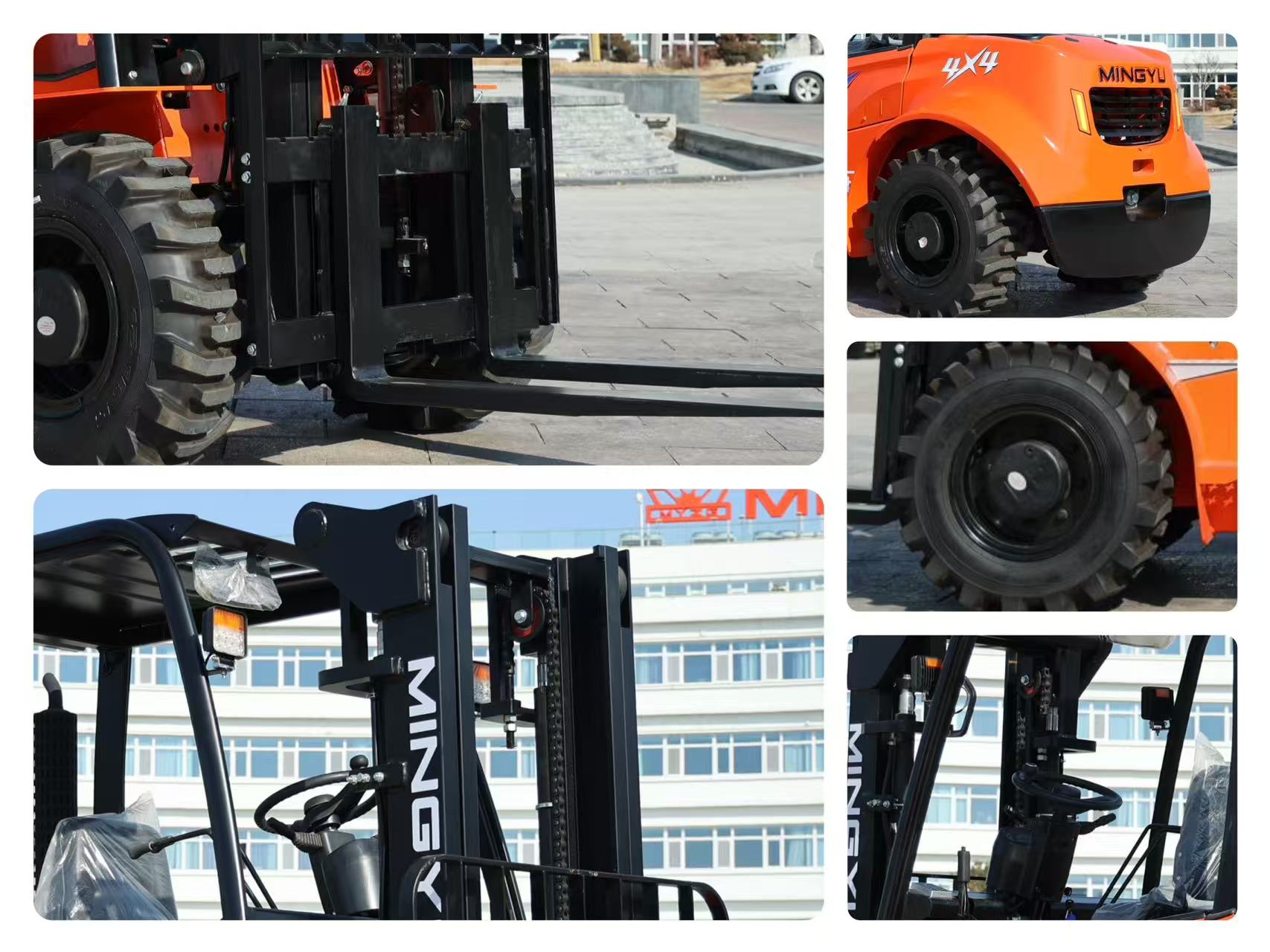

Detail

Why the MYZG Y50 is the Industry Leader

Integrated Chassis: Unlike "converted" forklifts, our integrated design ensures a lower center of gravity and superior structural integrity.

Heavy-Duty Suspension: Built to absorb the shocks of rough terrain, protecting both the operator and the integrity of the cargo.

High-Efficiency Diesel: The V35A engine is designed for long service intervals and easy maintenance in remote areas.

Operator Visibility: The sit-down driving style and optimized overhead guard design provide a 4555 mm maximum height during operation, ensuring the operator has a clear line of sight even with the mast extended.

Industrial Applications

The MYZG Y50 is the preferred choice for sectors that require high-capacity lifting in unpaved environments:

Construction Sites: Moving pallets of bricks and heavy equipment across soft soil.

Agriculture & Farming: Handling large hay bales and equipment on natural turf.

Mining & Energy: Transporting heavy components in remote, rugged extraction sites.

Lumber & Forestry: Navigating forest floors and gravel yards with heavy timber loads.
