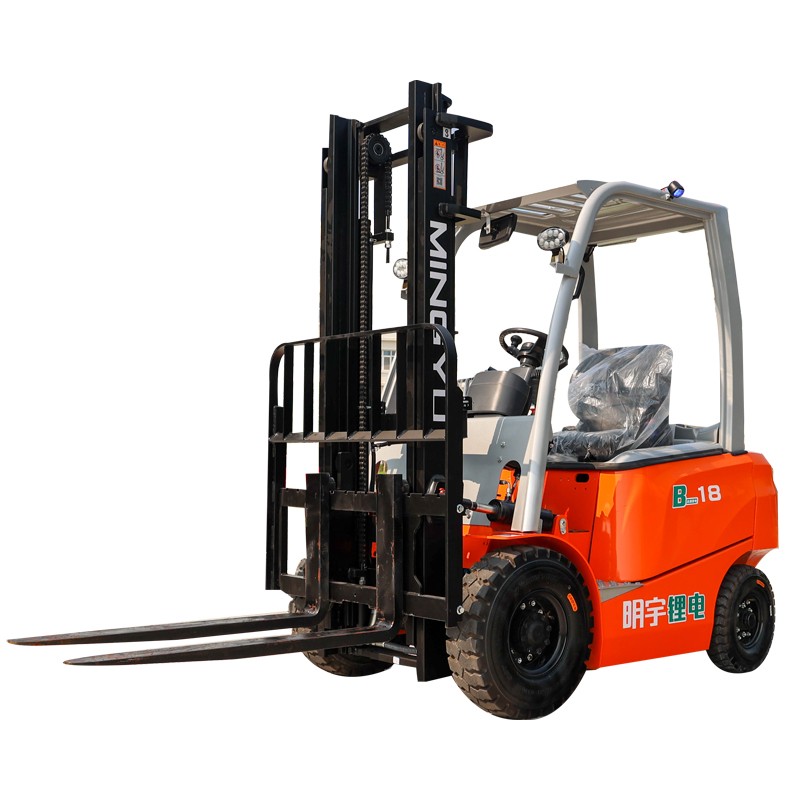

Mingyu CPD18-B electric Forklift
Mingyu B18 Lithium Battery Forklift: Compact and Efficient for Tight Spaces
PRODUCT FEATURE
The Mingyu B18 Lithium Battery Forklift is designed for optimal performance in tight and confined spaces. With a short wheelbase and a small turning radius, this forklift can easily navigate through narrow aisles and corners, making it an ideal choice for warehouses, factories, and other environments where space is limited.
Improved performance, superior quality
● Vibration 20% reduced
●Noise 3dB reduced
● Workspace 45% increased
● Operator’s view 20% improved
● Working efficiency 20% improved
● Loading capacity increased over 5%
● Stability 5% improved
● Reliability 40% improved
● Engine hood open angle increased to 80°
Using the same technology as hyster
THE MAIN PARAMETER
Model
A18
Power Type
Li-ion
rated load lifting capacity
1800KG
Load centre distance
500mm
driving style
Driving style
length
with fork
3100mm
without fork
2020mm
width
1100mm
height
Do not raise the mast height
2060mm
Overhead guard height
2010mm
Max height at working
4050mm
wheel base
1315mm
front overhang
350mm
rear overhang
380mm
front wheel track
925mm
rear wheel track
920mm
minimum ground clearance
120mm
Standard lifting height
3000mm
free lifting height
80mm
Fork adjustment range
260-1100mm
minimum turning radius
1800mm
Minimum right-angle channel width(1100*1100 pallets)
3450mm
Gantry angle (front/rear)
6/12°
Maximum lifting speed without load
430mm/s
Maximum lifting speed with full load
360mm/s
Maximum operating speed without load
15Km/h
Maximum operating speed with full load
14Km/h
Maxi climbing slope under full load
15%
overall weight
2810Kg
Number of wheels = driving wheels/steering wheels
2/2
Tyre type (front/rear)
pneumatic
tyre size(front)
6.50-10
tyre size(rear)
5.00-8
Brake/driving brake
foot brake
parking brake
hand brake
Battery voltage/capacity
80V/105AH
Charger
80V/35A
Drive motor power
13Kw
Oil pump motor power
13Kw
Key Features:
Short Wheelbase: The compact design allows for better maneuverability, reducing the space required for turning and ensuring efficient operation in narrow areas.
Small Turning Radius: The B18's advanced engineering enables a smaller turning radius, making it perfect for tight corners and confined spaces.
Smooth Maneuverability: With its precise control system and responsive handling, the B18 ensures operators can navigate effortlessly even in the most challenging environments.
Lithium Battery Power: Equipped with a reliable lithium battery, the B18 provides longer operational hours, faster charging, and lower maintenance costs, enhancing productivity and efficiency.
Ergonomic Design: The comfortable cabin and user-friendly controls reduce operator fatigue and boost overall productivity during long shifts.
Experience the efficiency and versatility of the Mingyu B18 Lithium Battery Forklift, and make the most of your workspace with superior handling and performance.
According to demands, can be matched with different accessories
