The backhoe, a ubiquitous piece of heavy machinery, is a versatile workhorse found on construction sites, farms, and utility projects worldwide. Its ability to dig, trench, lift, and move materials makes it indispensable for a wide range of tasks. While seemingly a single unit, a backhoe is a complex assembly of interconnected systems, each playing a crucial role in its operation. This article delves into the main components of a backhoe, exploring their functions and contributing to the overall efficiency of the machine.
The Tractor Unit (or Chassis): The Foundation of the Backhoe
At the heart of the backhoe lies the tractor unit, or chassis. This robust structure serves as the foundation for all other components. It provides mobility, stability, and the necessary power to drive the hydraulic systems.
Engine: The engine, typically a diesel engine, is the power source for the entire machine. It generates the torque required to drive the wheels, power the hydraulic pumps, and operate the backhoe and loader attachments. Modern backhoe engines are designed to meet stringent emission standards while delivering optimal performance.
Transmission: The transmission system transfers power from the engine to the wheels. It allows the operator to select the appropriate gear for different operating conditions, whether traveling on roads or working on rough terrain. Transmissions can be manual, automatic, or hydrostatic, each offering varying levels of control and efficiency.
Axles and Wheels: The axles and wheels provide the backhoe with mobility. Heavy-duty axles are essential for supporting the weight of the machine and its attachments. The wheels, often equipped with large, rugged tires, provide traction on various surfaces. Four-wheel drive is common, enhancing maneuverability and traction in challenging environments.
Frame: The frame is the primary structural component of the tractor unit. It provides a rigid platform for mounting the engine, transmission, axles, and other components. It is designed to withstand the stresses and strains associated with heavy-duty operation.
Operator's Station (Cab): The operator's station, or cab, is where the operator controls the machine. It typically includes:
Seat: An adjustable seat for operator comfort.
Steering Wheel/Levers: Controls for steering and driving the machine.
Control Levers/Joysticks: Controls for operating the backhoe and loader attachments.
Instrument Panel: Displays for monitoring engine performance, hydraulic pressure, and other critical parameters.
ROPS/FOPS: Roll-Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) to protect the operator in case of accidents.

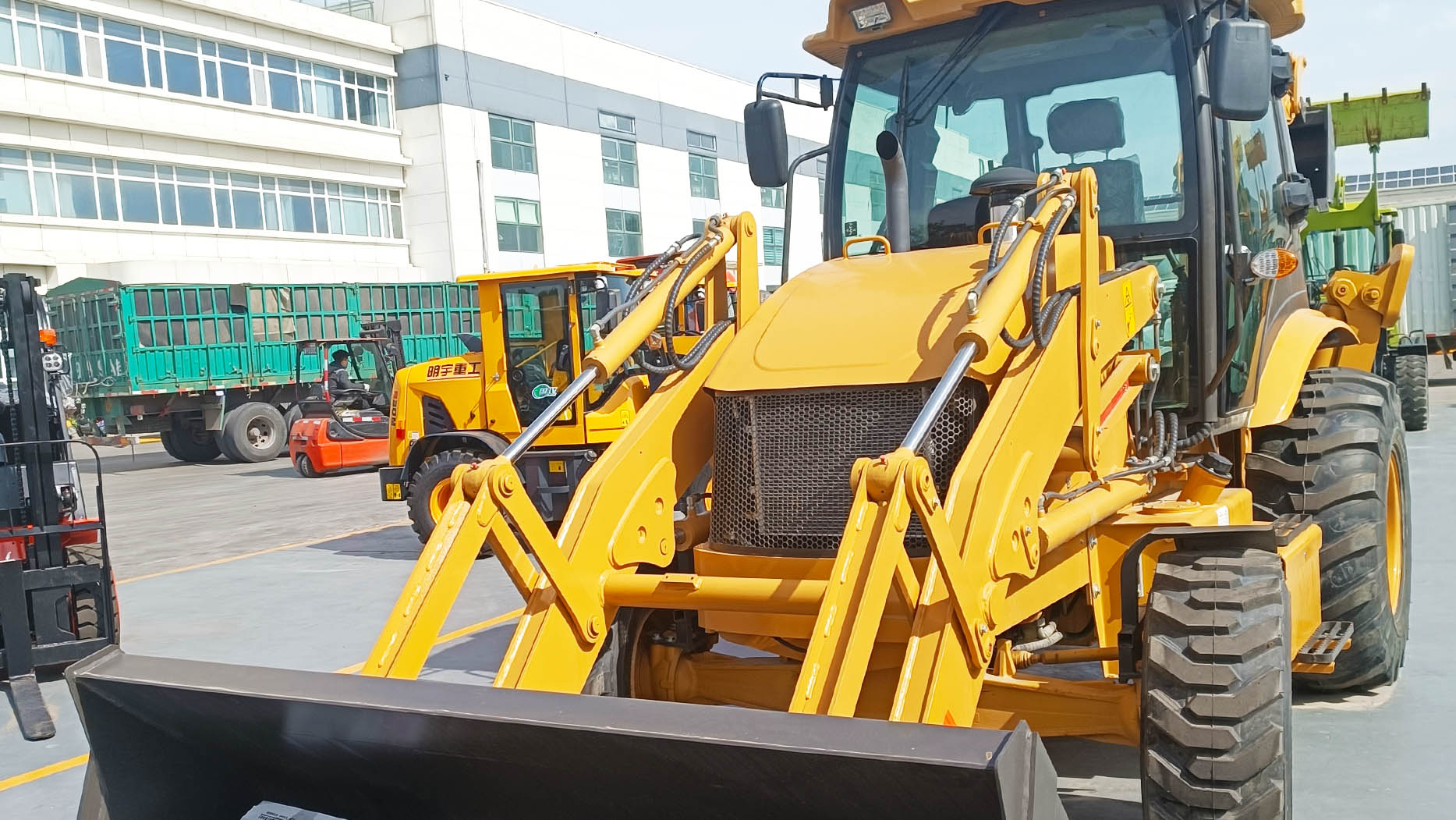

The Loader Assembly: Front-End Versatility
The loader assembly, located at the front of the backhoe, adds significant versatility to the machine. It allows the operator to scoop, lift, and move materials.
Loader Arms: These hydraulically actuated arms raise and lower the loader bucket. They are designed to provide the necessary lifting capacity and reach.
Loader Bucket: The loader bucket is used for scooping and transporting materials such as dirt, gravel, and debris. It can be interchanged with other attachments, such as forks or grapples, to handle different tasks.
Tilt Cylinder: The tilt cylinder controls the angle of the loader bucket, allowing the operator to dump and level materials.
Lift Cylinders: These cylinders raise and lower the loader arms, providing the lifting force required to handle heavy loads.
The Backhoe Assembly: The Digging Powerhouse
The backhoe assembly, located at the rear of the machine, is the primary digging component. It consists of a series of interconnected booms and dippers, allowing for precise digging and trenching.
Boom: The boom is the primary arm of the backhoe. It is connected to the tractor unit and provides the main reach of the digging assembly.
Dipper (or Stick): The dipper is the secondary arm, connected to the end of the boom. It provides the final reach and digging force.

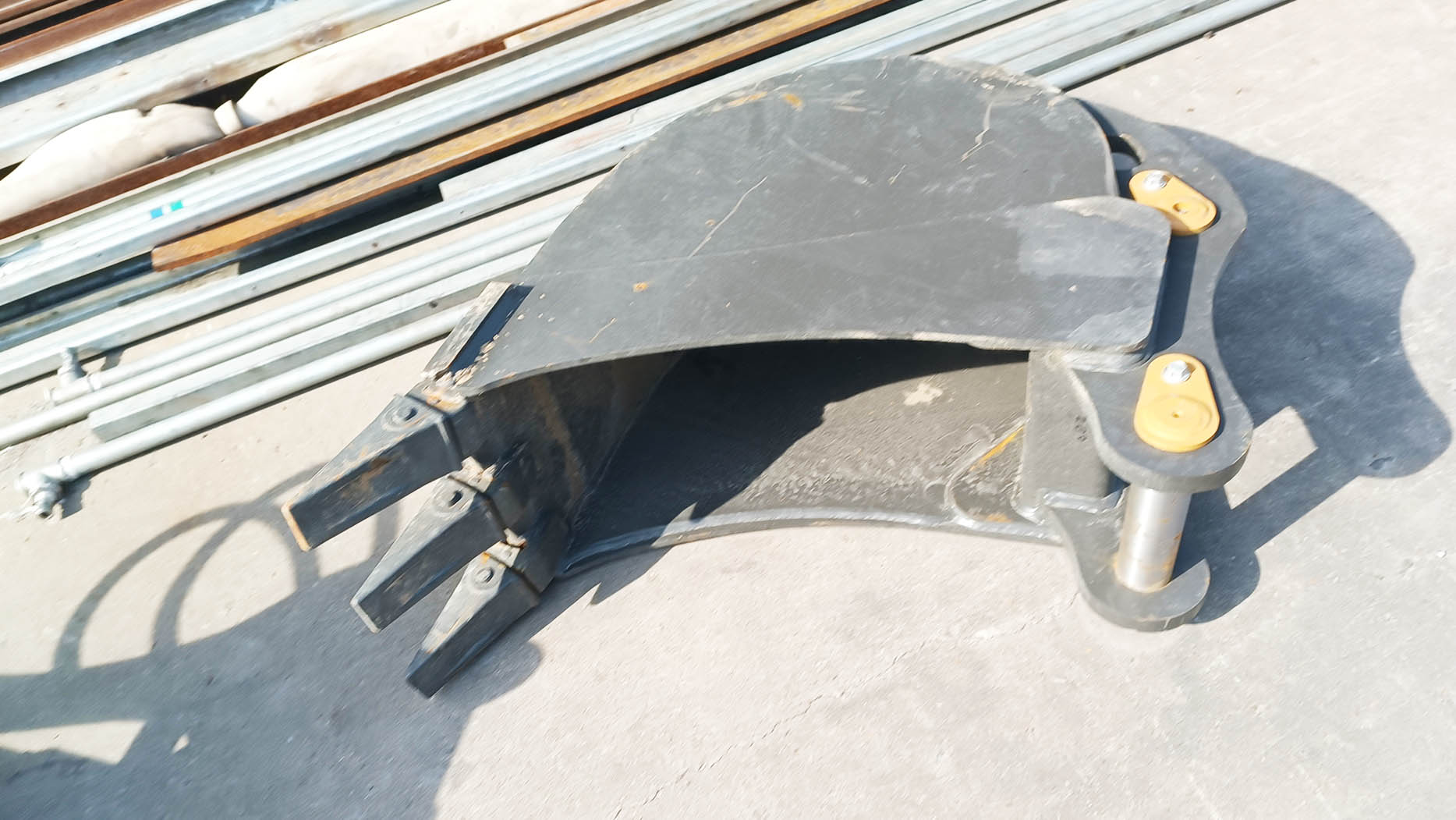

Bucket: The backhoe bucket is used for digging and excavating. It is available in various sizes and shapes to suit different applications.
Swing Mechanism: The swing mechanism allows the backhoe assembly to rotate horizontally, enabling the operator to dig and dump materials in a wide arc.
Boom Cylinder: The boom cylinder controls the raising and lowering of the boom.
Dipper Cylinder: The dipper cylinder controls the extension and retraction of the dipper.
Bucket Cylinder: The bucket cylinder controls the angle of the bucket, allowing for digging and dumping.
Stabilizers (Outriggers): Stabilizers, or outriggers, are hydraulically operated arms that extend from the rear of the tractor unit. They provide stability and prevent the machine from tipping during digging operations.
The Hydraulic System: The Lifeblood of the Backhoe
The hydraulic system is the lifeblood of the backhoe, providing the power to operate all the moving components.
Hydraulic Pump: The hydraulic pump, driven by the engine, generates the hydraulic pressure required to operate the cylinders and motors.
Hydraulic Fluid: Hydraulic fluid is the medium that transmits power through the system. It is specifically formulated to withstand high pressures and temperatures.
Hydraulic Hoses and Lines: Hydraulic hoses and lines carry the hydraulic fluid to the various components.
Hydraulic Cylinders: Hydraulic cylinders convert hydraulic pressure into linear motion, powering the loader arms, backhoe boom, dipper, and bucket.
Hydraulic Valves: Hydraulic valves control the flow of hydraulic fluid, allowing the operator to precisely control the movement of the various components.
Hydraulic Reservoir: The reservoir stores the hydraulic fluid and allows for expansion and contraction due to temperature changes.
Control Systems: Precision and Efficiency
Modern backhoes incorporate advanced control systems to enhance precision and efficiency.
Pilot Controls: Pilot controls use low-pressure hydraulic fluid to actuate the main hydraulic valves, providing smooth and precise control of the backhoe and loader.
Electronic Control Units (ECUs): ECUs monitor and control various aspects of the machine's operation, such as engine performance, hydraulic pressure, and transmission settings.
Sensors: Sensors provide feedback on the position, speed, and pressure of various components, allowing the ECUs to optimize performance.
Telematics: Many backhoes are equipped with telematics systems that transmit data on machine performance, location, and maintenance needs to remote locations.
Attachments: Expanding Versatility
The versatility of the backhoe can be further expanded by using a variety of attachments.
Augers: For drilling holes for posts, fences, and foundations.

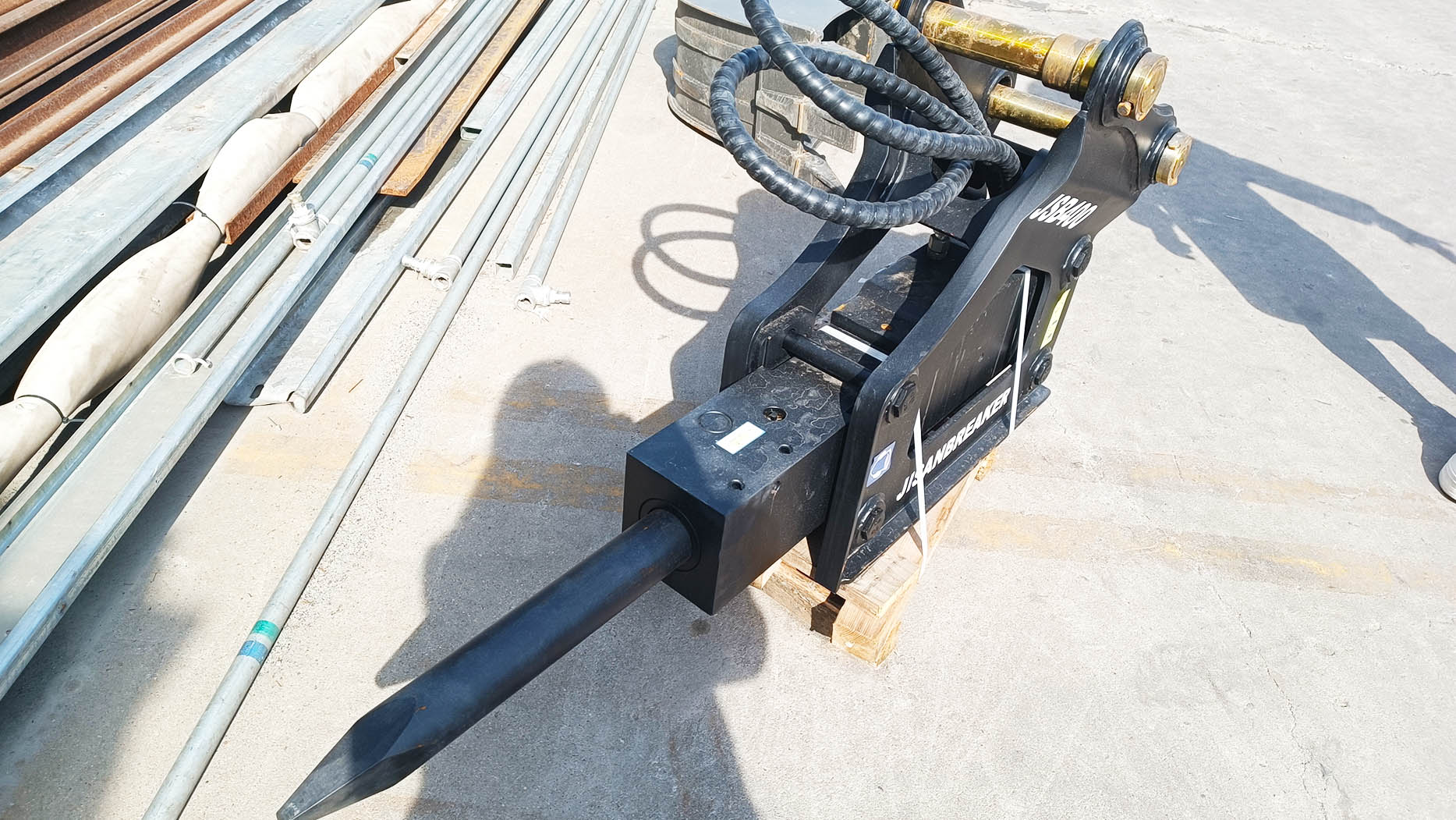

Hammers: For breaking concrete and rock.
Compactors: For compacting soil and asphalt.
Grapples: For handling logs and other bulky materials.
Forks: For lifting and moving pallets.
Conclusion:
The backhoe is a marvel of engineering, combining power, versatility, and precision. Understanding the main components of a backhoe is essential for operators, mechanics, and anyone involved in the construction and heavy equipment industries. The interplay between the engine, transmission, hydraulic system, and control systems allows the backhoe to perform a wide range of tasks efficiently and effectively. As technology continues to advance, backhoes will likely become even more sophisticated, incorporating features such as automation, remote operation, and advanced diagnostics.
