The forklift, a ubiquitous workhorse in warehouses, construction sites, and manufacturing facilities, is a powered industrial truck used to lift and move materials over short distances. Its ability to navigate tight spaces and handle heavy loads makes it an indispensable tool for material handling. This article delves into the intricacies of forklifts, exploring their various types, fundamental components, and the principles behind their operation.
Defining the Forklift: A Material Handling Powerhouse
A forklift, at its core, is a powered vehicle designed to lift and transport palletized or unpalletized loads using a pair of front-mounted forks. Its versatility extends beyond simple lifting, encompassing tasks like stacking, loading, and unloading. The design and functionality of forklifts vary significantly depending on the application, leading to a wide range of types and configurations.
Types of Forklifts: Tailored to Specific Needs
The diverse range of forklift applications has led to the development of specialized models, each optimized for specific tasks and environments.

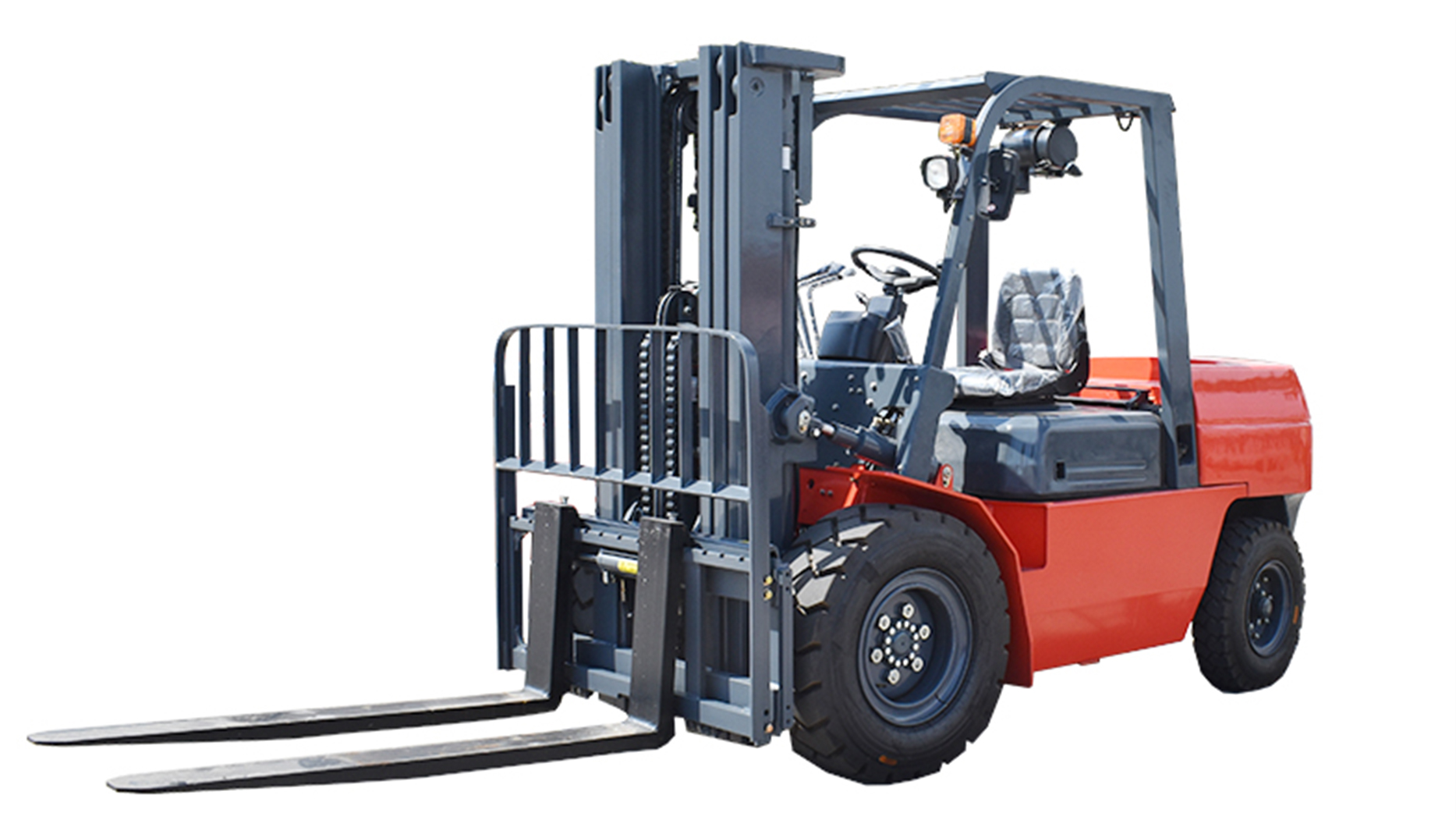

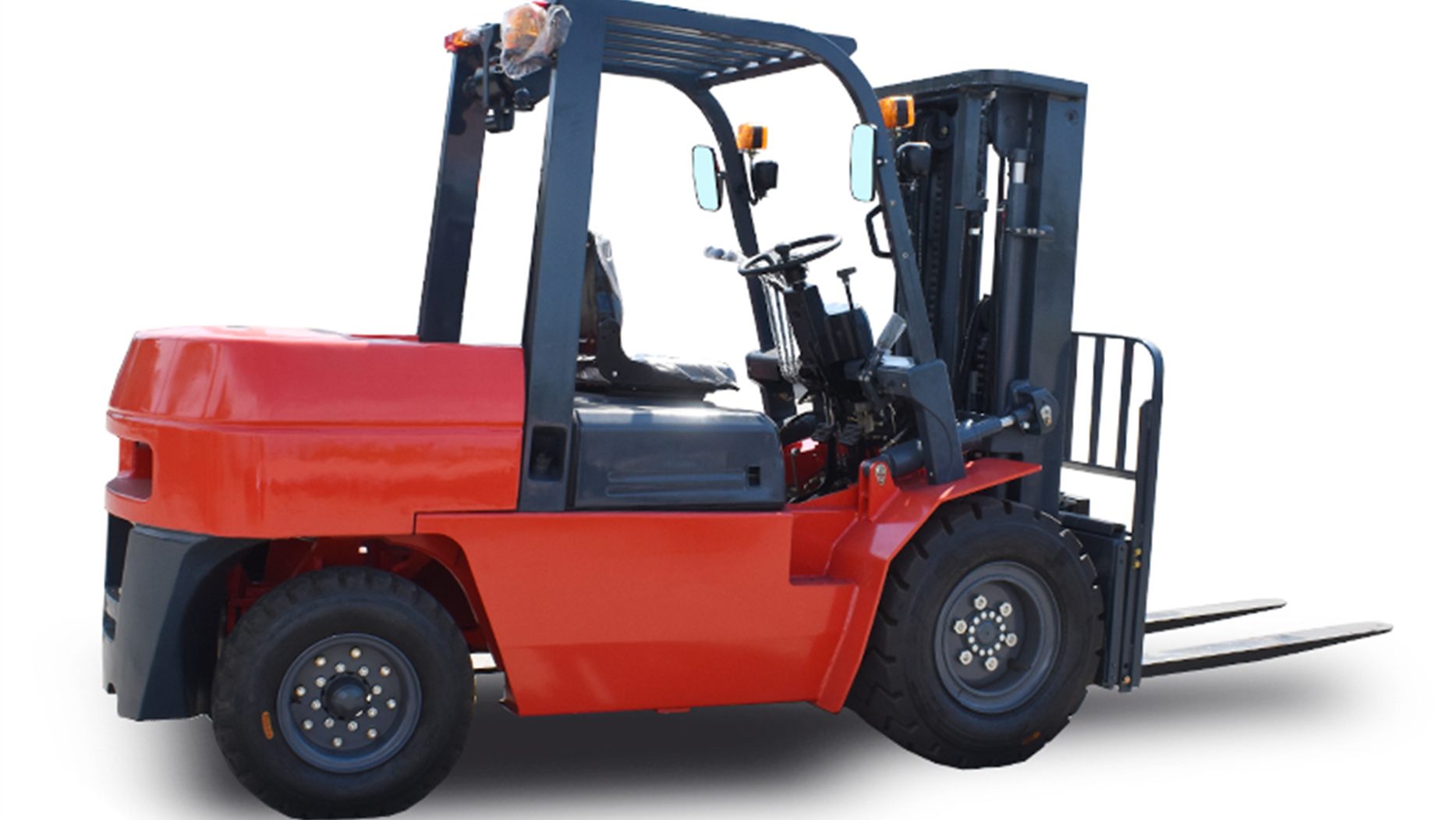

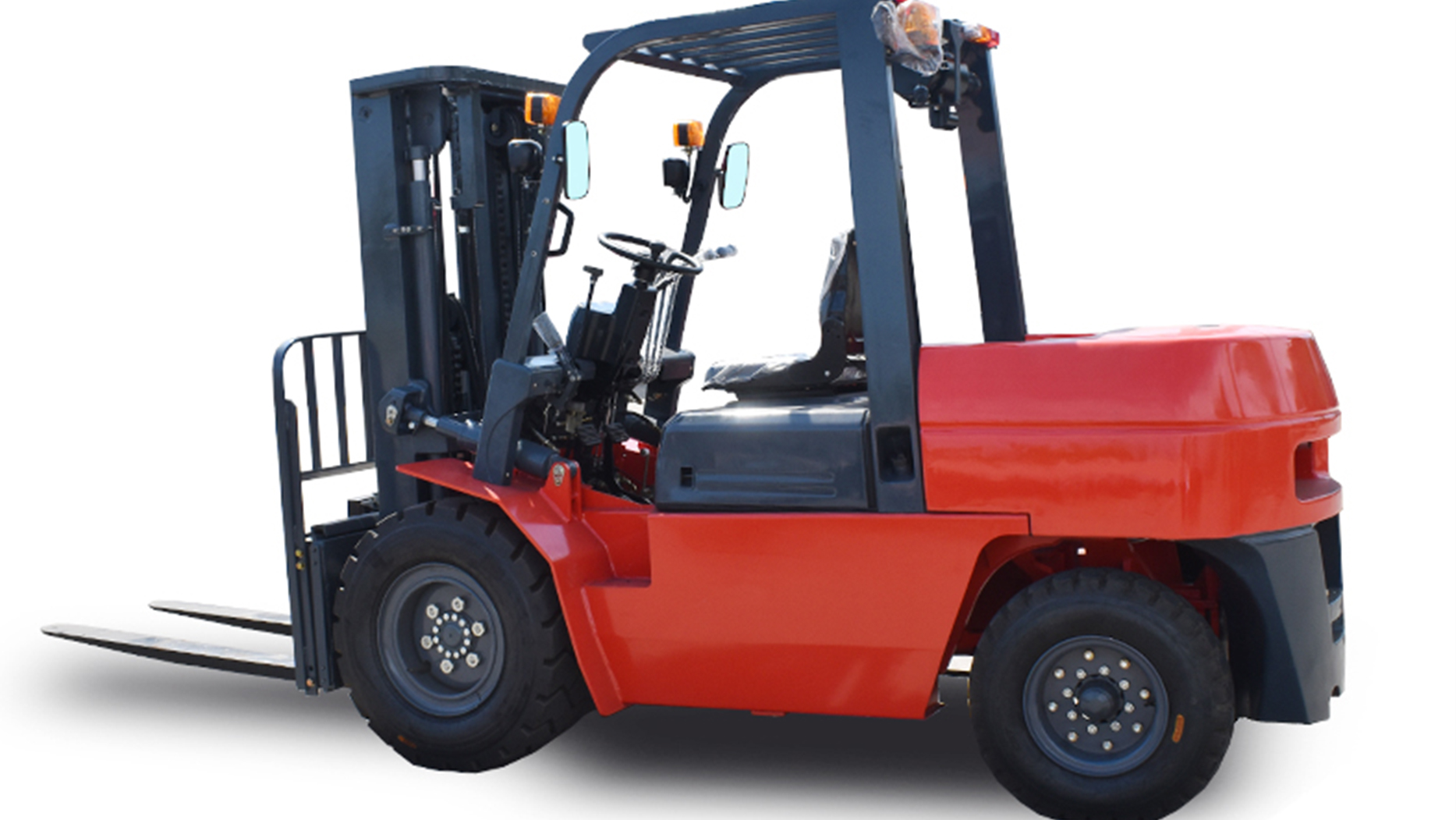

Counterbalance Forklifts: The most common type, these forklifts feature a weight at the rear (counterbalance) to offset the load being lifted at the front. They are versatile and suitable for a wide range of indoor and outdoor applications.
Reach Trucks: Designed for narrow aisle applications, reach trucks feature outriggers and a scissor mechanism that allows the forks to extend forward, enabling them to reach into racking systems.
Order Pickers: Specifically designed for picking individual items from storage racks, order pickers allow the operator to be lifted along with the load, facilitating efficient order fulfillment.
Pallet Jacks (Hand/Electric): Used for moving palletized loads over short distances, pallet jacks are available in manual and electric versions. Electric pallet jacks offer increased efficiency and reduced operator fatigue.
Rough Terrain Forklifts: Designed for outdoor applications on uneven terrain, rough terrain forklifts feature large, pneumatic tires and powerful engines.
Telehandlers (Telescopic Handlers): These versatile machines feature a telescopic boom that allows them to reach greater heights and distances than traditional forklifts. They are commonly used in construction and agriculture.
Side Loader Forklifts: Designed for handling long and bulky loads, side loaders allow the operator to pick up and transport loads parallel to the machine.
Fundamental Components: The Anatomy of a Forklift
Understanding the core components of a forklift is crucial for comprehending its operation.
Frame (Chassis): The frame is the structural backbone of the forklift, providing a rigid platform for mounting all other components.
Power Source: Forklifts can be powered by various sources, including:
Internal Combustion (IC) Engines: Powered by gasoline, propane (LPG), or diesel fuel, IC forklifts are typically used in outdoor applications.
Electric Motors: Powered by rechargeable batteries, electric forklifts are ideal for indoor applications due to their quiet operation and zero emissions.
Mast: The mast is the vertical assembly that raises and lowers the forks. It consists of interlocking rails that allow the carriage to move vertically.
Carriage: The carriage is the platform that holds the forks. It travels up and down the mast.
Forks (Tines): The forks are the load-carrying components of the forklift. They are typically made of steel and are adjustable to accommodate different pallet sizes.
Backrest Extension: A vertical frame attached to the carriage, the backrest extension provides support for the load and prevents it from falling backward.
Counterweight: In counterbalance forklifts, the counterweight is a heavy weight at the rear of the machine that balances the load.
Wheels/Tires: Forklifts use various types of wheels and tires, including:
Cushion Tires: Made of solid rubber, cushion tires are used on smooth, indoor surfaces.
Pneumatic Tires: Filled with air, pneumatic tires are used on rough, outdoor surfaces.
Solid Pneumatic Tires: Solid rubber tires that mimic the ride of pneumatic tires, but eliminate the risk of punctures.
Hydraulic System: The hydraulic system provides the power to lift and lower the forks, tilt the mast, and perform other functions.
Control System: The control system allows the operator to control the movement of the forklift, including steering, lifting, and tilting.
The Hydraulic System: Powering the Lifting Mechanism
The hydraulic system is the heart of the forklift's lifting capabilities.
Hydraulic Pump: Driven by the engine or electric motor, the hydraulic pump generates hydraulic pressure.
Hydraulic Fluid: Hydraulic fluid is the medium that transmits power through the system.
Hydraulic Cylinders: Hydraulic cylinders convert hydraulic pressure into linear motion, powering the mast, carriage, and tilt functions.
Hydraulic Valves: Hydraulic valves control the flow of hydraulic fluid, allowing the operator to precisely control the movement of the various components.
Hydraulic Hoses and Lines: Hydraulic hoses and lines carry the hydraulic fluid to the various components.
Hydraulic Reservoir: The reservoir stores the hydraulic fluid.
The Control System: Operator Interface and Precision
The control system provides the operator with the means to control the forklift's movements.
Steering Wheel/Lever: Controls the steering of the forklift.
Lift/Lower Control Lever: Controls the raising and lowering of the forks.
Tilt Control Lever: Controls the tilting of the mast.
Direction Control Lever: Controls the forward and reverse movement of the forklift.
Brake Pedal: Controls the braking of the forklift.
Accelerator Pedal (IC Forklifts): Controls the speed of the engine.
Travel Speed Control (Electric Forklifts): Controls the speed of the electric motor.
Instrument Panel: Displays information such as battery level (electric forklifts), fuel level (IC forklifts), and operating hours.
Principles of Operation: How a Forklift Works
The operation of a forklift involves a combination of mechanical and hydraulic principles.
Lifting: The operator activates the lift control lever, which directs hydraulic fluid to the lift cylinders. The cylinders extend, raising the carriage and forks along the mast.
Lowering: The operator activates the lower control lever, which releases hydraulic fluid from the lift cylinders, allowing the carriage and forks to descend.
Tilting: The operator activates the tilt control lever, which directs hydraulic fluid to the tilt cylinders. The cylinders extend or retract, tilting the mast forward or backward.
Movement: The operator uses the steering wheel/lever and direction control lever to maneuver the forklift.
Stability: The counterweight in counterbalance forklifts ensures stability by offsetting the load being lifted. The design of other forklift types incorporates various stability features, such as outriggers and wide wheelbases.
Safety Considerations: Operating a Forklift Responsibly
Operating a forklift requires strict adherence to safety guidelines to prevent accidents and injuries.
Operator Training and Certification: Only trained and certified operators should operate forklifts.
Load Capacity: Never exceed the rated load capacity of the forklift.
Load Stability: Ensure that loads are properly secured and balanced.
Travel Speed: Maintain a safe travel speed, especially in congested areas.
Pedestrian Safety: Be aware of pedestrians and yield the right-of-way.
Maintenance: Regularly inspect and maintain the forklift to ensure proper operation.
Conclusion:
The forklift is an essential tool for material handling, playing a crucial role in various industries. Understanding its components, operating principles, and safety considerations is vital for efficient and safe operation. From the robust frame to the intricate hydraulic system, each component contributes to the forklift's ability to lift, move, and stack materials with precision and power. As technology advances, forklifts continue to evolve, incorporating features such as automation, advanced sensors, and improved energy efficiency.
