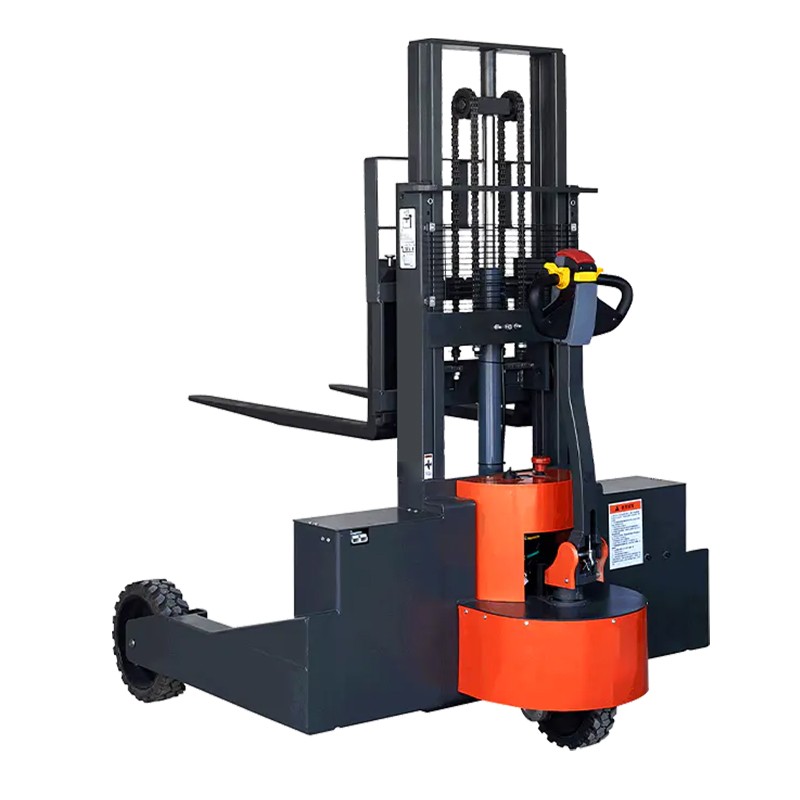

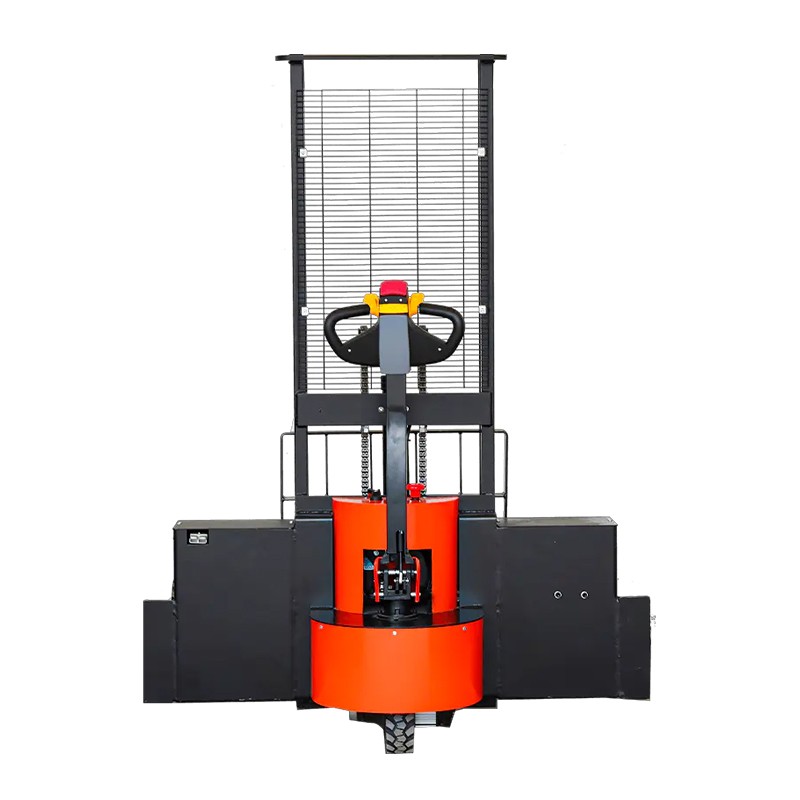

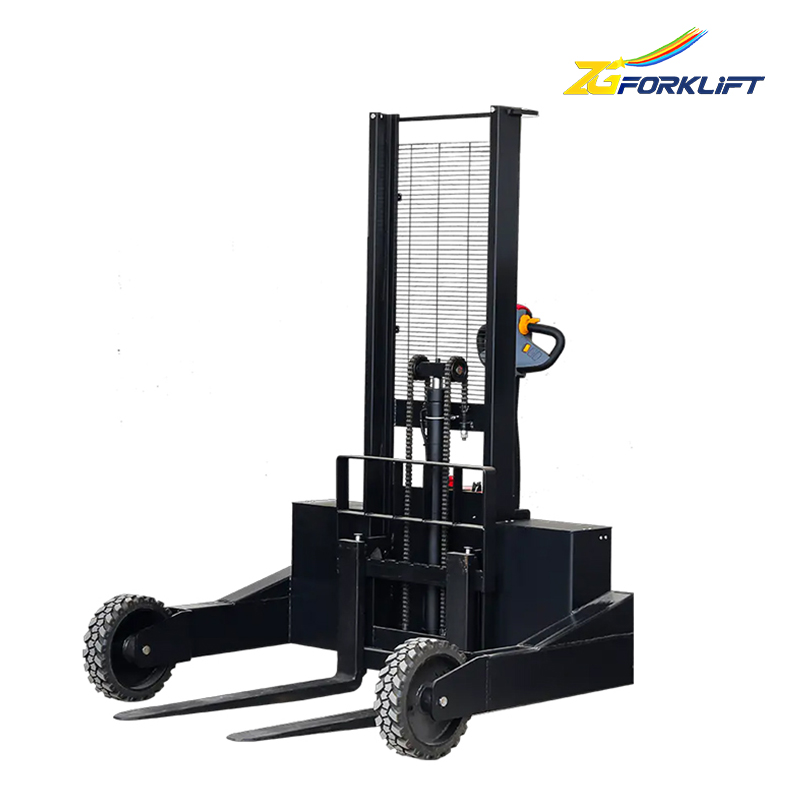

MYCDD-H All terrain Electric Stacker

MYCDD-H All terrain Electric Stacker
  • MYCDD-H All terrain Electric Stacker
  • MYCDD-H All terrain Electric Stacker

Short Description:

This is an all-terrain outdoor electric pallet stacker, with a sturdy and stable structural design. It is suitable for rough outdoor surfaces such as construction sites and muddy areas....


  • Maximum load capacity: 1500/2000kg
  • Overall length/width of frame: 1730/1570mm
  • Fork size(length *width*thickness): 1070*100*35mm
  • Fork lowered height: 90mm

Product Details

Product Tags

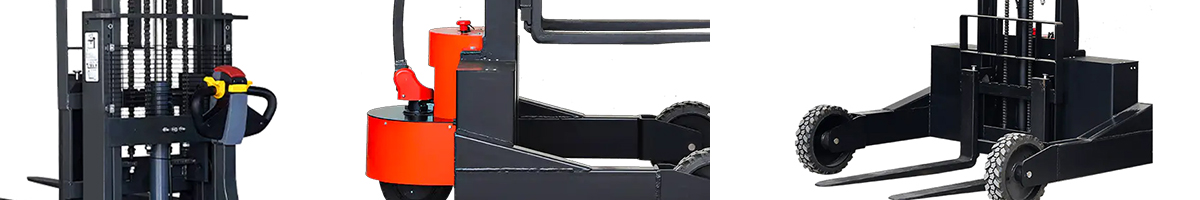

ALL TERRAIN ELECTRIC STACKER CDDH

This is an all-terrain outdoor electric pallet stacker, with a sturdy and stable structural design. It is suitable for rough outdoor surfaces such as construction sites and muddy areas.


Product features :

• Pump Brand: BUCHER
• 12V/120Ah GEL Maintenance-free Battery
• AC 1.5kW Horizontal Drive Motor
• Controller Brand: CURTIS
• Wheel: Solid Rubber

Model CDD-H
Maximum load capacity 1500/2000kg
load center 500mm
Travel speed without load/with load 3.5/3km/h
Lifting speed without load/with load 110/80mm/s
Lowered speed without load/with load 100/100mm/s
Ascend slope ability without load/with load 8/6%
Overall length/width of frame 1730/1570
Wheelbase 1178mm
Fork sizelength *width*thickness 1070*100*35mm
Fork outside width 210-960mm
Min frounf height 50mm
Fork lowered height 130mm
Minimum turning radius 1355mm
Minimum intersecting aisie 2340mm
Front wheel 375*115mm
Drive wheel 300*90mm
Drive motor Rated output/DC motor 1.5kw
Hoist motor Rated output/DC motor 2.2kw
Battery Voltag/Capacity 24/120V/Ah
Battery Weight 35*2kg
Mast Max.Lifting height Mast overall height Mast overall height Service weight
Single mast 1600 mm 2080 mm 2080 mm 735 kg
2-stage mast 2000 mm 1580 mm 2550 mm 755kg
2500 mm 1830 mm 3050 mm 790 kg
3000 mm 2080/1980 mm 3550/3450 mm 820 kg
3500 mm 2330 mm 4050 mm 850 kg

Full electric stacker refer to various wheeled trucks for loading and unloading, stacking, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay warehouses and workshops.



Key Features:

  • Powerful Electric Motor: Delivers strong performance and efficient operation, minimizing environmental impact.
  • All-Terrain Tires: Equipped with durable, puncture-resistant tires that provide excellent traction on uneven surfaces, such as gravel, mud, and grass.
  • Compact and Maneuverable: Its compact design allows for easy maneuverability in tight spaces, while maintaining the ability to lift and transport heavy loads.
  • Ergonomic Design: Features comfortable operator controls and a well-designed operator compartment for increased comfort and reduced fatigue during operation.
  • Adjustable Mast: Offers adjustable mast heights to accommodate various load heights and storage requirements.
  • Heavy-Duty Construction: Built with high-quality components and robust construction to withstand the rigors of outdoor use.
  • Maintenance-Friendly: Designed for easy access to key components for routine maintenance and servicing.
  • Safety Features: Equipped with essential safety features, such as load backrests, emergency stop buttons, and audible/visual alarms.



Applications:

  • Construction Sites: Transporting building materials, moving equipment, and loading and unloading trucks.
  • Landscaping: Moving and placing landscaping materials, such as mulch, soil, and sod.
  • Agriculture: Handling farm supplies, moving livestock feed, and transporting equipment.
  • Outdoor Warehousing: Handling materials in outdoor storage areas and loading and unloading trucks.
  • Industrial Applications: Moving heavy equipment and materials in outdoor industrial settings.


About us

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
