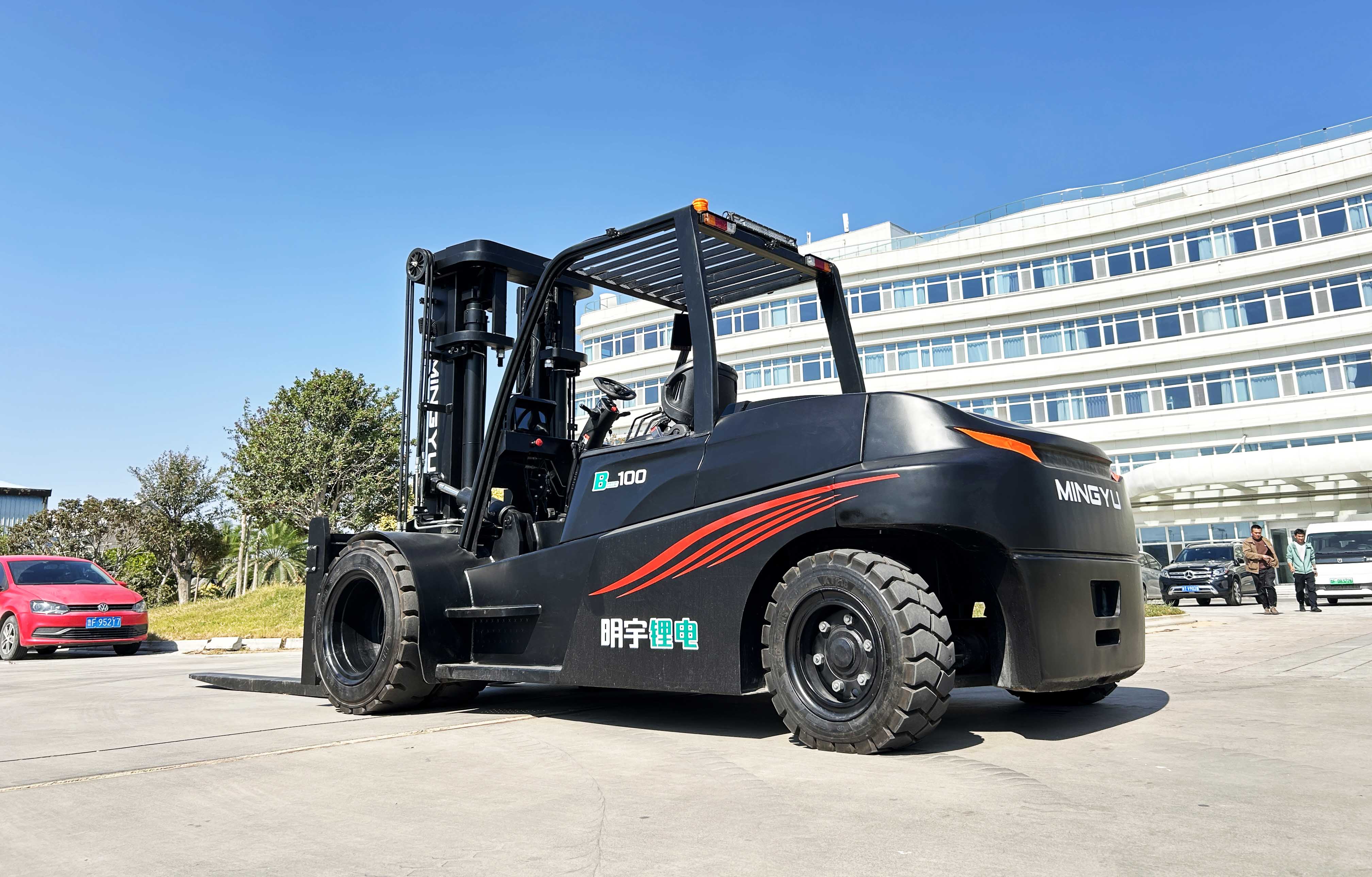

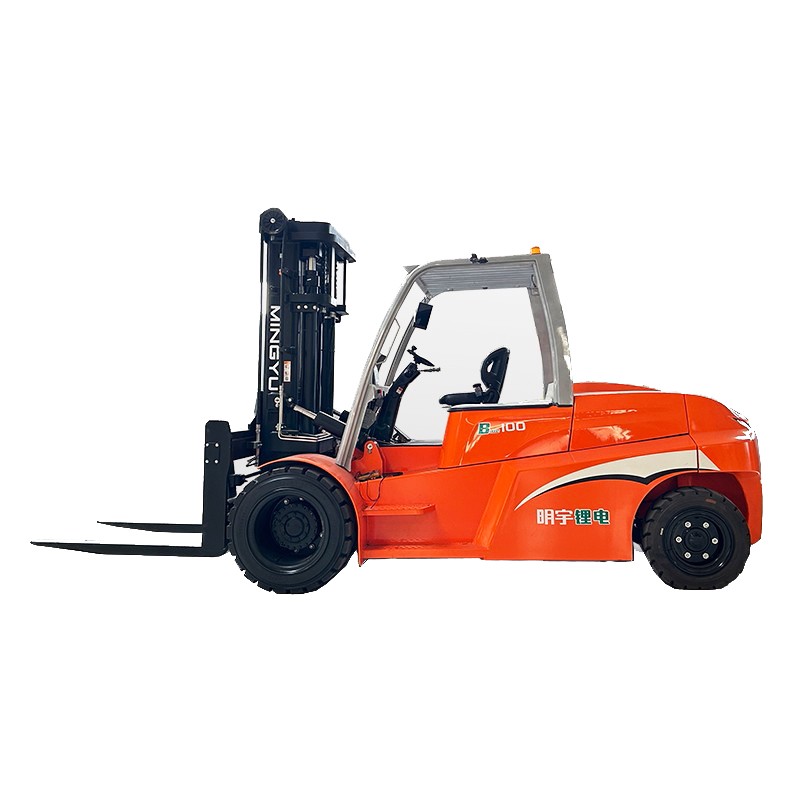

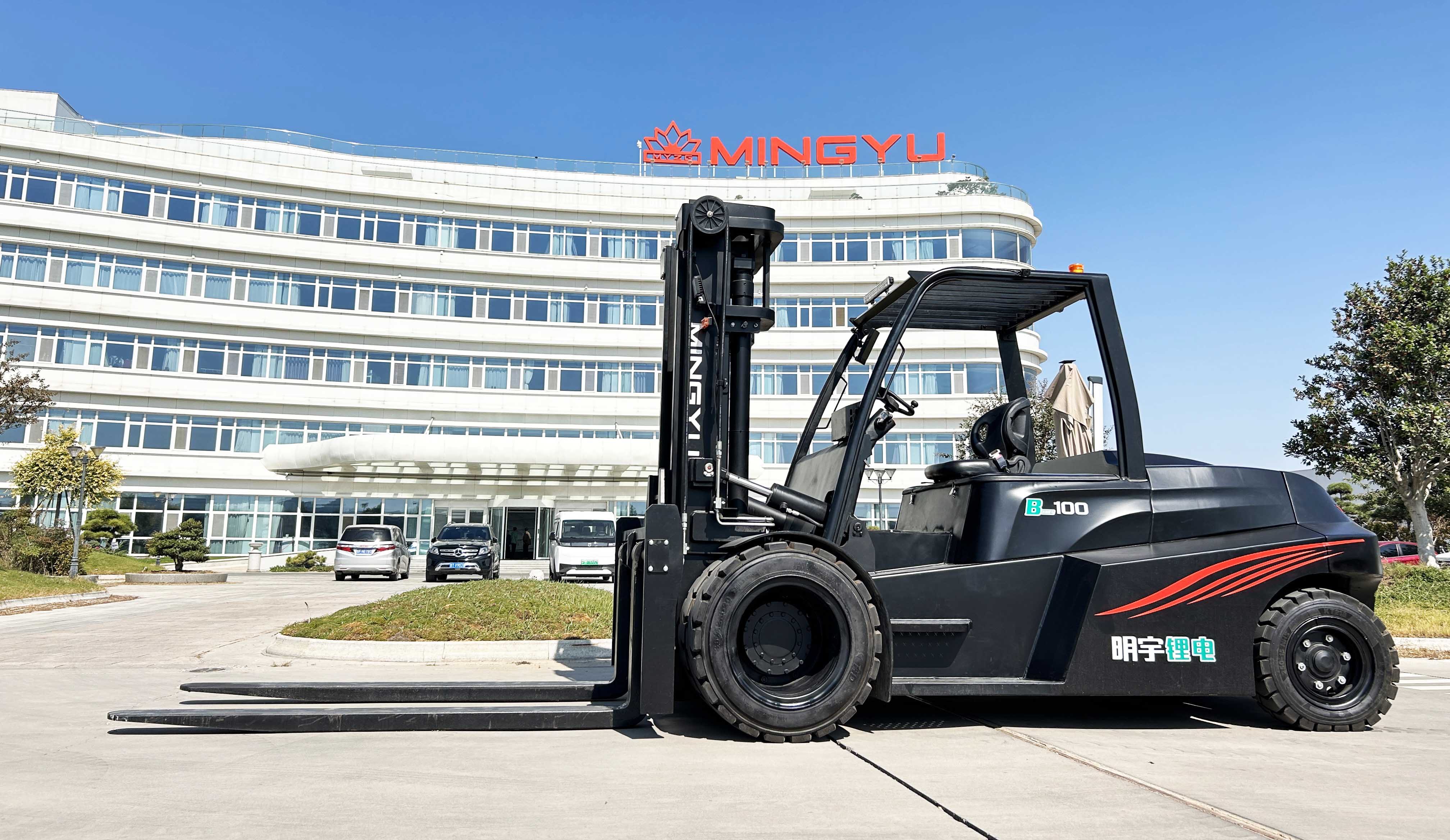

CPD100-B electric Forklift
10000lbs lifting capacity
MYZG's 10t 4-Wheel B-Series electric forklifts are high-capacity, powerful, high-performance machines, suitable for more demanding applications. With excellent visibility, many advanced comfort and productivity features as standard, and reduced total cost of ownership, these machines will give your business a boost.
Product Feature
Adjustable Column
The steering column is adjustable in vertical and horizontal directions according to the driver’s preference and comfort.
Spacious Operator Leg Room
The thick and large rubber floor mat, rounded hood, and spacious legroom offer great comfort to the operator.
Premium Grammer Seats
The full-suspension (air suspension optional) comfort seat is fully adjustable to accommodate all individual preferences.
Low Seat Position (Full Cabin)
Easy to hop on and off thanks to the high headroom, the operator has a very spacious operator space at his disposal.
360 ° Visibility
Thanks to the large glass around the operator. The high visibility makes driving a forklift with a load safer and contributes to even better productivity and driving experiences.
Easy Access to the Main Components
All main components below the cabin make it easy to access, enabling easy service.
| Model | B100 | |
| Power Type | accumulator | |
| rated load lifting capacity | 10000kg | |
| Load centre distance | 600mm | |
| driving style | Sit down | |
| length | with fork | 5582mm |
| without fork | 4184mm | |
| wideth | 2385mm | |
| height | Do not raise the mast height | 2814mm |
| Overhead guard height | 2488mm | |
| Max height at working | 4320mm | |
| front wheel track | 1668mm | |
| rear wheel track | 1783mm | |
| minimum ground clearance | 190mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 85mm | |
| Fork adjustment range | 400-2100mm | |
| Gantry angle (front/rear) | 5/10° | |
| Maximum lifting speed without load | 300mm/s | |
| Maximum lifting speed with full load | 250mm/s | |
| Maximum operating speed without load | 21Km/h | |
| Maximum operating speed with full load | 20Km/h | |
| Max gradeability with full loading | 12% | |
| Weight unladen | 14100kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/solid tyre | |
| tyre size(front) | 36*12.5-20 | |
| tyre size(rear) | 250-15-16RP | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Battery voltage/capacity | 614.4V/175AH | |
| drive motor power | 105KW | |
| Oil pump motor power | 63KW | |
STANDARD FEATURES
Easy Access Controller
The IP65-rated controller is very reliable, well proven in tough applications, and easy-to-access.
Large Entry Step with Anti-Slip Pattern
Low height of the 1st and 2nd steps to allow the operator to get on and off the truck easily and safely. Multiple entry grab bars are equipped to ensure a 3-point entry.
Extra Front LED lights
Brighter and last longer than traditional sealed beams or halogen lights.
Strobe and Blue Safety Lights
Increased safety in the workplace with maximum visibility. (safety lights are optional)
LED Road Lights
Clear visibility and efficiency whilst working in areas with reduced lighting and preventing hazards and accidents.
According to demands, can be matched with different accessories
MYZG Genuine Parts
The parts warehouse supplies high-quality MYZG parts to your local dealer. MYZG Genuine Parts perfectly fit your truck.
Worldwide Service Network
MYZG provides high-quality support, relying on our extensive dealer network. Highly skilled professionals are always ready to help you.
