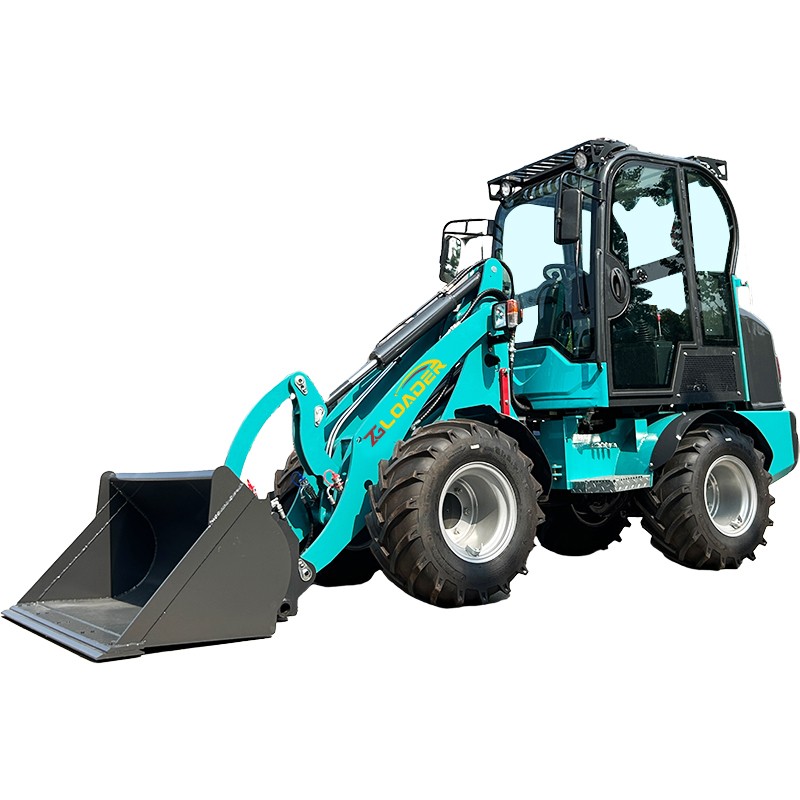

ZGLOADER / MYZG ZG1090 European Style Articulated Wheel Loader
ZGLOADER / MYZG ZG1090 European Style Articulated Wheel Loader
The ZG1090 is a European-style compact mini wheel loader for customers who need mechanical loading power in places where a conventional articulated loader is too wide, heavy or expensive to move. Shandong Zhuogong Machinery equipment Co.,Ltd supplies the machine under ZGLOADER / MYZG with configuration confirmation, export packing, document coordination, spare-parts identification and after-sales communication. Its articulated steering, hydrostatic four-wheel drive, 1000 kg rated capacity and 1310 mm width balance compact access with productive material handling. wheel loader category.
Customer need and compact-loader solution
Manual shoveling and wheelbarrows often become the bottleneck in greenhouses, livestock buildings, gardens, renovation areas, small warehouses and property-maintenance routes. The ZG1090 can load, carry and tip soil, feed, mulch, sand, light aggregate and debris while keeping transport and storage demands low. A buyer should send gate width, turning space, floor or soil condition, gradient, material density, target tipping point and daily operating hours. These facts determine whether the compact format saves labor without exceeding stability or traction limits.
Verified ZG1090 reference specifications
| Rated load capacity | 1000 kg |
| Rated bucket capacity | 0.38 m³ |
| Operating weight | 2500 kg |
| Engine model | Kubota V1505 |
| Rated power | 18.5 kW at 2300 rpm |
| Drive system | Hydrostatic four-wheel drive |
| Steering | Articulated steering |
| Overall dimensions | 4210 × 1310 × 2316 mm |
| Maximum dump height | 2029 mm |
| Maximum dump reach | 608 mm |
| Minimum turning radius | 3336 mm |
| Wheelbase | 1550 mm |
| Wheel tread | 930 mm |
| Ground clearance | 240 mm |
| Tyres | 31 × 15.5-15 |
| Front tyre pressure | 350 kPa |
Application scenarios based on real work
Typical work includes moving feed and bedding inside barns, transferring soil and plants in nurseries, loading mulch for landscaping, clearing light debris during renovation, maintaining paths, serving greenhouse aisles and handling loose material around municipal or residential properties. The compact footprint is useful when work points are distributed through narrow passages. Outdoor productivity still depends on prepared ground, drainage, tyre grip and safe gradients; this machine should not be treated as a full-size rough-terrain loader.
How to select the right compact loader
Selection begins with access width and the heaviest real material, not bucket volume alone. A 0.38 m³ bucket of wet soil imposes a very different load from the same volume of dry grain, compost or snow. Confirm the 1000 kg rated-load reference against the intended tool, load position, ground and operating method. Measure trailer capacity, storage height, door clearance, turning area and the 2029 mm maximum dump-height reference. If the work requires higher truck sides or longer travel, another loader may provide a safer match.
Attachments and material-density planning
The standard bucket supports general loose material. Depending on confirmed factory compatibility, customers may discuss light-material buckets, narrow buckets, pallet forks, manure or bale tools, snow blades, sweepers or other small-loader implements. Every attachment changes front weight, visibility, hydraulic demand and residual capacity. Provide load dimensions and center of gravity for forks, plus oil-flow and coupling requirements for hydraulic tools. The final quotation must identify the approved attachment rather than assume every accessory fits.
Buyer checklist before requesting a quote
A useful quotation states model, engine, hydrostatic system, operating weight, bucket, tipping load, lift and tip heights, dimensions, tyres, brakes, controls, protection structure, hydraulic connections, attachments, fuel tank, service items, packing dimensions, manuals and destination documents. Ask how the machine will be secured for transport and which fast-moving spares should ship with it. Compare labor saved, access advantage, fuel, maintenance, attachment use and local service rather than selecting only the lowest purchase price. application and buying guides.
Safety and operator preparation
Before each shift inspect the attachment lock, bucket edge, lift arms, pins, hoses, cylinders, tyres, wheel fasteners, steering, hydrostatic response, brakes, throttle, engine oil, fuel system, guards, seat and warning devices. Keep pedestrians outside the operating zone and travel with the bucket low. Slow before turns, slopes and transitions, avoid sudden steering with a raised load and never use the loader to lift people. Work only on surfaces and gradients allowed by the delivered manual.
Maintenance and lifecycle cost control
Plan maintenance by operating hours, environment and serial number. Clean cooling air paths, check engine oil, filters, fuel, hydraulic oil, leaks, belt or hose condition, pins, bushings, tyre wear and fasteners at the prescribed intervals. Dust, plant fibres, fertilizer, moisture and winter storage can shorten service life, so adjust inspection frequency. Record defects and repairs, use compatible parts for the delivered configuration and remove the loader from service when steering, braking, lifting or structural faults are found.
Dealer and rental-fleet opportunity
Distributors and rental fleets can position the ZG1090 around access and labor replacement: nurseries, greenhouses, livestock farms, landscapers, small contractors, municipalities and property-service businesses. Qualify leads by doorway, material density, dump target, surface, hours, trailer and local service distance. Demonstrations should cover daily inspection, controls, bucket positioning, safe travel, refueling, parking and transport. Stocking filters, seals, hoses, pins and wear edges creates repeat service and protects resale value.
Compliance, export experience and service trust
CE documentation and applicable machinery requirements depend on the exact final configuration and destination and must be confirmed in writing for the serial-numbered unit. EPA requirements apply only to relevant engine versions and markets; the selected Kubota V1505 engine does not automatically prove compliance for every country. MYZG supports production communication, inspection coordination, export packing, shipping documents, manuals, spare parts and after-sales contact. Buyers should verify required certificates and engine-emission evidence before shipment.
Frequently asked questions
Is the ZG1090 suitable for greenhouse aisles?
Its 1310 mm reference width can suit compact routes, but measure every door, turn and overhead restriction before ordering.
Can it load wet soil or gravel?
It can handle suitable material only within tipping-load and stability limits. Density, bucket fill and ground condition must be checked.
Can pallet forks be fitted?
Forks may be discussed when approved. Send pallet weight, dimensions, load center and lift point for residual-capacity review.
Are CE and EPA documents included?
They depend on the final configuration and destination and must be listed in the written quotation.
Request a job-matched quotation
Send work-site photos or video, gate dimensions, material type and density, maximum load, tipping target, ground, gradient, daily hours, desired attachments, destination port and required documents. The export team will recommend a configuration and provide a project-based quotation instead of an unsafe generic promise. contact the MYZG export team.
