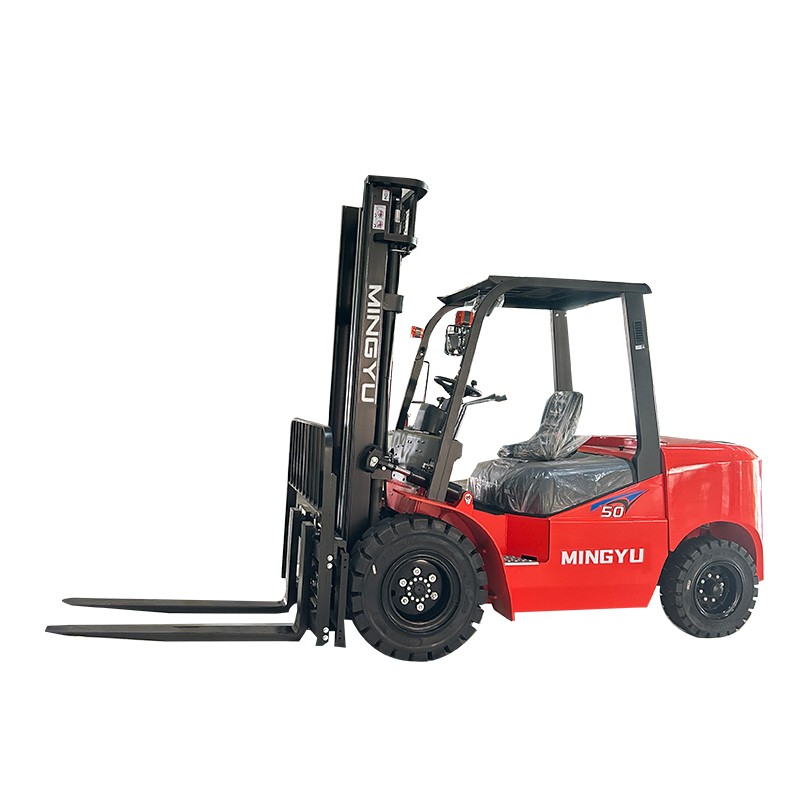

ZGLOADER / MYZG CPC50 5 Ton Diesel Forklift
ZGLOADER / MYZG CPC50 5 Ton Diesel Forklift for Industrial Material Handling
A robust 5000 kg counterbalance forklift with multiple diesel engine options, up to 22 km/h travel speed, 15% gradeability and a stable 5710 kg chassis for demanding outdoor shifts.
Overview: dependable diesel torque for productive material handling
The ZGLOADER / MYZG CPC50 is a 5 ton industrial diesel forklift manufactured by Shandong Zhuogong Machinery equipment Co.,Ltd for logistics yards, building-material plants, timber depots, factories, farms and distribution centers. Its straightforward diesel powertrain is designed for continuous work where fast refueling, strong low-speed torque and outdoor durability are operational priorities.
The available diesel engine packages supply the torque required to lift a rated 5000 kg at a 500 mm load center. A 5710 kg unladen mass, 1950 mm wheelbase, 165 mm full-load ground clearance and pneumatic 300-15 front and 700-12 rear tyres give the CPC50 a stable base for controlled operation on paved yards and prepared industrial surfaces.
MYZG CPC50 factory technical specifications
The table presents the mechanical, dimensional and performance data for this 5000 kg diesel counterbalance forklift. Final mast, fork, tyre, cab, engine-emission and attachment selections should be confirmed for the destination market and actual load.
| Model | CPC50 (5.0T-D series) |
| Power type | Internal-combustion diesel engine |
| Engine options | Quanchai / Xinchai / Mitsubishi / Isuzu / Cummins |
| Rated capacity | 5000 kg |
| Load center | 500 mm |
| Operator position | Seated operator |
| Overall length with/without forks | 4075 / 3055 mm |
| Overall width | 1380 mm |
| Lowered mast/overhead guard height | 2205 / 2215 mm |
| Maximum fork height with load backrest | 4290 mm |
| Standard lift | 3000 mm |
| Minimum turning radius | 3250 mm |
| Mast tilt forward/backward | 6° / 12° |
| Lifting speed unloaded/loaded | 400 / 350 mm/s |
| Travel speed unloaded/loaded | 22 / 20 km/h |
| Maximum gradeability | 15% |
| Unladen net weight | 5710 kg |
| Drive/steering wheels | 2 / 2 |
| Front/rear tyre type | Pneumatic / pneumatic |
| Front/rear tyre size | 300-15 / 700-12 |
| Standard mast | Duplex 3000 mm |
| Wheelbase/frame ground clearance | 1950 / 165 mm |
| Front/rear overhang | 480 / 575 mm |
| Front/rear wheel track | 1080 / 985 mm |
Engineering design and principal advantages
1. Multiple diesel engine options and responsive hydraulic performance
The CPC50 can be configured with Quanchai, Xinchai, Mitsubishi, Isuzu or Cummins diesel power depending on destination-market requirements. The hydraulic system provides a documented lifting speed of 400 mm/s unloaded and 350 mm/s loaded, while travel speed reaches 22 km/h unloaded and 20 km/h loaded. These values support efficient pallet cycles, truck loading and material transfer.
2. 3250 mm turning radius with stable 5710 kg weight
A 1380 mm overall width, 3055 mm length without forks and 3250 mm turning radius define the CPC50 working envelope. The 5710 kg chassis, 1080 mm front track, 985 mm rear track and 1950 mm wheelbase provide a stable counterbalance foundation when the approved load chart is followed.
3. Industrial pneumatic tyres and practical ground clearance
The 300-15 front and 700-12 rear tyres provide traction and cushioning for this outdoor diesel forklift. Minimum ground clearance is 165 mm, helping the machine cross normal yard joints and small surface irregularities while the operator maintains a safe controlled speed.
4. 3000 mm standard lift and operator-focused mast design
The standard duplex mast lifts 3000 mm, with a 6° forward and 12° backward tilt. The overhead guard height is 2215 mm, and the fork reaches 4290 mm with the load backrest in the documented configuration. A wide-view mast, accessible controls and service points support safe, efficient daily operation.
Recommended application environments
The CPC50 combines compact dimensions, diesel endurance and 5000 kg capacity for medium-duty outdoor and mixed industrial handling when ventilation, floor strength, traffic control and load stability have been assessed.
Railway maintenance supply depots
Move secured pallets of rail fasteners, maintenance consumables and boxed components between covered stores, inspection zones and outbound vehicles on prepared routes.
Irrigation and pump-equipment distribution

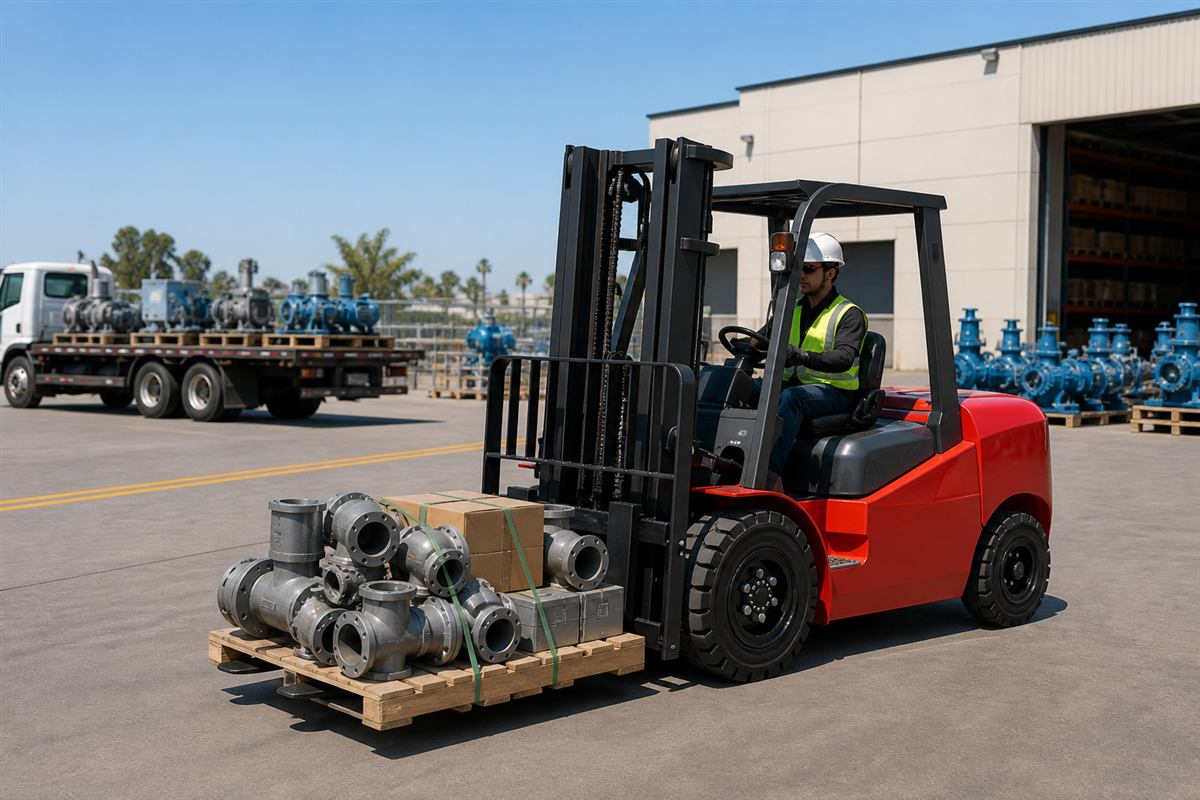

Handle secured pump housings, boxed fittings and irrigation components on prepared yards using the correct forks, pallet and verified residual capacity.
Solar-project and infrastructure logistics

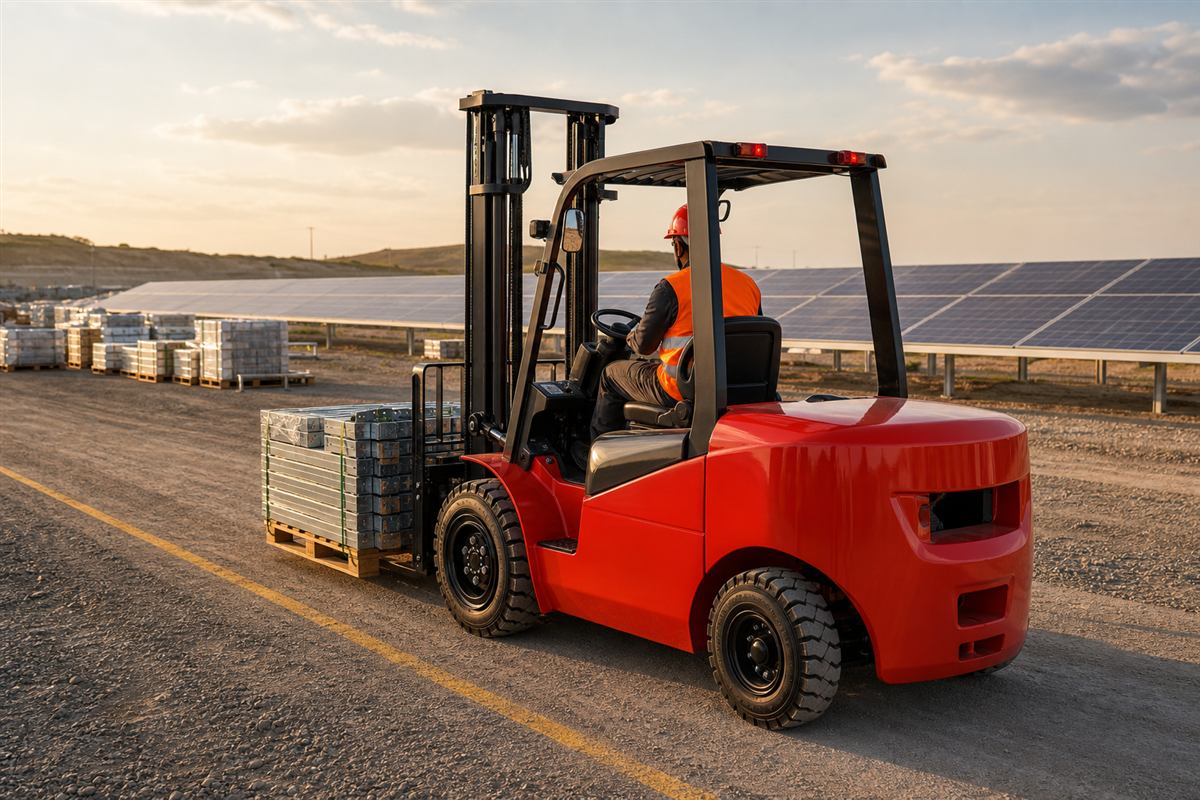

Transfer palletized mounting hardware, cable-tray parts and packaged infrastructure materials in outdoor staging zones with traffic separation and controlled refueling.
Selection and purchasing guide
Select the CPC50 from the real load, not the five-ton headline alone. Send load dimensions, true load center, maximum lift, residual-capacity requirement, fork length, aisle and door widths, floor and ramp condition, daily cycles, outdoor exposure, attachment, emission requirement and destination rules. Confirm engine, mast, tyres, data plate and documents in the written quotation.
Maintenance and total cost of ownership
Daily checks cover forks, carriage, mast channels, chains, hoses, tyres, brakes, steering, horn, lights, seat restraint, coolant, engine oil and fuel leaks. Planned service includes filters, cooling, transmission, hydraulics and fuel components. Compare fuel use, tyres, wear parts, training, service access, downtime and resale suitability rather than purchase price alone.
Dealer, rental and parts support
Dealers and rental fleets can position the CPC50 for railway-supply depots, irrigation-equipment distributors, solar-project logistics and heavy outdoor loading. A responsible offer combines a site survey, load demonstration, operator handover, preventive maintenance and identified spare parts. Contact the MYZG export and service team.
Compliance, export service and trust
CE-related evidence, engine-emission documents, EPA applicability and destination requirements depend on the final engine and configuration and must be confirmed in writing; no certificate number is assumed. The source short summary states 5900 kg while its parameter table states 5710 kg, so the final order sheet must confirm the applicable unladen weight. MYZG supports configuration review, inspection, export packing, manuals, shipping documents, parts identification and after-sales communication without inventing customer names or performance figures.
Frequently asked questions
Which engine is used in the CPC50?
Available engine packages may include Quanchai, Xinchai, Mitsubishi, Isuzu or Cummins. The final engine and emission package should be confirmed for the destination market and operating conditions.
What is the turning radius of this 5 ton diesel forklift?
The documented minimum turning radius is 3250 mm. Buyers should add clearance for the actual pallet, attachment, fork length, rack protection and operator skill.
Can the CPC50 be supplied with hydraulic attachments?
Yes. MYZG can discuss side shifters, fork positioners, clamps, rotators, duplex or triplex masts and cab options. Residual capacity must be recalculated for the selected mast, load center and attachment.
Configure a ZGLOADER / MYZG CPC50 for your site
Send the load weight and dimensions, lift height, aisle width, operating surface, ramp gradient, working hours, engine-emission requirement, destination port and attachment needs. The factory team can prepare a configuration, quotation, packing plan and shipping proposal.
