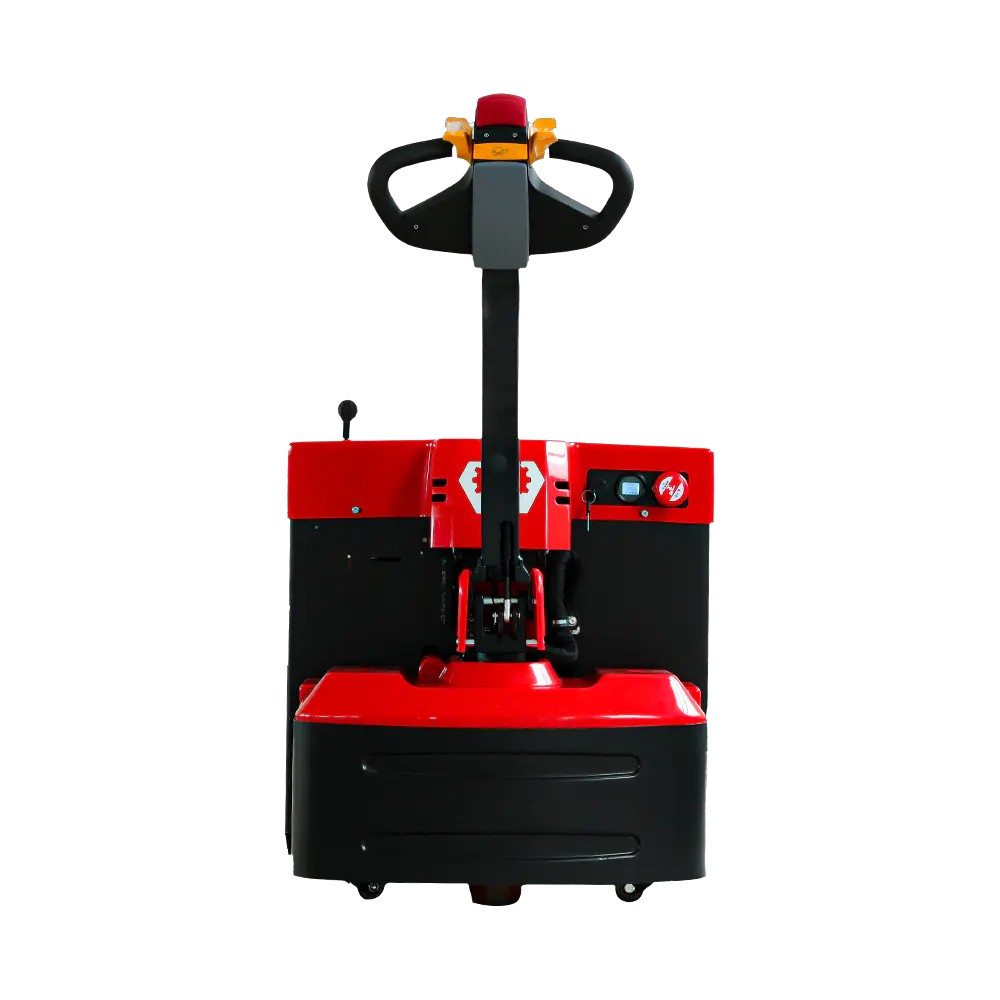

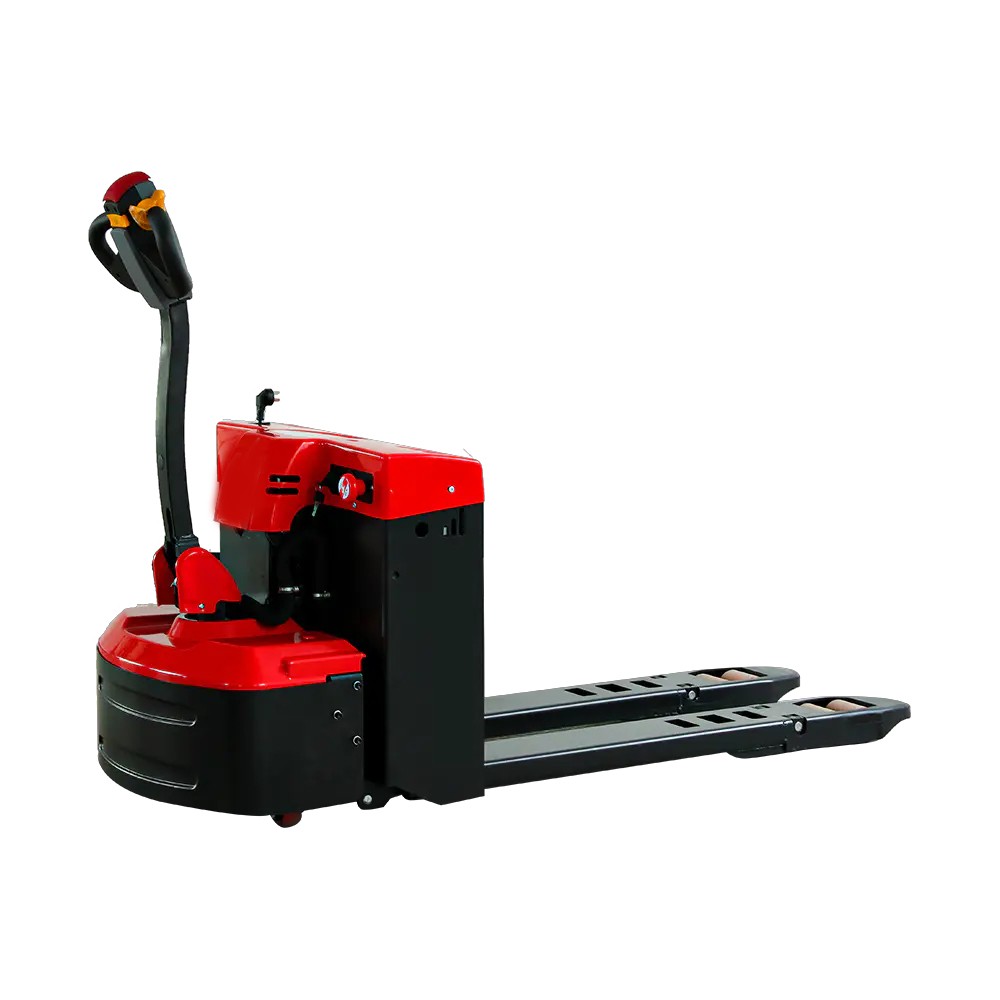

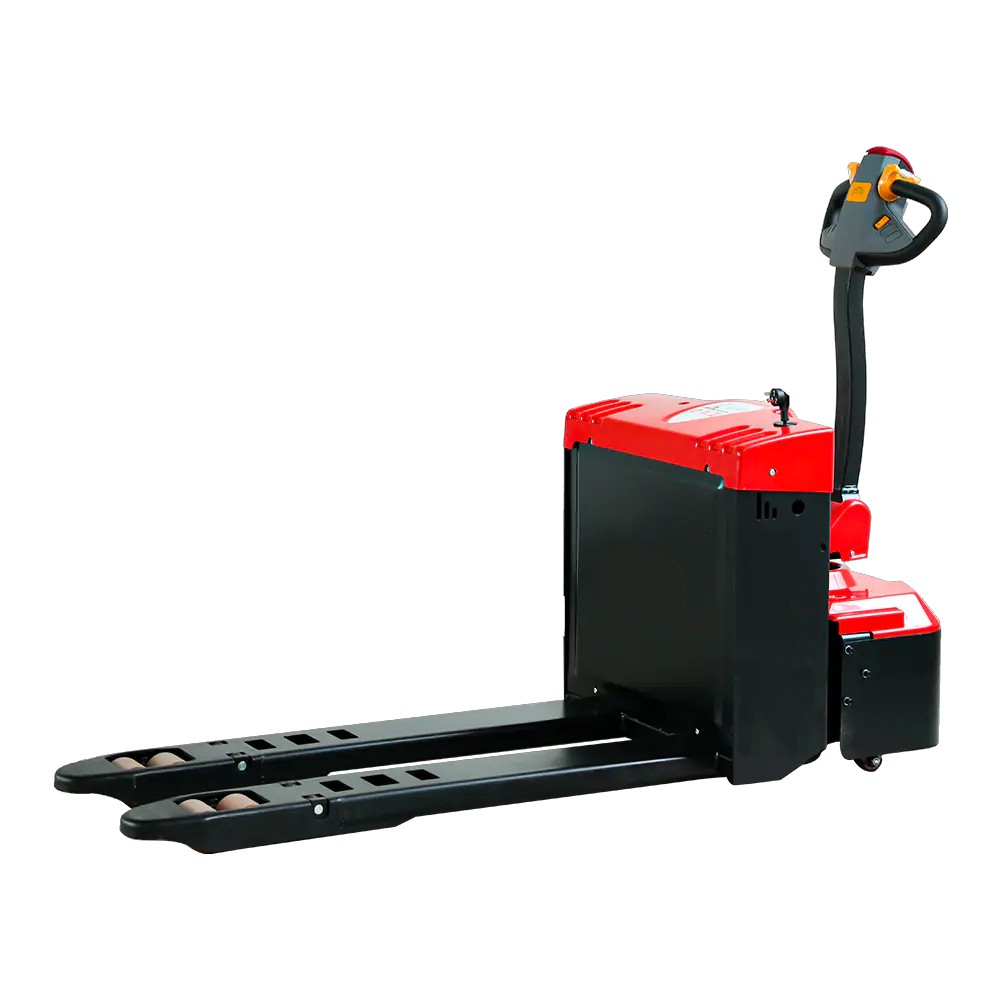

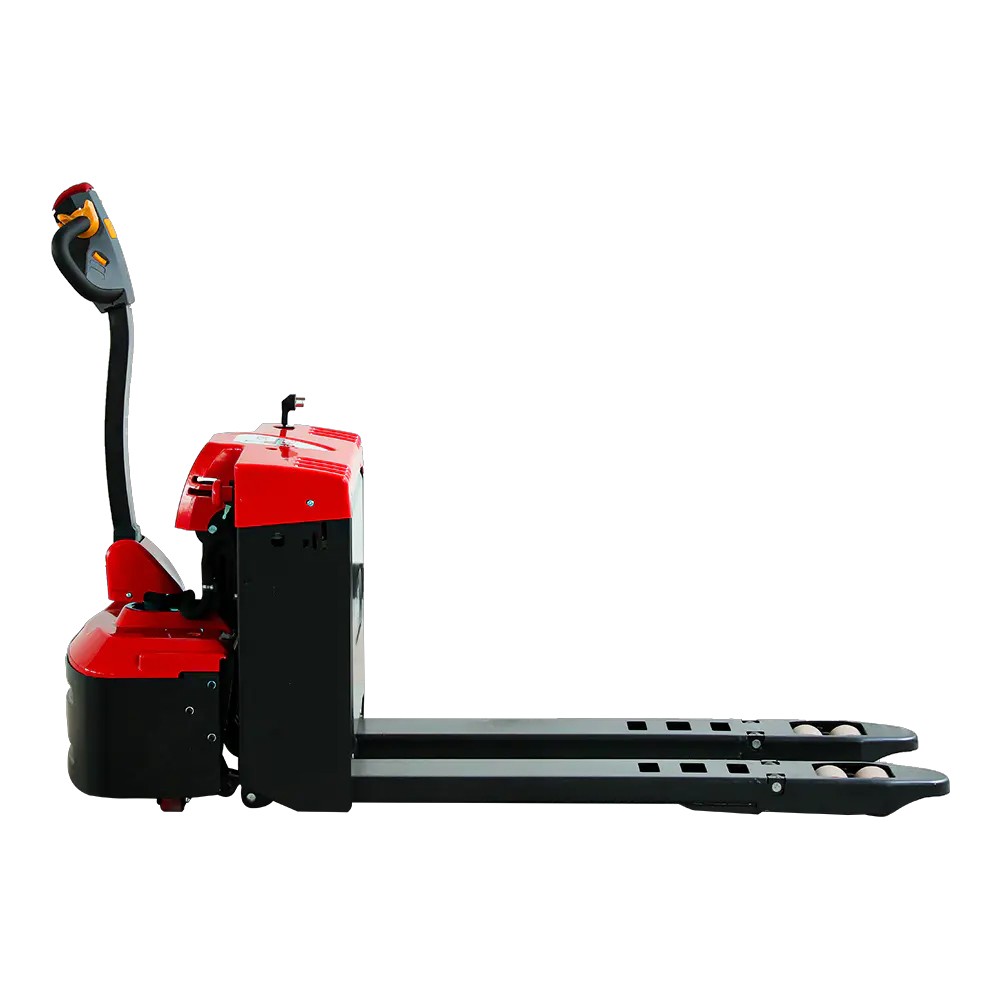

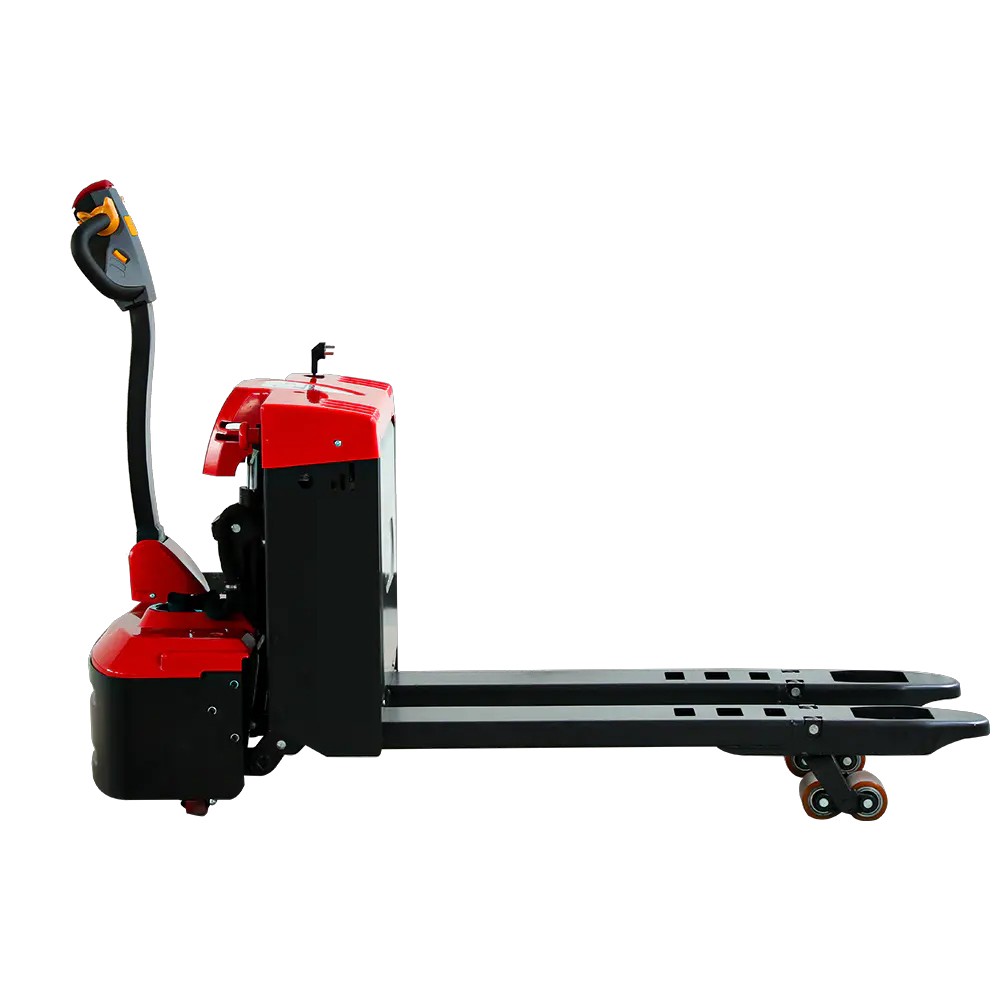

Mingyu CBD-B Electric Pallet truck

Short Description:

This model is designed to meet the needs of users for the large tonnage load of the Walkie Pallet Truck. The load capacity is 3T, and it can be used continuously for more than 7 hours....

Maximum load capacity: 3000kg
Overall length/width of frame: 1792/720mm
Weight (without battery): 330kg
Fork size（length *width*thickness）: 1200*170*60mm

Send email to us

Product Details

Product Tags

MYCBD-B Electric Pallet Jack

CBD-B Electric Pallet Jack

This model is designed to meet the needs of users for the large tonnage load of the Walkie Pallet Truck. The load capacity is 3T, and it can be used continuously for more than 7 hours.

THE MAIN PARAMETER

Product features :

Advantages：

• Compact structure design, small turning radius;

• Adopt high-strength special profiles, the whole vehicle has high strength and good stability;

• Using 24V130Ah power battery, it can be used continuously for more than 7 hours;

• With the mounted long tiller the operator can keep a safe and ergonomic distance while performing his work；

• Multi-function handle with turtle speed switch, buzzer, emergency reverse, and one keylift function；

• Reinforced Fork, drive wheel cover,make sure the high strength and safety；

• The truck is equipped with a height limit switch.

Company Introduction

Model				CBD30B
Maximum load capacity				3000kg
load center				600mm
Maximum lifting height				205mm
Travel speed without load/with load				5/4.5km/h
Lifting speed without load /with load				24mm/s
Lowered speed without load /with load				30mm/s
Ascend slope ability without load /with load				5/16%
Weight (without battery)				330kg
Overall length/width of frame				1792/720mm
Wheelbase				1389mm
Fork size（length widththickness）				120017060mm
Fork outside width				550/685mm
Min frounf height				30mm
Fork lowered height				85mm
Minimum turning radius				1602mm
Minimum intersecting aisie				2346mm
Front wheel				80*98mm
Drive wheel				250*75mm
Caster wheel				115*55mm
Drive motor Rated output/AC motor				1.5kw
Hoist motor Rated output/DC motor				1.5kw
Voltag/Capacity				24/130V/Ah
Weight				52kg

Electric drive and electric lift, increase productivity.

It also combines the compact size of a Hand Truck with ease of movement to make it well-suited for small spaces. It is easy to use and requires virtually no maintenance.
This truck will eliminate the strain from pulling and pushing a Hand Truck. This 1500kg capacity machine is another step towards an ergonomic
Suitable for indoor applications such as stores, back of stores, supermarkets, light industry, hospitals, pharmacies, libraries, etc.
Equipped with maintenance-free Lithium battery 25AH for easy replacement. 2 hours quick charge as an option.
Equipped with an electromagnetic brake, it can stop on the slope.

Tandem fork rollers as standard configuration, and with additional supporting wheels.
