CPD35 Electric Forklift.

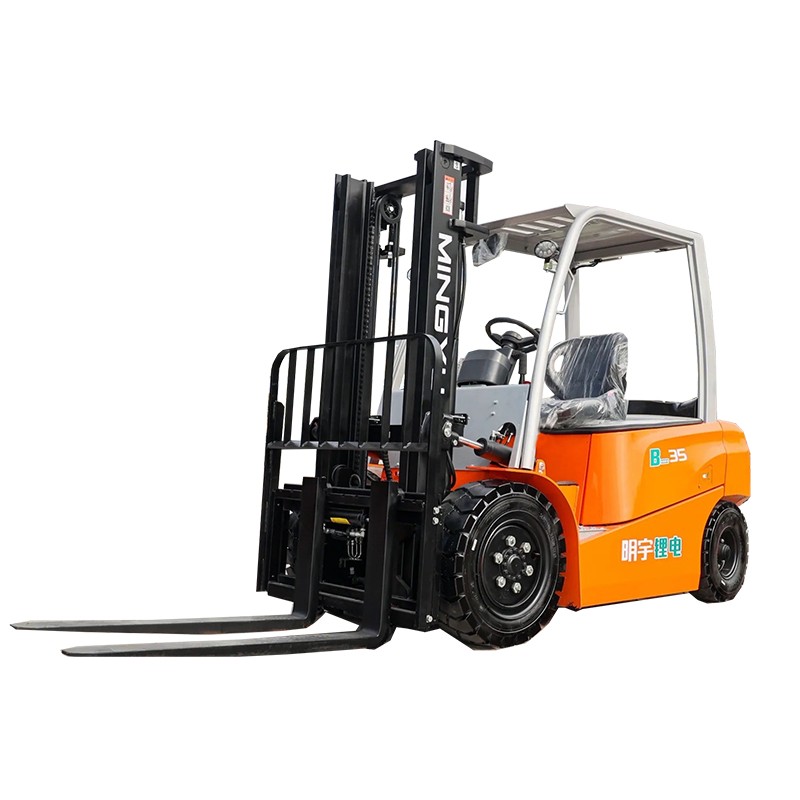

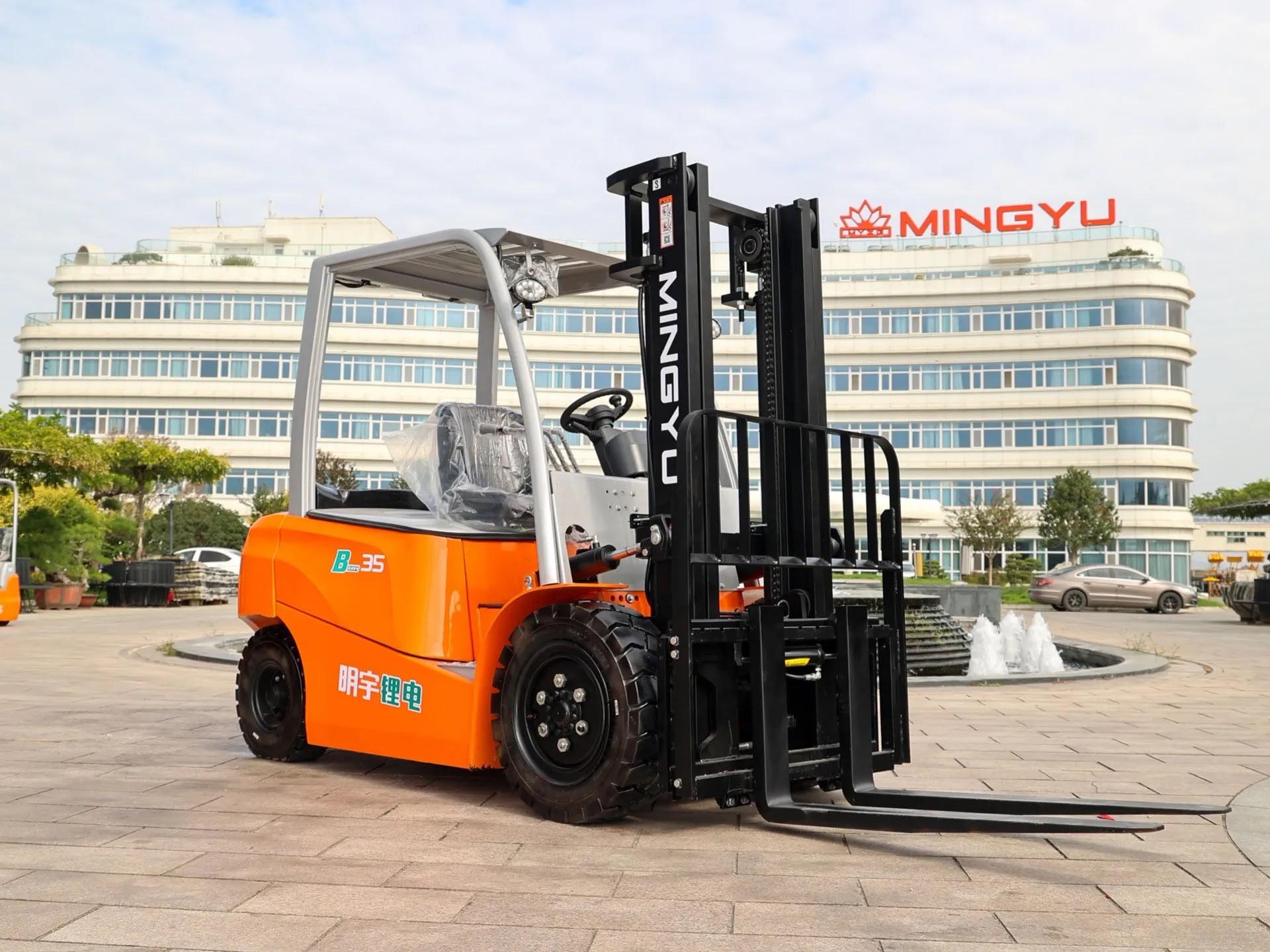

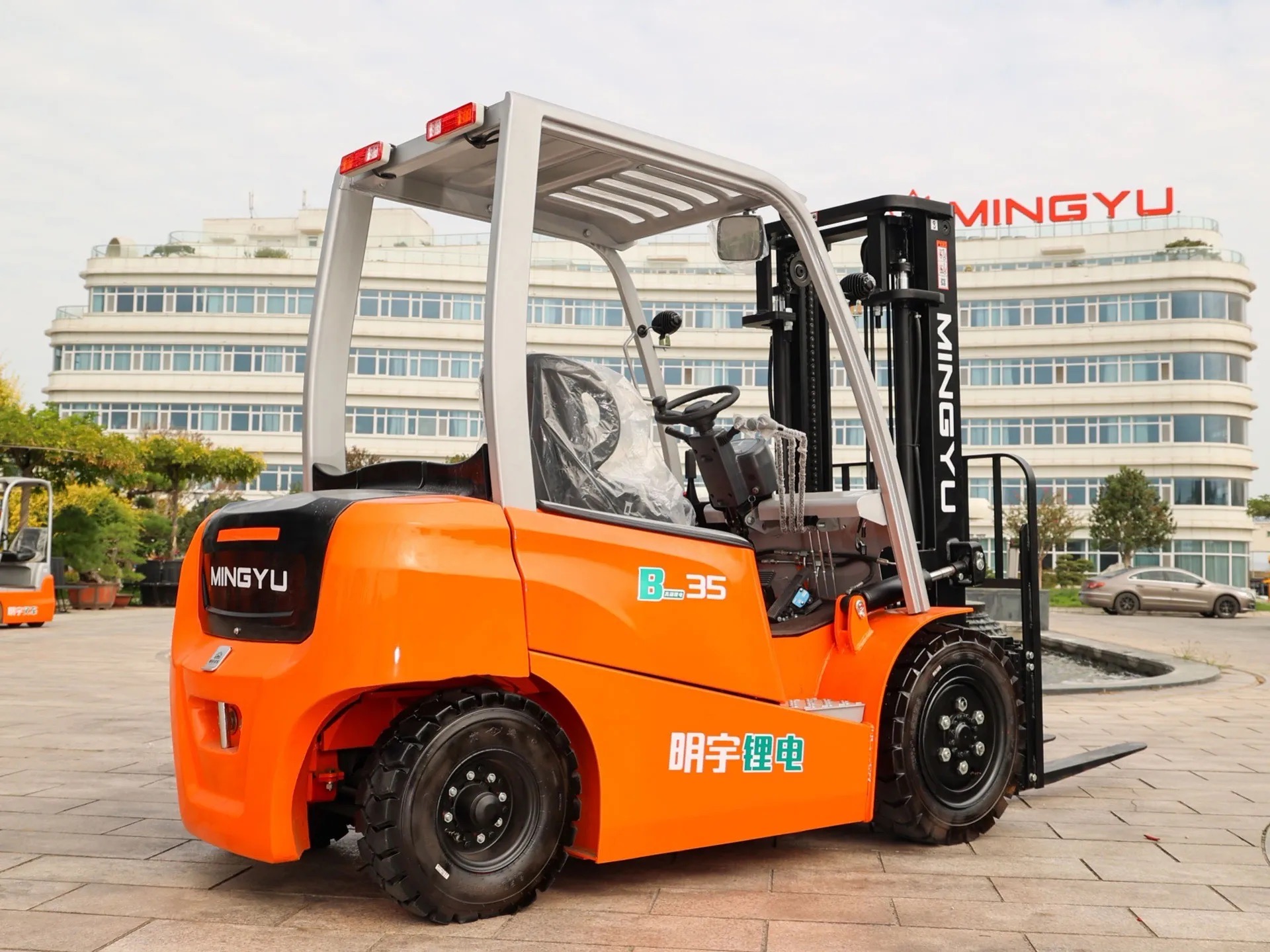

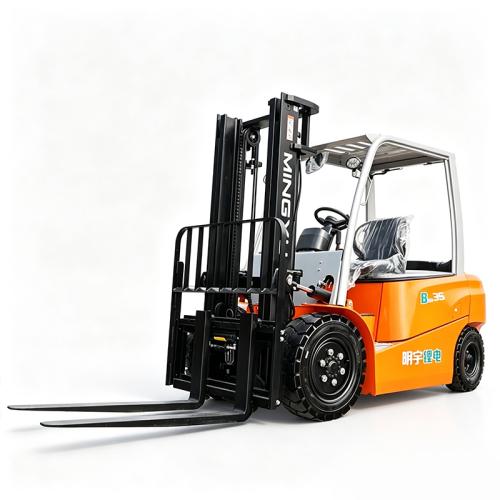

MYZG 3.5-Ton High-Performance Lithium Electric Forklift (Model: CPD35)
Heavy-Duty 3500kg Rated Capacity Lithium Battery Powered Forklift Designed for Intensive Multi-Shift Industrial Logistics, Heavy Warehousing, and Zero-Emission Material Handling.
Executive Overview: Unmatched Green Power & Heavy-Duty Performance
The MYZG CPD35 3.5-Ton Lithium Battery Electric Forklift (3.5T-B Series) represents a significant leap forward in eco-friendly, heavy-duty material handling. Manufactured by Mingyu Heavy Industry (MYZG), this sit-down electric forklift is purpose-built to replace traditional diesel and LPG internal combustion forklifts in demanding manufacturing facilities, high-density distribution centers, paper mills, ports, and timber yards.
At the heart of the CPD35 is a high-voltage 154V / 105Ah lithium accumulator battery system paired with a massive 13.1kW traction drive motor and a 16.5kW hydraulic oil pump motor. Engineered to handle a heavy 3500 kg (7,700 lbs) rated load capacity at a 500 mm load center, this forklift delivers exceptional breakout power, fast travel speeds of up to 13 km/h, and a 15% full-load gradeability while maintaining zero tailpipe emissions and low operational noise.
MYZG CPD35 Factory Technical Specifications
Review the complete engineering specification dataset for the MYZG 3.5T-B Lithium Electric Forklift (CPD35):
| Performance & Mechanical Parameter | Factory Specification Detail |
|---|---|
| Model Identification | CPD35 (3.5T-B Series) |
| Power Source Type | Accumulator / Lithium-ion Battery |
| Rated Load Lifting Capacity | 3500 kg |
| Load Centre Distance | 500 mm |
| Driving Style / Operator Position | Sit Down |
| Overall Length (With Fork / Without Fork) | 3757 mm / 2682 mm |
| Overall Width | 1232 mm |
| Mast Height (Lowered / Overhead Guard) | 2062 mm / 2105 mm |
| Max. Height at Working (Full Extension) | 4183 mm |
| Distance from Seat Surface to Top Guard Frame | 980 mm |
| Standard Lifting Height / Free Lift Height | 3000 mm / 45 mm |
| Fork Adjustment Range | 260 mm – 1100 mm |
| Minimum Turning Radius | 2450 mm |
| Min. Right-Angle Channel Width (1100x1100 Pallets) | 4205 mm |
| Gantry Angle (Front / Rear Tilt) | 6° / 12° |
| Max. Lifting Speed (Without Load / Full Load) | 380 mm/s / 300 mm/s |
| Max. Operating Travel Speed (Unladen / Full Load) | 13 Km/h / 12 Km/h |
| Max. Gradeability (Full Loading) | 15% |
| Unladen Machine Net Weight | 4680 kg |
| Wheel Layout (Driving Wheels / Steering Wheels) | 2 / 2 |
| Tyre Type (Front / Rear) | Pneumatic Tyre / Pneumatic Tyre |
| Tyre Size (Front / Rear) | 28*9-15 / 6.50-10 |
| Braking Systems (Service / Parking) | Foot Brake / Hand Brake |
| Battery Voltage & Capacity | 154V / 105Ah (High-Voltage Lithium) |
| Drive Motor Power Output | 13.1 kW |
| Oil Pump Hydraulic Motor Power Output | 16.5 kW |
| Wheelbase / Minimum Ground Clearance | 1900 mm / 127 mm |
| Front Overhang / Rear Overhang | 455 mm / 464 mm |
| Front Wheel Track / Rear Wheel Track | 1005 mm / 988 mm |
Engineering Breakdown & Key Product Advantages
1. High-Voltage 154V Lithium Technology & Dual Power Motors
The MYZG CPD35 utilizes a cutting-edge 154V / 105Ah high-voltage lithium battery architecture that rivals the power output of 3.5-ton diesel forklifts. Coupled with a strong 13.1kW traction motor and a 16.5kW hydraulic oil pump motor, the machine delivers fast lifting speeds of 380 mm/s (unladen) and 300 mm/s (full load). Lithium technology allows rapid opportunity charging during shift breaks, completely eliminating battery watering and battery swapping routines.
2. Heavy-Duty Chassis, 127mm Clearance & 15% Gradeability
With a sturdy unladen net weight of 4680 kg and a 1900 mm wheelbase, the CPD35 maintains superior low-center-of-gravity stability when hoisting 3.5-ton loads to its max working height of 4183 mm. Equipped with heavy pneumatic tires (28*9-15 front, 6.50-10 rear) and an impressive 127 mm ground clearance, this forklift effortlessly conquers rough outdoor yards and steep ramps up to a 15% grade.
3. Ergonomic Driver Cabin & Wide Gantry Tilt Angle (6°/12°)
Operator comfort directly enhances productivity. The CPD35 offers a spacious sit-down cabin layout with 980 mm of head room from seat to top guard frame. The high-visibility mast structure tilts 6° forward and 12° backward, allowing precise pick-and-place maneuvers. The wide fork position adjustment range (260 mm to 1100 mm) makes handling non-standard pallets and wide industrial containers effortless.
4. Robust Dual Braking System & Low Total Cost of Ownership
Featuring a responsive hydraulic foot service brake and a mechanical hand parking brake, the CPD35 guarantees reliable stopping control under full load capacity. By eliminating internal combustion engine oil changes, air filters, spark plugs, and exhaust fluid systems, switching to the lithium-powered CPD35 reduces hourly maintenance overhead by up to 70%.
Target Application Environments
The heavy-duty 3.5-ton rated capacity and rugged pneumatic tire configuration make the CPD35 suitable for both indoor cleanrooms and outdoor yard logistics:
Heavy Manufacturing
Moving heavy machinery parts, steel coils, casting molds, and automotive sub-assemblies across plant floors.
Warehousing & Logistics
Cross-docking, high-density pallet stacking, and loading/unloading ocean freight containers.
Paper, Timber & Building Materials
Transporting heavy paper rolls, lumber packs, cement bags, and stone tiles across indoor and outdoor yards.
Frequently Asked Questions (FAQ)
Q: Can the CPD35 3.5-ton lithium forklift work in outdoor rainy conditions?
A: Yes, the CPD35 is built with high-grade weatherproofing, protected electrical controllers, pneumatic deep-tread tires, and a 127mm ground clearance, allowing it to perform smoothly in outdoor yards during rain or wet ground conditions.
Q: What is the turning radius and required aisle width for the CPD35?
A: The forklift features a minimum turning radius of 2450 mm and requires a minimum right-angle channel width of 4205 mm when handling standard 1100x1100mm pallets.
Q: How does lithium opportunity charging benefit multi-shift operations?
A: Lithium batteries can be charged safely during 15-30 minute employee breaks without memory effect degradation, keeping the forklift powered continuously across consecutive shifts without requiring extra spare battery packs.
Upgrade Your Material Handling Fleet to 3.5-Ton Clean Power Today!

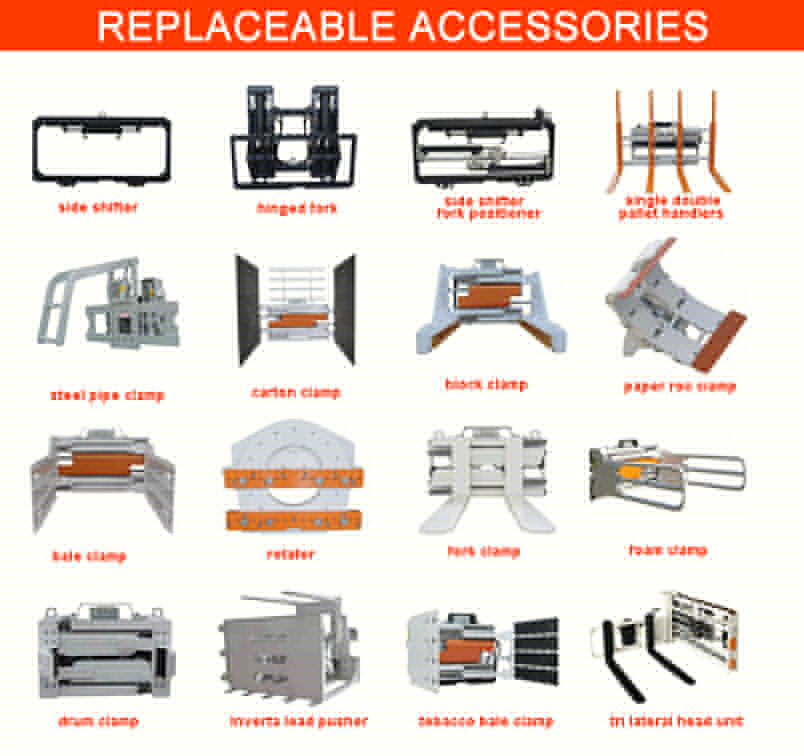

Contact MYZG for factory-direct wholesale pricing, specialized attachment options (side shifters, paper roll clamps), and global shipping schedules for the CPD35 Lithium Electric Forklift.
