A Deeper Dive into the Wheel Loader Specifications

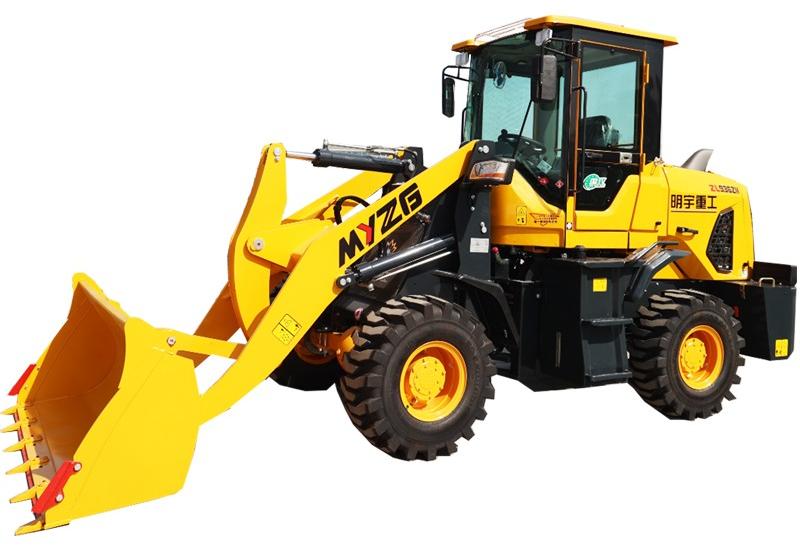

Let's explore the technical specifications of the wheel loader(With the ZL-928Z Wheel Loader as an example) and understand what each parameter signifies:

Basic Specifications

1. Rated Load Capacity: 1600 kg

   • What it means: This is the maximum weight the wheel loader can lift safely. In the case of the ZL-928Z, it can lift 1.6 tonnes.
   • Relevance: A higher load capacity implies the machine can handle heavier loads, making it suitable for more demanding tasks.

2. Rated Bucket Capacity: 0.85 m³

   • What it means: This is the volume of material the bucket can hold, measured in cubic meters. A 0.85 m³ bucket can hold roughly 0.85 cubic meters of dirt, gravel, or other materials.
   • Relevance: A larger bucket capacity means the machine can move more material in fewer cycles, increasing productivity.

3. Operating Weight: 4250 kg

   • What it means: This is the total weight of the machine, including all fluids and attachments.
   • Relevance: A heavier machine generally provides better stability and traction, especially when working on uneven terrain or with heavy loads.

Engine Specifications

1. Engine Model:

• QUANCHAI 4B2-75M22 (EURO III / EURO V): This refers to the specific model of diesel engine manufactured by Quanzhou Diesel Engine Co. Ltd. It complies with Euro III or Euro V emission standards.
• Cummins QSF2.8 EPA 55kw: This is a diesel engine model manufactured by Cummins, meeting EPA Tier 4 Final emission standards.
• SIDA/HUADONG/HUAFENG /YUNNIE: These are other potential engine options, likely from Chinese manufacturers.
• Relevance: The engine model determines the machine's power output, fuel efficiency, and emission levels.

1. Rated Power: 55 kW

   • What it means: This is the maximum power output of the engine, measured in kilowatts. It determines the machine's overall performance and lifting capacity.
   • Relevance: A higher power output enables the machine to perform tasks more quickly and efficiently.

2. Rated Speed: 2400 r/min

   • What it means: This is the engine's maximum rotational speed, measured in revolutions per minute.
   • Relevance: A higher rated speed often translates to better acceleration and overall responsiveness.

Dimensions and Performance

1. Dimensions (L x W x H): 5540 mm x 1940 mm x 2720 mm

   • What it means: These are the overall dimensions of the machine, including its length, width, and height.
   • Relevance: The dimensions determine the machine's maneuverability and its ability to work in confined spaces.

2. Dump Height: 3200 mm

   • What it means: This is the maximum height at which the bucket can dump its load.
   • Relevance: A higher dump height allows the machine to load materials into higher trucks or hoppers.

3. Dump Distance: 980 mm

   • What it means: This is the horizontal distance the bucket can reach when fully extended.
   • Relevance: A longer dump distance allows the machine to reach farther, making it more versatile.

4. Minimum Turning Radius: 2750 mm

   • What it means: This is the smallest radius the machine can turn in.
   • Relevance: A smaller turning radius improves the machine's maneuverability in tight spaces.

5. Wheelbase: 2240 mm

   • What it means: This is the distance between the front and rear axles.
   • Relevance: A longer wheelbase generally improves stability, especially when working on uneven terrain or with heavy loads.

6. Wheeltrack: 1492 mm

   • What it means: This is the distance between the wheels on the same axle.
   • Relevance: A wider wheeltrack provides better stability and traction, especially on slopes or soft ground.

7. Tire Size: 20.5/70-16

   • What it means: This specifies the size of the tires fitted to the machine.
   • Relevance: Larger tires provide better traction and ground clearance, making the machine suitable for various terrain conditions.

By understanding these parameters, you can assess the capabilities of the ZL-928Z wheel loader and determine if it's the right machine for your specific needs.
