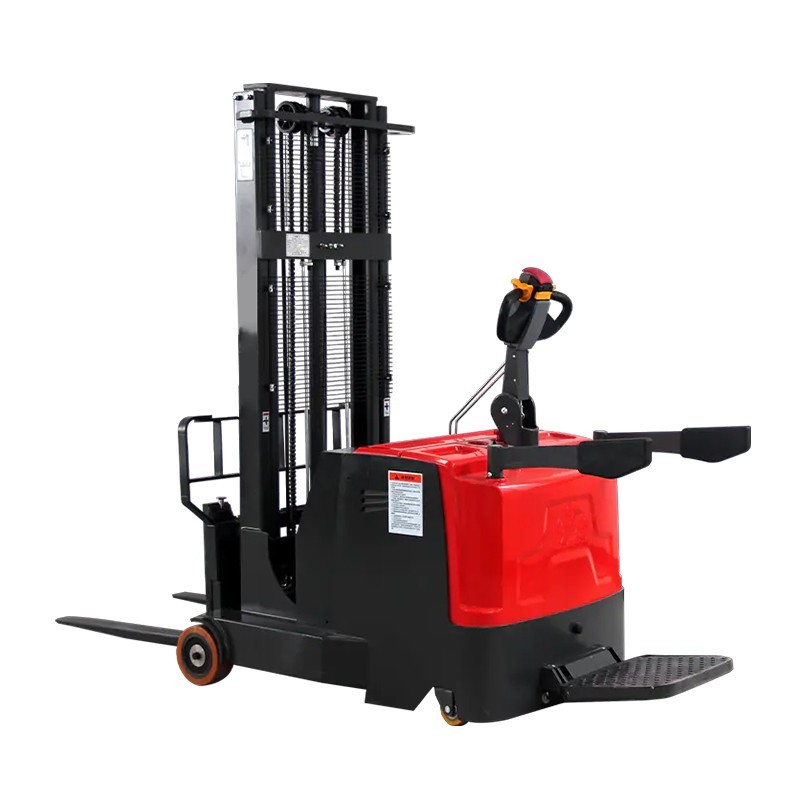

Mi apilador eléctrico contrapesado de eje corto CP dB08/10
Este apilador de paletas contrapesado de eje corto presenta una distancia entre ejes corta, una carrocería corta y un radio de giro reducido. Está equipado con un pedal plegable, apto para diversos tipos de paletas y ofrece una gran versatilidad.
Características del producto:
• Marca de la bomba: BUCHER
• Batería de GEL sin mantenimiento de 24 V/120 Ah
• Opcional: Batería de plomo ácido de 210 Ah
• Motor de accionamiento horizontal de CA de 1,5 kW
• Opcional: Marca del controlador CURTIS
• Opcional: Inclinación de horquillas, desplazador lateral
|
modelo
|
CPDB08/10
|
|
capacidad máxima de carga
|
800/1000kg
|
|
centro de carga
|
500mm
|
|
velocidad de desplazamiento sin carga/con carga
|
4.5/3.5km/h
|
|
velocidad de elevación sin carga/con carga
|
110/80mm/s
|
|
velocidad reducida sin carga/con carga
|
100/100mm/s
|
|
Capacidad de ascenso de pendientes sin carga/con carga
|
8/5%
|
|
Largo/ancho total del marco
|
2400/1040
|
|
distancia entre ejes
|
1055mm
|
|
El importe de la tercera entrada de baile es
|
920*100*35mm
|
|
ancho exterior de la horquilla
|
220-680mm
|
|
Pluma de horóscopo exterior oscura A
|
60mm
|
|
altura de la horquilla bajada
|
80mm
|
|
AL de repente A hor quill A Baja grande
|
1745mm
|
|
Minimum intersecting aisie
|
3360mm
|
|
Front wheel
|
210*85mm
|
|
Drive wheel
|
250*80mm
|
|
Caster wheel
|
124*60mm
|
|
Drive motor Rated output/DC motor
|
1.5kw
|
|
Hoist motor Rated output/DC motor
|
2.2kw
|
|
Battery Voltag/Capacity
|
24/120(210)V/Ah
|
|
Battery Weight
|
35*2(195)kg
|
|
Mast
|
Max.Lifting height
|
Mast overall height
|
Mast overall height
|
Service weight
|
|
Single mast
|
1600 mm
|
2130 mm
|
2130 mm
|
1340 kg
|
|
2-stage mast
|
2000 mm
|
1630 mm
|
2600 mm
|
1420kg
|
|
2500 mm
|
1880 mm
|
3100 mm
|
1450 kg
|
|
3000 mm
|
2130mm
|
3600 mm
|
1510 kg
|
|
3500 mm
|
2380 mm
|
4100 mm
|
1450 kg
|
