MYCPDB Standard counterbalance Electric Stacker

Descripción breve:

Boost warehouse efficiency with the MYZG CPDB Standard Counterbalance Electric Stacker. This versatile and reliable stacker offers smooth operation, ergonomic design, and enhanced safety features for improved material handling and reduced labor costs.......

Maximum load capacity:: 1500/2000kg
Overall length/width of frame:: 1730/1570mm
Fork size（length *width*thickness）:: 1070*100*35mm
Fork lowered height:: 90mm

Envíanos un correo electrónico

Detalles del producto

Etiquetas de productos

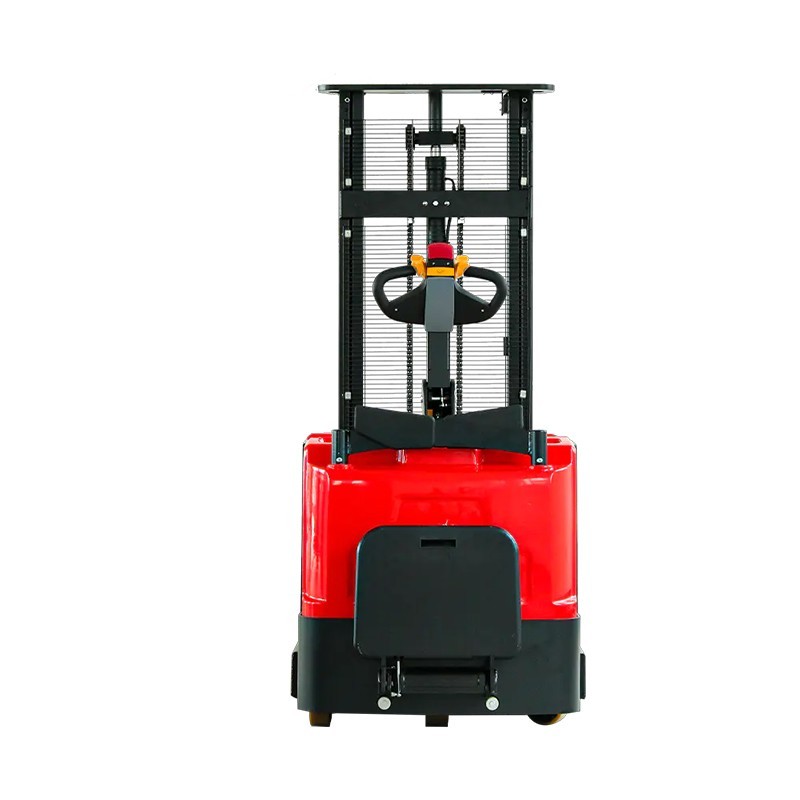

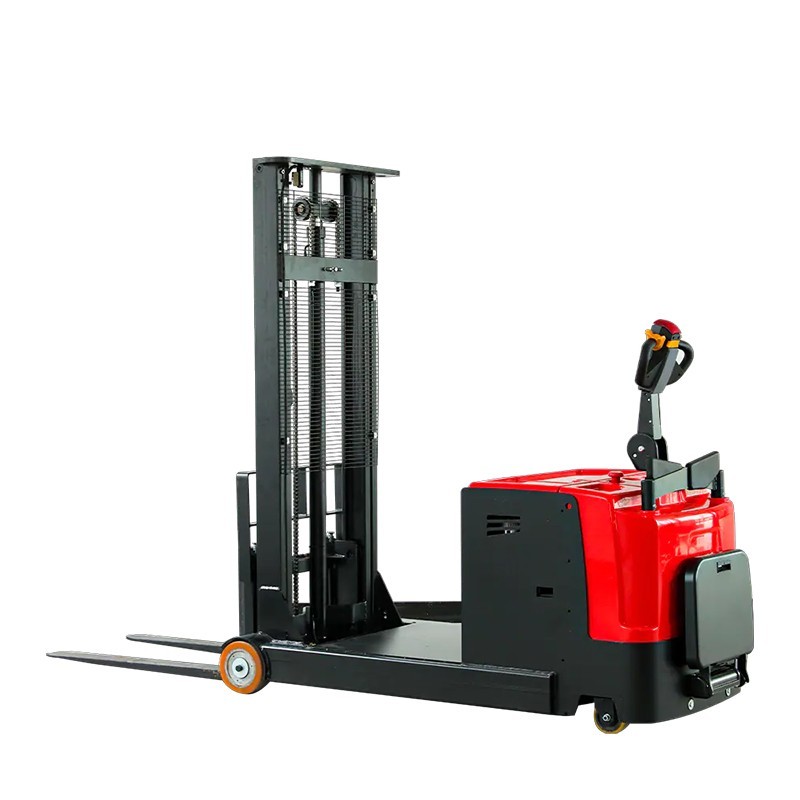

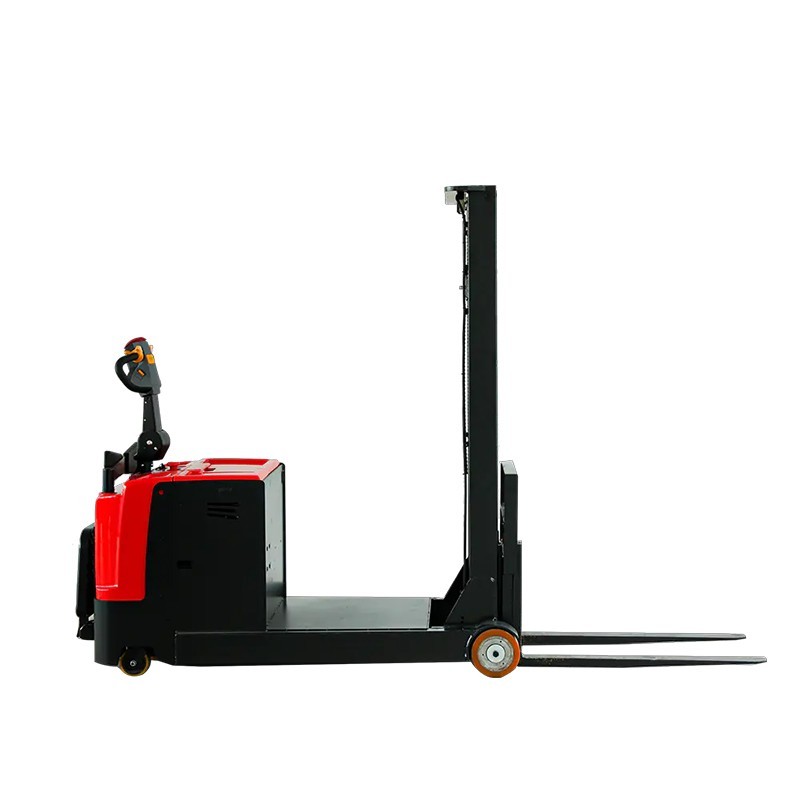

MYCPDB STANDARD COUNTERBALANCE ELECTRIC STACKER

The MYZG CPDB Standard Counterbalance Electric Stacker is a versatile and efficient material handling solution designed for a wide range of applications in warehouses, distribution centers, and manufacturing facilities.Widely used in factories, enterprises, logistics and warehouses and other work scenarios.

Product features :

Advantages:

• Using 12#C+J special steel mast,the structure is more stable;

• Configure EPS electronic power steering system；

• BUCHER high-performance pump station, more stable lifting;

• CURTIS controller, excellent performance;

• 24V/210Ah large-capacity power battery,guaranteed strong and durable power;

• 1.5Kw vertical driving wheel with anti-vibration device and small turing radius;

• Tilting system forks easy for loading and stacking；

• With emergency stop switch and electricity lock button, and multi-valve controlling levers；

• AC traction motor without brush with regenerative braking.

The has passed the CE certification and is mainly applied in petroleum, chemical engineering, pharmacy, light textile, military engineering, painting, coal, port, railroad, warehouse, bridge back, etc. For load and unload, pile and move.

Optional Accessories:

Side-shift
Load backrest extensions
Different mast configurations
Customized battery options

Model				CPDB15/20
Maximum load capacity				1500/2000kg
load center				500mm
Travel speed without load/with load				4.5/3.5km/h
Lifting speed without load/with load				80/50mm/s
Lowered speed without load/with load				130/140mm/s
Ascend slope ability without load/with load				8/5%
Overall length/width of frame				3150/1040
Wheelbase				1555mm
Fork size（length widththickness）				117010035/40mm
Fork outside width				220-680mm
Min frounf height				35/40mm
Fork lowered height				60mm
Minimum turning radius				2245mm
Minimum intersecting aisie				3860mm
Front wheel				210*85mm
Drive wheel				230*75mm
Caster wheel				124*60mm
Drive motor Rated output/DC motor				1.5kw
Hoist motor Rated output/DC motor				2.2kw
Battery Voltag/Capacity				210V/Ah
Battery Weight				195kg
Mast	Max.Lifting height	Mast overall height	Mast overall height	Service weight
Single mast	1600 mm	2130 mm	2130 mm	1500 kg
2-stage mast	2000 mm	1630 mm	2600 mm	1530kg
	2500 mm	1880 mm	3100 mm	1680 kg
	3000 mm	2130mm	3600 mm	1735 kg
	3500 mm	2380 mm	4100 mm	1930 kg

1)It adopts three mast and chain driving technology.
2)The controlling system is programmable based on the imported advanced foreign technology.
3)Moving type: Electric driving and climbing to a certain gradient.
4)The rising height and load can be changed as required by the customers.
5)There are complete safety equipments and their technical performance has reached the advanced level as the international product.

Key Features:

Reliable Performance: Powered by a robust electric motor, the stacker offers smooth and efficient operation for reliable performance throughout the workday.
Ergonomic Design: The stacker features an ergonomic operator compartment with comfortable controls and clear visibility, enhancing operator comfort and productivity.
Compact and Maneuverable: Its compact design allows for easy maneuverability in tight spaces, making it ideal for use in confined areas.
Adjustable Mast: The adjustable mast provides flexibility to handle various load heights, maximizing warehouse space utilization.
Durable Construction: Built with high-quality components and robust construction, the stacker is designed to withstand the demands of demanding industrial environments.
Easy Maintenance: Regular maintenance is simplified with easy access to key components, minimizing downtime and maintenance costs.
Safety Features: Equipped with safety features such as load backrests, emergency stop buttons, and speed control, ensuring operator and equipment safety.

Benefits

Increased Productivity: Streamlines material handling operations, improving efficiency and throughput. Reduced Labor Costs: Minimizes manual handling, reducing the risk of injuries and improving worker productivity. Improved Safety: Reduces the risk of accidents and injuries associated with manual material handling. Enhanced Ergonomics: Improves operator comfort and reduces fatigue, enhancing overall productivity. Space Optimization: Maximizes warehouse space utilization with its compact design and adjustable mast.
