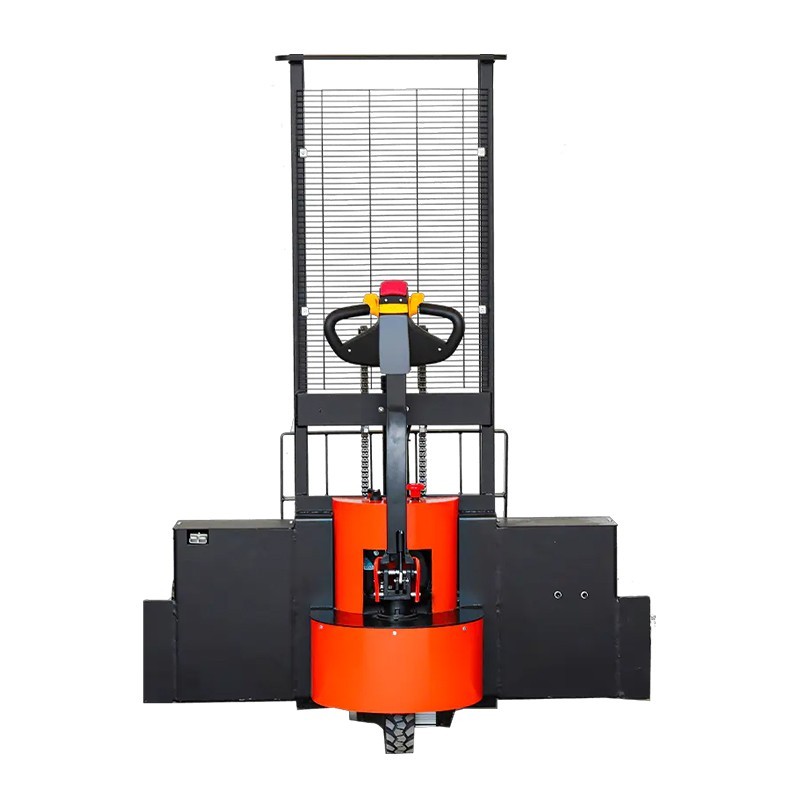

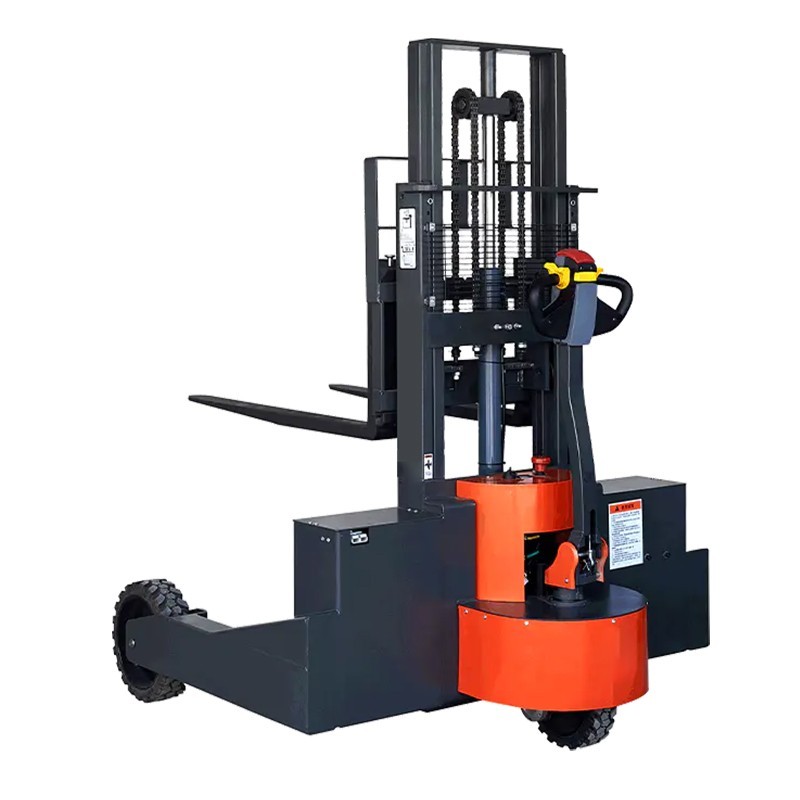

ALL TERRAIN ELECTRIC STACKER CDDH

Product features :

• Pump Brand: BUCHER

• 12V/120Ah GEL Maintenance-free Battery

• AC 1.5kW Horizontal Drive Motor

• Controller Brand: CURTIS

• Wheel: Solid Rubber

Model				CDD-H
Maximum load capacity				1500/2000kg
load center				500mm
Travel speed without load/with load				3.5/3km/h
Lifting speed without load/with load				110/80mm/s
Lowered speed without load/with load				100/100mm/s
Ascend slope ability without load/with load				8/6%
Overall length/width of frame				1730/1570
Wheelbase				1178mm
Fork size（length *width*thickness）				1070*100*35mm
Fork outside width				210-960mm
Min frounf height				50mm
Fork lowered height				130mm
Minimum turning radius				1355mm
Minimum intersecting aisie				2340mm
Front wheel				375*115mm
Drive wheel				300*90mm
Drive motor Rated output/DC motor				1.5kw
Hoist motor Rated output/DC motor				2.2kw
Battery Voltag/Capacity				24/120V/Ah
Battery Weight				35*2kg
Mast	Max.Lifting height	Mast overall height	Mast overall height	Service weight
Single mast	1600 mm	2080 mm	2080 mm	735 kg
2-stage mast	2000 mm	1580 mm	2550 mm	755kg
	2500 mm	1830 mm	3050 mm	790 kg
	3000 mm	2080/1980 mm	3550/3450 mm	820 kg
	3500 mm	2330 mm	4050 mm	850 kg

Full electric stacker refer to various wheeled trucks for loading and unloading, stacking, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay warehouses and workshops.

Key Features:

• Powerful Electric Motor: Delivers strong performance and efficient operation, minimizing environmental impact.
• All-Terrain Tires: Equipped with durable, puncture-resistant tires that provide excellent traction on uneven surfaces, such as gravel, mud, and grass.
• Compact and Maneuverable: Its compact design allows for easy maneuverability in tight spaces, while maintaining the ability to lift and transport heavy loads.
• Ergonomic Design: Features comfortable operator controls and a well-designed operator compartment for increased comfort and reduced fatigue during operation.
• Adjustable Mast: Offers adjustable mast heights to accommodate various load heights and storage requirements.
• Heavy-Duty Construction: Built with high-quality components and robust construction to withstand the rigors of outdoor use.
• Maintenance-Friendly: Designed for easy access to key components for routine maintenance and servicing.
• Safety Features: Equipped with essential safety features, such as load backrests, emergency stop buttons, and audible/visual alarms.

Applications:

• Construction Sites: Transporting building materials, moving equipment, and loading and unloading trucks.
• Landscaping: Moving and placing landscaping materials, such as mulch, soil, and sod.
• Agriculture: Handling farm supplies, moving livestock feed, and transporting equipment.
• Outdoor Warehousing: Handling materials in outdoor storage areas and loading and unloading trucks.
• Industrial Applications: Moving heavy equipment and materials in outdoor industrial settings.
