what is a backhoe?

The backhoe, a ubiquitous presence on construction sites worldwide, is a versatile and powerful piece of heavy machinery. More than just a simple digger, it’s a complex system of hydraulics, mechanics, and engineering designed for a multitude of tasks. This article delves into the intricacies of the backhoe, exploring its components, functionality, applications, variations, and maintenance considerations.

Defining the Backhoe: Form and Function

At its core, a backhoe is an excavating machine consisting of a digging bucket attached to a boom and a dipper (or stick). The key distinguishing feature, and the source of its name, is the backhoe action. Unlike a shovel that scoops material forward, the backhoe digs by pulling the bucket towards the machine, mimicking the action of hoeing in a garden. This pulling motion allows for precise excavation, trenching, and material handling, making it significantly different from other excavating equipment like bulldozers or front-end loaders.

The backhoe is typically mounted on a tractor or a dedicated carrier chassis, creating a unified machine capable of both digging and maneuvering. This integration is crucial for its versatility, allowing it to travel between work areas and perform various tasks without needing separate transportation.

Deconstructing the Backhoe: Key Components and Their Roles

Understanding the backhoe requires examining its core components:

Tractor/Carrier Chassis: This is the base of the machine, providing mobility and stability. On tractor-mounted backhoes, the tractor itself serves this purpose, offering the added benefit of implement compatibility for other agricultural or construction tasks. Dedicated carrier chassis are designed specifically for backhoe operation and often feature heavier construction and more powerful engines.

Engine: The engine provides the power for all backhoe functions, from driving the wheels to powering the hydraulic system. Diesel engines are the most common due to their high torque output and fuel efficiency.

Hydraulic System: The heart of the backhoe's operation, the hydraulic system uses pressurized hydraulic fluid to actuate the various cylinders that control the boom, dipper, and bucket movements. This system is responsible for the immense power and precise control the backhoe offers. Key components include:

Hydraulic Pump: Generates the pressurized hydraulic fluid.

Control Valves: Direct the flow of hydraulic fluid to the appropriate cylinders, controlling the movement of the boom, dipper, and bucket.

Hydraulic Cylinders: These convert the hydraulic pressure into linear motion, extending and retracting to move the different parts of the backhoe.

Hydraulic Fluid: The medium through which power is transmitted in the hydraulic system.

Boom: The main arm of the backhoe, connected to the chassis and providing the primary reach for digging. It’s usually articulated, allowing for a wide range of motion.

Dipper (Stick): Connected to the boom, the dipper arm carries the bucket and provides the close-in digging and material handling capabilities.

Bucket: The digging tool at the end of the dipper. Buckets come in various sizes and shapes depending on the intended application, from narrow trenching buckets to wider buckets for general excavation.

Stabilizers (Outriggers): These extendable legs provide stability to the backhoe during digging operations, preventing it from tipping over. They are crucial for maximizing digging force and ensuring operator safety.

Operator Station: The cabin or platform where the operator controls the backhoe. It typically includes controls for the engine, hydraulic system, and other functions. Modern backhoes often feature comfortable seating, intuitive controls, and enhanced visibility for increased operator efficiency and safety.

The Mechanics of Digging: The Backhoe Action

The unique “backhoe” action is achieved through the coordinated movement of the boom, dipper, and bucket. The operator uses the hydraulic controls to pull the bucket towards the machine, effectively scooping and lifting material. This pulling motion provides several advantages:

Precise Excavation: The operator can carefully control the digging depth and angle, making it ideal for trenching and other precise excavation tasks.

Efficient Material Handling: The backhoe can easily load material into trucks or other containers.

Working in Confined Spaces: The backhoe's maneuverability and digging action make it suitable for working in tight areas where other excavators might struggle.

Applications of the Backhoe: A Versatile Workhorse

The backhoe's versatility makes it indispensable across numerous industries:

Construction: Foundation excavation, trenching for utilities, back filling, material handling, and general site preparation.

Roadwork: Digging ditches, repairing road shoulders, and installing drainage systems.

Landscaping: Digging holes for planting, creating drainage systems, and moving earth.

Agriculture: Digging irrigation ditches, clearing land, and general farm maintenance.

Demolition: Breaking up concrete and other materials (with appropriate attachments).

Utilities: Excavating for laying pipes and cables, and repairing existing utility lines.

Variations and Attachments: Expanding Capabilities

While the basic backhoe design remains consistent, variations exist to cater to specific needs:

Mini Backhoes: Smaller and more compact, ideal for working in confined spaces and residential projects.

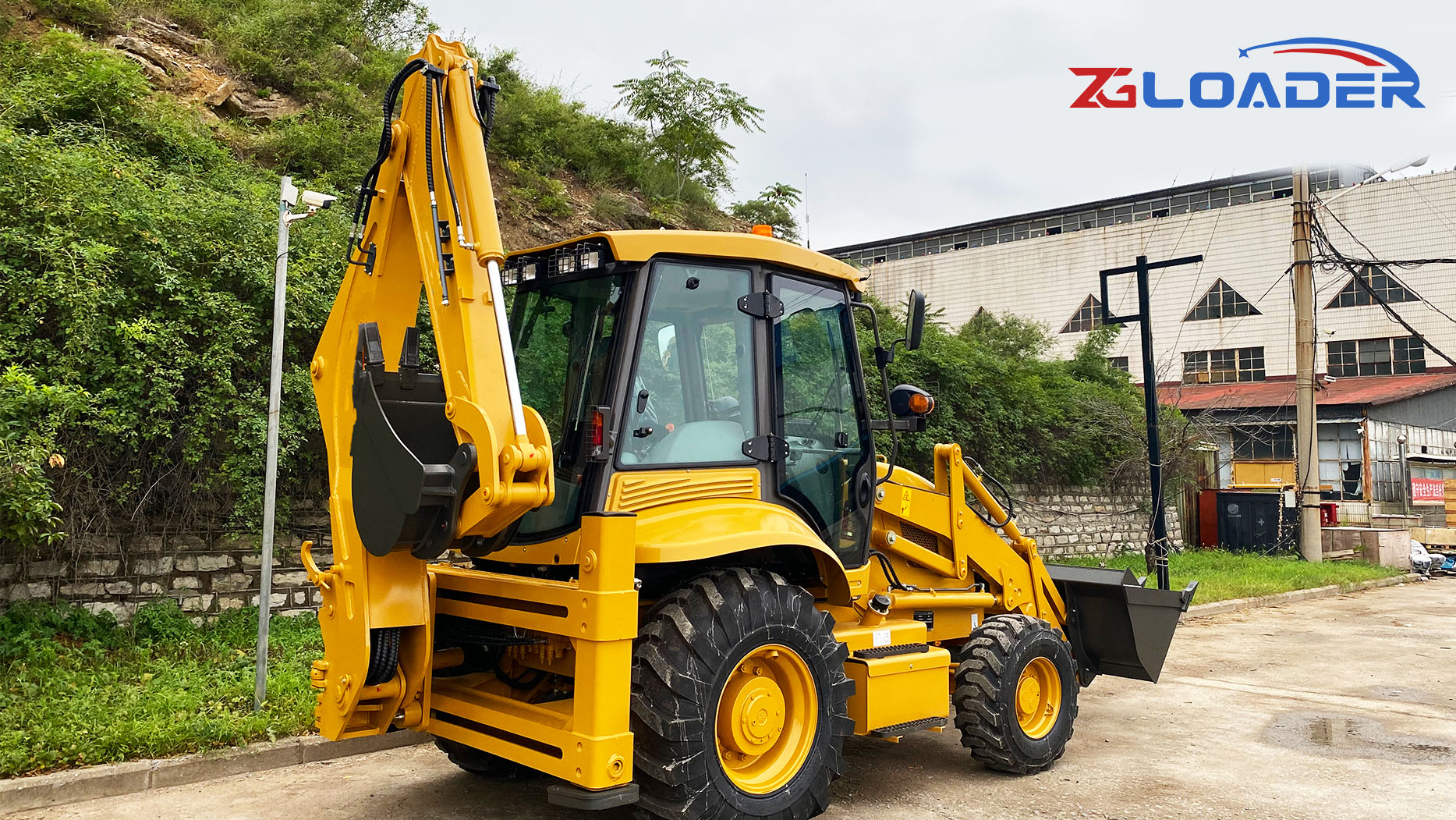

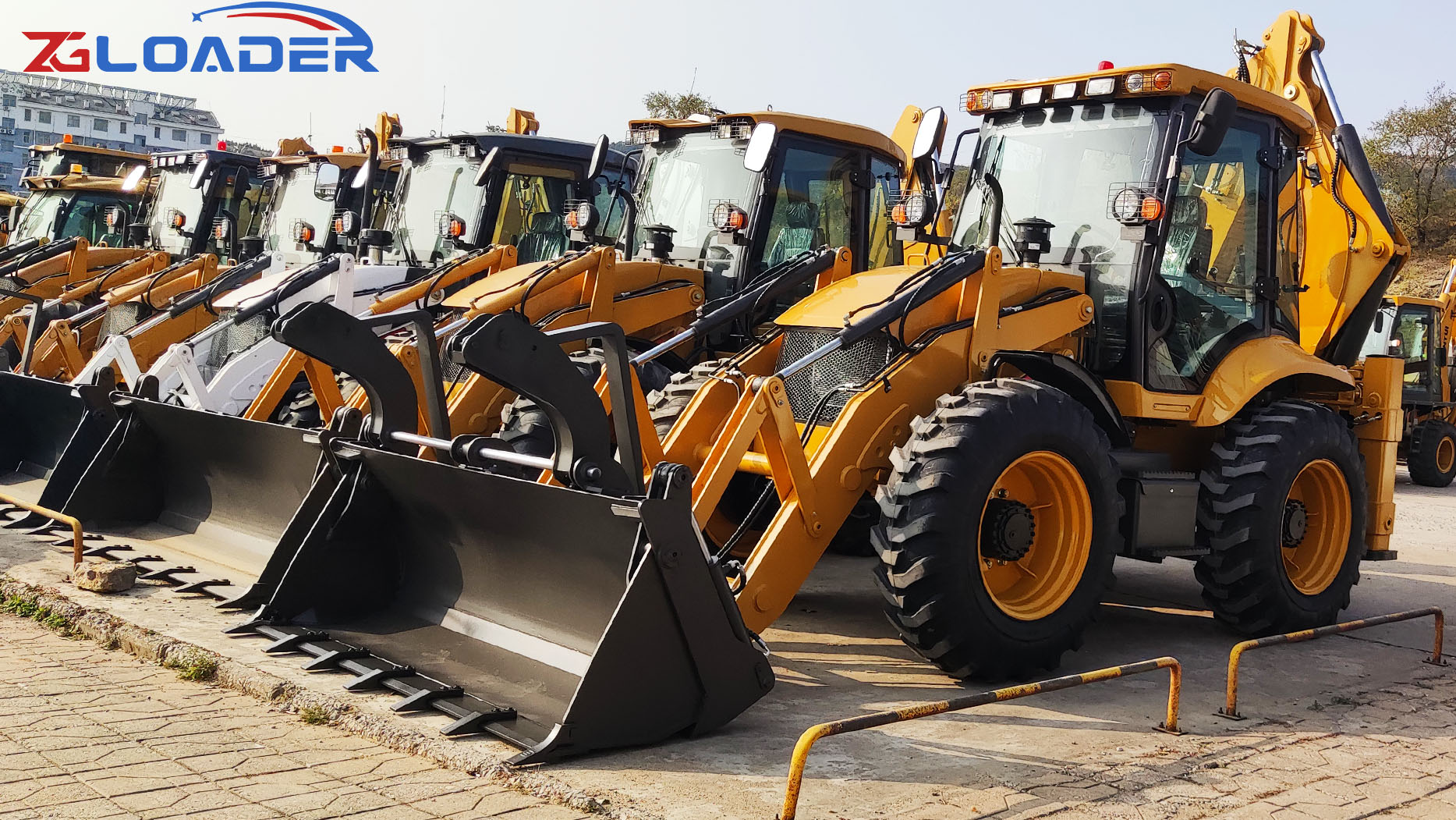

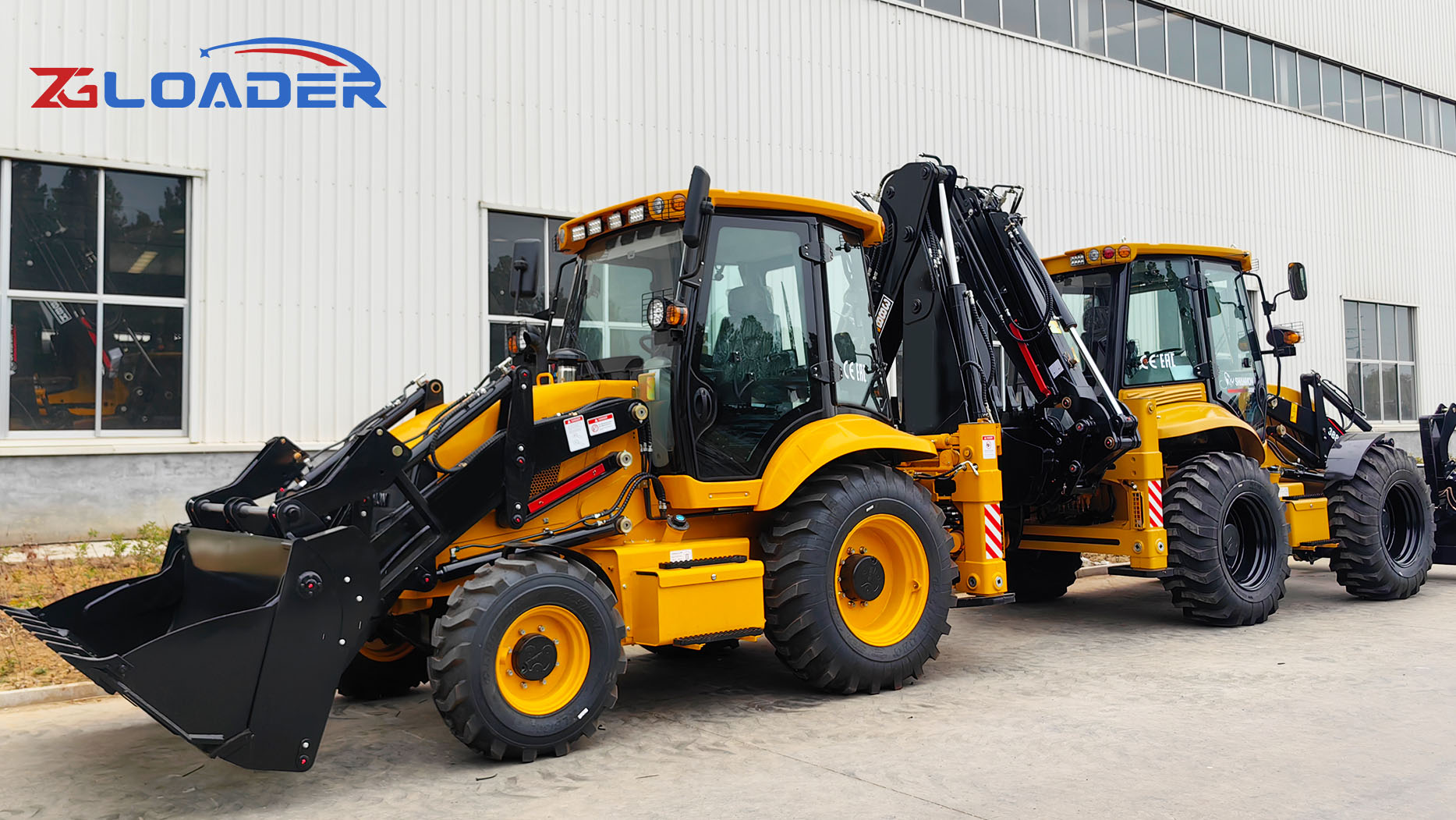

Tractor-Loader-Backhoes (TLBs): A common configuration, combining a front-end loader with a backhoe, offering even greater versatility.

Different Bucket Types: Various buckets are available for different tasks, including trenching buckets, digging buckets, and cleanup buckets.

Specialized Attachments: Augers for drilling holes, breakers for demolishing concrete, and grapples for handling materials further extend the backhoe's capabilities.

Maintenance and Safety: Ensuring Longevity and Safe Operation

Proper maintenance is crucial for ensuring the backhoe's longevity and safe operation. Key maintenance tasks include:

Regular Inspections: Checking for leaks, damage, and wear on all components.

Hydraulic System Maintenance: Changing hydraulic fluid and filters according to the manufacturer's recommendations.

Engine Maintenance: Regular oil changes, filter replacements, and other engine maintenance tasks.

Greasing: Lubricating all moving parts to reduce friction and wear.

Tire Maintenance: Checking tire pressure and condition.

Safety is paramount when operating a backhoe. Key safety considerations include:

Operator Training: Proper training is essential for safe and efficient operation.

Site Inspection: Checking for underground utilities and other hazards before digging.

Stabilizer Use: Always use stabilizers to ensure stability during digging operations.

Safe Operating Procedures: Following established safety protocols for operating the backhoe.

Personal Protective Equipment (PPE): Wearing appropriate PPE, such as hard hats and safety glasses.

Conclusion: The Indispensable Backhoe

The backhoe is a testament to the power of combining mechanical ingenuity with hydraulic power. Its versatility and adaptability have made it an indispensable piece of equipment across a wide range of industries. From small-scale landscaping projects to large-scale construction endeavors, the backhoe continues to be a workhorse, proving its value time and again. Understanding its components, functionality, and maintenance requirements is essential for maximizing its potential and ensuring safe operation. As technology advances, we can expect further refinements and innovations in backhoe design, making this versatile machine even more efficient and adaptable in the future.
