How Much Space Between a Forklift Mast and Door: A Comprehensive Guide

Introduction

The safe and efficient operation of forklifts within a warehouse or industrial facility is paramount.  A critical consideration in this regard is the clearance between the forklift mast and various obstacles, particularly doorways.  Inadequate clearance can lead to accidents, damage to property, and potential injuries.  This article delves into the key factors influencing the required clearance and provides practical guidelines to ensure safe operations.

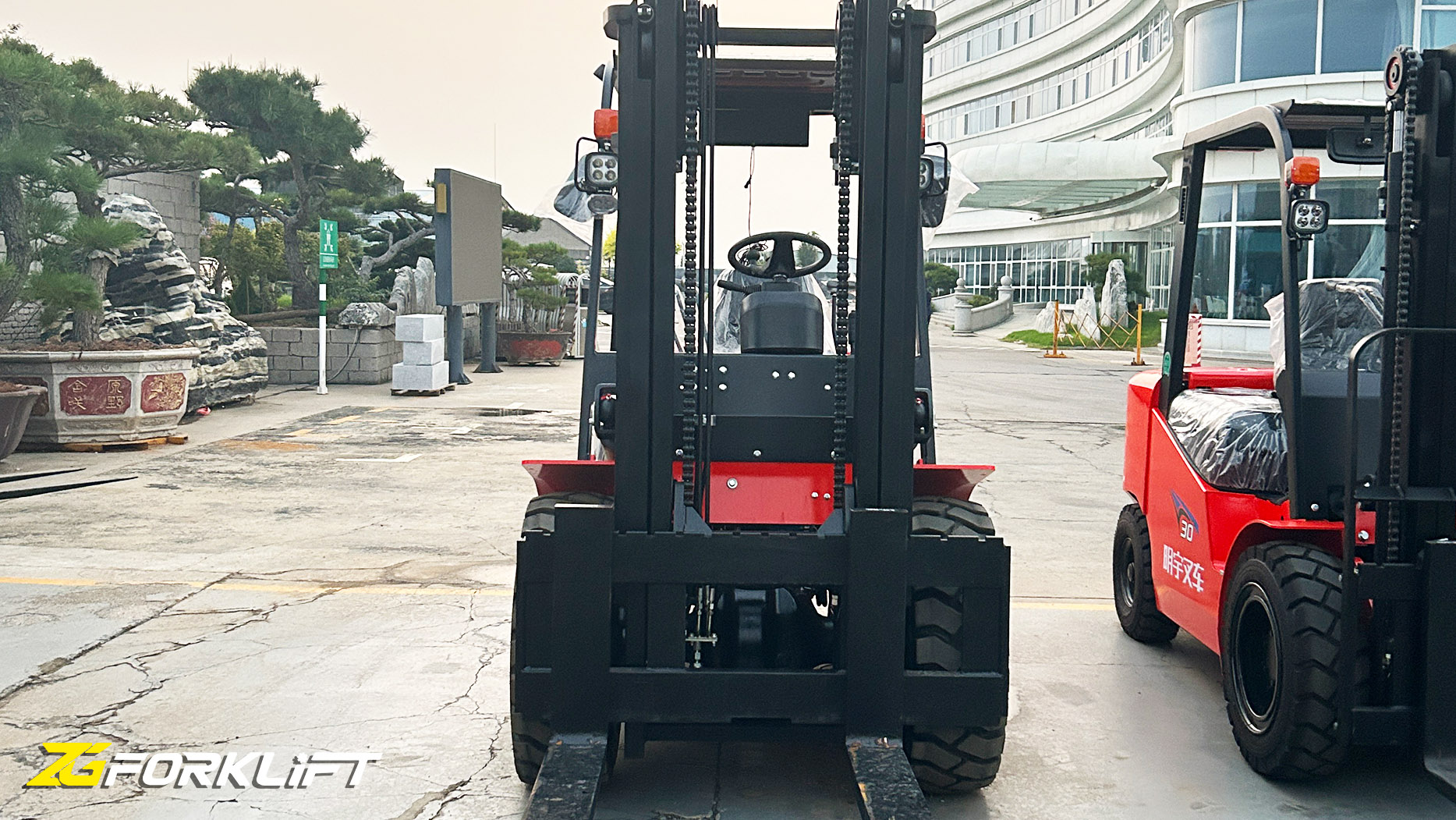

Understanding Forklift Mast Dimensions

Before determining the necessary clearance, it's essential to understand the dimensions of the forklift mast.  Key factors to consider include:

Overall Height: This is the maximum height the mast can attain, including the raised forks.

Free Lift Height: The height to which the forks can be raised without the mast extending beyond its base.

Mast Width: The width of the mast, which can vary depending on the forklift model and configuration.

Fork Length: The length of the forks, which can influence the overall footprint of the lifted load.

Factors Affecting Clearance Requirements

Several factors influence the required clearance between a forklift mast and a doorway:

Forklift Model and Configuration:

Different forklift models have varying mast dimensions and configurations.

The number of mast stages (single, double, or triple) impacts the overall height and complexity of the mast.

The type of mast (simplex, duplex, or triplex) influences its width and stability.

Load Dimensions and Weight:

The size and weight of the load being carried can affect the overall height and stability of the forklift.

Larger and heavier loads may require additional clearance to ensure safe passage through doorways.

Doorway Height and Width:

The height of the doorway must be sufficient to accommodate the maximum height of the forklift, including the raised load.

The width of the doorway should be wide enough to allow the forklift to pass through safely, considering the mast width and any potential load overhang.

Ceiling Height:

In indoor environments, the ceiling height can limit the maximum height to which the forklift can be raised.

It's important to ensure that the forklift can operate safely within the available vertical space.

Maneuvering Space:

Adequate maneuvering space is essential for safely navigating the forklift through doorways and around obstacles.

This includes the space required for turning, backing up, and making adjustments to the load.

Calculating Required Clearance

To determine the required clearance, consider the following factors:

Maximum Height:

Add the overall height of the forklift, including the raised load, to a safety margin of at least 6 inches.

This ensures that the forklift can pass through the doorway without hitting the ceiling or any overhead obstructions.

Mast Width:

Ensure that the doorway is wide enough to accommodate the mast width, with additional clearance on both sides for safe maneuvering.

A general guideline is to allow at least 12 inches of clearance on each side of the mast.

Load Overhang:

If the load extends beyond the width of the forks, additional clearance may be required to prevent it from hitting the door frame or walls.

Consider the maximum load overhang and adjust the clearance accordingly.

Practical Guidelines for Safe Operations

Conduct Regular Inspections:

Regularly inspect forklifts and doorways to identify any potential clearance issues.

Check for damage to the mast, forks, and door frames that could affect clearance.

Train Operators:

Provide comprehensive training to forklift operators on safe operating procedures, including awareness of clearance requirements.

Emphasize the importance of assessing the clearance before attempting to pass through a doorway.

Mark Clearances:

Use visual cues, such as floor markings or signs, to indicate clearance limits and potential hazards.

This can help operators maintain safe distances and avoid accidents.

Install Warning Devices:

Consider installing warning devices, such as audible alarms or visual indicators, to alert operators when approaching areas with limited clearance.

These devices can help prevent accidents by providing timely warnings.

Optimize Warehouse Layout:

Design the warehouse layout to minimize the need for frequent maneuvering through narrow doorways.

Consider using wider doorways or installing additional doors to facilitate forklift movement.
