ZGLOADER / MYZG CPY25 2.5 Ton LPG Forklift Industry and Lifecycle Guide
ZGLOADER / MYZG CPY25 2.5 Ton LPG Forklift Industry and Lifecycle Guide
A field-focused 2500 kg LPG/gasoline counterbalance forklift guide for e-commerce fulfillment, beverage dispatch and ceramic-tile distribution, using verified 3000 mm lift, 2240 mm turning radius and 3850 kg chassis data.
Overview: dependable LPG/gasoline torque for productive material handling

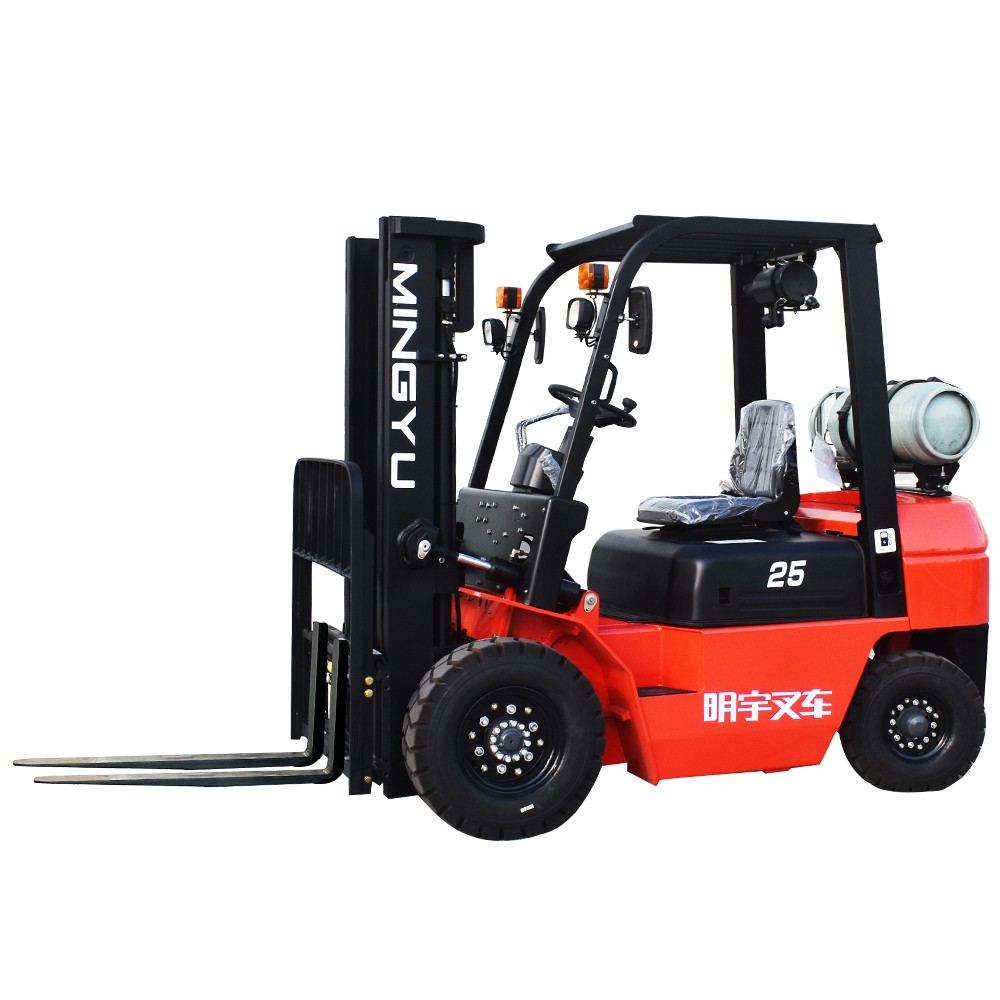

The ZGLOADER / MYZG CPY25 is a 2.5 ton industrial LPG/gasoline forklift manufactured by Shandong Zhuogong Machinery equipment Co.,Ltd for logistics yards, building-material plants, timber depots, factories, farms and distribution centers. Its straightforward LPG/gasoline powertrain is designed for continuous work where fast refueling, strong low-speed torque and outdoor durability are operational priorities.
The CPY25 LPG specification describes a gasoline/LPG dual-fuel counterbalance platform. It lifts a rated 2500 kg at a 500 mm load center and uses a 3850 kg chassis with a 1600 mm wheelbase. Operators can select LPG or gasoline according to site rules, fuel availability and ventilation requirements.
MYZG CPY25 factory technical specifications
The table presents the mechanical, dimensional and performance data for this 2500 kg LPG/gasoline counterbalance forklift. Final mast, fork, tyre, cab, engine-emission and attachment selections should be confirmed for the destination market and actual load.
| Model | CPY25 |
| Fuel type | LPG/gasoline dual fuel |
| Engine options | Guangqing / Nissan |
| Rated capacity | 2500 kg |
| Load center | 500 mm |
| Standard lift height | 3000 mm |
| Minimum turning radius | 2240 mm |
| Wheelbase | 1600 mm |
| Unladen weight | 3850 kg |
| Front tyre | 7.00-12-12PR |
| Rear tyre | 6.00-9-10PR |
| Maximum driving speed | 17/19 km/h |
| Maximum lifting speed | 550 mm/s |
| Operator arrangement | Seated operator |
| Overhead guard design | Large arc overhead guard |
| Cabin space | Expanded cabin space |
| Fixed front floor | Reduced fixed front floor |
| Transmission service space | Increased transmission service space |
| Engine hood opening | 80 degrees |
| Fuel filler cap | Pressure fuel filler cap |
| Attachment support | According to confirmed demand |
| Indoor environment | Ventilated indoor operation |
| Outdoor environment | Site-assessed outdoor operation |
| Compliance documents | Written confirmation by configuration and destination |
Engineering design and principal advantages
1. LPG and gasoline dual-fuel flexibility
The CPY25 can operate on LPG or gasoline through a selectable fuel system. Guangqing and Nissan engine options are documented for this series. LPG operation can support cleaner combustion than gasoline, but every indoor site still requires ventilation, emission assessment and compliance with local safety rules.
2. Compact 2240 mm turning radius
A 2240 mm minimum turning radius and 1600 mm wheelbase help the truck maneuver around production cells, loading bays and compact storage zones. The 3850 kg counterbalanced chassis supports controlled handling when operators follow the approved load chart and travel with the load lowered.
3. Pneumatic tyres for mixed surfaces
The 7.00-12-12PR front tyres and 6.00-9-10PR rear tyres provide cushioning and traction for this compact LPG forklift. Operators should reduce speed on joints, ramps or uneven pavement and confirm that floor strength, tyre pressure and surface condition suit the combined truck-and-load weight.
4. 3000 mm lift and service-focused layout
The standard lift height is 3000 mm, maximum lifting speed is documented at 550 mm/s and maximum driving speed at 17/19 km/h. The large-arc overhead guard expands the operator area, while the reduced fixed front floor, increased gearbox service space and 80-degree hood opening support inspection and maintenance.
Recommended application environments
The CPY25 LPG forklift suits warehouses, distribution centers, manufacturing lines, retail logistics, food and beverage storage, truck loading and ventilated mixed indoor/outdoor operations handling loads up to 2500 kg.

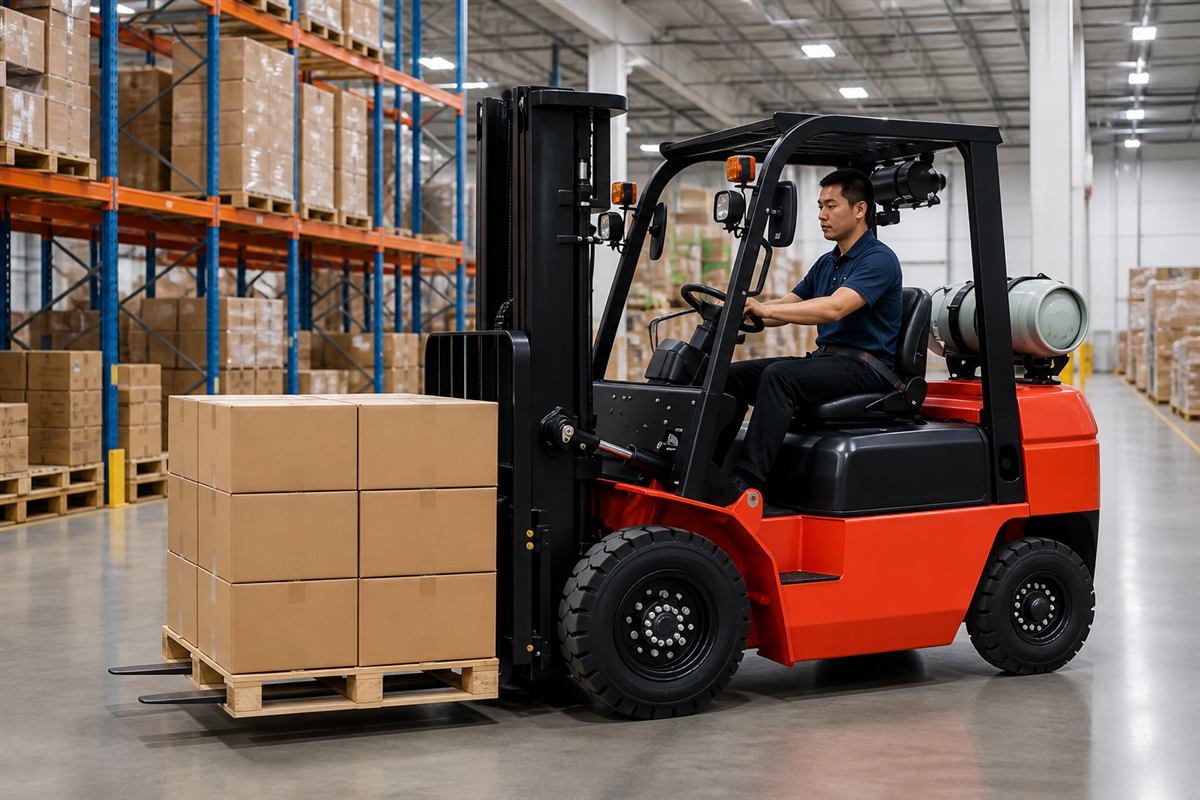

E-commerce fulfillment
Move sealed cartons and standard pallets between receiving, reserve storage, picking and dispatch lanes with approved ventilation, traffic separation and load-height control.

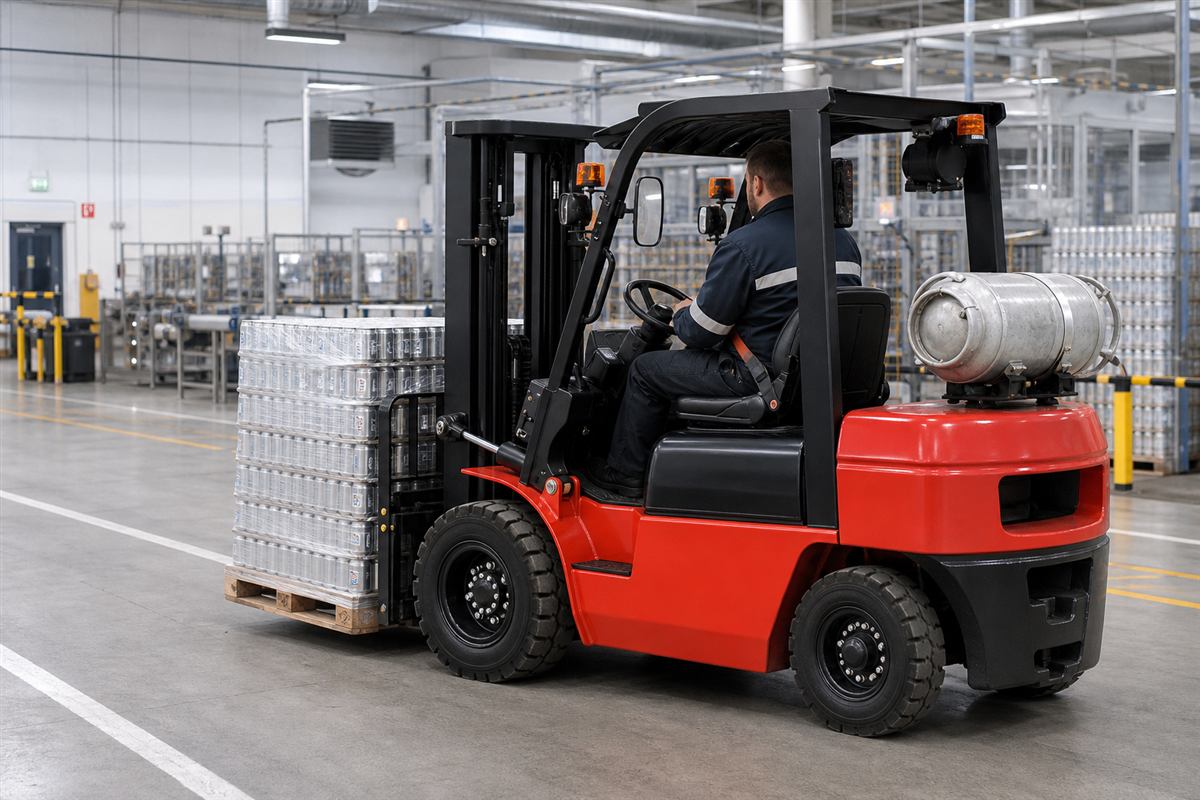

Beverage production and dispatch
Transfer secured beverage pallets between packaging lines and dispatch staging while protecting floor cleanliness and respecting residual capacity.

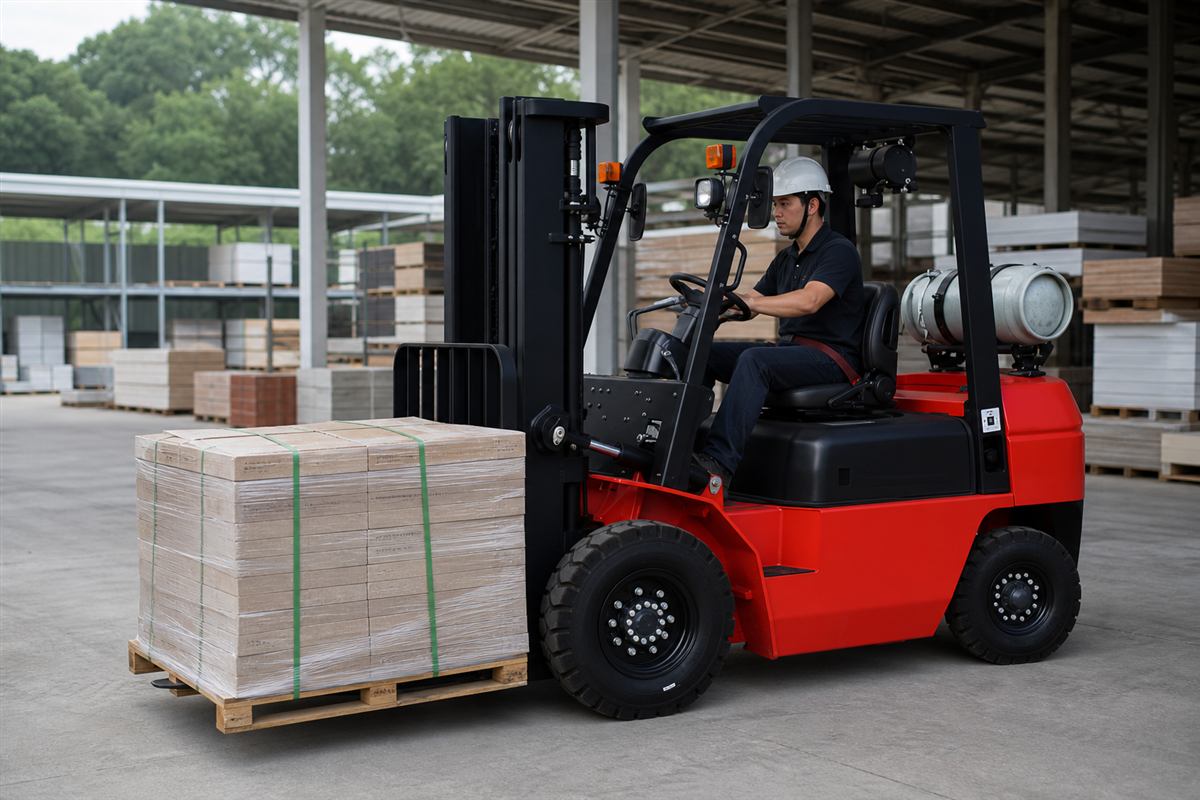

Ceramic-tile distribution
Handle dense, strapped tile pallets on suitable concrete surfaces; confirm pallet integrity, floor strength, fork spacing and reduced travel speed before every route.
Selection and purchasing guide
Select the CPY25 from the real task, not only the 2500 kg headline. Send pallet dimensions, load center, maximum lift, residual-capacity requirement, aisle and door widths, floor and ramp condition, hourly cycles, indoor ventilation, outdoor exposure, preferred fuel, attachment and destination rules. Confirm the final engine, mast, forks, tyres, fuel system, data plate and documentation in the written quotation.
Maintenance and total cost of ownership
Daily checks cover forks, carriage, mast channels, chains, hoses, tyres, brakes, steering, horn, lights, seat restraint, LPG cylinder mounting, hoses, regulator and fuel leaks. Planned service should include engine oil, filters, ignition, cooling, transmission, hydraulics and fuel components. Compare fuel, tyres, wear parts, service access, operator training, downtime and resale suitability instead of judging purchase price alone.
Dealer, rental and parts support
Distributors and rental fleets can position the CPY25 for warehouses, e-commerce fulfillment centers, beverage plants, ceramic-tile depots and mixed loading work. A responsible local offer combines a site survey, pallet demonstration, operator handover, cylinder-safety guidance, preventive maintenance and identified spare parts. Contact the export team for a job-matched configuration contact the MYZG export team.
Compliance, export service and trust
CE-related evidence, engine-emission documents, LPG components, transport rules and destination requirements depend on the final configuration and must be confirmed in writing. EPA applies only where the selected engine and destination require it; no certificate number is assumed. MYZG supports configuration review, inspection, export packing, manuals, shipping documents, parts identification and after-sales communication without inventing customers or performance claims.
Frequently asked questions
Which engines are available for the CPY25 LPG forklift?
The source configuration lists Guangqing and Nissan engine choices. Final fuel-system certification, engine model and emission package should be confirmed for the destination market.
What is the turning radius of this 2.5 ton LPG/gasoline forklift?
The documented minimum turning radius is 2240 mm. Buyers should add clearance for the actual pallet, attachment, fork length, rack protection and operator skill.
Can the CPY25 be supplied with hydraulic attachments?
Yes. MYZG can discuss side shifters, fork positioners, clamps, rotators, duplex or triplex masts and cab options. Residual capacity must be recalculated for the selected mast, load center and attachment.
Configure a ZGLOADER / MYZG CPY25 for your site
Send the load weight and dimensions, lift height, aisle width, operating surface, ramp gradient, working hours, engine-emission requirement, destination port and attachment needs. The factory team can prepare a configuration, quotation, packing plan and shipping proposal.
