ZGLOADER / MYZG CPD18-B 1.8 Ton Compact Lithium Electric Forklift

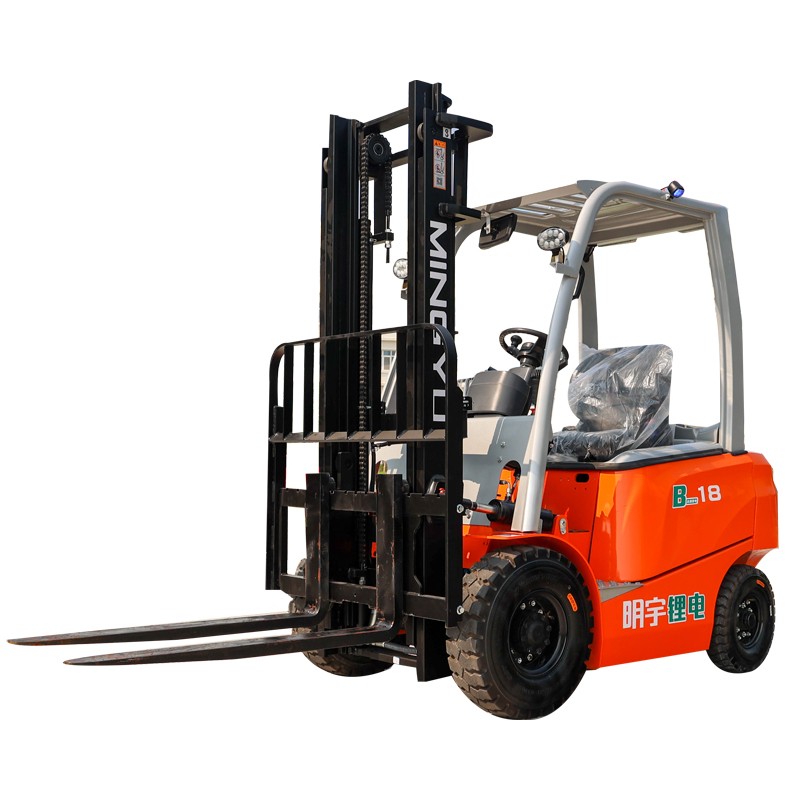

The ZGLOADER / MYZG CPD18-B is a compact three-wheel lithium electric counterbalance forklift rated for 1800 kg at a 500 mm load center. Shandong Zhuogong Machinery equipment Co.,Ltd presents this new application-focused page from the exact A18/CPD18-B technical source. Its 80 V / 105 Ah lithium-ion battery, 1800 mm turning radius, 1100 mm width, seated layout, pneumatic tyres and 3000 mm standard lift support narrow-aisle warehousing, production supply and controlled logistics routes when the load chart, floor, aisle and charging plan are confirmed. electric forklift category.

Customer need and the CPD18-B solution

Customers usually need more than a nominal 1.8 ton figure. They need a truck that fits doors, turns between racks, works on ramps, positions pallets accurately, avoids exhaust inside buildings and remains available through planned shifts. CPD18-B selection begins with pallet dimensions, maximum mass, load center, lift height, residual capacity, aisle width, floor condition, ramp gradient, travel distance, hourly cycles, ambient temperature and available electrical supply.

Verified reference specifications

all products.

Warehouse and distribution applications

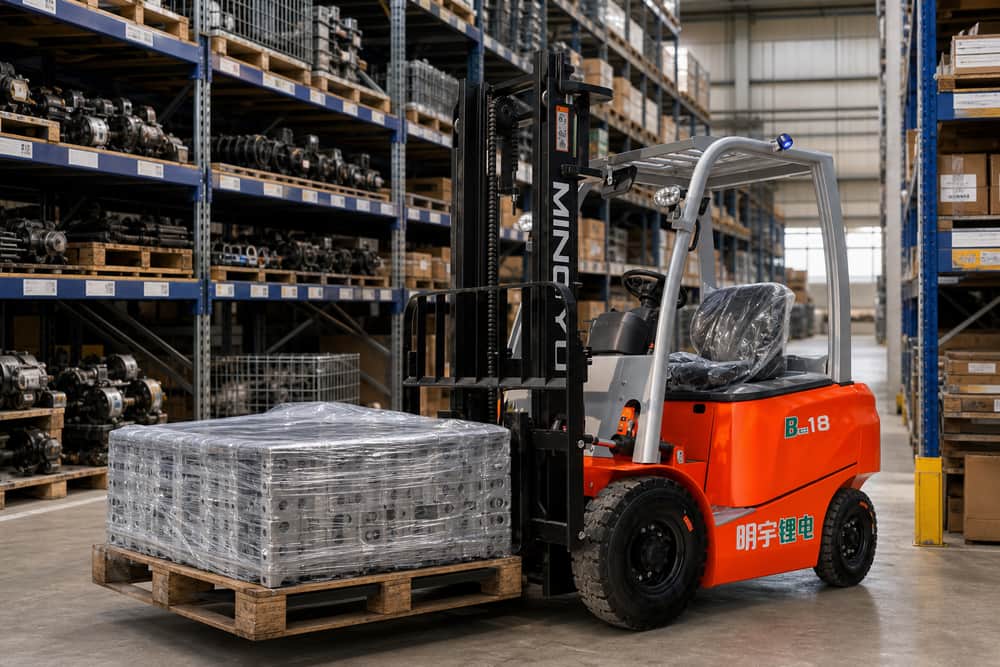

In warehouses and distribution centers, the CPD18-B can move received pallets to staging lanes, place compatible loads in racking and replenish dispatch areas. The 1800 mm reference turning radius and 1100 mm chassis width support compact traffic planning, while the stated 3450 mm right-angle aisle reference applies to an 1100×1100 mm pallet. Real layouts must add clearance for load overhang, rack guards, pedestrians and operator skill.

Loading dock and transport applications

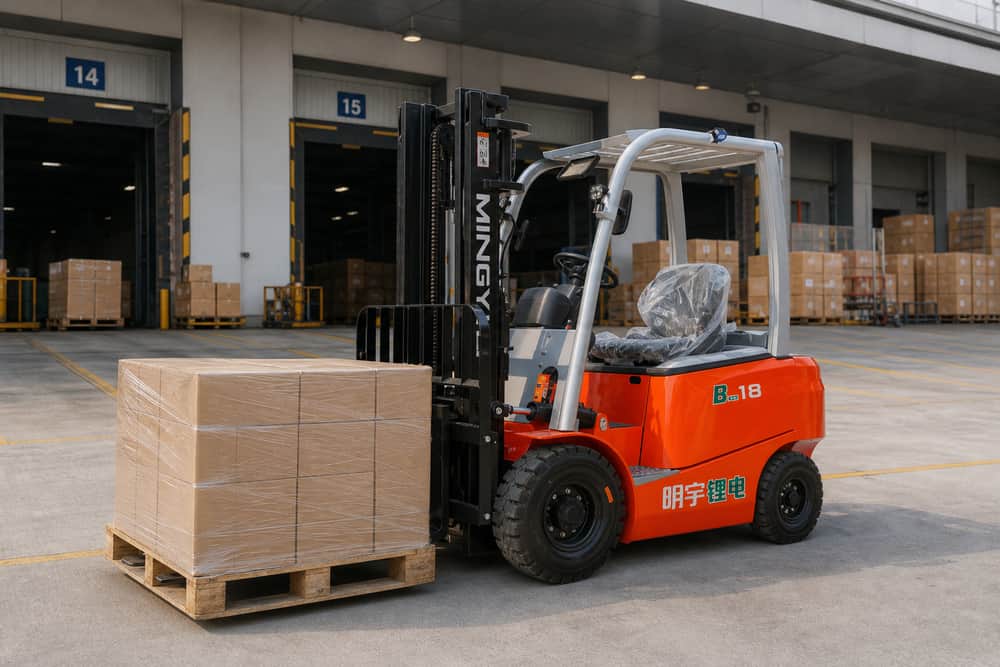

At loading docks, the forklift can transfer palletized goods between staging zones and stationary trucks after the trailer, dock plate and floor capacity are verified. The 15% loaded gradeability is a reference, not permission to use an unsuitable ramp. Buyers should confirm dock height, bridge plate rating, trailer restraint, wheel stops, door clearance, weather exposure and the effect of wet surfaces on braking and traction.

Manufacturing and line-side supply

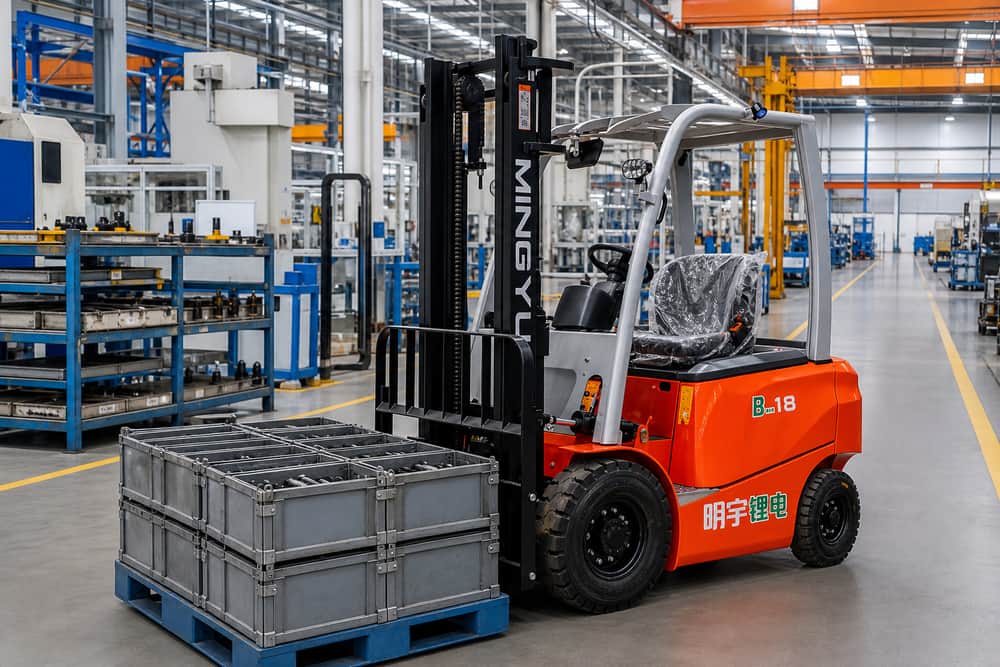

For manufacturing, the quiet electric drivetrain and zero tailpipe emissions support line-side delivery, work-in-process movement and finished-goods handling. The 13 kW traction motor and 13 kW hydraulic pump motor provide controlled travel and lift response. Facilities handling food, pharmaceuticals or sensitive products must still review hygiene rules, tyre marks, battery area controls and any site-specific equipment standard.

How to select the correct electric forklift

Select the forklift by the worst real job rather than the average pallet. A 1800 kg rating at a 500 mm load center changes when the load is longer, the mast is raised, an attachment is installed or the center of gravity shifts. Send the heaviest load dimensions, target height and attachment requirement so residual capacity can be checked. Confirm the final mast, forks, sideshift, tyres and data plate in the written order.

Lithium battery and charging planning

The verified power source is an 80 V / 105 Ah lithium-ion battery and the charger reference is 80 V / 35 A. The final battery management system, connector, charger input and market-compatible plug must be confirmed in the written quotation. Runtime depends on travel distance, lifting frequency, load mass, gradients, tyre resistance, temperature and operator habits. Define charging windows, cable protection, emergency isolation and inspection responsibilities before commissioning.

Buying guide and quotation checklist

A useful buying comparison lists rated capacity, load center, lift height, lowered height, working height, turning radius, aisle requirement, fork length, attachment capacity, battery chemistry, charger input, motor ratings, tyres, brakes, manuals, spare parts, warranty scope, packing and destination documents. Compare productive cycles, energy cost, maintenance access, downtime support and resale suitability instead of judging only the purchase price. application and buying guides.

Safety and operator preparation

Only trained and authorized operators should use the CPD18-B. Daily preparation includes forks, carriage, mast channels, chains, hoses, tyres, wheel fasteners, brakes, steering, horn, lights, alarms, overhead guard, seat restraint, battery connector and charger. Travel with the load low, keep pedestrians separated, respect the data plate, avoid turning on gradients and never use damaged pallets or unsupported elevated loads.

Maintenance and total ownership cost

Electric forklifts remove engine oil, fuel filters and exhaust-system service, but they still require disciplined care. Inspect mast lubrication, chain elongation, hydraulic leaks, fork wear, tyre condition, brakes, steering joints, controller cooling, connectors and insulation. Keep charging records and diagnostic codes. Total ownership cost should include electricity, tyres, forks, wear parts, planned service, operator training, charger infrastructure and expected downtime.

Dealer and rental opportunity

For distributors and rental fleets, the CPD18-B can serve warehouses, wholesalers, manufacturers, logistics contractors and loading-dock operators. Strong local offers combine a site survey, pallet demonstration, operator handover, charger guidance, common wear parts and planned maintenance. Dealers should stock identified filters, seals, contactors, connectors, mast rollers and brake items for the delivered configuration and document response channels clearly.

Compliance, export service and trust

CE, battery, charger, transport and destination requirements depend on the final configuration and market and must be confirmed in writing for the delivered serial-numbered unit. EPA normally concerns relevant combustion engines and should not be presented as automatic evidence for a lithium forklift. MYZG coordinates configuration review, inspection, export packing, manuals, shipping documents, parts identification and after-sales communication without inventing certificate numbers or customer claims.

Frequently asked questions

Why choose CPD18-B for narrow aisles?

Its verified 1100 mm width and 1800 mm turning radius support compact layouts, but buyers must still measure the complete route, pallet overhang and safety clearances.

Can it lift 1800 kg at every height?

No. Rated capacity is referenced at a 500 mm load center. Mast height, load dimensions and attachments can reduce residual capacity, so use the approved load chart.

Can it work outdoors?

It can serve controlled outdoor routes when surface, gradient, weather protection, tyres, braking and electrical protection are suitable. It is not a rough-terrain forklift.

Are CE and EPA documents included?

Required documents depend on configuration and destination. CE-related evidence must be confirmed in writing; EPA is generally not the relevant basis for a battery-electric powertrain.

Request a job-matched quotation

Send pallet size, maximum weight, load center, lift height, rack beam height, aisle and door dimensions, floor, ramp, shift hours, indoor or outdoor use, attachment, local electrical supply, destination port and required documents. The export team will prepare a configuration-based quotation, charging proposal, spare-parts recommendation and shipping plan through the contact link contact the MYZG export team.
