What is the lifting capacity of a typical pallet stacker?

The lifting capacity of a typical pallet stacker is a fundamental specification that dictates its utility and application in various material handling environments. At its core, a pallet stacker, whether manual or powered, is designed to lift, transport, and position palletized loads with efficiency and relative ease, filling the gap between fully manual handling and larger forklift systems. For the most common variant—the manual hydraulic pallet stacker—the standard lifting capacity generally ranges from 2,500 to 3,000 pounds (approximately 1,100 to 1,360 kilograms). These units are ubiquitous in small to medium-sized warehouses, retail stockrooms, and loading docks where loads are not excessively heavy and the frequency of movement is moderate. The operational principle relies on a hydraulic pump mechanism, actuated by a manual lever, which raises the forks to a typical maximum height of around 60 to 70 inches. This capacity is engineered to handle standard wooden or plastic pallets laden with goods such as packaged food, beverages, or light industrial components. Understanding this baseline capacity is crucial for procurement decisions, as exceeding these limits not only risks product damage but also poses severe safety hazards to operators, including potential hydraulic failure or tip-over incidents. The design prioritizes maneuverability in narrow aisles and cost-effectiveness, making it a workhorse for businesses that do not require the complex capabilities of larger machinery.

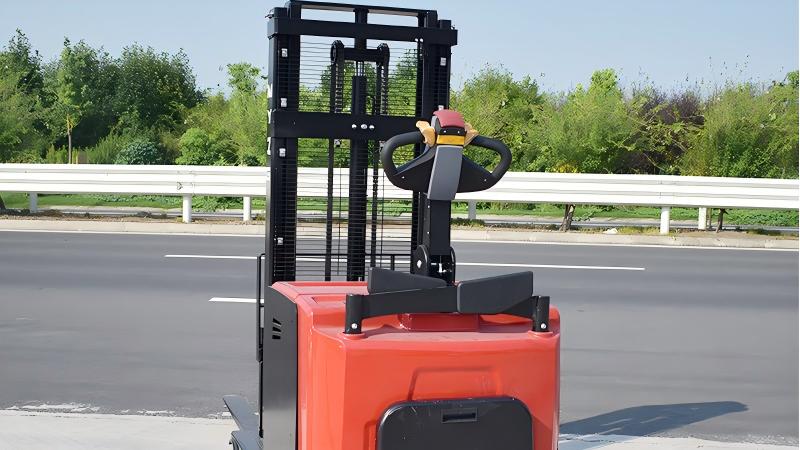

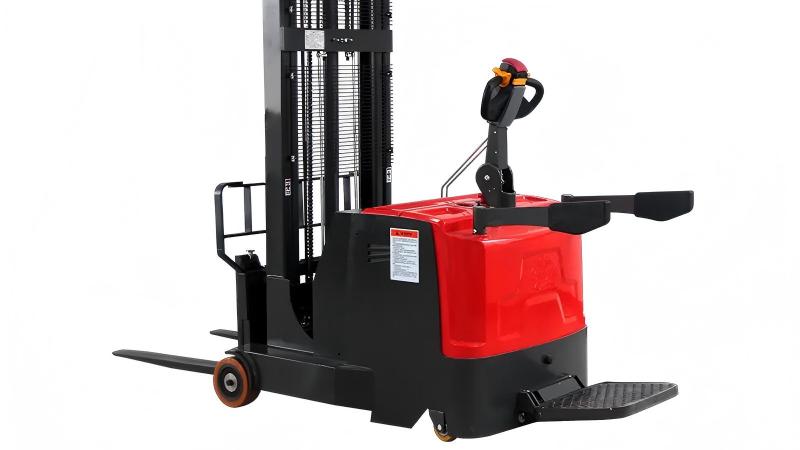

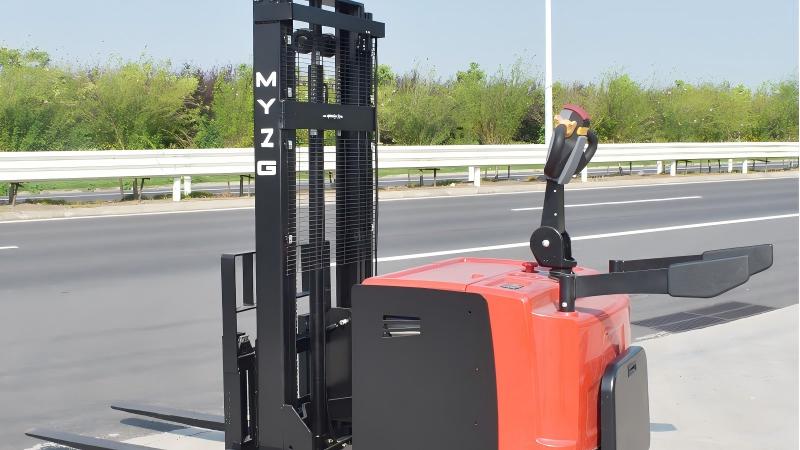

Moving into the realm of electric pallet stackers, the lifting capacity sees a significant variance and often an increase, reflecting their enhanced power and intended use for more demanding, high-cycle operations. Electric pallet stackers, which include walk-behind and rider models, commonly offer capacities ranging from 2,200 pounds (1,000 kg) up to 4,400 pounds (2,000 kg) or more. Their power source—typically a 24V battery system—enables not only greater lifting prowess but also the ability to handle heavier loads over longer distances and to greater heights, sometimes exceeding 120 inches for stacking purposes. The capacity of an electric model is intrinsically linked to its design; compact walk-behind models might cap at 3,300 pounds (1,500 kg) for optimal stability, while more robust stand-on or rider versions are built for the higher end of the scale. These machines are indispensable in distribution centers, manufacturing plants, and larger storage facilities where productivity and operator fatigue are key considerations. The lifting mechanism, powered by an electric motor driving a hydraulic pump, provides smooth, controlled lifting and lowering. It is imperative to note that the stated capacity is not merely about the weight but also about the load center—typically 24 inches from the fork face. Deviating from this center, such as with longer or irregularly shaped loads, effectively reduces the machine's safe working capacity and must be meticulously calculated to maintain stability.

Several critical factors beyond the manufacturer's stated rating influence the effective and safe lifting capacity of a pallet stacker in real-world scenarios. The most paramount among these is the load center dimension. Every stacker's capacity is rated based on a specific load center distance; a shift in the load's center of gravity forward or an increase in the load's length can create a dangerous tipping moment, necessitating de-rating the equipment. Furthermore, the physical condition of the equipment plays a vital role. A poorly maintained pallet stacker with worn hydraulic seals, low fluid levels, or damaged forks will not perform to its original specifications and is a liability. The operating environment itself is a factor: uneven, sloped, or slippery floors can drastically reduce stability and, consequently, safe lifting capacity. For electric models, battery charge level can affect performance, as a low battery may not provide sufficient power for the hydraulic system to lift a rated load to its maximum height. Regular inspections and adherence to load plates are non-negotiable. Operators must be trained to understand that capacity encompasses the entire system—the machine, the load geometry, and the environment—and that compromising on any aspect can lead to catastrophic failure, property damage, or serious personal injury.

In conclusion, selecting a pallet stacker with the appropriate lifting capacity is a strategic decision that balances operational requirements with safety and cost. While manual stackers offer a cost-effective solution for lighter loads up to 3,000 lbs, electric stackers provide the muscle and endurance for heavier, more frequent tasks exceeding 4,000 lbs. The key to maximizing this investment lies in rigorous application analysis: thoroughly assessing the average and peak weights of loads, their dimensions, required lift heights, and duty cycles. Always consult the manufacturer’s data plate and capacity charts, which provide the authoritative guidelines for safe operation. Moreover, integrating stacker usage within a broader framework of operator training, planned maintenance schedules, and clear safety protocols ensures not only the longevity of the equipment but also the well-being of the workforce. Ultimately, the "typical" capacity is merely a starting point; informed and prudent handling tailored to specific warehouse dynamics unlocks true efficiency and safety in material handling logistics.
