What do the indicators on the loader dashboard mean?

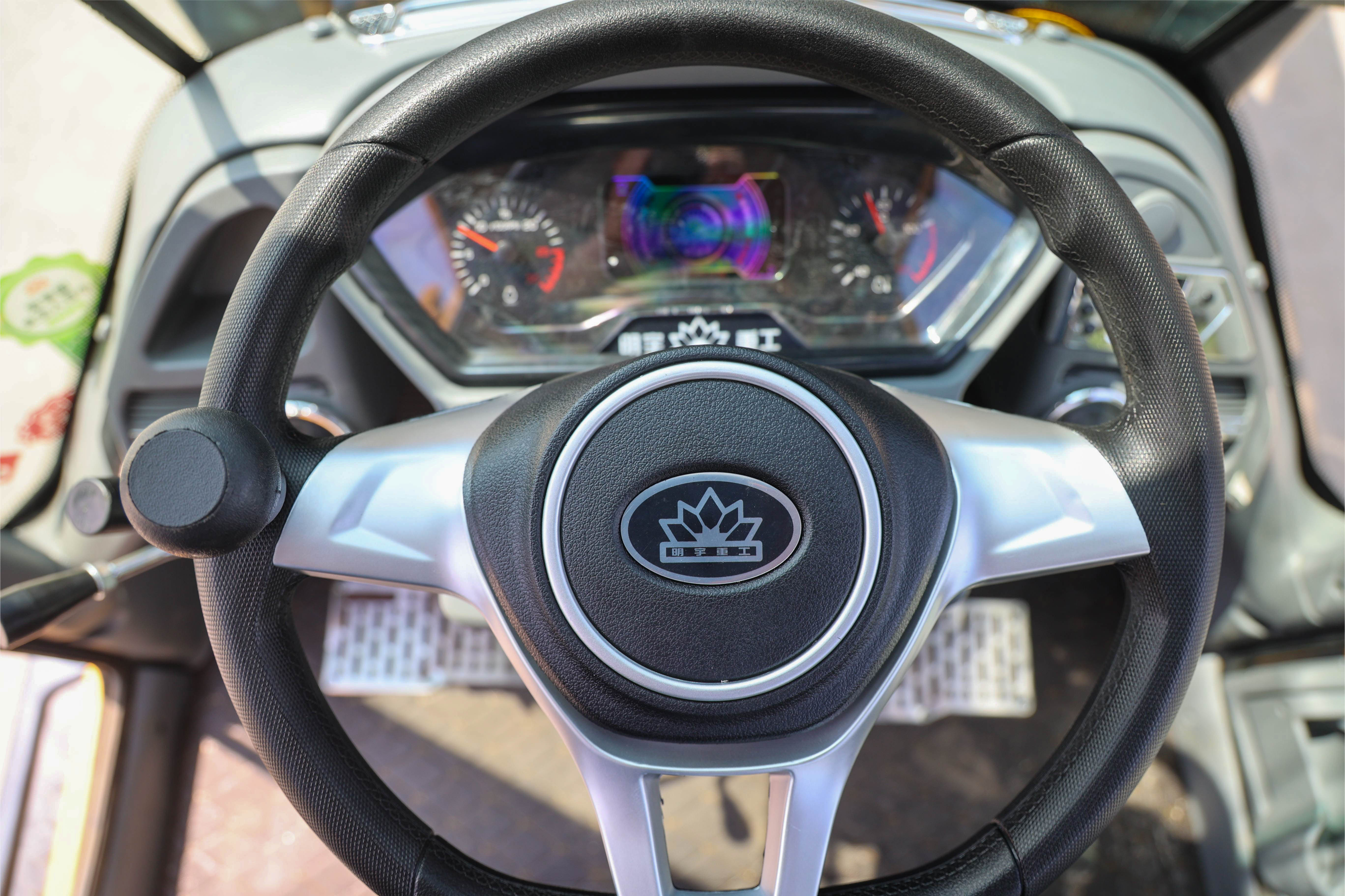

A loader's dashboard is a vital communication tool between the machine and its operator. It displays a range of indicators that provide critical information about the machine's health and performance. Understanding these indicators is essential for safe and efficient operation.

Common Dashboard Indicators and Their Meanings

Engine Indicators:

• Tachometer (RPM): This gauge measures the engine's rotational speed in revolutions per minute (RPM). It helps you monitor engine load and avoid over-revving.
• Engine Temperature Gauge: This gauge indicates the engine's coolant temperature. Overheating can lead to serious engine damage, so it's crucial to keep the temperature within the normal range.
• Oil Pressure Gauge: This gauge monitors the oil pressure in the engine's lubrication system. Adequate oil pressure is essential for engine component lubrication and cooling.
• Fuel Gauge: This gauge shows the remaining fuel level in the tank. Monitoring the fuel level helps prevent unexpected fuel outages.

Hydraulic System Indicators:

• Hydraulic Pressure Gauge: This gauge indicates the hydraulic pressure in the system. Adequate hydraulic pressure is necessary for smooth operation of hydraulic components like the bucket and arms.
• Hydraulic Oil Temperature Gauge: This gauge monitors the temperature of the hydraulic oil. Overheating can degrade hydraulic oil and reduce system performance.

Transmission Indicators:

• Gear Indicator: This indicator displays the current gear selected. It helps you choose the appropriate gear for different operating conditions.
• Transmission Oil Temperature Gauge: This gauge monitors the temperature of the transmission oil. Overheating can damage the transmission components.

Other Indicators:

• Battery Voltage Indicator: This indicator shows the battery's voltage level. A low battery voltage can affect the machine's electrical systems.
• Warning Lights: These lights alert the operator to potential issues, such as engine malfunctions, hydraulic failures, or low tire pressure.

How to Read and Interpret Dashboard Indicators

• Normal Operating Ranges: Familiarize yourself with the normal operating ranges for each indicator. These ranges are often indicated on the gauge face or in the operator's manual.
• Warning Signs: Pay attention to warning lights and unusual gauge readings. If any warning lights illuminate or a gauge reading exceeds the normal range, investigate the issue immediately.
• Preventive Maintenance: Regular maintenance, such as oil changes and filter replacements, can help prevent issues and keep the machine running smoothly. By monitoring the dashboard indicators, you can identify potential problems early on and take corrective action.

By understanding the meaning of the indicators on your loader's dashboard, you can operate the machine more efficiently and safely. Regular monitoring of these indicators is crucial for preventing costly breakdowns and ensuring optimal performance.
