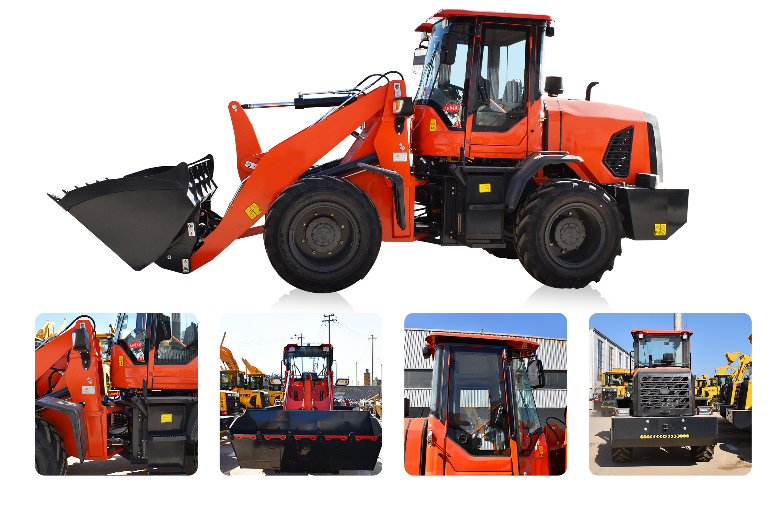

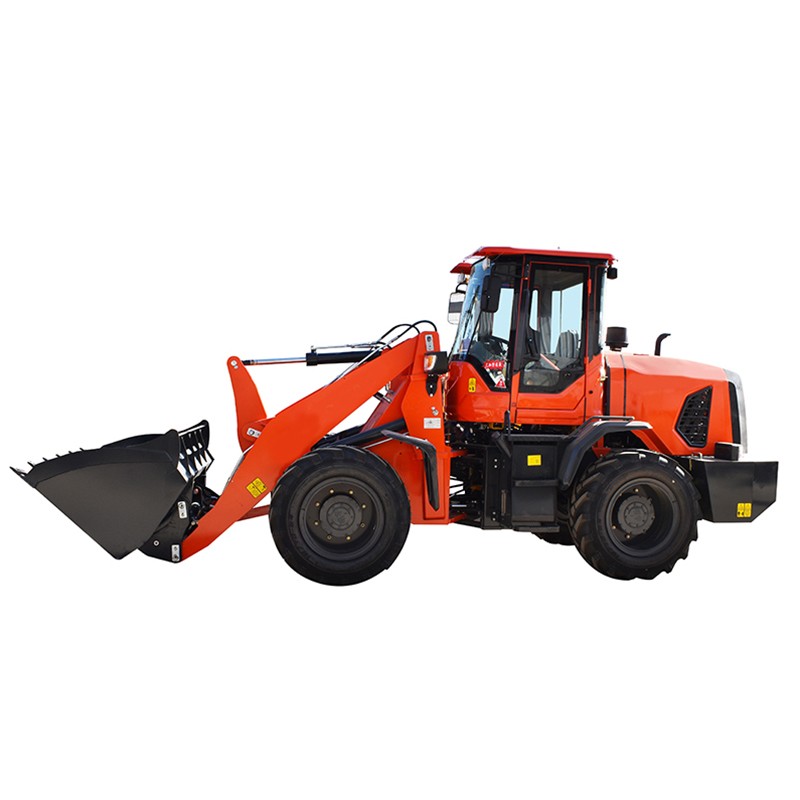

MOLOT 2500GT Wheel Loader
Product Feature
MYZG molot 2500GT , four-wheel drive, full hydraulic steering, powerful power, can choose a variety of work devices and auxiliary tools, to achieve a multi-machine, widely used in infrastructure, sanitation,farmland, road repair, ports, freight yards and other places of loading, traction, lifting, transportation and other operations.
·Traction force ≥ 34KN, rising force 22KN, outstanding capability.
·Turning radius 2950mm, strong adaptability
· Extra long wheelbase, more heavy duty
Parameter
| Rated load capacity | 2000kg |
| Rated bucket capacity | 1.2m³（big bucket:1.8m³） |
| Operating weight | 5500kg |
| Engine model |
quanchai 4c6-88m22 |
| Rated power | 76kw |
| Rated speed | 2300/2400 r/min |
| Dimensions | 6475*2250*2815mm |
| Dump height | 3550mm |
| Dump distance | 950mm |
| Min.turning radius | 2950mm |
| Wheel base | 2515mm |
| Wheeltrack | 1615mm |
| Tyre size | 16/70-20 |
1.High performance engine is adopted for strong power, low fuel consumption, low noise and reliability.
2.Double turbine hydraulic torque converter could make full use of engine power to increase the torque, contributing to overall large traction force. Power shift planetary gearbox that used for 3 ton loaders is adopted for high transmission efficiency and long service life.
3.New type reinforced drive axles are adopted for large bearing capacity and high reliability. Reasonable distribution on front and rear axles ensures overall stability.
4.Joystick and large displacement working pump contribute to easy operation.
5.Articulated frame features flexible steering, good passing ability, large bearing capacity and good stability.
Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
