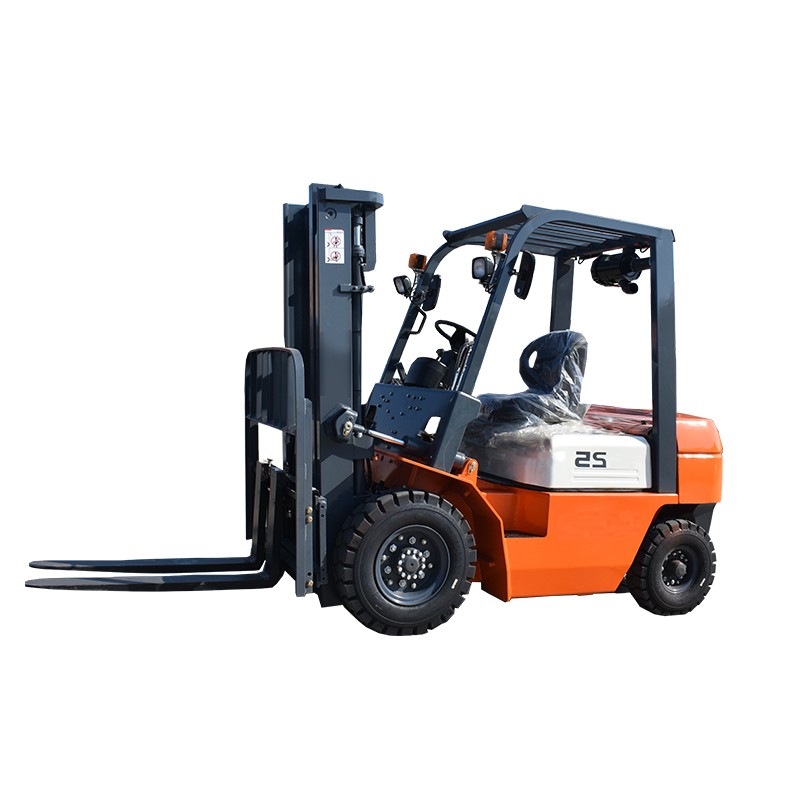

CPC25 diesel forklift
Product Feature
CPC25 is a special equipment for material transporting and stacking, with a max lifting capacity of 2.5T and a standard height of 3m, which can also be increased. The product can be installed with sideshifter, flexible and efficient, wide range of uses
·Flexible and efficient operation
·Safe and reliable, easy to use
·Economic and environmental protection, cost saving
·People-oriented, comfortable driving
·Toyota seat
Parameter
| model | CPC25 | |
| Power type | diesel | |
| load capacity | 2500kg | |
| Load centre distance | 500mm | |
| lifting height | 3000mm | |
| free lifting height | 0 | |
| fork size | lenght×width×thickness | 1070×122×40mm |
| Mast tilt angle | front/rear | 6/12Deg |
| min turning radius | 2240mm | |
| min ground clearance | mast | 120mm |
| frame | 130mm | |
| Overhead guard height | 2160mm | |
| front overhang distance | 450mm | |
| Max driving speed |
|
19km/h |
| Max lifting speed | 500mm/s | |
| max drawbar pull | 18KW | |
| Max climbing capacity | 20% | |
| length | with fork | 3650mm |
| without fork | 2580mm | |
| width | 1160mm | |
| Max lifting height of fork (with stopper shelf） | 4220mm | |
| Landing height of the gantry | 2060mm | |
| tyre | front | 7.00-12-12PR |
| rear | 6.00-9-10PR | |
| wheek base | 1600mm | |
| wheel track | front/rear | 970/970mm |
| weight | without load | 3880 |
| accumulator | voktage/capacity | 12/80 |
| engine | model |
quanchai/xinchai/
Mitsbishi / Isuzu/Cummins |
| rated power | 40kw | |
| rated torque | 156/1700-1900 | |
| Bore X Stroke | 90×105mm | |
| number of cylinders | 4 | |
| displacement | 2.54L | |
| fuel tank capacity | 60L | |
According to demands, can be matched with different accessories
Stylish exterior
Boasting smooth and powerful contour lines, and simple and elegant vehicle body, and presenting both fashion and steadiness as a whole.
Comfortable experience
With the advantages of diesel forklifts, this ergonomically designed forklift enables a wide view and a large operation space. The color-screen instruments are designed to have clear and intuitive graphic interfaces. The optional electronic handbrake allows more comfortable driving experience.

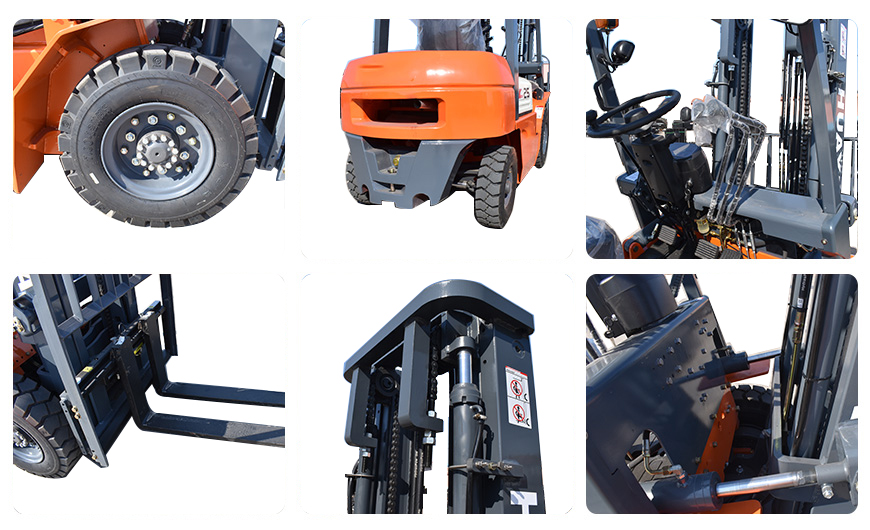

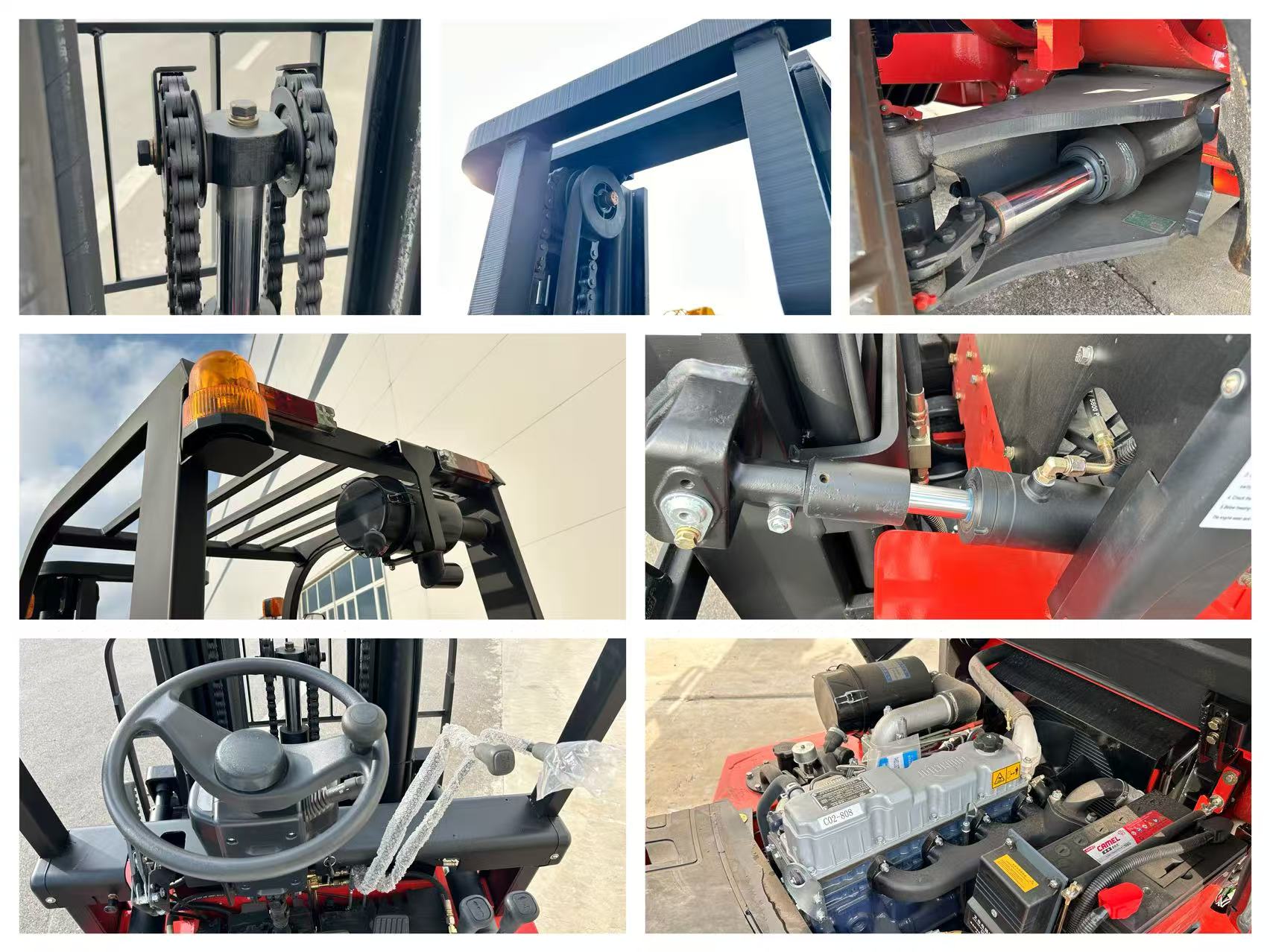

Detail
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
