MYZG 388 Heavy-Duty 4x4 Backhoe Loader (75kW / 102HP)

Dual-Function Earthmoving Powerhouse: 8360kg Operating Weight, 2500kg Front Loader Capacity, 4085mm Digging Depth, and High-Torque Yuchai Engine Technology.

Executive Overview: Versatile 2-in-1 Excavation & Loading Efficiency

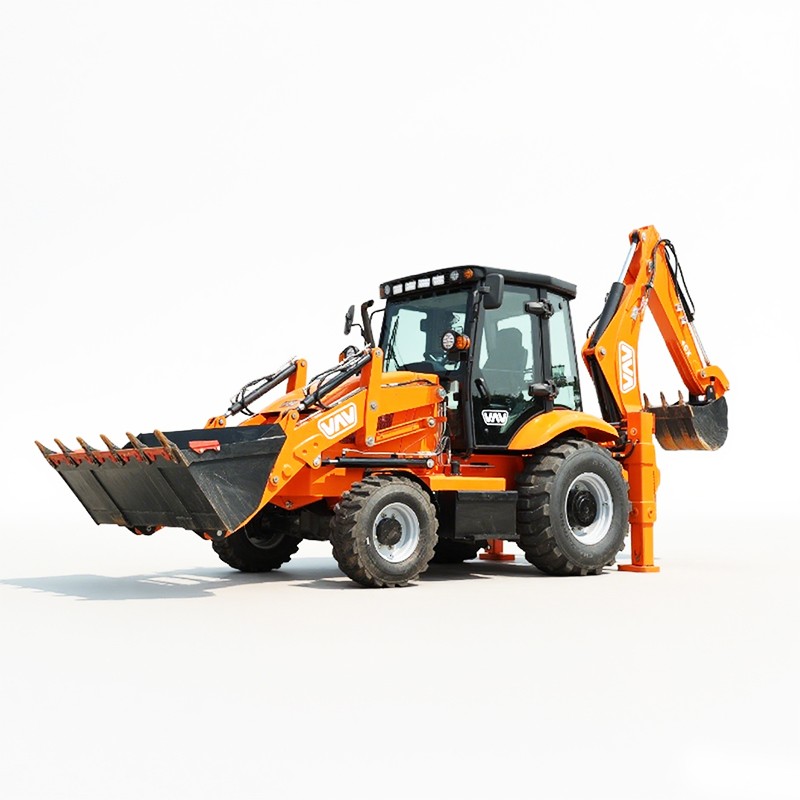

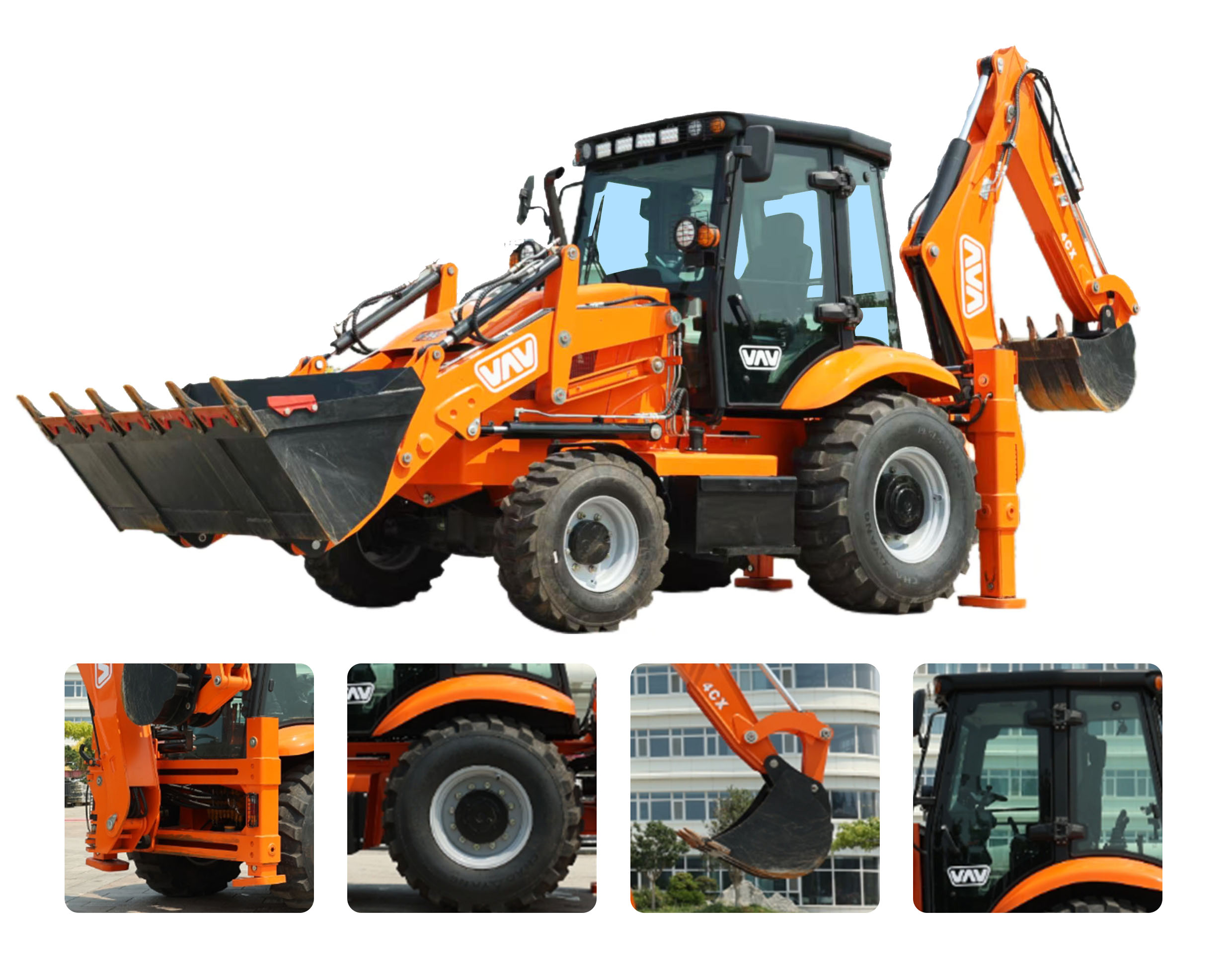

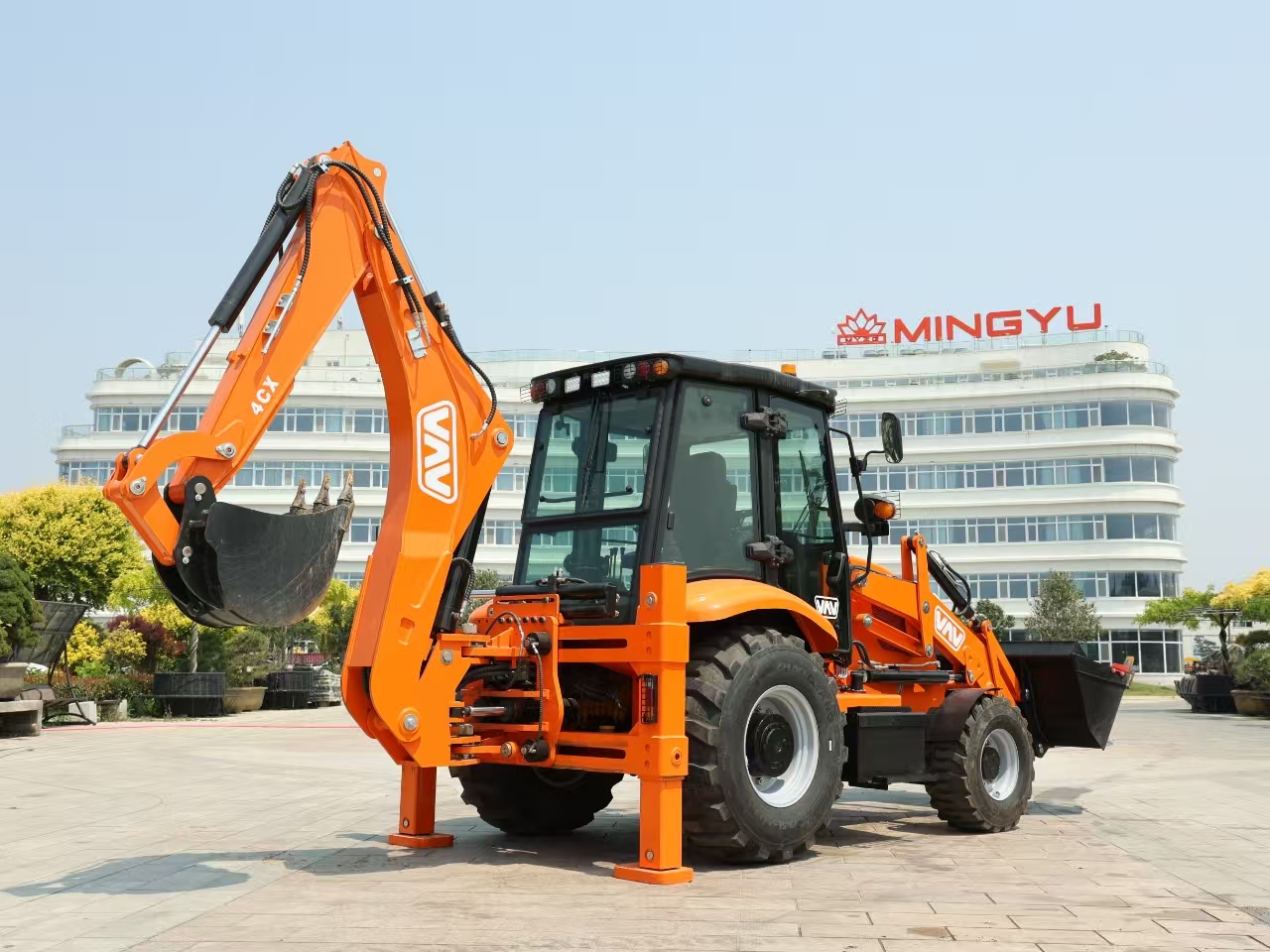

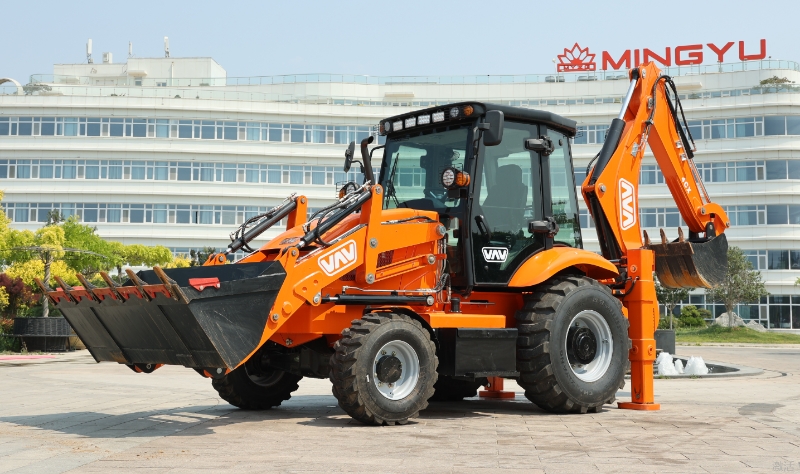

The MYZG 388 Backhoe Loader is a versatile, heavy-duty earthmoving machine engineered by MYZG Machinery to combine the full loading capability of a wheel loader with the powerful breakout performance of an excavator. Designed to maximize jobsite ROI, the 388 eliminates the need for multiple machines on site—making it an essential asset for road construction, municipal maintenance, pipe trenching, agricultural infrastructure, and earthworks projects.

Driven by a turbocharged Yuchai YC4A105Z-T20 engine outputting 75kW (102HP), the MYZG 388 features an operating weight of 8360 kg. With a 1.0 m³ front bucket capable of lifting 2500 kg to a dumping height of 2760 mm, alongside a 0.3 m³ backhoe bucket offering a massive 4085 mm max digging depth and 3795 mm backhoe dumping height, this machine handles tough terrain with ease thanks to its YJ290 hydraulic torque converter and WZZD75D driving axle.

1. High-Torque 75kW (102HP) Yuchai Engine & YJ290 Transmission

At the core of the MYZG 388 is the high-performance Yuchai YC4A105Z-T20 engine delivering 75 kW (102 HP) of reliable output. Yuchai engines are renowned worldwide for low fuel consumption, high low-end torque, and low maintenance costs. Paired with a heavy-duty YJ290 hydraulic torque converter and a reinforced WZZD75D driving axle, the 388 provides seamless power transfer, smooth gear shifting under heavy loads, and superior tractive force when driving into hard soil mounds or climbing steep inclines.

2. Heavy 2500kg Loader Capacity & 4085mm Deep Excavation

The dual-arm design offers exceptional versatility. Up front, the 1.0 m³ loading bucket supports an impressive 2500 kg lift capacity up to a 2760 mm dumping clearance, making truck loading fast and effortless. On the rear, the articulated backhoe boom delivers a deep 4085 mm max digging depth with a 0.3 m³ bucket and 3795 mm dumping height—perfect for excavating deep utility trenches, foundation footings, and drainage channels.

3. Robust 8360kg Frame, 2300mm Wheelbase & Heavy Construction Tyres

With a total machine operating weight of 8360 kg and a sturdy 2300 mm wheelbase, the 388 provides high structural rigidity and counterweight balance during heavy bucket operations. Fitted with wide, heavy-tread engineering tires (14-17.5 front, 19.5L-24 rear), the machine delivers outstanding ground grip, stability, and flotation when working on wet mud, loose gravel, or soft agricultural terrain.

4. 360° Panoramic Luxury Cabin & 6581mm Turning Radius

The enclosed ROPS/FOPS operator cabin features large glass windows that provide 360-degree panoramic visibility for safer operation. A 180-degree rotating operator seat allows smooth transitions between front loader levers and rear backhoe joystick controls. Despite its heavy size, a minimum turning radius of 6581 mm ensures nimble maneuvering in confined construction spaces and narrow roadways.

Target Application Environments

The multi-purpose design of the MYZG 388 makes it an ideal multi-tool for various construction, agricultural, and municipal sectors:

Q: What is the maximum digging depth and bucket capacity of the MYZG 388 backhoe?

A: The backhoe attachment offers a maximum digging depth of 4085 mm, a dumping height of 3795 mm, and comes equipped with a 0.3 m³ backhoe bucket.

Q: What is the front loader capacity of the 388 model?

A: The front loader supports a maximum lifting capacity of 2500 kg, equipped with a 1.0 m³ bucket and a 2760 mm dumping height.

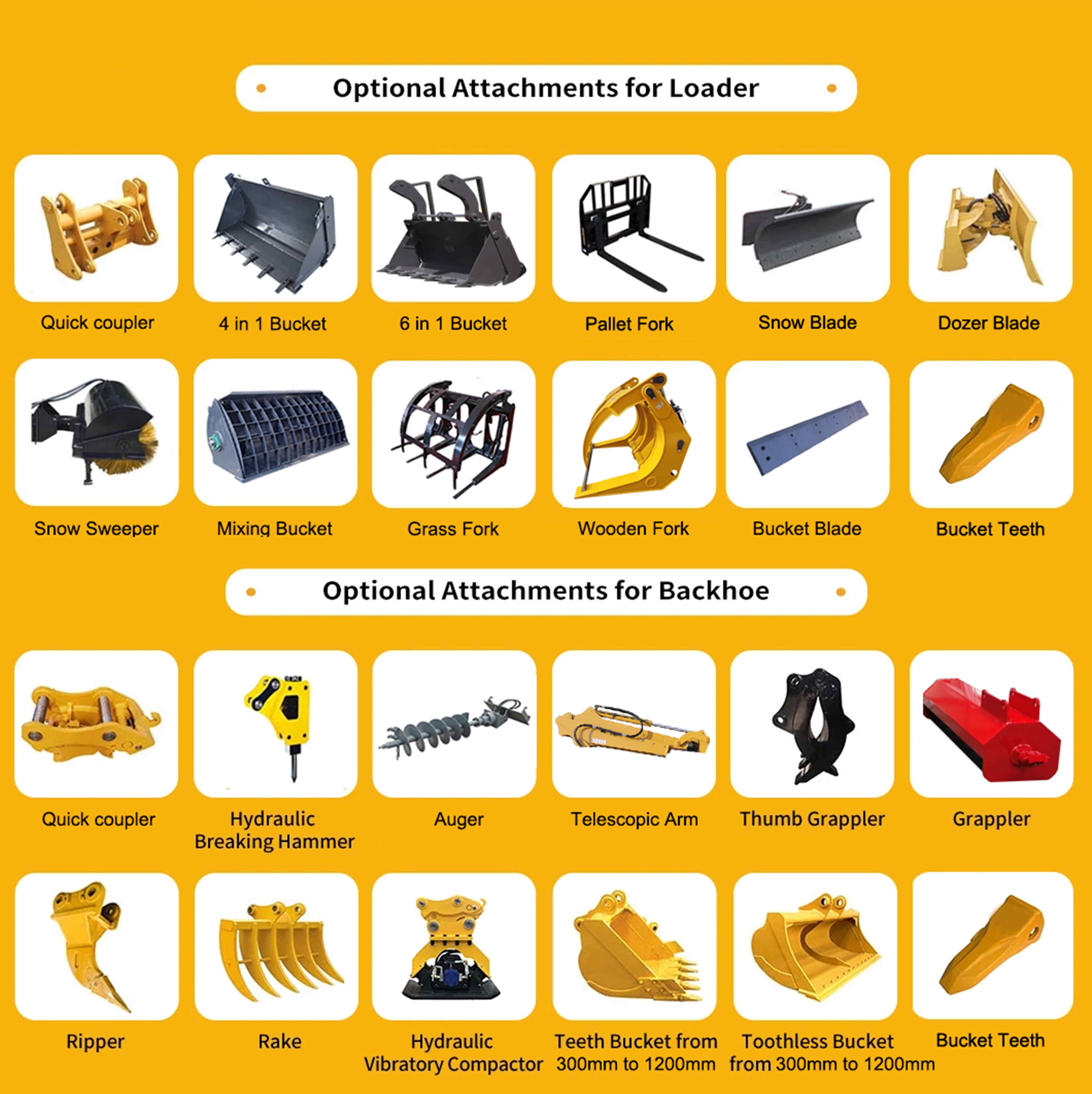

Q: Can optional attachments (e.g. hydraulic breaker, auger, 4-in-1 bucket) be added?

A: Yes, MYZG supports auxiliary hydraulic piping configurations for mounting quick-hitch attachments including hydraulic hammers, augers, rock breakers, and 4-in-1 multi-purpose buckets.

Request a Direct Factory Quote on the MYZG 388 Backhoe Loader Today!

Get direct manufacturer pricing, custom options (cab air conditioning, quick-hitch, hydraulic attachments), and global container shipping quotes from MYZG Machinery.
