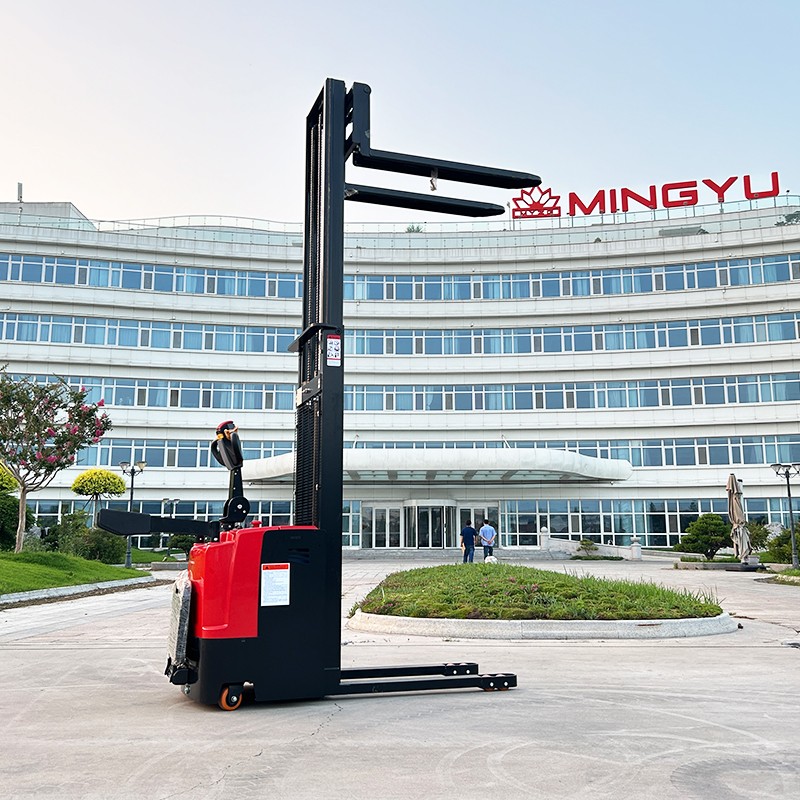

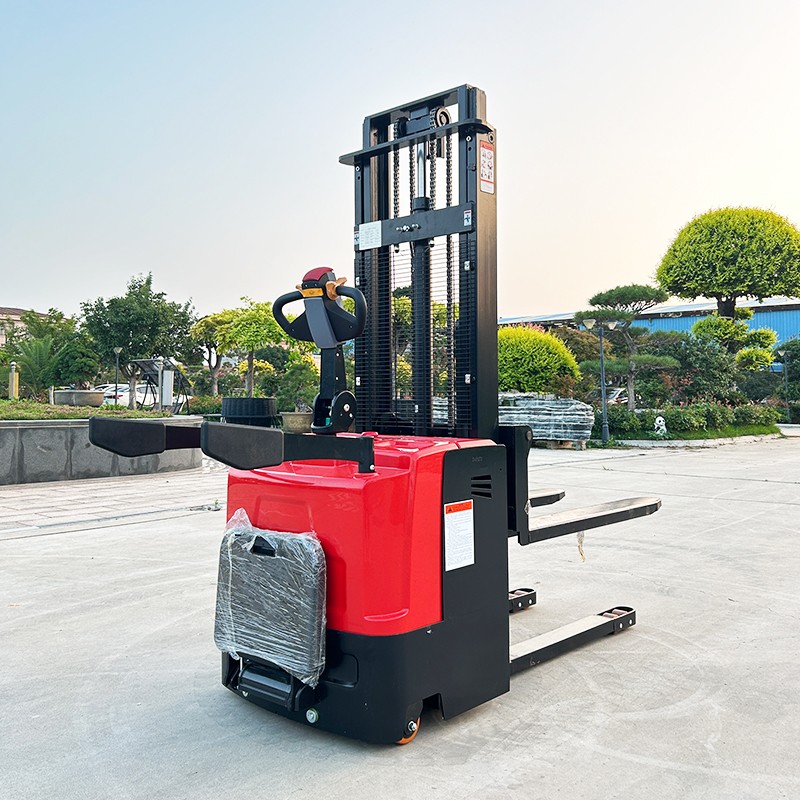

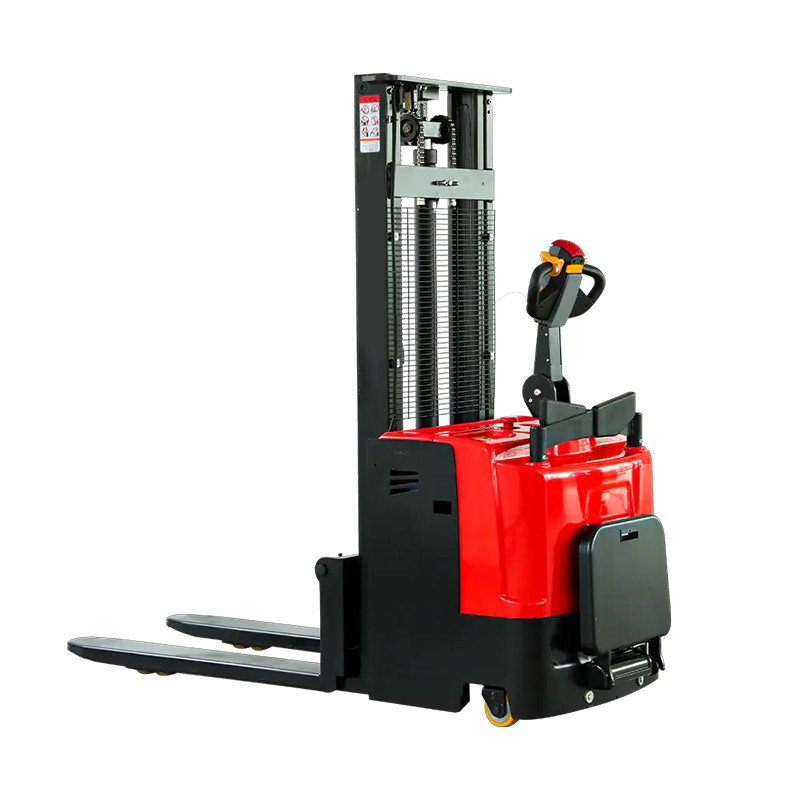

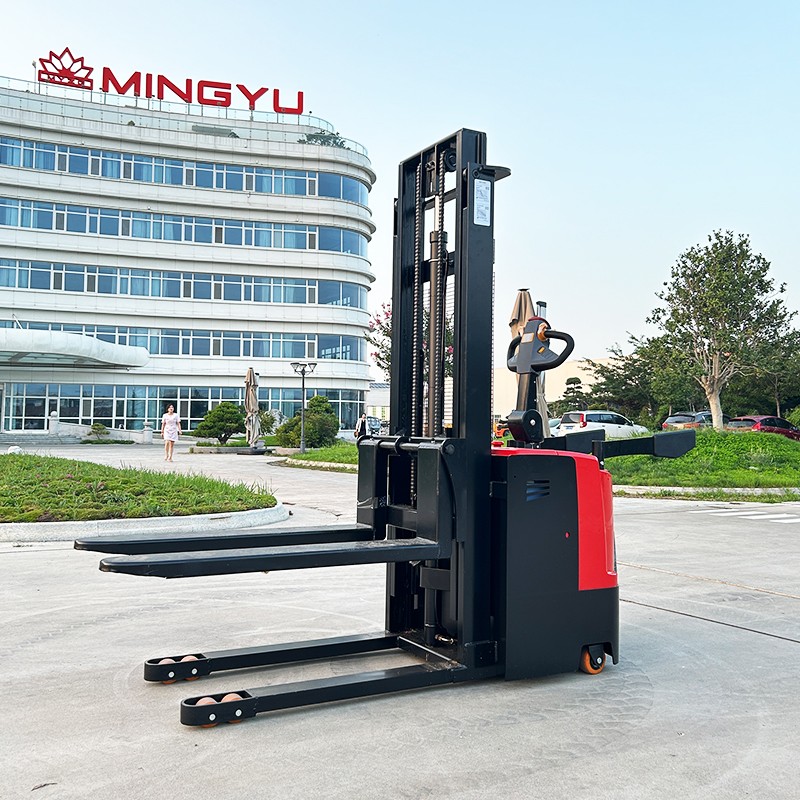

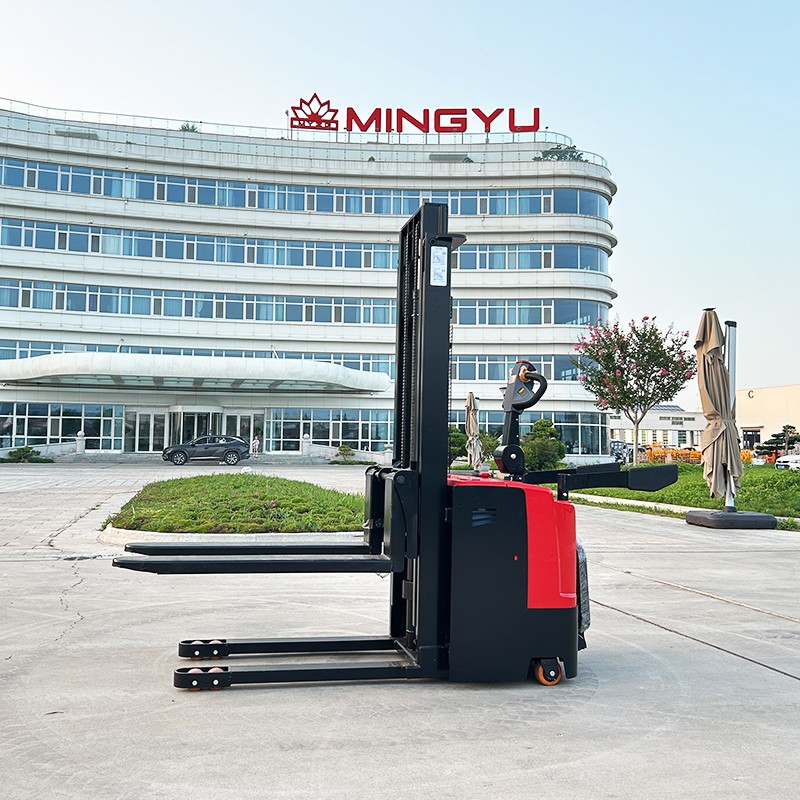

MYCDD-D Standard Standing Electric Stacker

Short Description:

Standing Electric Stacker are engineered for harsh and less-than-perfect conditions. They’re built to be rugged, precise and powerful. Put them to the test and you’ll find robust performance, simplified use and excellent control....

Maximum load capacity: 1500/2000kg
Overall length/width of frame: 2130/850mm
Fork size（length *width*thickness）: 1150*165*55mm
Fork lowered height: 90mm

Send email to us

Product Details

Product Tags

CDD-D STANDARD STANDING ELECTRIC STACKER

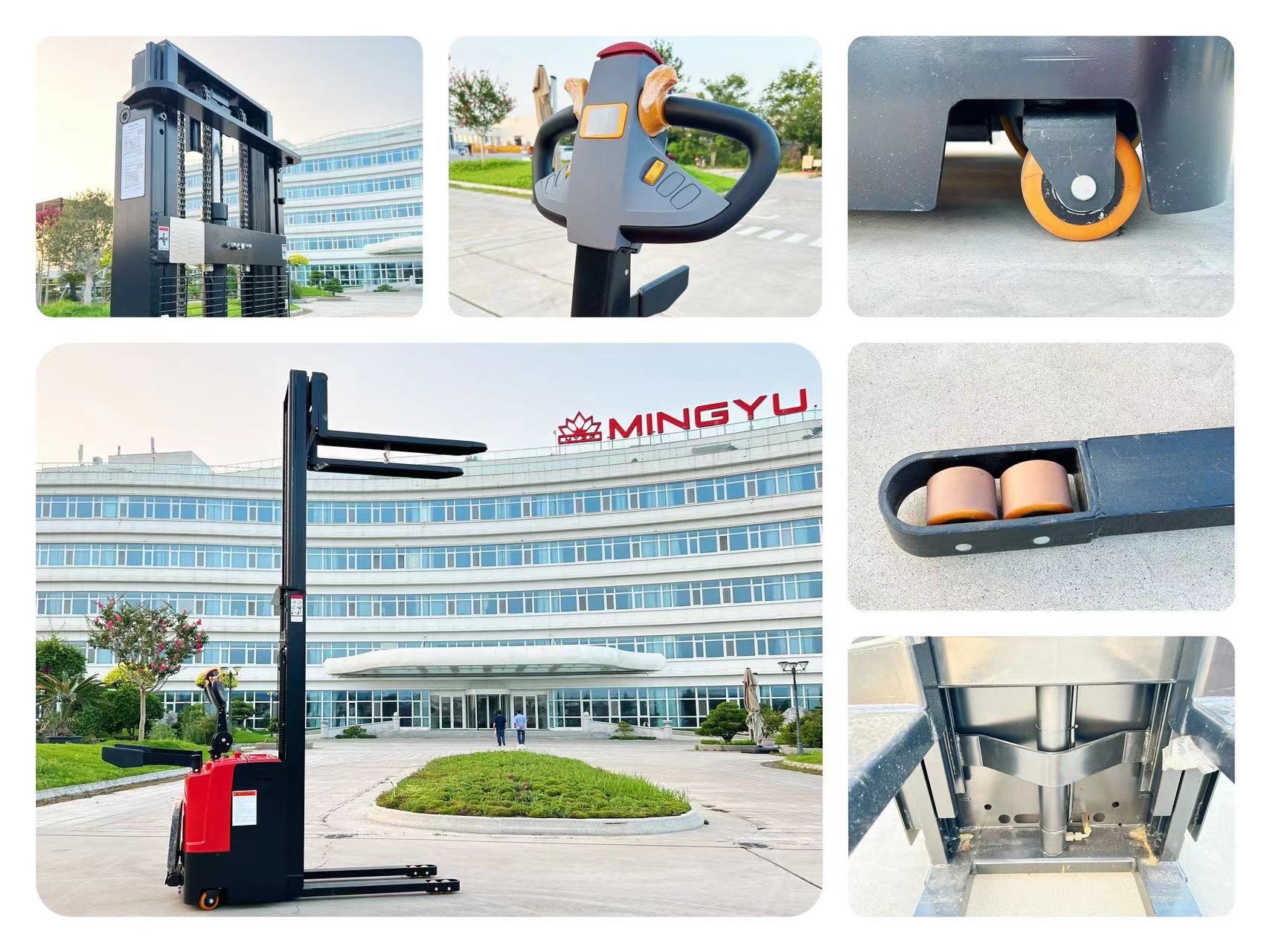

Product features :

• AC Motor eliminates replacement of carbon brush；

• The multi-function display instrument shows the electric quantity, malfunction, and accumulative working hours；

• Damping cushion for low-noise operation；

• Emergency reversing device in the handle provides higher safety for thewhole operation；

• Built-in pressure relief valve protects the trucks from overloads,increases the reliability；

• Emergency power disconnect switch；

• Turtle-shaped low speed switch；

• Auto deceleration function makes operation more safely.

Optimum Structural Design

• Low center of gravity ensures the stable operation；

• Water-proof and dust-proof motor structure, keeps the braking and motor more durable and reliable.

• Supporting legs in both sides for triplex mast.

• Fixed forks/Adjustable forks are optional, suitable for more work scenarios

Company Introduction

Model				CDD15/20D
Maximum load capacity				1500/2000kg
load center				600mm
Travel speed without load/with load				5/4.5km/h
Lifting speed without load/with load				110/80mm/s
Lowered speed without load/with load				100/100mm/s
Ascend slope ability without load/with load				8/5%
Overall length/width of frame				2130/850
Wheelbase				1370mm
Fork size（length widththickness）				115016555mm
Fork outside width				550/685mm
Min frounf height				30mm
Fork lowered height				90mm
Minimum turning radius				2070mm
Minimum intersecting aisie				2985mm
Front wheel				80*70mm
Drive wheel				250*75mm
Caster wheel				115*55mm
Drive motor Rated output/DC motor				1.5kw
Hoist motor Rated output/DC motor				2.2kw
Battery Voltag/Capacity				24/120V/Ah
Battery Weight				35*2kg
Mast	Max.Lifting height	Mast overall height	Mast overall height	Service weight
Single mast	1600 mm	2080 mm	2080 mm	670 kg
2-stage mast	2000 mm	1580 mm	2550 mm	755kg
	2500 mm	1830 mm	3050 mm	780 kg
	3000 mm	2080/1980 mm	3550/3450 mm	800 kg
	3500 mm	2330 mm	4050 mm	860 kg
