How Does a Backhoe Hydraulic System Work

Backhoes are versatile construction machines that rely on hydraulic systems to perform their various tasks, including digging, trenching, and material handling. Understanding the fundamental principles of hydraulic systems is crucial to appreciating the power and precision of these machines.

Core Components of a Backhoe Hydraulic System

1. Hydraulic Pump: The heart of the system, the hydraulic pump draws fluid from a reservoir and pressurizes it. This pressurized fluid is then distributed throughout the system.
2. Hydraulic Motor: Hydraulic motors convert the pressurized fluid into rotational mechanical energy, powering components like the turret rotation.
3. Hydraulic Valves: These valves control the flow and direction of hydraulic fluid. They can be used to direct fluid to specific cylinders or motors, allowing for precise control of the machine's movements.
4. Hydraulic Cylinders: These cylinders convert hydraulic pressure into linear motion. They are responsible for the lifting and extending movements of the boom, dipper stick, and bucket.
5. Hydraulic Fluid: The lifeblood of the system, hydraulic fluid transmits power and lubricates the components. It must be kept clean and at the correct level.

How the Hydraulic System Works

The hydraulic system works on the principle of Pascal's Law, which states that pressure applied to a confined fluid is transmitted equally in all directions. ¹ When the operator activates a control lever, a hydraulic valve directs pressurized fluid to a specific cylinder or motor. This fluid forces a piston within the cylinder to move, resulting in mechanical motion.

Example: How the Hydraulic System Powers the Bucket

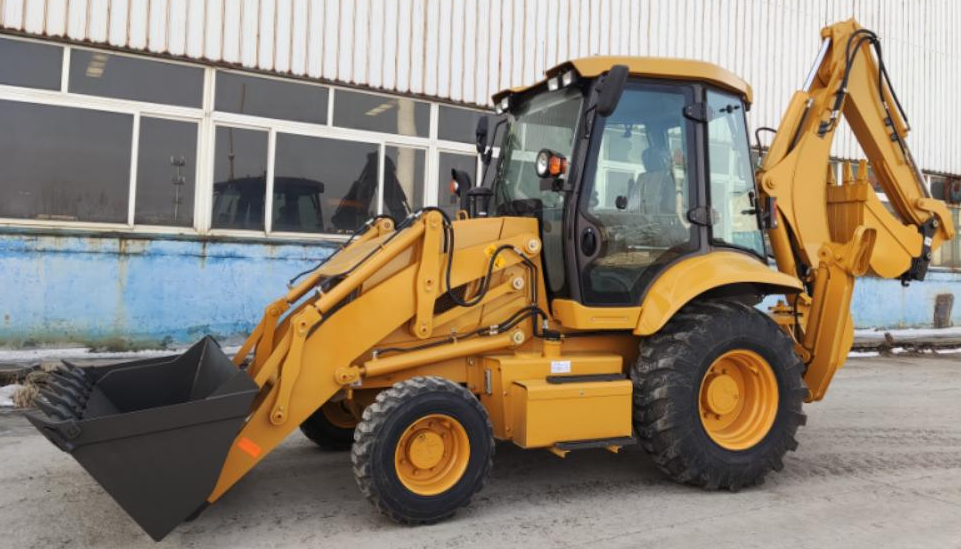

Let's delve into a specific example of how the hydraulic system powers one of the WZ30-25's primary functions: lifting and lowering the bucket.

1. Operator Input: The operator pulls or pushes a lever in the cab, signaling the desired movement of the bucket.
2. Valve Activation: This input triggers a specific hydraulic valve to open or close.
3. Fluid Flow: Pressurized hydraulic fluid, generated by the pump, is directed through the valve and into the hydraulic cylinder connected to the bucket.
4. Cylinder Extension or Retraction: The pressurized fluid forces a piston within the cylinder to move, either extending or retracting. This linear motion is then transmitted to the bucket linkage.
5. Bucket Movement: As the cylinder extends, the bucket is lifted; as the cylinder retracts, the bucket lowers.

By precisely controlling the flow of hydraulic fluid to different cylinders, the operator can manipulate the bucket's position, allowing for digging, loading, and other tasks. This intricate interplay of hydraulic components demonstrates the power and precision of the WZ30-25's hydraulic system.

Advantages of Hydraulic Systems in Backhoes

• Precision Control: Hydraulic systems allow for fine adjustments and precise movements, enabling the operator to control the backhoe with accuracy during digging and other tasks.
• High Power Density: A compact hydraulic system can generate significant power, making backhoes efficient and powerful.
• Versatility: Hydraulic systems can be configured to handle various functions, making backhoes versatile tools for multiple applications.
• Reliability: When properly maintained, hydraulic systems are generally reliable and durable, ensuring optimal performance on the job site.

Maintenance and Troubleshooting

To keep a backhoe's hydraulic system functioning optimally, regular maintenance is essential. This includes:

• Checking Fluid Levels: Ensuring that the hydraulic fluid level is adequate.
• Replacing Filters: Periodically replacing filters to remove contaminants.
• Inspecting Hoses and Fittings: Checking hoses and fittings for leaks, wear, and damage.

Common hydraulic system problems include:

• Hydraulic Leaks: Leaks can reduce system pressure and hinder performance.
• Pump Failure: A faulty pump can significantly impact the entire system's performance.
• Valve Malfunctions: Malfunctioning valves can lead to erratic or uncontrolled movements.

Troubleshooting techniques involve identifying the source of the problem, using diagnostic tools, and repairing or replacing faulty components.

Hydraulic systems are the backbone of backhoe operations, providing the power and precision needed for a wide range of tasks. By understanding the core components and their functions, we can appreciate the engineering marvel that allows these machines to perform their work.
