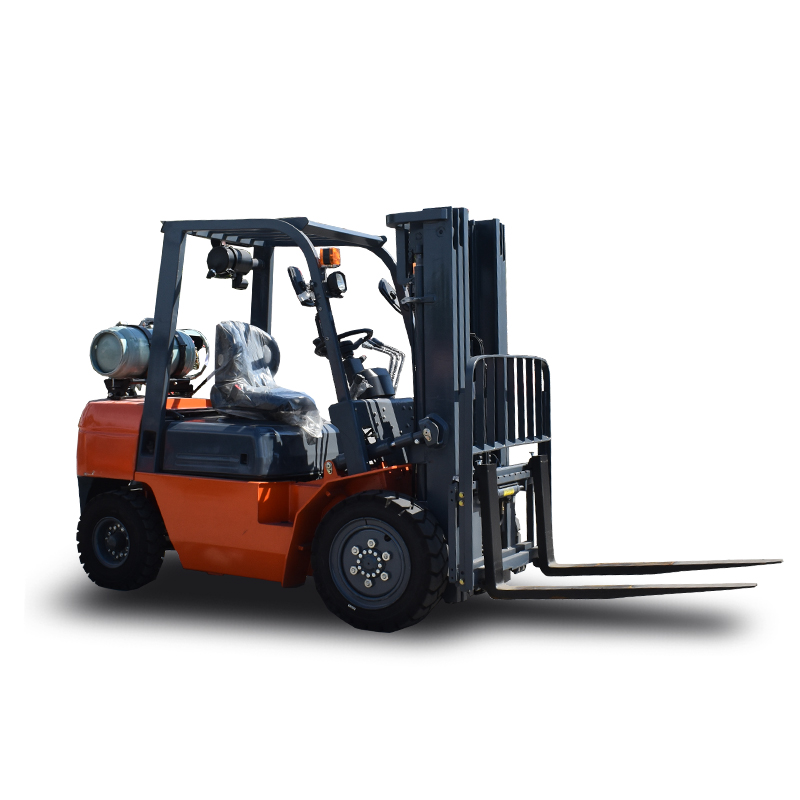

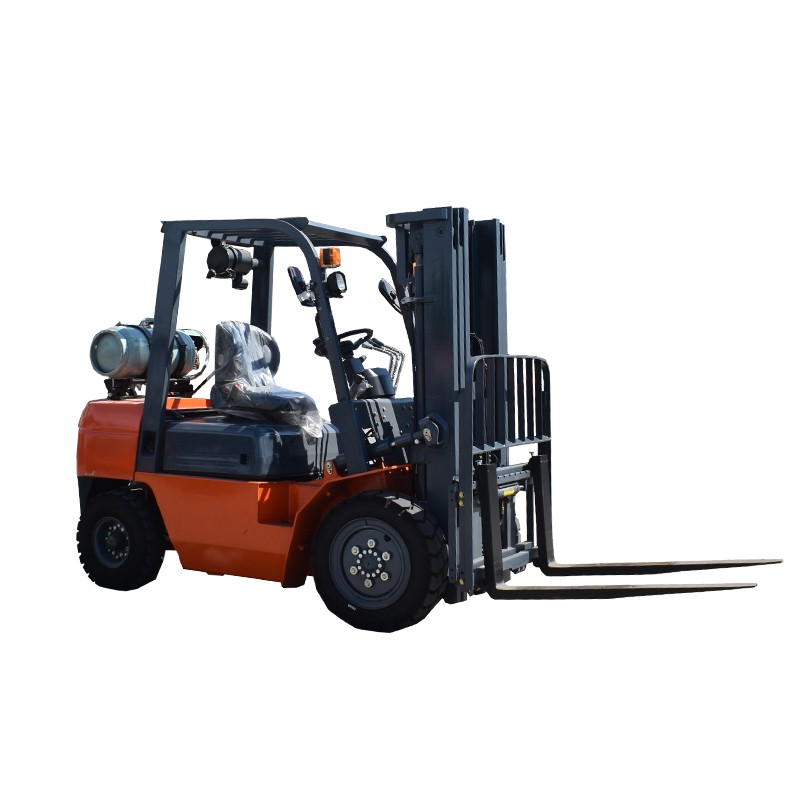

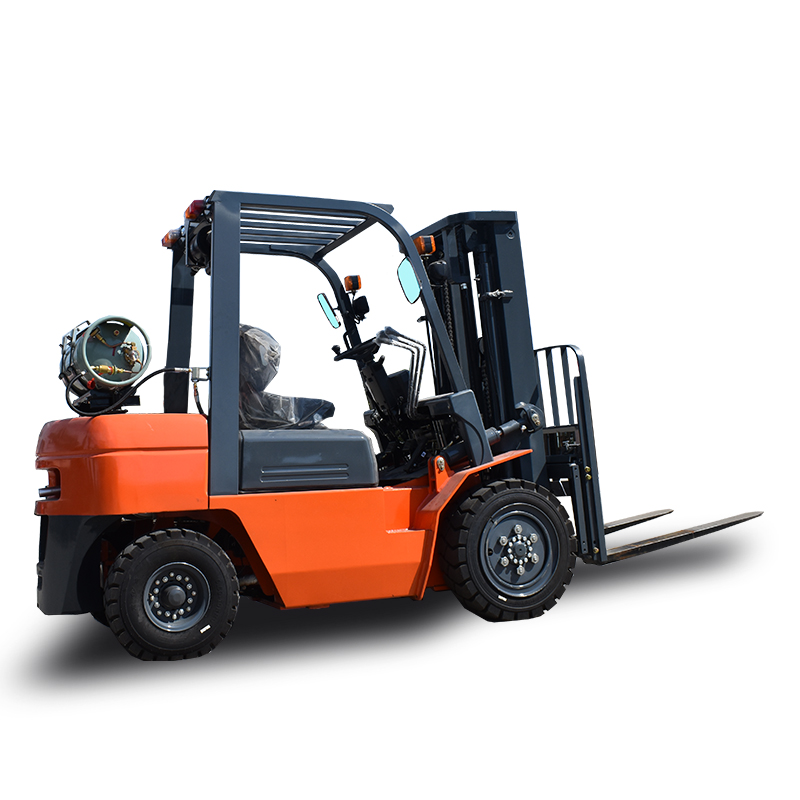

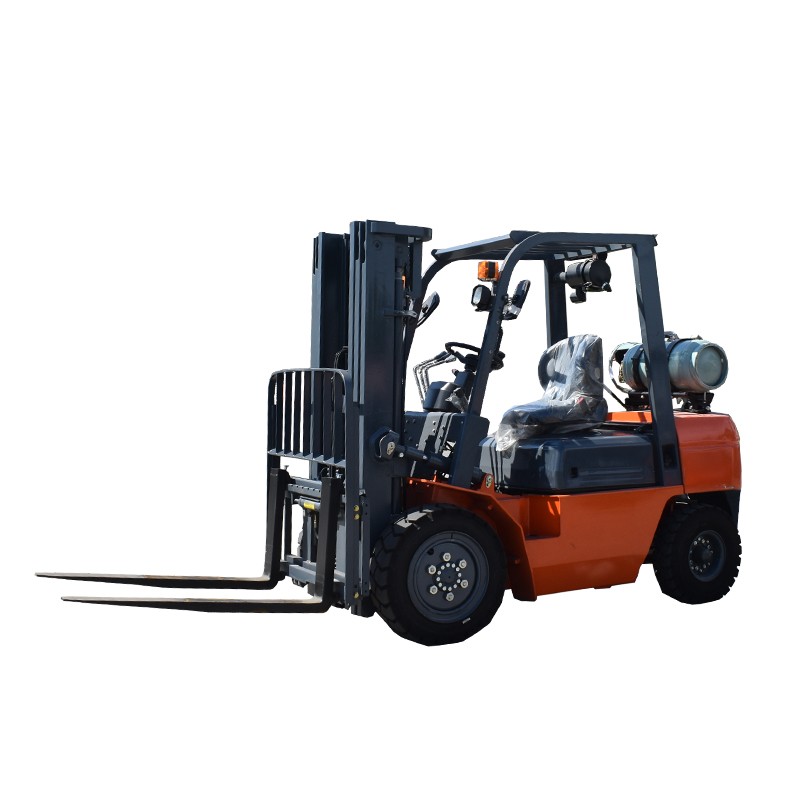

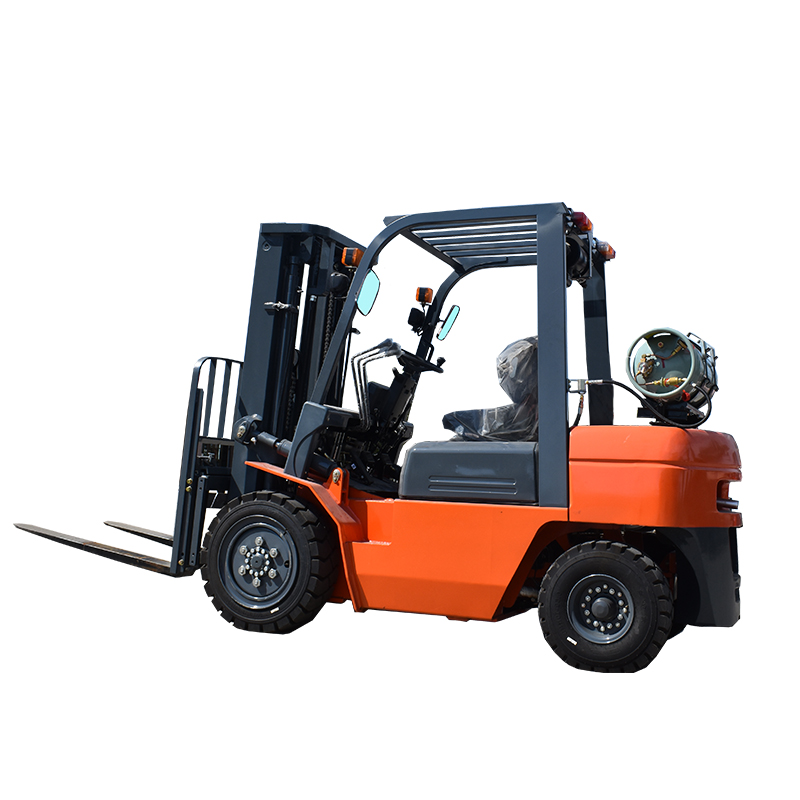

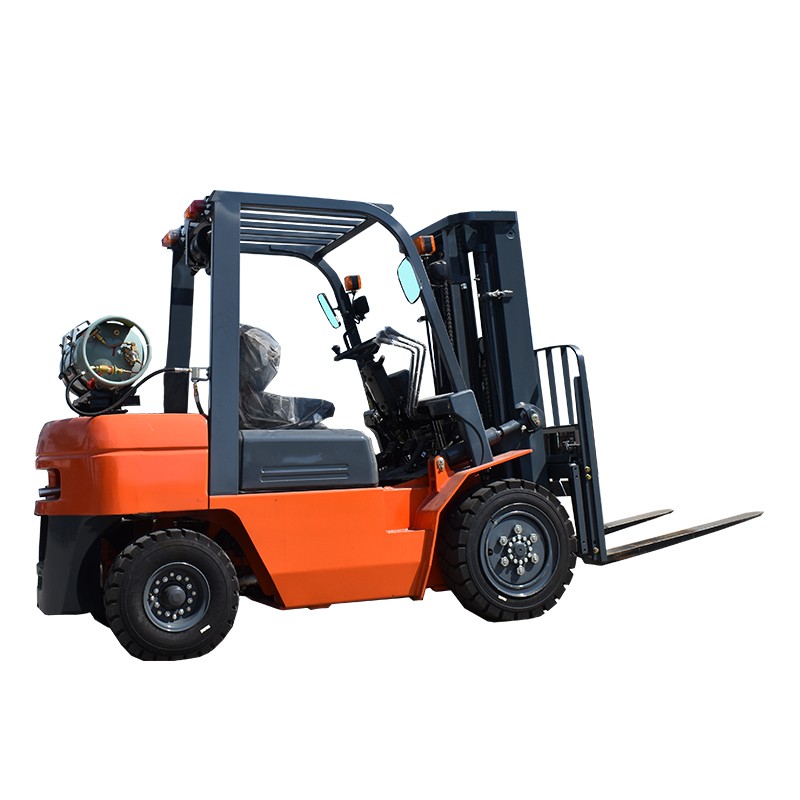

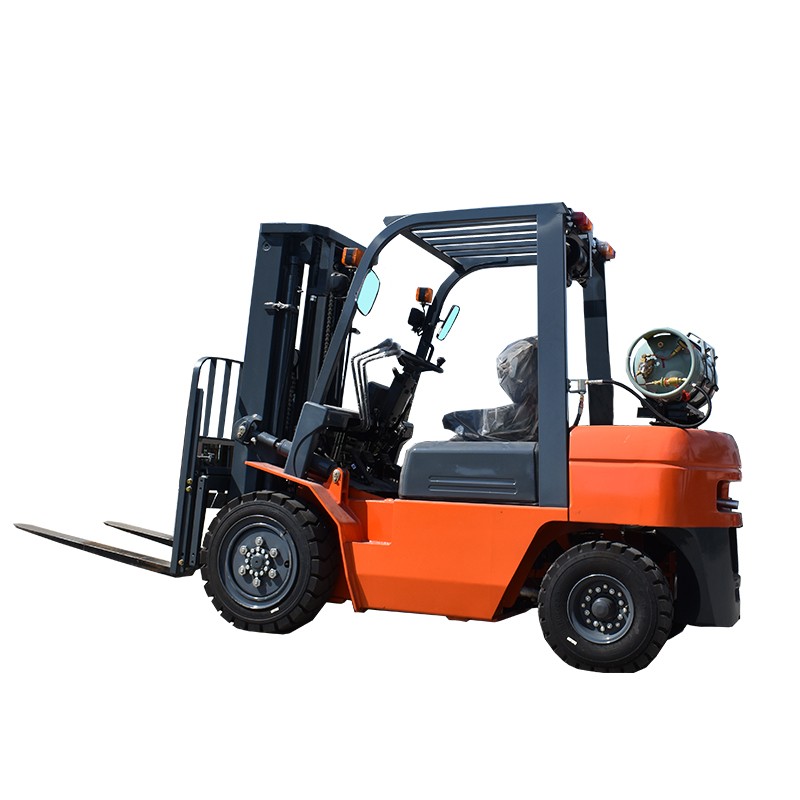

CPY30 gasoline/LPG forklift
THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE
Warehousing and distribution applications, the auto industry, general manufacturing plants and retail storefronts often utilize LPG forklift for its extreme versatility. Powerful enough to lift up to 3000 lbs.yet capable of navigating in 12-foot aisles, the mingyu forklift is a trusted multipurpose forklift.
Enhanced comfort through innovative design.
● Hydraulic transmission and mechanical transmission types are all available.
● Flexible steering and small turning radius, with full Hydraulic Steering System.
● We use scientific ergonomic method to design CPCY-35 Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.
● Avariety of domestic and imported engines for you to choose. The emission meets EC and EPA new regulation.
● Specially designed container door frame can enter the container for operation. This series forklifts can be equipped with two, or three full free lift mast, and various attachments, according to user’s demand.
● Enclose cabin is made of assembling plate on overhead guard, high strength overhead is design to ensure the safety.
●. Operator presence sensing system, the system will cut off the driving force to prevent accidents, when the driver leave the seat during operation.
Using the same technology as Toyota ,The MINGYU 3ton LPG powered forklifts have been designed to offer simple, powerful performance in a wide range of applications. Featuring high performance, fuel efficient engines; these trucks are designed for improving productivity and safety in your operation. These trucks feature powerful LPG engines which provide high power at low engine speed, making them suitable for loading and unloading on ramps, where fast lift speeds are required, or repetitive use is needed. Improving productivity and lowering operation costs, these trucks increase operator comfort, feature advanced servicing features and increased performance efficiencies.
Fast and stable performance
Being able to quickly raise and lower the mast, as well as tilting forward and backward, the truck provides you the best operational conditions during loading/unloading operations. With a loaded truck, mast lowering speed is carefully controlled by a control down valve to ensure full safety on the job.
THE MAIN PARAMETER
Model
CPCY30
Power type
Gasoline /LPG
load capacity
3000kg
Load centre distance
500mm
lifting height
3000mm
Mast tilt angle
6/12
min turning radius
2400mm
min ground clearance
135mm
Overhead guard height
2165mm
front overhang distance
490mm
Max driving speed
load/without load
20km/h
Max lifting speed
load/without load
480mm/s
max drawbar pull
Min Turning Radius
22KN
Max climbing capacity
20%
length(No fork)
2700mm
width
1225mm
Max lifting height of fork (with stopper shelf）
4265mm
Landing height of the gantry
2060mm
tyre
front
28x9-15-12PR
rear
6.50-10-10PR
wheel base
1700mm
wheel track
front/rear
1000/970mm
weight
without load
4350kg
accumulator
voktage/capacity
12/80
engine
model
GUANGQING/NISSAN
Legendary mingyu quality means more productivity over the lifecycle of your forklift, along with lower repair costs. The CPCY30 LPG Forklift provides several service features. These features include:
Easy-access, no tools required floorboard
Engine hood assist damper with lock
Externally mounted hydraulic oil return filter
Air cleaner discharge valve
Easy-lift engine hood
Exclusive QR code diagnostics
According to demands, can be matched with different accessories
