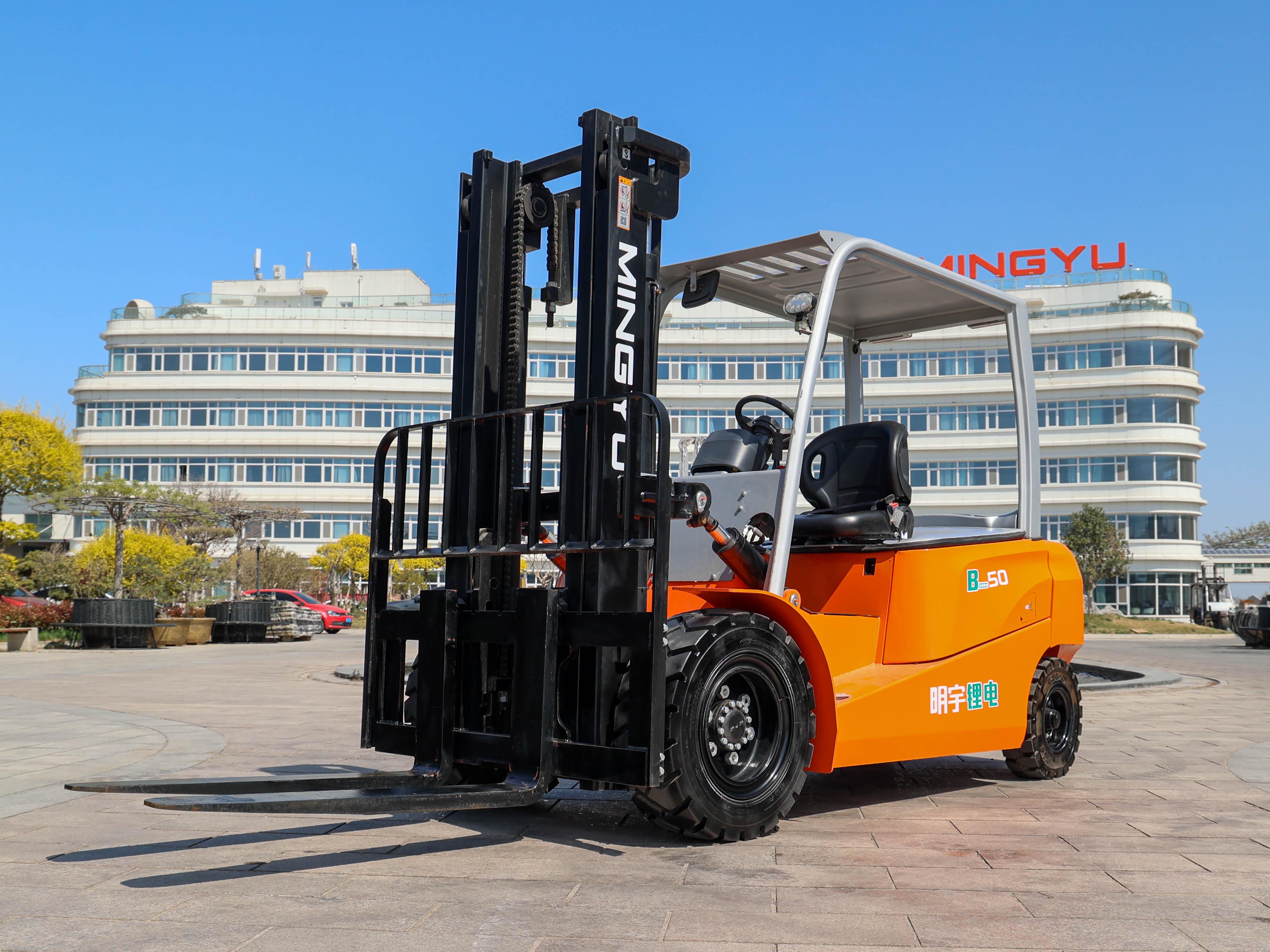

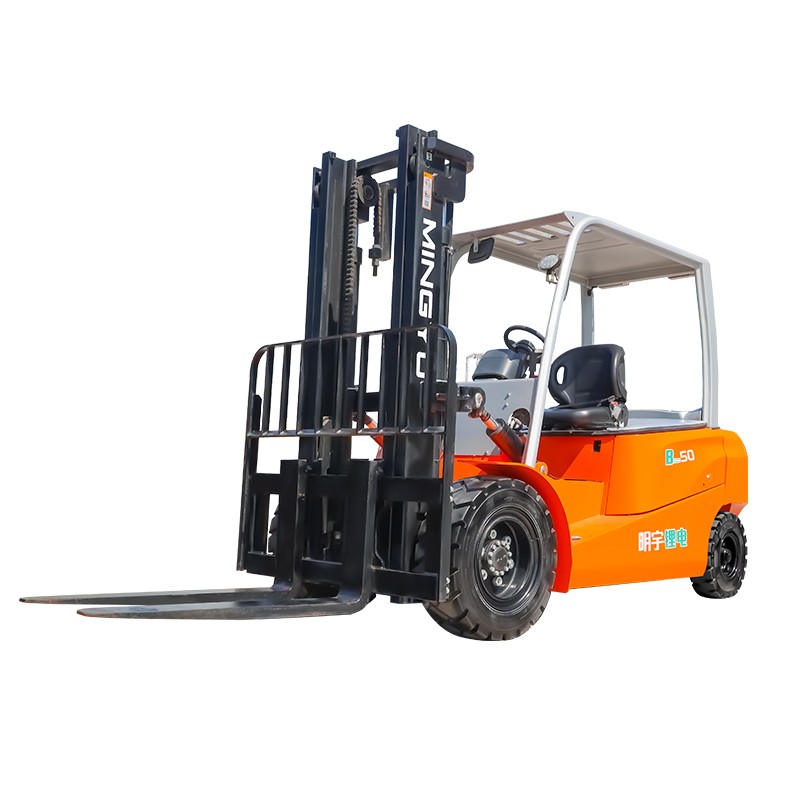

CPD50-B electric Forklift
5000lbs lifting capacity
The “MINGYU” brand is recognised internationally as the “Excellent Trade Mark. MINGYU forklift has been Top 7 in the world since 2023 and has been Top 1 in China for 27 years continuously since 1996. The competitive edge of MINGYU brands of product lies with its competitive product line, advanced production, R&D capability, reliability and durability.
Product Feature
Vibration reduced to relieve driver’s fatigue greatly.
Equipped with optimised designed parts around the engine so that noise are reduced greatly.
With the optimised cooling system and improved cooling performance, it increases the reliability and durability of the transmission, engine and many key parts.
Strengthen and optimised core structure parts, strength improved greatly; with intelligent gear shifting technology to avoid 2nd-gear start, improved transmission life.
Intelligent gear shifting system, ease of operation Standard half surrounded seat, safety and comfort.
Wider interal space, more reasonable parts layout and 80° hood opening angle make maintenance easy.
| Model | B50 | |
| Power Type | accumulator | |
| rated load lifting capacity | 5000kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 4510mm |
| without fork | 3275mm | |
| wideth | 1430mm | |
| height | Do not raise the mast height | 2280mm |
| Overhead guard height | 2175mm | |
| Max height at working | 4210mm | |
| wheel base | 2215mm | |
| front overhang | 517mm | |
| rear overhang | 560mm | |
| front wheel track | 1150mm | |
| rear wheel track | 1020mm | |
| minimum ground clearance | 180mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 45mm | |
| Fork adjustment range | 300-1380mm | |
| minimum turning radius | 2980mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4797mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 315mm/s | |
| Maximum lifting speed with full load | 280mm/s | |
| Maximum operating speed without load | 15Km/h | |
| Maximum operating speed with full load | 13Km/h | |
| Max gradeability with full loading | 15% | |
| Weight unladen | 5740kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/solid tyre | |
| tyre size(front) | 250-15 | |
| tyre size(rear) | 6.50-10 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Battery voltage/capacity | 153.6V/175AH | |
| drive motor power | 21.6KW | |
| Oil pump motor power | 22.6KW | |
Tight turning radius suitable for narrow aisle applications.
Dual Front AC Driving Motors
Panoramic Rearview Mirror
STANDARD FEATURES
Designed for the Operator
Designed with the operator in mind, the operator compartment of the 150V Electric Pneumatic comes equipped with features to help them do their job quickly and efficiently. Overall noise and vibration levels are also much lower, resulting in stress and fatigue reduction. The full floating cabin and full-suspension seat significantly reduces shock and vibration for productive and comfortable operation.*
Electric Pneumatic Ergonomics
MINGYU’s 154V Electric Pneumatic Forklift comes with several features to assist operators in their working environment. The mini-lever controls and armrest provide a more ergonomic operation to lessen fatigue and increase productivity. The cockpit-style operator’s compartment features a low-height dashboard, tilt, and telescoping steering column with electric power steering for excellent visibility, legroom, and comfort. More ergonomic features include:*
Using the same technology as hyster/yale/toyota
1. The car type electrical stacker can highly reduce the working intensity.
2. The handel adopts ergonomic design. All operations can be done through the handle.
3. The large capacity traction battery is durable, and can be recharged conveniently and rapidly.
4. The superpowered driving and lifting DC motor has good performance of speed regulation, and it can realize large starting and breaking torque function.
5. C type forming steel door frame will ensure steady while working.
According to demands, can be matched with different accessories
