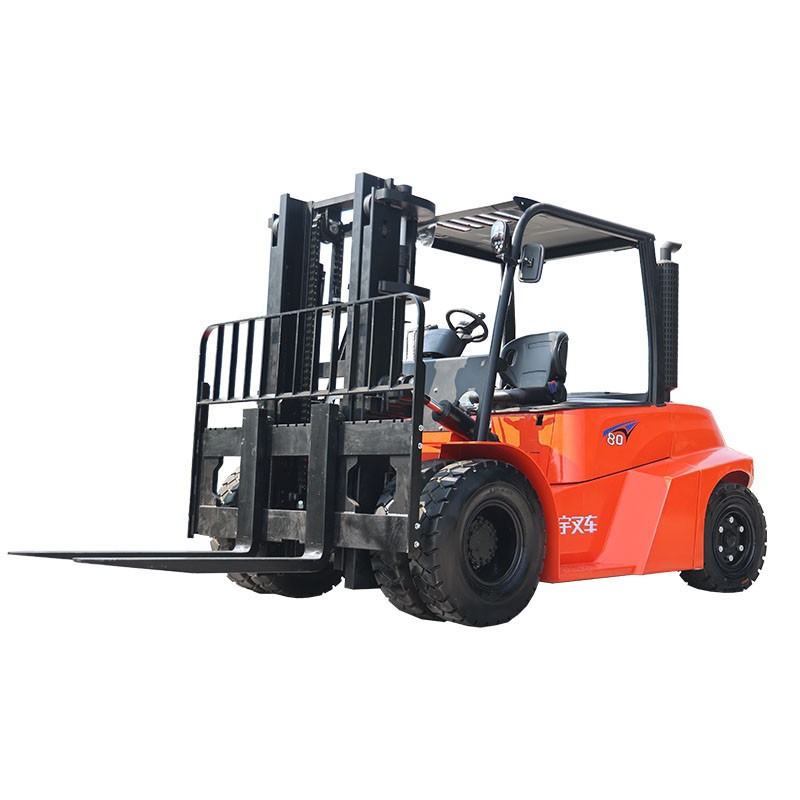

CPC80 diesel forklift
Product Feature
Cpc80 will upgrade the pressure system technology, improve the operation efficiency, lower the energy consumption of the whole machine, and the special electronic control technology jointly developed by the engine manufacturer, so that the power of the whole machine has better performance. The large air filter is adopted, which is more safe and reliable on the basis of ensuring the engine air intake; It adopts high-quality radiator, which has better heat dissipation effect
·Can optional Xichai engine, imported Isuzu engine
·Manual hydraulic transmission
·Electromagnetic hydraulic transmission, Two grades 3.0m, 3.3/3.5/4.0/4.5/5.0m gantry
·People-oriented, comfortable driving
Parameter
| power type | diesel | |
| rated | 8000kg | |
| load centre distance | 500mm | |
| driving style | sit down | |
| length | with fork | 4990mm |
| without fork | 3470mm | |
| width | 1980mm | |
| height | do not raise the mast height | 2240mm |
| overhead guard height | 2380mm | |
| max height at working | 4210mm | |
| Distance from seat surface to top guard frame | 1070mm | |
| wheel base | 2300mm | |
| front overhang | 550mm | |
| rear overhang | 550mm | |
| front wheel track | 1500mm | |
| rear wheel track | 1750mm | |
| min ground clearance | 200mm | |
| standard lifting height | 3000mm | |
| free lifting height | 40mm | |
| fork adjustment range | 300-1845mm | |
| min turning radius | 3200mm | |
| min right-angle channel width(1100*1100 pallets) | 5050mm |
| mast tilt angle (front/rear) | 6/12° |
| max lifting speed without load | 380mm/s |
| max lifting speed full load | 340mm/s |
| max driving speed without load | 28Km/h |
| max driving speed full load | 22Km/h |
| max climbing angle | 20% |
| overall weight | 9780Kg |
| number of wheels = driving wheels/steering wheels | 2/2 |
| tyre type (front/rear) | Pneumatic tyre/pneumatic tyre |
| tyre size(front) | 8.25-15-16dual tires |
| tyre size(rear) | 250-15-16 |
| brake/driving brake | foot Brake |
| parking brake | parking foot brake |
| engine | Mitsbishi / Isuzu / xichai / quanchai/Cummins |
| full load mass | 17780kg |
| full front axle load | 14300kg |
| full rear axle load | 2000kg |
| fully loaded rear axle load ratio | 11.20% |
Introducing the MINGYU 8t Diesel Forklift: Power, Precision, Performance
Experience the next level of material handling with the MINGYU 8t Diesel Forklift. Engineered to deliver unmatched power, precision, and performance, this robust machine is designed to meet the demanding needs of industrial and logistics applications.
Unmatched Power
Equipped with a high-performance diesel engine, the MINGYU 8t Diesel Forklift boasts exceptional lifting capacity and speed. Whether you're handling heavy loads or working in tough conditions, this forklift provides the reliable power you need to get the job done efficiently.
Precision Handling
The MINGYU 8t Diesel Forklift is designed with advanced hydraulics and state-of-the-art controls to ensure smooth and precise handling. Its responsive steering and easy-to-operate controls allow for accurate load placement, reducing the risk of accidents and increasing productivity.
Rugged Durability
Built to withstand the harshest environments, the MINGYU 8t Diesel Forklift features a durable chassis and high-quality components. Its robust construction ensures long-lasting performance, minimizing downtime and maintenance costs.
Ergonomic Design
Operator comfort is paramount in the MINGYU 8t Diesel Forklift. The spacious cabin is equipped with an adjustable seat, intuitive controls, and excellent visibility, ensuring a comfortable and safe working environment. Reduced operator fatigue translates to higher efficiency and fewer errors.
Safety First
Safety is a top priority in the design of the MINGYU 8t Diesel Forklift. It comes with a range of safety features, including load backrests, safety lights, and an advanced braking system. These features provide peace of mind, knowing that both your operators and your loads are protected.
Efficiency and Economy
The MINGYU 8t Diesel Forklift is not only powerful but also fuel-efficient, helping you save on operational costs. Its efficient fuel consumption and low emissions make it an environmentally friendly choice for your business.
Versatile Applications
From warehouses to construction sites, the MINGYU 8t Diesel Forklift is versatile enough to handle a wide range of applications. Its adaptability makes it an invaluable asset across various industries, ensuring that you have the right tool for the job, every time.
Upgrade your material handling capabilities with the MINGYU 8t Diesel Forklift. Contact us today to learn more about how this powerhouse can transform your operations.
According to demands, can be matched with different accessories
● More comfortable for driver
(1)The suspended engine and transmission can effectively reduce the vibration which transmitted to the operating system, andcan reduce the driving fatigue significantly. The suspended type cab,compared with the H series, reduce30% vehicle vibration.
(2) Thecomfortable operation
Thedistance between double handle switch and steering wheel has been reduced. Control handle is disposed in the comfortable position. Comprehensive dashboard is easy to read, including coolant temperature, fuel gauge, preheat instruction. Optimized pedal system; The brake pedal is widened.
Toyota seat. Spacious legroom and footsteps space. Multifunctional suspended seat increase the support of the driver,and reduce vibration, and adjust driver's weight balance, and adjust front and rear tilt, and have eat tool bag and seat belt. Steering wheel adjusting mechanism is disposed appropriate position which is easy to adjust . It is reliable and secure. The range of steering wheel adjustment is 9 degrees forward and backward.
The cover completely have been sealed between the cab and the engine cabinet, and it reduce driver's ear noise effectively.

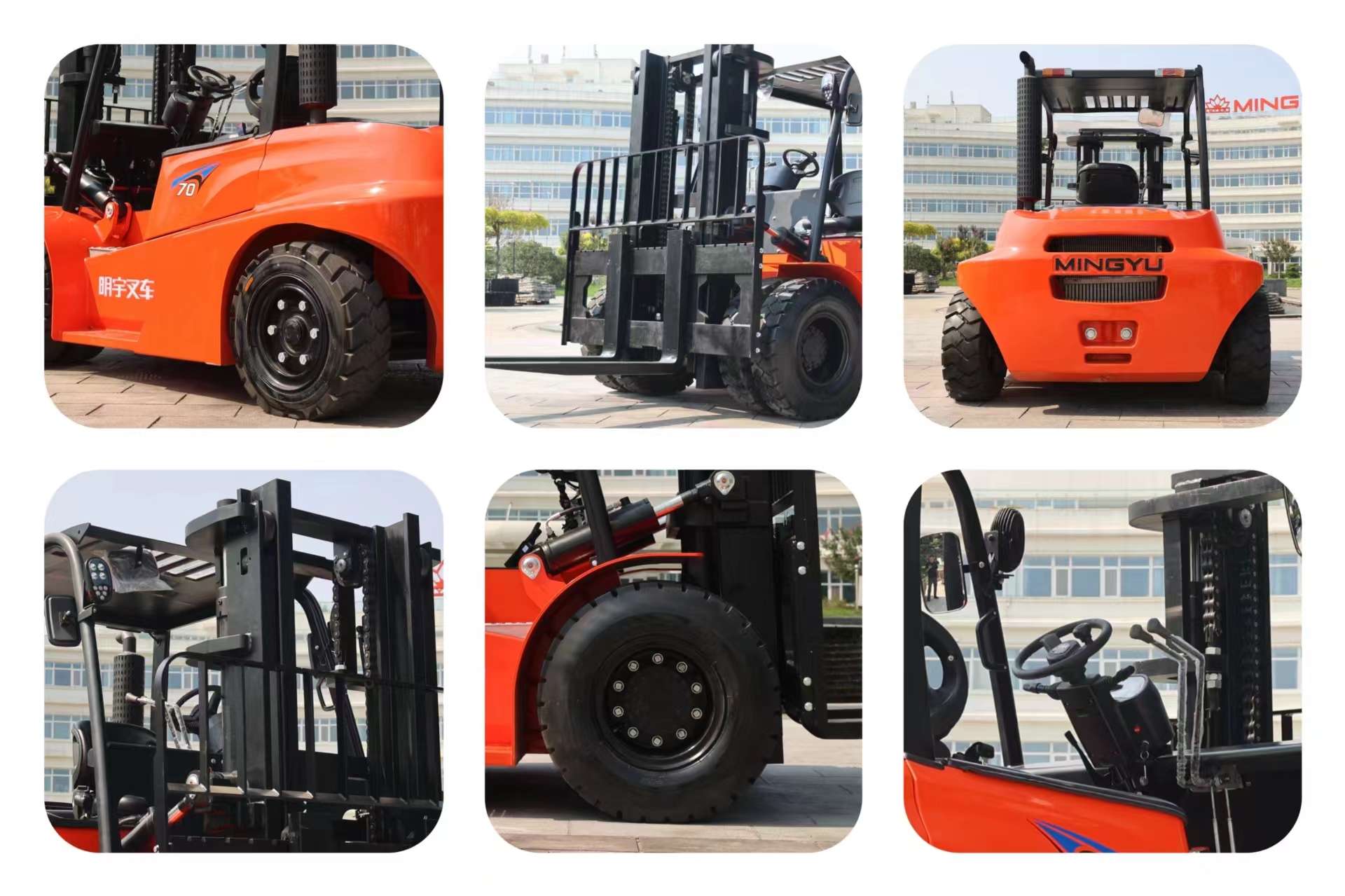

Detail
