ZGFORKLIFT / MYZG CPD05 Lithium Electric Forklift
CPD05 Lithium Electric Forklift – Compact 500 kg Three-Wheel Forklift
ZGFORKLIFT / MYZG — ZGFORKLIFT / MYZG CPD05 500 kg lithium electric forklift from Shandong Zhuogong Machinery equipment Co.,Ltd, a compact three-wheel warehouse forklift for narrow aisles and indoor material handling.

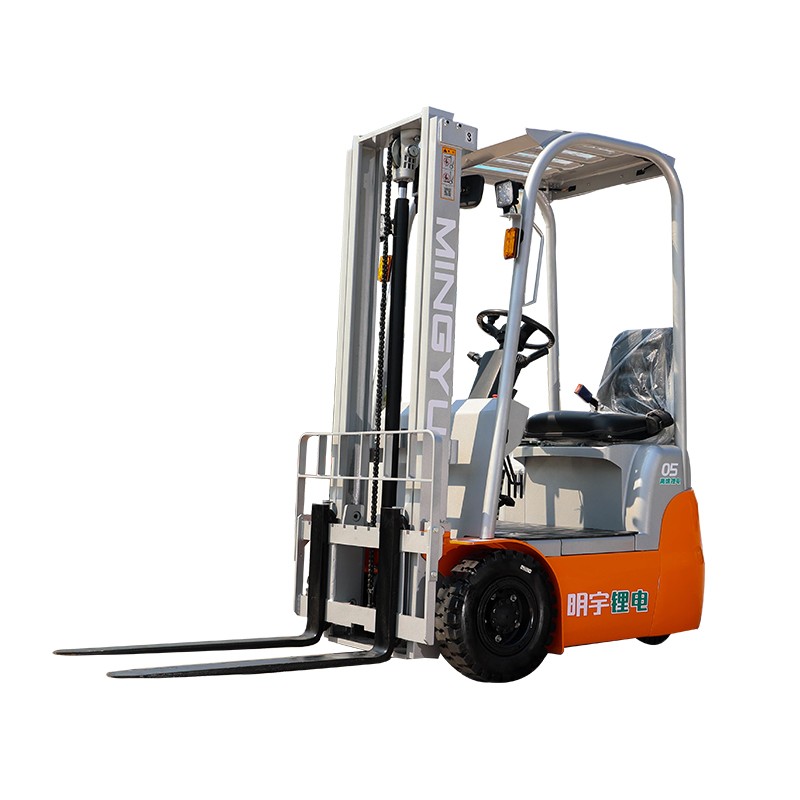

The ZGFORKLIFT / MYZG CPD05 is a compact lithium electric forklift designed for light-duty pallet handling, shelf replenishment and internal logistics where space, low noise and simple daily operation matter. Its three-wheel layout and short wheelbase support maneuvering in narrow aisles, small workshops, retail warehouses, parts rooms and production areas. A nominal 500 kg load capacity and 400 mm load center make the truck suitable for correctly prepared loads within the approved capacity and stability limits.
Lithium-ion power gives the CPD05 electric forklift a clean operating profile with no engine exhaust at the point of use. The 76.8 V / 60 Ah battery system supports practical work cycles, while the 2 kW drive motor and 2 kW hydraulic pump motor separate travel and lifting functions. Charging time, runtime and battery life depend on temperature, load, travel distance, lift frequency, floor condition, charger specification and operating practice. Buyers should confirm the planned shift pattern so the battery and charger can be matched correctly.
Technical specifications
| Model | CPD05 |
|---|---|
| Power type | Lithium-ion battery |
| Rated capacity | 500 kg |
| Load center | 400 mm |
| Operator position | Seated |
| Length with forks | 2230 mm |
| Length without forks | 1395 mm |
| Overall width | 887 mm |
| Mast lowered height | 1820 mm |
| Overhead guard height | 1820 mm |
| Maximum working height | 3188 mm |
| Wheelbase | 943 mm |
| Minimum ground clearance | 60 mm |
| Standard lift height | 2500 mm |
| Fork adjustment range | 152–782 mm |
| Minimum turning radius | 1285 mm |
| Right-angle stacking aisle | 2565 mm |
| Travel speed, unloaded/loaded | 12 / 11 km/h |
| Gradeability, loaded | 10% |
| Service weight | 1220 kg |
| Tyre type | Solid tyres |
| Battery voltage/capacity | 76.8 V / 60 Ah |
| Drive motor | 2 kW |
| Pump motor | 2 kW |
The seated operator position, overhead guard and clear mast area are arranged for routine warehouse work. Solid tyres eliminate pneumatic punctures and suit smooth prepared floors. Electromagnetic travel braking and a separate parking brake support controlled movement when used according to the manual. The compact 1285 mm turning radius helps the operator position the truck, but aisle width must still include pallet dimensions, clearance, rack protection and the real turning envelope.
Applications include moving cartons, components, tools, packaged food, beverages, hardware, electronic parts and other stable palletized goods. The CPD05 can support warehouses, supermarkets, workshops, assembly plants, logistics rooms and service facilities. It is not intended for hazardous atmospheres, uncontrolled public traffic, severe outdoor terrain or loads that exceed the confirmed data. Floor loading, doorway height, ramp angle, rack dimensions and pallet type should be checked before purchase.
For safe operation, inspect forks, fork locking devices, mast channels, chains, hydraulic hoses, tyres, wheel fasteners, steering, brakes, warning devices, battery connector and charger before each shift. Keep people away from raised loads, travel with the forks low, slow down before turns and never carry passengers. Loads must be centered, stable and fully supported by the forks. Only trained and authorized operators should use the forklift, and local workplace rules always take priority.
Lithium battery care requires the approved charger, a suitable charging area and compliance with the supplied battery instructions. Do not use damaged cables, connectors or battery enclosures. Stop operation if abnormal heat, smell, swelling, warning messages or liquid leakage appears. Keep the truck dry, avoid unauthorized electrical modifications and arrange inspection by qualified service personnel. Storage state of charge and temperature should follow the battery supplier’s instructions.
Routine maintenance includes cleaning the truck, checking mast lubrication, inspecting chains and rollers, monitoring hydraulic oil, tightening fasteners and recording unusual sound, vibration or performance changes. Do not pressure-wash electrical components. Service intervals and replacement limits are defined in the operation and maintenance manual. Preventive inspection helps protect uptime, load stability and total ownership cost.
For a quotation, provide the pallet size, maximum load, load center, required lift height, aisle width, doorway dimensions, ramp gradient, working hours, indoor or outdoor conditions, ambient temperature, electrical supply and destination port. ZGFORKLIFT / MYZG can confirm the final mast, forks, battery, charger plug, safety options, spare parts, warranty, production schedule, packing method and factory price. Final specifications are governed by the signed contract and approved technical sheet.
