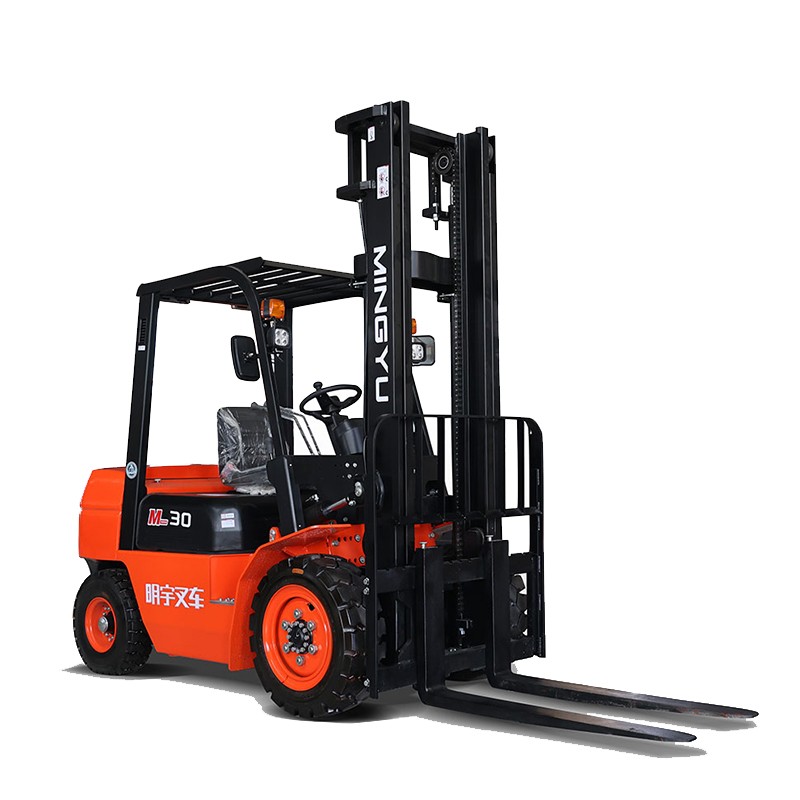

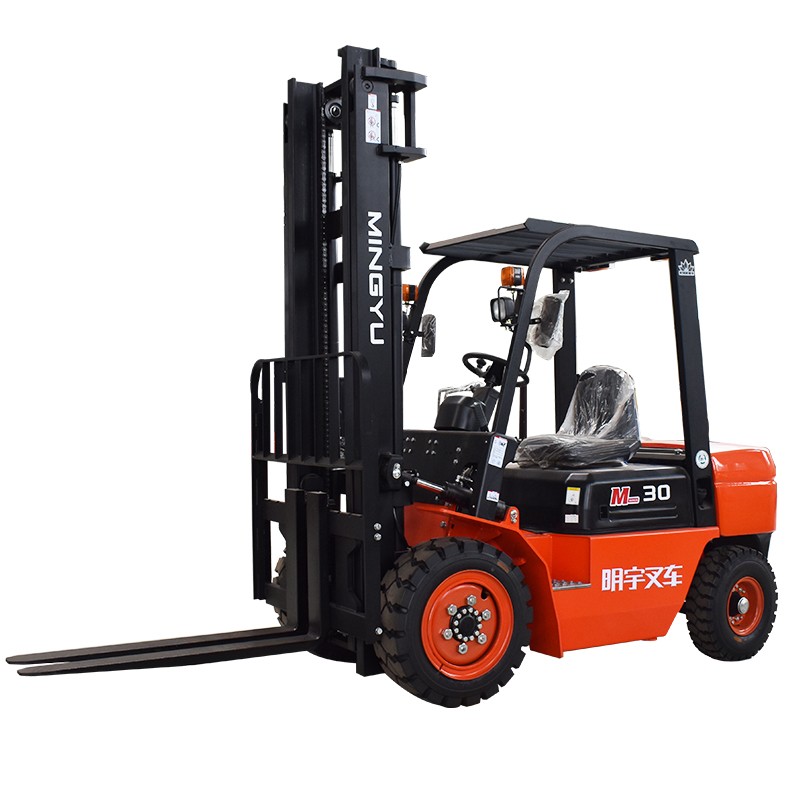

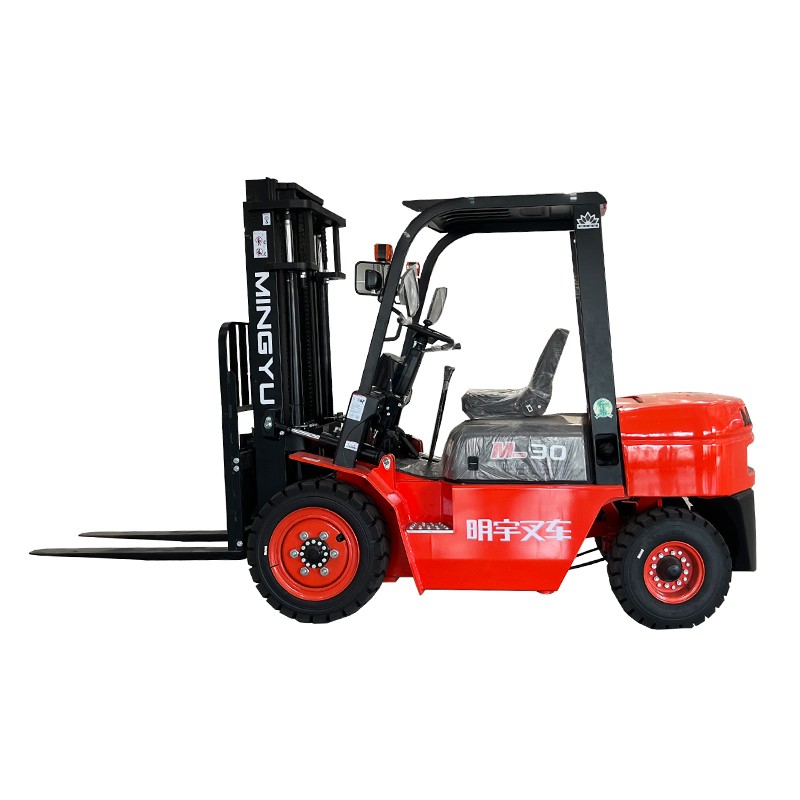

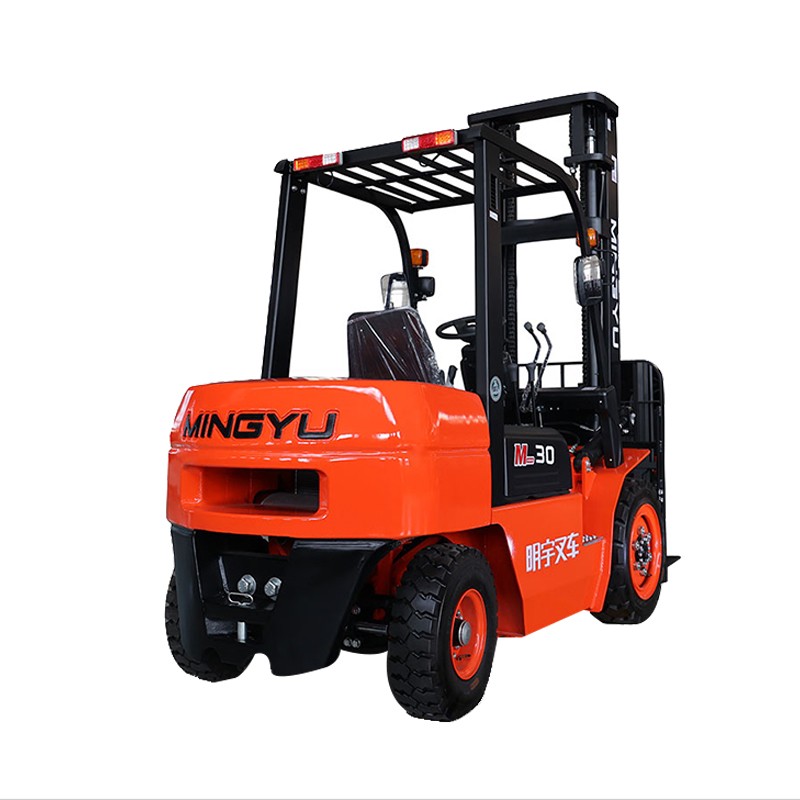

CPC30 diesel forklift
THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY
This new series forklift trucks that made with the latest technical design provide you excellent operating performance. MINGYU forklift trucks high standard performance, comfortable driving experience and the simple and safe operation will make your work handier
Key highlights
·Flexible and efficient operation
·Safe and reliable, easy to use
·Economic and environmental protection, cost saving
·People-oriented, comfortable driving
·Toyota seat
Parameter
Model
CPC(D)30M
Power Type
diesel
rated load lifting capacity
3000kg
Load centre distance
500mm
driving style
Sit down
length
with fork
3870mm
without fork
2695mm
wideth
1228mm
height
Do not raise the mast height
2140mm
Overhead guard height
2100mm
Max height at working
4262mm
Distance from seat surface to top guard frame
970mm
wheel base
1700mm
front overhang
457mm
rear overhang
500mm
front wheel track
1000mm
rear wheel track
980mm
minimum ground clearance
165mm
Standard lifting height
3000mm
free lifting height
65mm
Fork adjustment range
260-1100mm
minimum turning radius
2520mm
Minimum right-angle channel width(1100*1100 pallets)
4277mm
Gantry angle (front/rear)
6/12°
Maximum lifting speed without load
480mm/s
Maximum lifting speed with full load
440mm/s
Maximum operating speed without load
20Km/h
Maximum operating speed with full load
20Km/h
Max gradeability with full loading
20%
Weight unladen
4290kg
Number of wheels = driving wheels/steering wheels
2/2
Tyre type (front/rear)
Pneumatic tyre/pneumatic tyre
tyre size(front)
28x9-15
tyre size(rear)
6.50-10
Brake/driving brake
Foot Brake
parking brake
Hand Brake
Engine
quanchai/xinchai/Mitsbishi / Isuzu/Cummins
rated power
39kw
rated speed
2650r/min
●Environmental Friendly
- The emission meets EC and EPA new regulation.
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
● Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving , increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
According to demands, can be matched with different accessories

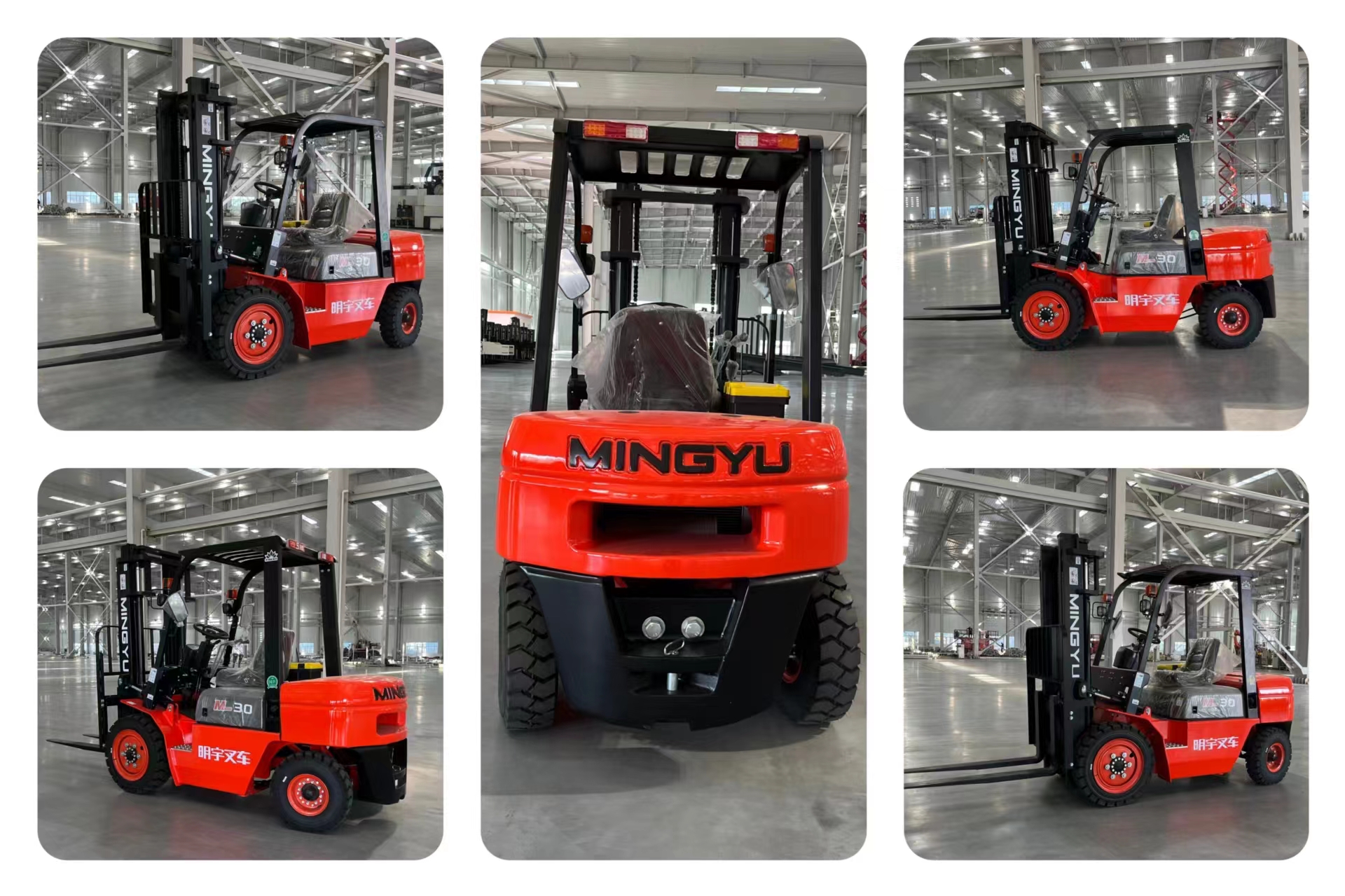

Detail
