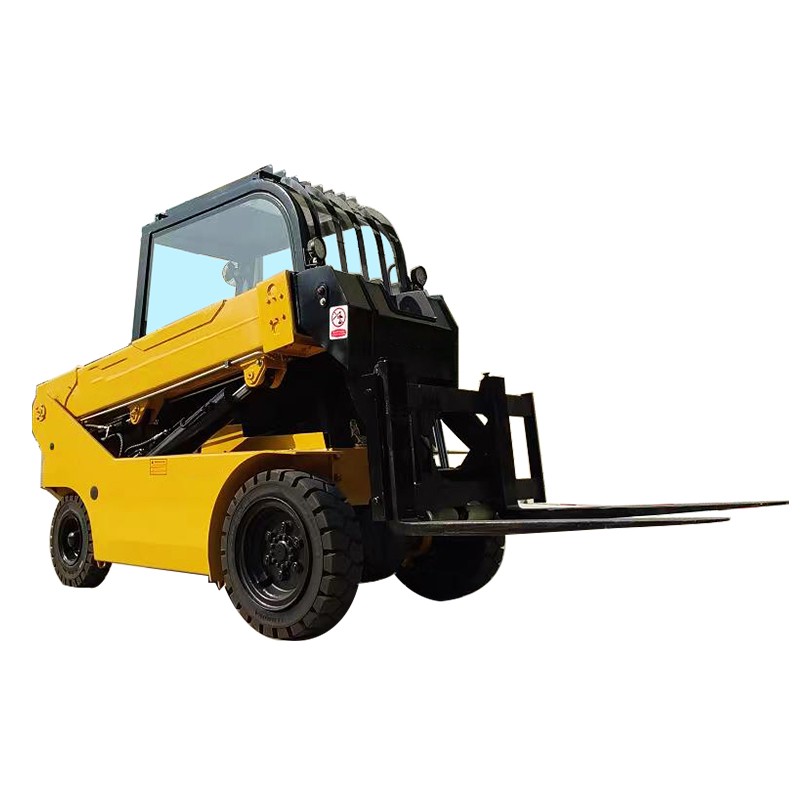

ZL-30 Telescopic Handler
PRODUCT FEATURE
The loadall, also known as a telehandler, is one of the most complete and preferred machines around the world, which is not surprising as these versatile machines offer the best features of a crane, wheel loader and forklift. The combination of front and vertical reach is unparalleled and makes this equipment a differentiated tool on the job site.
It has steering on the two rear wheels suited to the requirements of the operation, in addition to the side engine design that offers excellent rear and side visibility. Hydraulic lift, tilt and extend cylinders are held in places protected by castings to increase the structural integrity of the machine.
PARAMETERS
Rated load capacity
3000kg
Basic boom max. Lifting height
4750mm
Max. Lifting height
7050mm
engine model
Dongfeng Cummins QSB3.9-C80
Rated power
60kw
Rated turning speed
2200 rpm
dimensions
5020*2250*2340mm
Load center
500mm
Wheel tread（Front/Rear)
1790mm
Wheel base
2900mm
Min. Ground clearance
380mm
Min. Turning radius
4850mm
Weight unladen
8600kg
Front Tyre
16/70-24-24PR
Rear Tyre
16/70-24-24PR
Max. Horizontal reach
3220mm
STRENGTH AND DURABILITY
To be truly efficient, our manipulators are designed to work around the clock. For this, we build our machines to be as resistant as possible, with high quality components and modern and innovative manufacturing processes.
Reinforced Boom Design: We designed our boom U-shaped, with gussets between the closing plates, which are fully welded. The boom of a Loadall MYZG is mounted on the chassis, below cab level, providing an extremely rigid structure and the maximum possible visibility.
For extra strength, we've reduced the number of joints and stress points. The tip of our boom is integrated, built in a single sheet (it is not welded to the boom), thus making it a strong and durable part, in addition to the hydraulic lines being located on the inside of the boom, protecting against possible damage during application.
MORE VERSATILITY, PRODUCTION AND LESS MAINTENANCE
MYZG telehandlers have long service intervals and when maintenance is required, it will be simple, allowing you to get back to work quickly as all daily checks and lubrication operations can be done at ground level.
To further increase production availability, these machines are also equipped with a reversible fan to ensure maximum operating hours in applications with a lot of dust and materials that can compromise the cooling system.
PROTECTION AND SECURITYA
MYZG Loadall can save much more than time and money: it can protect the operator from potentially dangerous situations. Our telehandlers have strict safety measures to minimize risks and provide greater protection against accidents.
MYZG Adaptive Load Control automatically monitors hydraulic operation to help maintain the longitudinal stability of your Loadall.
Outrigger cylinders with check valves further increase the safety of operation, as check valves block the flow of oil in case of rupture or leakage in pipes or hoses.
STRENGTH AND DURABILITY
To be truly efficient, our manipulators are designed to work around the clock. For this, we build our machines to be as resistant as possible, with high quality components and modern and innovative manufacturing processes.
Reinforced Boom Design: We designed our boom U-shaped, with gussets between the closing plates, which are fully welded. The boom of a Loadall MYZG is mounted on the chassis, below cab level, providing an extremely rigid structure and the maximum possible visibility.
For extra strength, we've reduced the number of joints and stress points. The tip of our boom is integrated, built in a single sheet (it is not welded to the boom), thus making it a strong and durable part, in addition to the hydraulic lines being located on the inside of the boom, protecting against possible damage during application.
Durable Components: At MYZG, we make our own axle, transmission and engine. All designed to work in perfect harmony and with high reliability. Hydraulic lift, tilt and extend cylinders are held in places protected by castings to increase the structural integrity of the machine.
