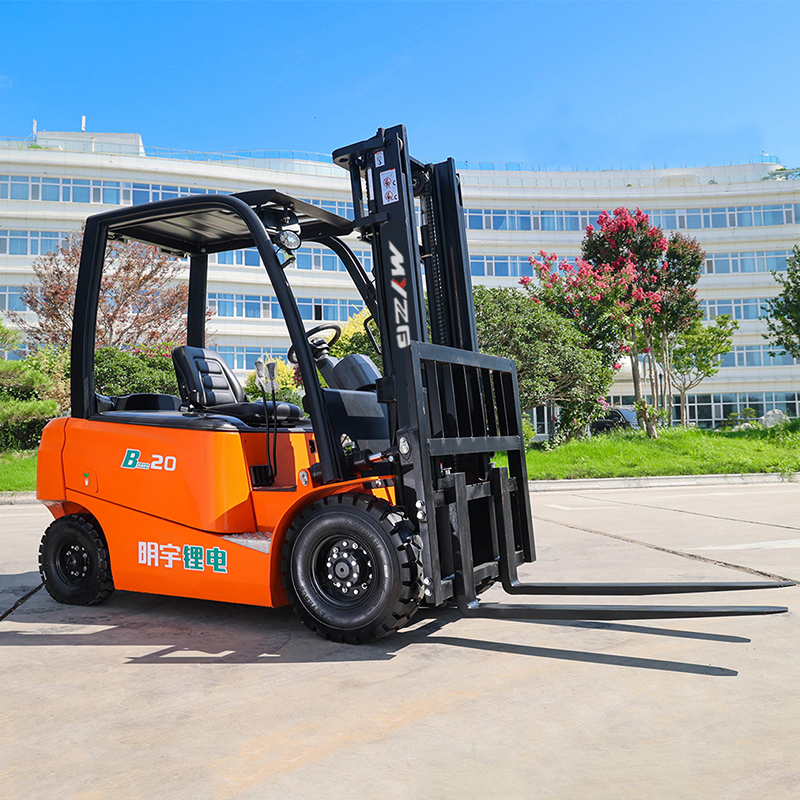

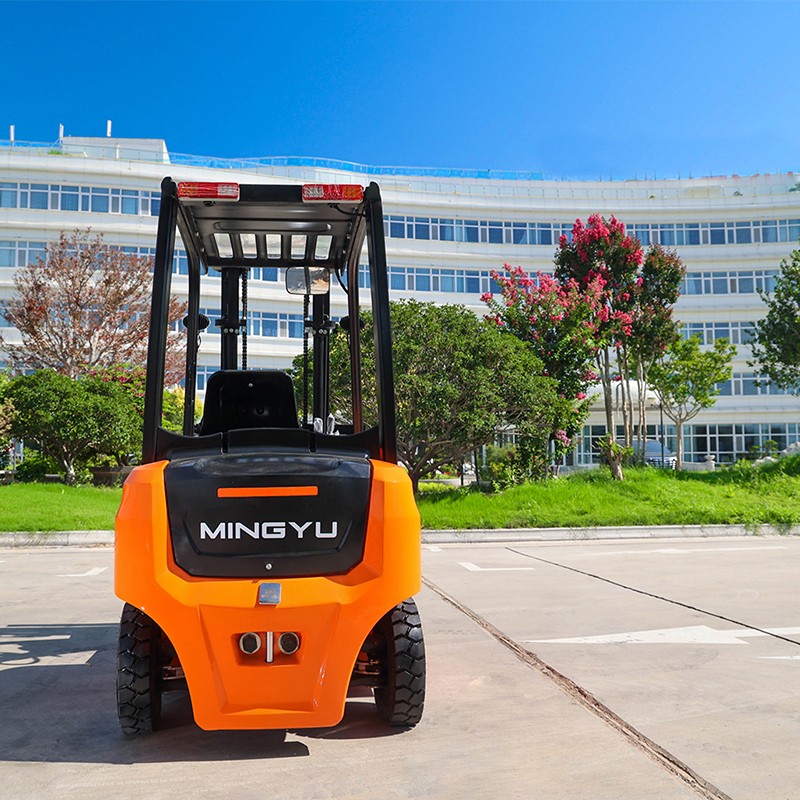

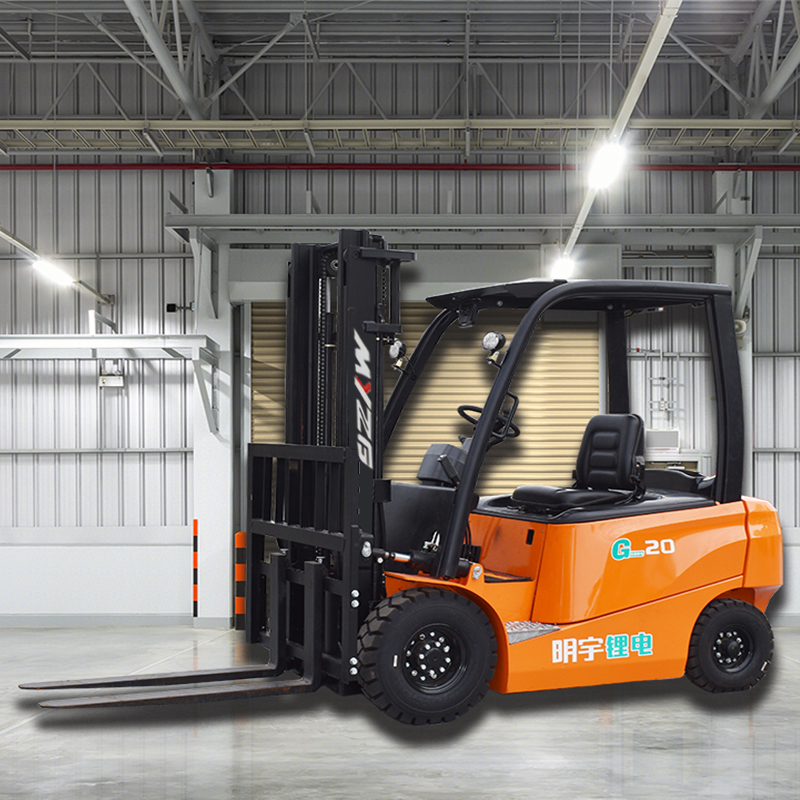

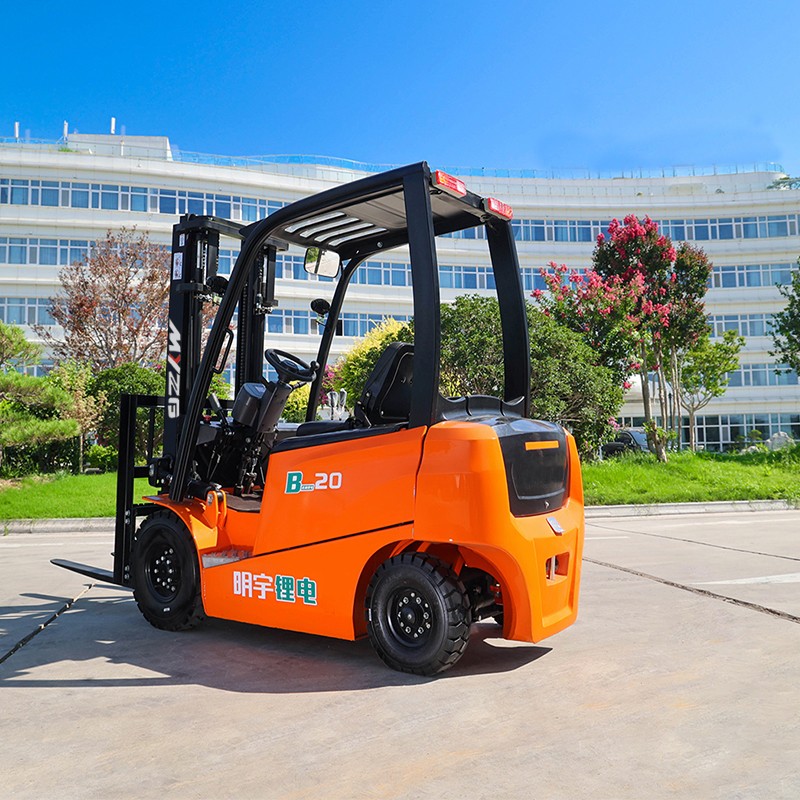

CPD20 Electric Forklift: Redefining Efficiency with 2-Ton Lifting Power and Advanced Electric Drive

The CPD20 electric forklift represents a significant advancement in material handling technology, combining robust performance with eco-friendly operation. Designed with a rated load lifting capacity of 2000 kg and a load centre distance of 500 mm, this model ensures reliable handling of heavy loads in various industrial environments. Its sit-down driving style offers operators enhanced comfort and control during extended shifts, while the compact dimensions—3395 mm in length with forks and 1100 mm in width—allow for easy navigation through narrow aisles and confined spaces. The forklift’s construction prioritizes stability and safety, with a wheelbase of 1520 mm and balanced front and rear overhangs of 370 mm and 380 mm, respectively. Powered by an 80V/105Ah battery, the CPD20 delivers consistent energy efficiency, reducing operational costs and environmental impact. The pneumatic tyres on both front and rear wheels provide excellent traction and shock absorption, making it suitable for indoor and outdoor applications. With a maximum unladen operating speed of 15 km/h and a full-load speed of 14 km/h, this forklift maintains productivity without compromising safety.

In terms of operational performance, the CPD20 excels with its lifting capabilities and maneuverability. It features a standard lifting height of 3000 mm and a maximum working height of 4110 mm, enabling efficient stacking and retrieval of goods in high-tier storage systems. The mast design offers a gantry angle of 5 degrees forward and 10 degrees rearward, facilitating smooth load handling and placement. With a free lifting height of 0 mm and a fork adjustment range of 260–1100 mm, this forklift adapts to various pallet sizes and load types, enhancing versatility in logistics and warehouse operations. The minimum turning radius of 2100 mm and a right-angle channel width of 3670 mm for 1100×1100 mm pallets ensure exceptional agility in tight spaces, reducing time and effort in material transportation. Safety is further reinforced through features like a foot brake for driving control and a hand brake for parking, along with a minimum ground clearance of 110 mm that prevents obstacles from hindering movement. The overhead guard height of 2020 mm and a seat-to-guard distance of 980 mm provide operator protection without compromising visibility, ensuring a secure working environment.

The CPD20 is engineered for durability and ease of maintenance, with key components designed for long-term reliability. It is equipped with a 13 kW drive motor and a 13 kW oil pump motor, delivering ample power for both propulsion and hydraulic functions. The two-wheel drive and two-wheel steering configuration, paired with pneumatic tyres (6.50-10 front and 5.00-8 rear), ensure smooth operation across diverse surfaces, from concrete floors to uneven terrain. The forklift’s gradeability of 15% under full load allows it to handle inclined pathways with ease, making it suitable for facilities with ramps or slight gradients. Weighing 2780 kg unladen, the CPD20 maintains a stable footprint while offering a lifting speed of 325 mm/s without load and 250 mm/s at full capacity, balancing speed and precision in load management. The battery system not only supports extended operational cycles but also promotes sustainability by eliminating emissions, aligning with modern green initiatives in industrial sectors. Regular maintenance checks, such as tyre inspections and brake assessments, are simplified due to the accessible design, minimizing downtime and maximizing productivity.

Ideal for warehouses, manufacturing plants, and distribution centers, the CPD20 electric forklift enhances operational efficiency through its blend of power, agility, and environmental consciousness. Its ability to handle 2000 kg loads with a 500 mm load centre makes it a dependable choice for heavy-duty applications, while the electric drive reduces noise pollution and energy consumption compared to internal combustion alternatives. The comprehensive safety features, including robust braking systems and ergonomic operator positioning, ensure compliance with industrial standards and worker safety regulations. With a focus on user-friendly operation and low lifetime costs, this model supports businesses in optimizing their material handling workflows without sacrificing performance. Whether for palletized goods, bulk items, or specialized cargo, the CPD20 offers a versatile solution that meets the demands of modern logistics, contributing to streamlined operations and sustainable practices in various industries.
