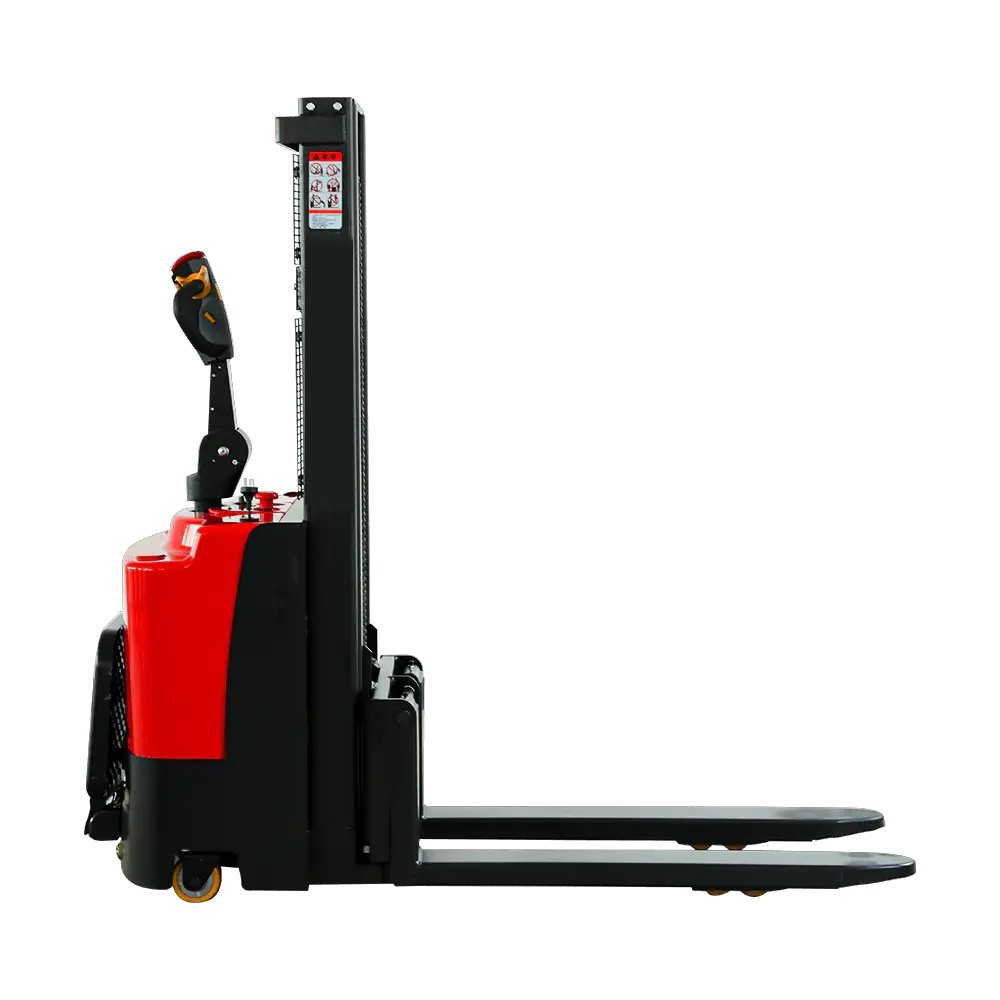

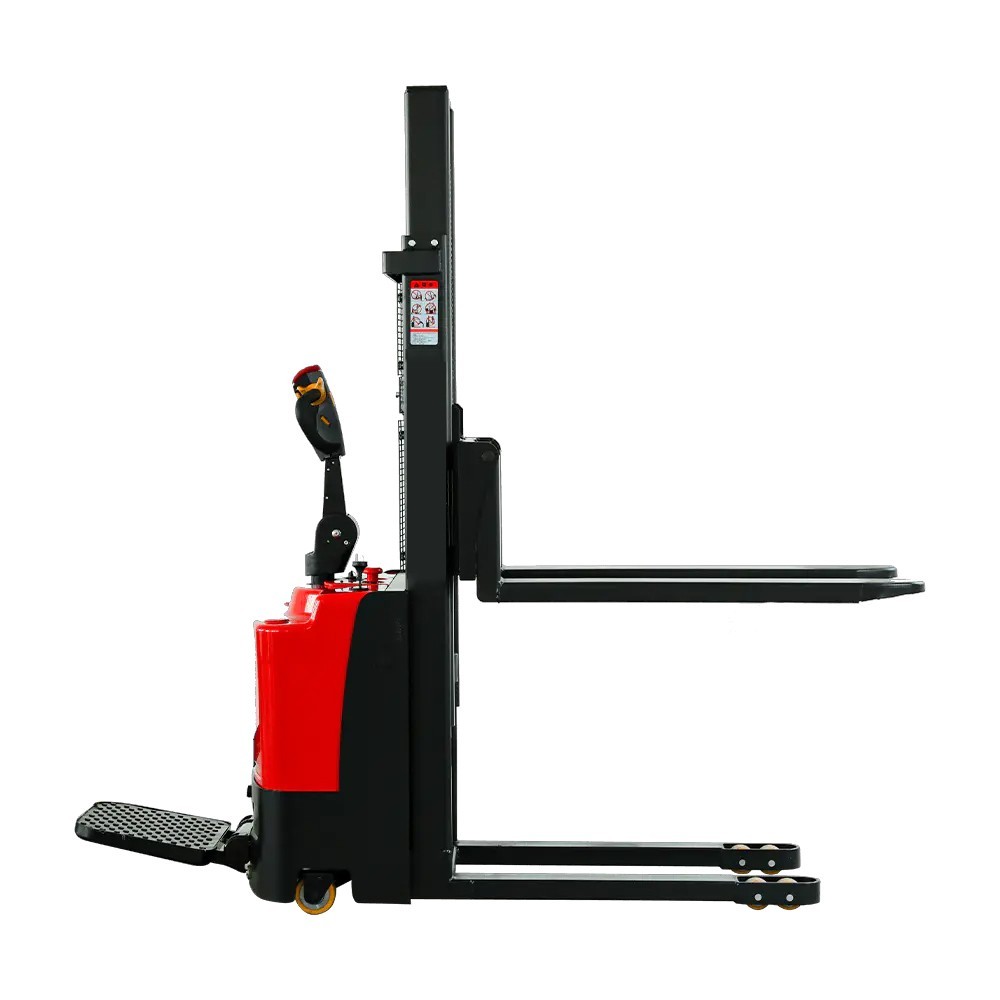

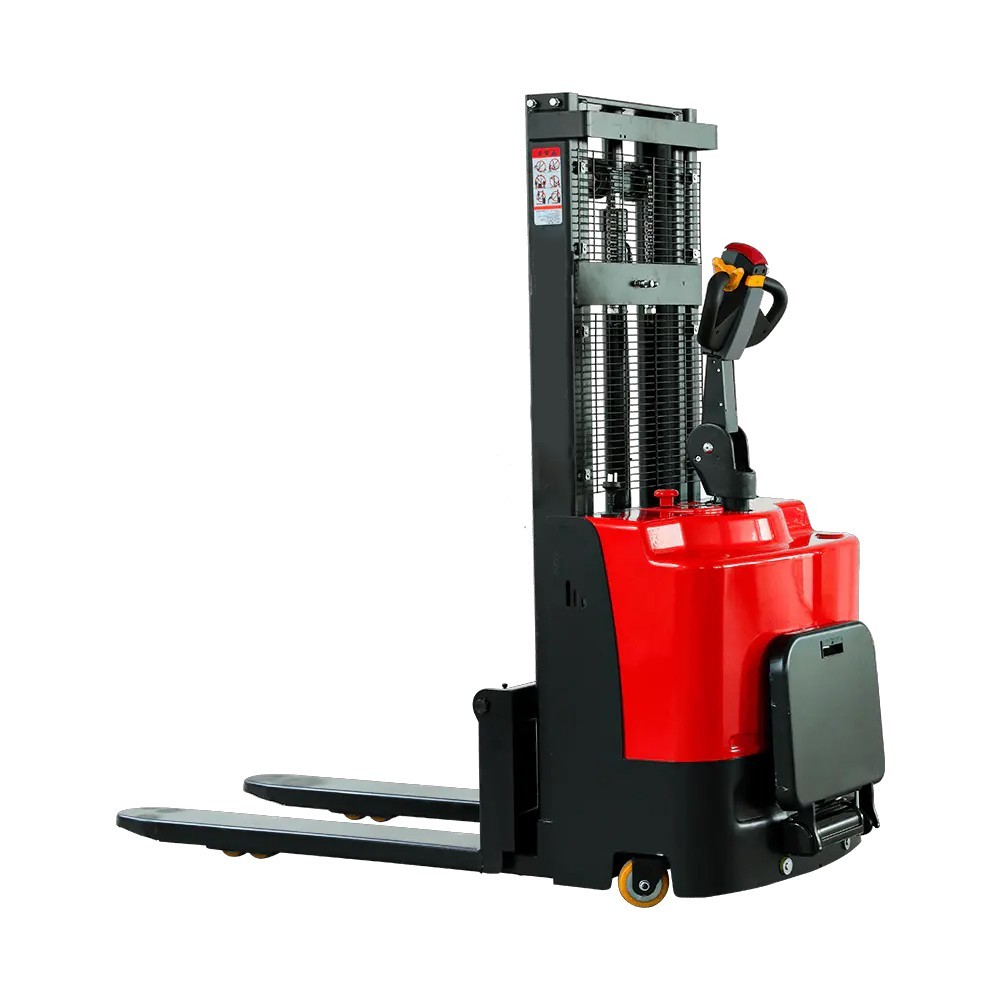

MYCDD-G Stand-on Electric Stacker (ECONOMICAL)

Descripción breve:

This is an economical stand-on electric pallet stacker, with a short vehicle body and a small turning radius. It is equipped with a foldable stand-on pedal, providing smooth operation and an excellent driving experience. It is highly experienced with high efficiency.......

This is an economical stand-on electric pallet stacker, with a short vehicle body and a small turning radius. It is equipped with a foldable stand-on pedal, providing smooth operation and an excellent: 1500/2000kg
Overall length/width of frame:: 2130/850mm
Fork size（length *width*thickness）:: 1150*165*55mm
1150*165*55mm: 90mm

Envíanos un correo electrónico

Detalles del producto

Etiquetas de productos

CDD-G STAND-ON ELECTRIC PALLET STACKER (ECONOMICAL)

Product features :

• Pump Brand: BUCHER
• 24V/92Ah GEL Maintenance-free Battery
• DC 750W Horizontal Drive Motor
• Optional: Controller Brand CURTIS
• Optional: Straddle Legs
• Fork Length Customized

Company Introduction

Model				CDD10/15G
Maximum load capacity				1000/1500kg
load center				600mm
Travel speed without load/with load				4.5/3.5km/h
Lifting speed without load/with load				110/80mm/s
Lowered speed without load/with load				100/100mm/s
Ascend slope ability without load/with load				7/4%
Overall length/width of frame				1910/850
Wheelbase				1270mm
Fork size（length widththickness）				115016555mm
Fork outside width				550/685mm
Min frounf height				30mm
Fork lowered height				90mm
Minimum turning radius				1920mm
Minimum intersecting aisie				2795mm
Front wheel				80*70mm
Drive wheel				210*70mm
Caster wheel				115*55mm
Drive motor Rated output/DC motor				0.75kw
Hoist motor Rated output/DC motor				2.2kw
Battery Voltag/Capacity				24/92V/Ah
Battery Weight				31*2kg
Mast	Max.Lifting height	Mast overall height	Mast overall height	Service weight
Single mast	1600 mm	2080 mm	2080 mm	515 kg
2-stage mast	2000 mm	1580 mm	2550 mm	555kg
	2500 mm	1830 mm	3050 mm	580 kg
	3000 mm	2080/1980 mm	3550/3450 mm	600 kg

1) Low voltage protection system to extend battery life;
2) Using adjustable balance wheel, the car walks smoothly;
3) The whole vehicle is small, flexible, and has good maneuverability, and can work efficiently in places with narrow spaces;
4) It has good shock absorption effect, and the balance wheel assembly can be disassembled as a whole, which is convenient for maintenance and warranty.

About us

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.

MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get

MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.

Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
