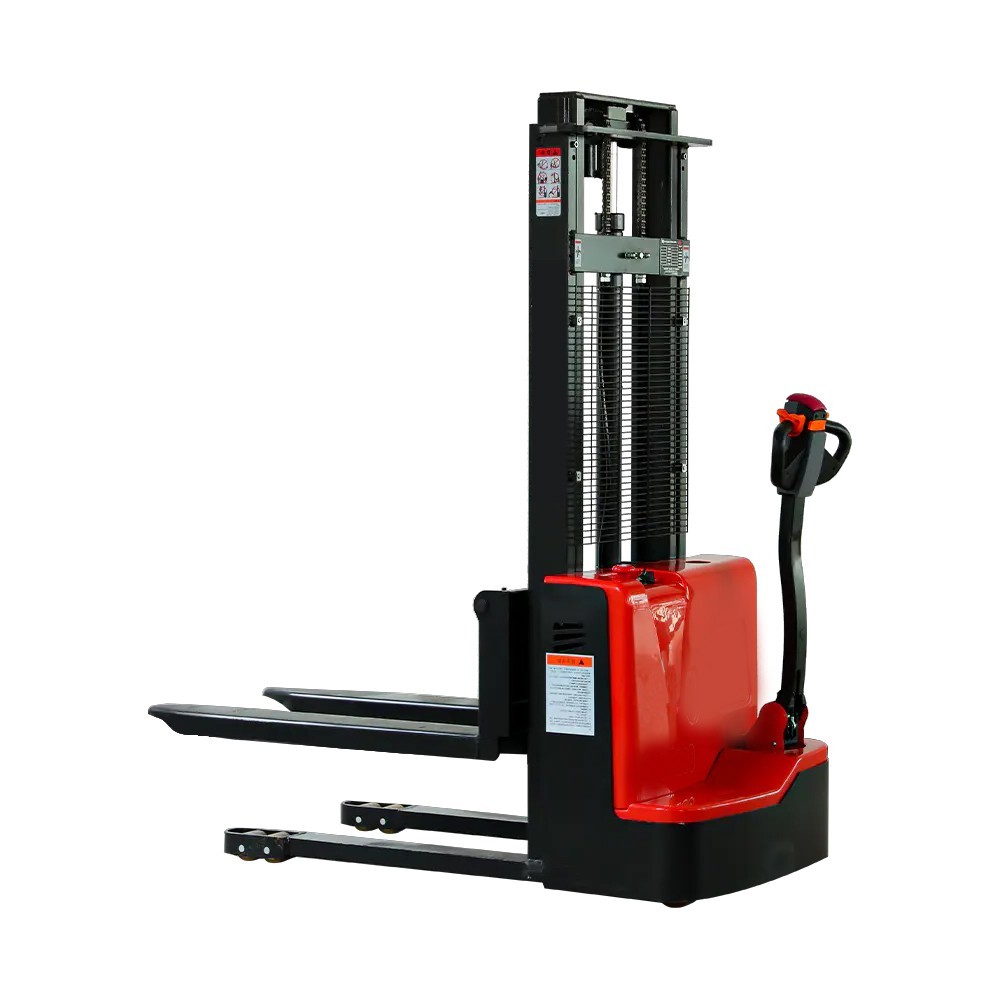

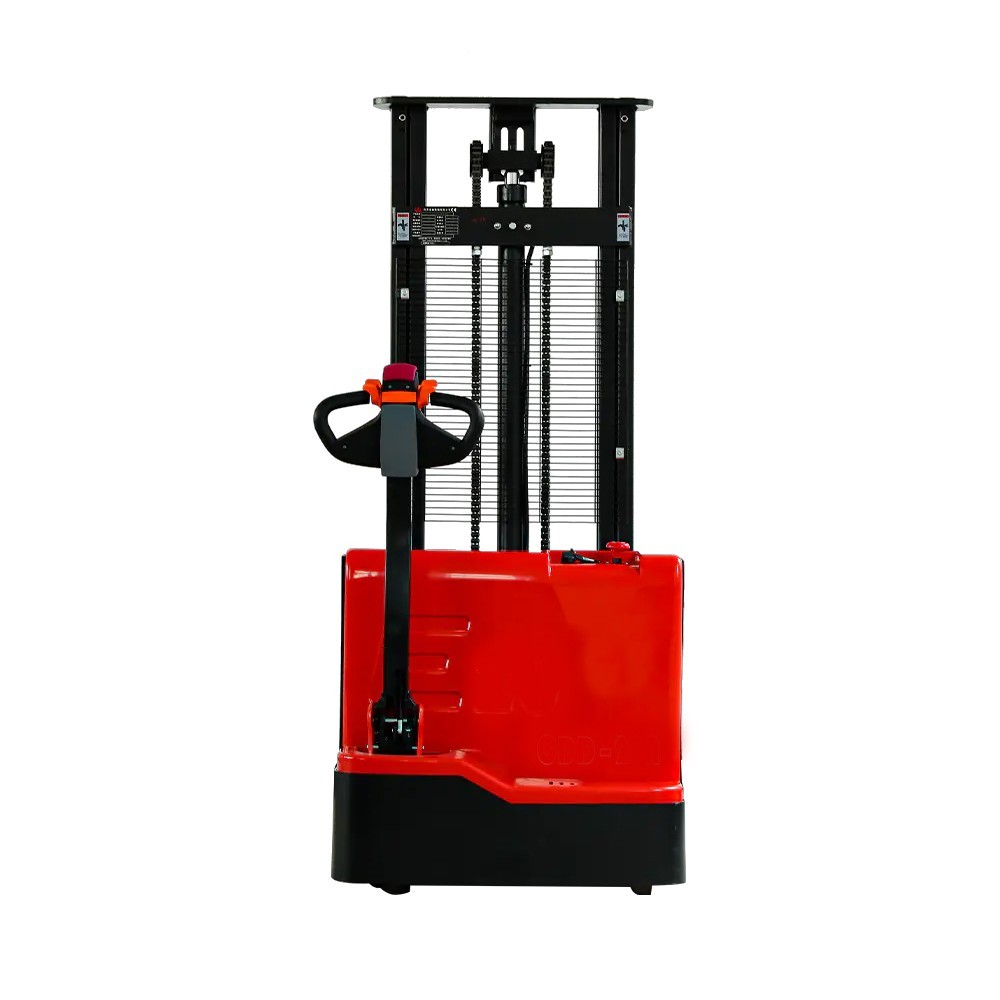

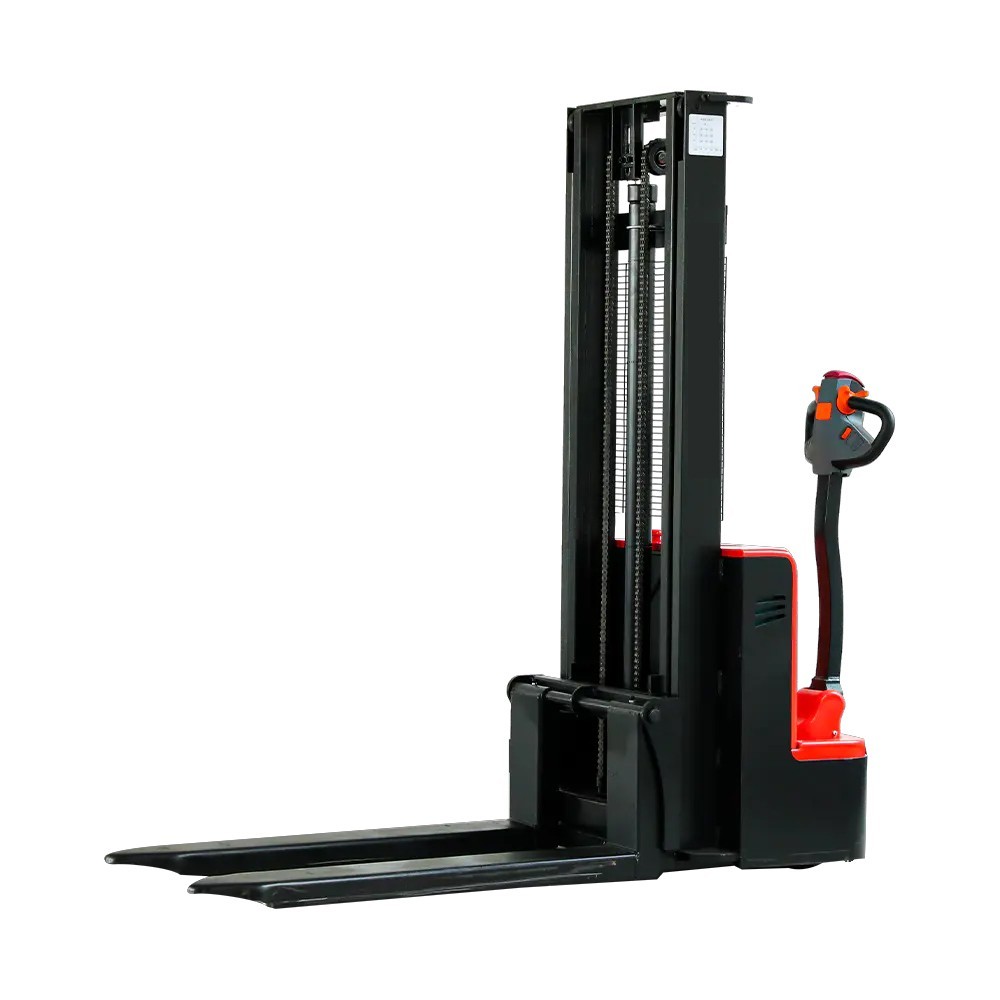

CDD-A WALKIE ELECTRIC STACKER
Product features :
Advantages:
Productivity
• Long tiller design for ergonomics and safety；
• Emergency reversing device in the handle provides higher safety for thewhole operation；
• Braking applied with handle upright and horizontal position, increasing the safety of the truck；
• Multi-function display with hour meter；
• Built-in pressure relief valve protects the trucks from overloads, and increases the reliability；
• Emergency power disconnect switch；
• Turtle-shaped low speed switch；
• Auto deceleration function makes operation more safely.
Optimum Structural Design
• Low center of gravity ensures the stable operation；
• Full free lifting, fit for working in low roof house；
• Adjustable balance wheel；
• Fixed forks/Adjustable forks are optional, suitable for more work scenarios.
Company Introduction
|
Model
|
CDD15/16
|
|
Maximum load capacity
|
1500/1600kg
|
|
load center
|
600mm
|
|
Travel speed without load/with load
|
4.5/3.5km/h
|
|
Lifting speed without load/with load
|
140/80mm/s
|
|
Lowered speed without load/with load
|
100/80mm/s
|
|
Ascend slope ability without load/with load
|
7/4%
|
|
Overall length/width of frame
|
1860/850
|
|
Wheelbase
|
1250mm
|
|
Fork size（length *width*thickness）
|
1150*165*55mm
|
|
Fork outside width
|
550/685mm
|
|
Min frounf height
|
28mm
|
|
Fork lowered height
|
90mm
|
|
Minimum turning radius
|
1530mm
|
|
Minimum intersecting aisie
|
2400mm
|
|
Front wheel
|
80*70mm
|
|
Drive wheel
|
210*75mm
|
|
Caster wheel
|
115*55mm
|
|
Drive motor Rated output/DC motor
|
0.75kw
|
|
Hoist motor Rated output/DC motor
|
2.2kw
|
|
Battery Voltag/Capacity
|
24/85V/Ah
|
|
Battery Weight
|
26*2kg
|
|
Mast
|
Max.Lifting height
|
Mast overall height
|
Mast overall height
|
Service weight
|
|
Single mast
|
1600 mm
|
2080 mm
|
2080 mm
|
460 kg
|
|
2-stage mast
|
2000 mm
|
1580 mm
|
2550 mm
|
520 kg
|
|
2500 mm
|
1830 mm
|
3050 mm
|
530 kg
|
|
3000 mm
|
2080/1980 mm
|
3550/3450 mm
|
540 kg
|
|
3500 mm
|
2330 mm
|
4050 mm
|
620 kg
|
-
Emergency reverse device;
-
The built-in unloading valve protects the stacker from overloading and improves the reliability of the stacker;
-
Emergency power off switch;
-
Turtle-shaped slow speed switch;
-
Infinitely variable speeds control;
-
Foldable, thickened pedals and guard bar,make operator more comfortable and safety;
-
The side cylinder ensures wide field of view operation and stability of the stacker;
-
The balance wheel of the spring adjustment structure is hard-wearing and has good stability.
