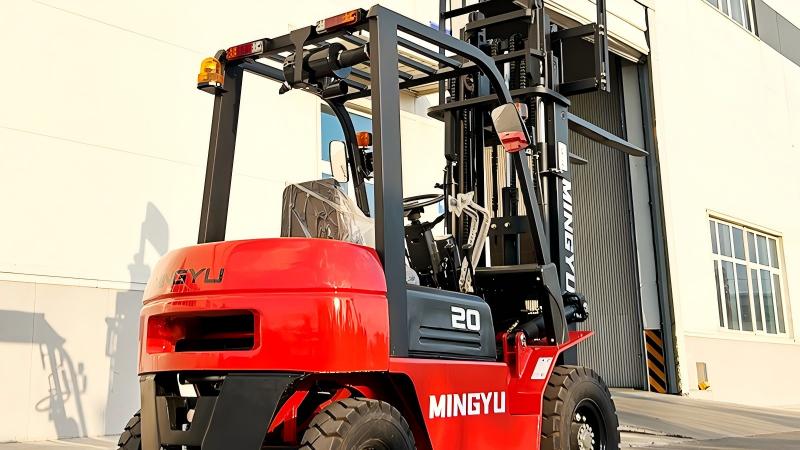

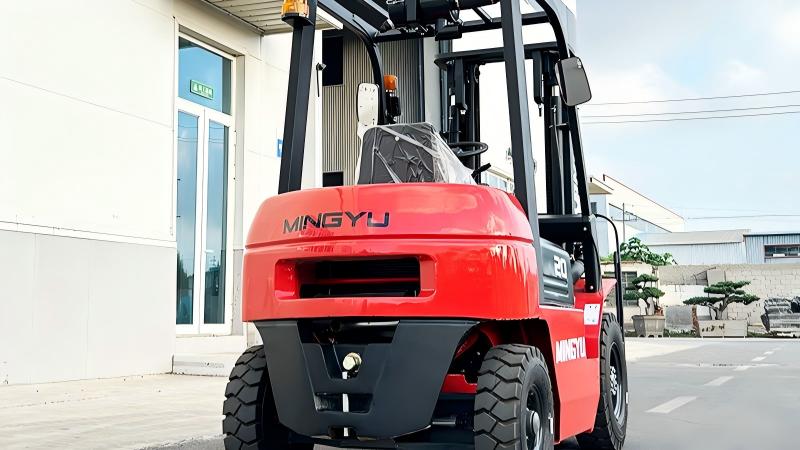

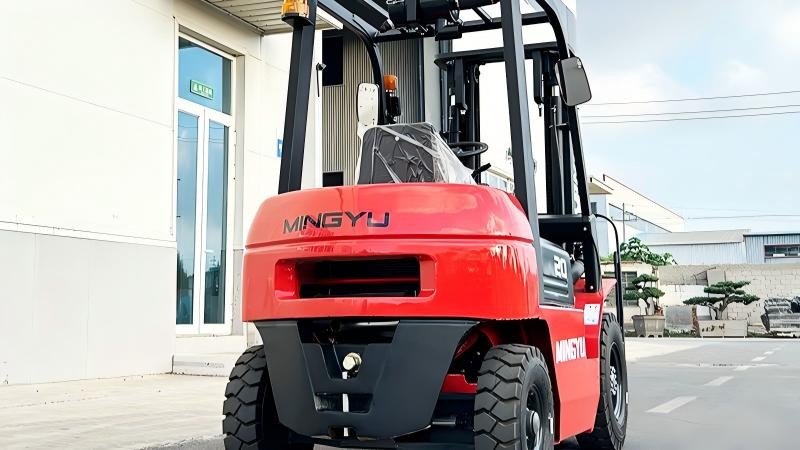

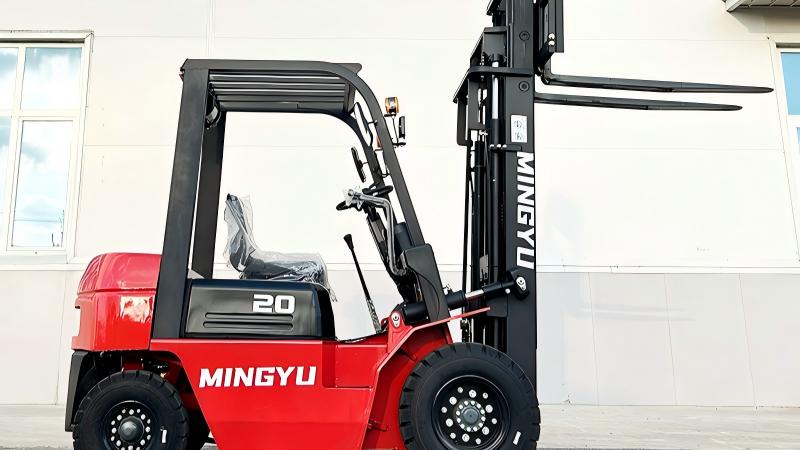

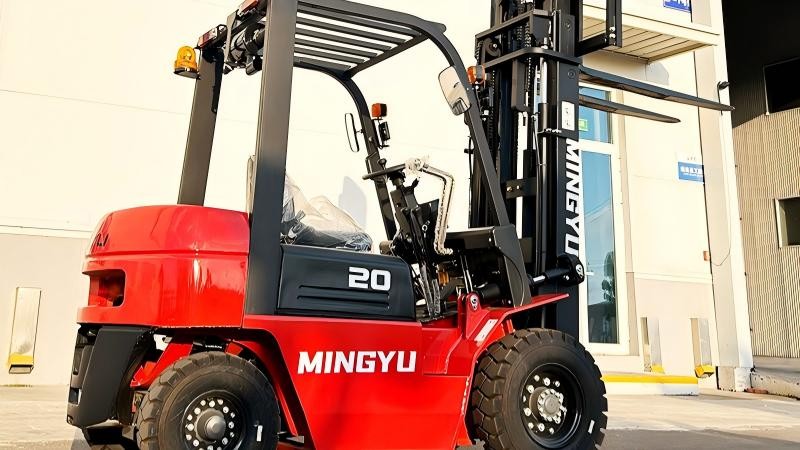

Xinchai-Powered CPC20 Diesel Forklift: Engineered for 2-Ton Heavy-Duty Performance and Maneuverability

The CPC20 diesel forklift represents a robust and reliable solution for demanding material handling operations, engineered to deliver consistent performance under heavy loads. Powered by the proven Xinchai 490 diesel engine, this model generates 40kw of rated power and 156Nm of torque, providing the necessary muscle to handle its full 2000kg load capacity with ease. Its substantial 60L fuel tank ensures extended operational periods without frequent refueling stops, making it ideal for shift-long operations in warehouses, distribution centers, and construction sites. The forklift’s design prioritizes stability and durability, evident in its 3530kg unladen weight and a well-distributed wheelbase of 1600mm, which contribute to secure load management even at its maximum lifting height of 3000mm. The standard lifting speed of 500mm/s allows for efficient vertical movement, balancing speed with control when positioning pallets. Operators will appreciate the precise handling afforded by the 2190mm minimum turning radius, enabling this durable machine to navigate confined spaces commonly found in storage aisles and loading bays. The combination of a powerful diesel powertrain and a resilient chassis makes the CPC20 a workhorse capable of sustaining productivity in tough industrial environments.

Maneuverability and operational efficiency are central to the CPC20’s design, with key dimensions and features tailored to optimize workflow in space-conscious settings. The forklift’s compact width of 1160mm and a tight turning circle allow it to operate effectively in narrow aisles, reducing the need for excessive maneuvering room and maximizing usable storage space. Its mast tilt functionality, with 6 degrees forward and 12 degrees rearward, provides excellent control when engaging and securing loads, especially at height. The inclusion of a robust overhead guard standing at 2160mm ensures operator safety, while a generous ground clearance of 130mm at the frame allows the forklift to traverse uneven surfaces commonly encountered in outdoor yards or transitional areas between indoor and outdoor spaces. The 19km/h maximum travel speed under load facilitates quick transit across facilities, and the 20% gradeability ensures it can handle ramps and slight inclines without loss of power or stability. The ergonomic layout, coupled with a clear view mast, minimizes operator fatigue during prolonged use, contributing to both safety and sustained operational output throughout a working day.

Durability and serviceability are engineered into every component, from the heavy-duty powertrain to the resilient undercarriage and lifting mechanisms. The Xinchai 490 engine is renowned for its reliability and ease of maintenance, featuring a 2.54L displacement across four cylinders, designed to deliver power efficiently while meeting the demands of continuous operation. The forklift’s 12V/80Ah battery system supports reliable electrical functions, and the manual 2-forward/2-reverse gear transmission offers straightforward, responsive control for operators of varying experience levels. Critical wear components, such as the substantial 1070x122x40mm forks and high-traction 7.00-12 front and 6.00-9 rear tires, are built to withstand the rigors of daily heavy lifting and diverse floor conditions. The forklift’s design also considers maintenance accessibility, with strategically placed service points to simplify routine checks and repairs, thereby reducing downtime. This focus on rugged construction and maintainability ensures the CPC20 remains a dependable asset, capable of delivering a long service life and a favorable total cost of ownership even in the most challenging material handling applications.

The CPC20 is equipped with features that enhance both its functional versatility and its integration into systematic material handling workflows. With a load center distance of 500mm and a substantial fork length, it can accommodate a wide range of pallet sizes and load types securely. Its maximum fork height of 4220mm when equipped with a stopper shelf extends its utility for high-level stacking or retrieving tasks in high-bay storage areas. The precise engineering of its load dynamics, evidenced by a drawbar pull of 17kN, ensures that it can manage not only vertical lifting but also horizontal pulling tasks, such as moving loaded trailers or repositioning heavy equipment. Safety and stability are further reinforced by its optimized weight distribution and a low center of gravity, which are critical when operating at full capacity or on sloped surfaces. Whether deployed in manufacturing, bulk storage, freight handling, or large-scale construction projects, the CPC20 diesel forklift stands out as a versatile, powerful, and dependable partner designed to enhance operational throughput, safety, and efficiency in any heavy-duty industrial setting.
