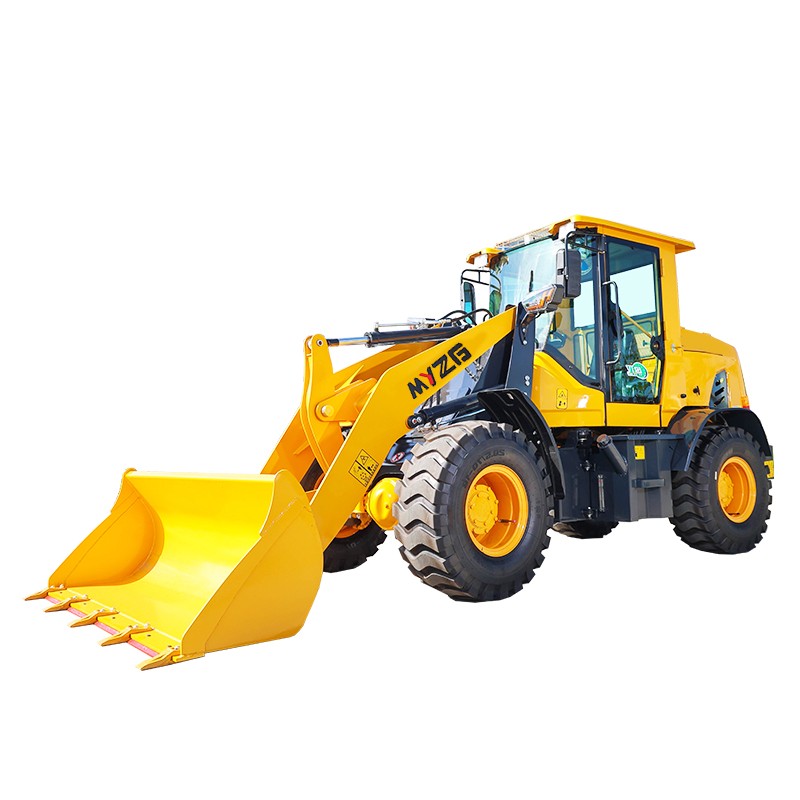

b30 Wheel Loader

b30 Wheel Loader
  • b30 Wheel Loader

Short Description:

b30 Wheel Loader...


  • dimensions: 4970*1655*2240mm
  • rated load capacity: 1100kg
  • rated power: 38kw

Product Details

Product Tags

Product Feature


From moving sand and gravel to salt and snow, the B30 compact wheel loader is suited for all seasons — it’s the economical compact loader option perfect for any small landscaping, bulk and material handling, or snow removal jobs.    Its skid-steer-style coupler makes it a versatile loader fit for multiple attachments.    And whether you need to operate at faster speeds to clear snow, or at a slower pace for jobs that aren’t time-sensitive, the B30 loader provides the perfect balance with ground speeds up to 15 mph (24 kph).    Its low-maintenance engine and basic features make it a simple, compact loader at an affordable price.


QUANCHAI 38KW, Tier 4f certified engine is designed for lower maintenance and features automatic, in-the-background regeneration with no DEF or DPF requirements

Manual powershift transmission provides precise gear selection

Joystick with integrated directional control switch allows for fingertip shifting and more intuitive loader control, and a separate third-function lever powers attachment hydraulics

Operator cab features A/C, AM/FM and USB radio, and is ROPS/FOPS approved with excellent 360-degree visibility for a ready-to-work operator environment

Skid-steer-style coupler with in-cab control simplifies attachment changes for ultimate versatility

General purpose skid-steer-style bucket with reversible bolt on cutting edges provides easy loading and longer bucket edge life

MYZG conventional axles with air-cooled, dry-disc brakes make servicing simple




Parameter



Rated load capacity 1100kg
Rated bucket capacity 0.4m3
Operating weight 2560kg
Engine model

QUANCHAI /yunnei

Rated power 38kw
Rated speed 2400 r/min
Dimensions 4970*1655*2240mm
Dump height 3000mm
Dump distance 600mm
Min.turning radius 3180mm
Wheel base 2350mm
Wheeltrack 1330mm
Tyre size 20.5-16

Detail


DIFFERENTIATED PRODUCTS

According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.



About us

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.


MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
