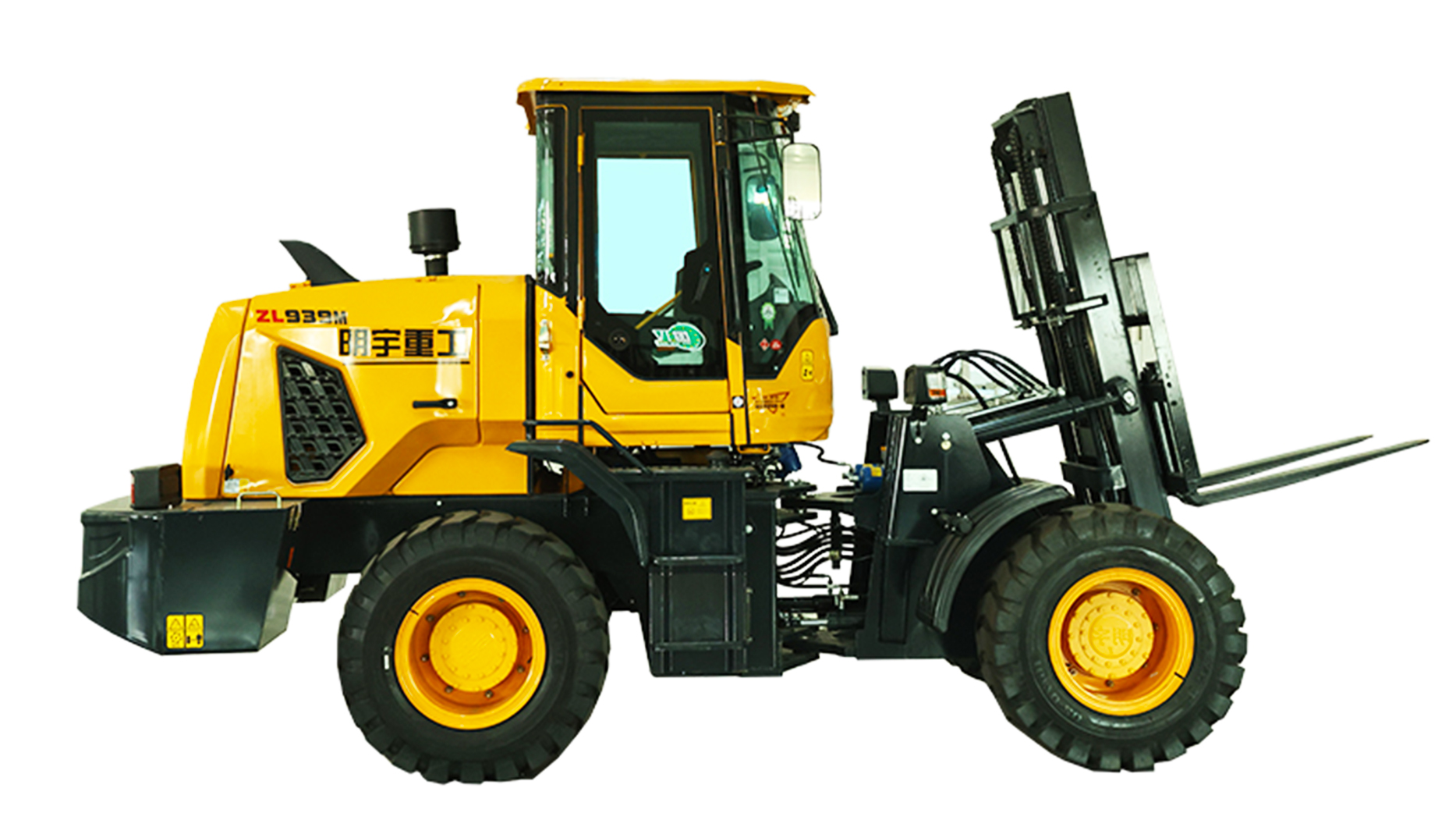

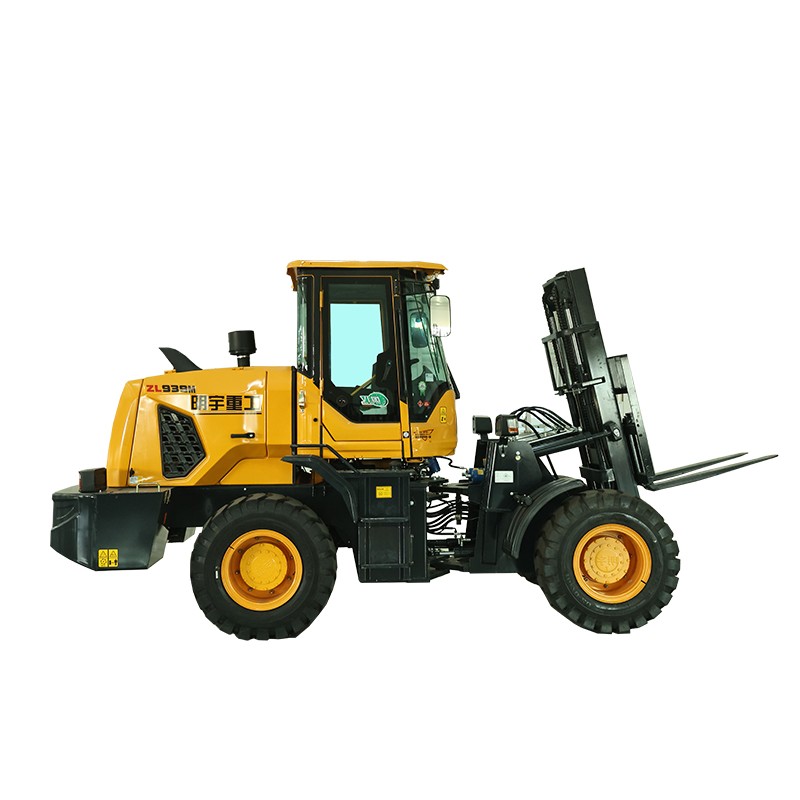

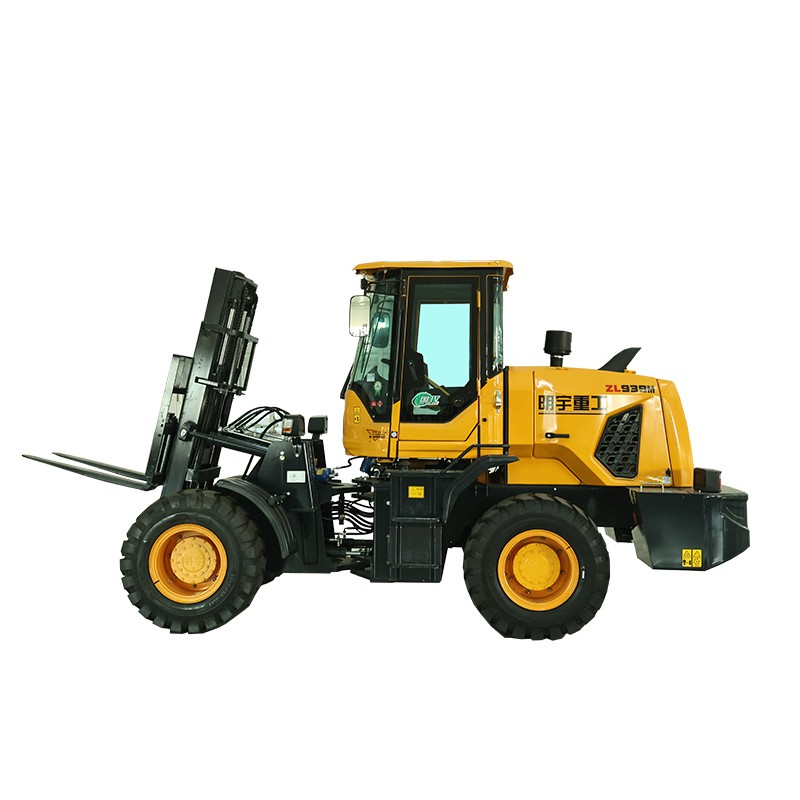

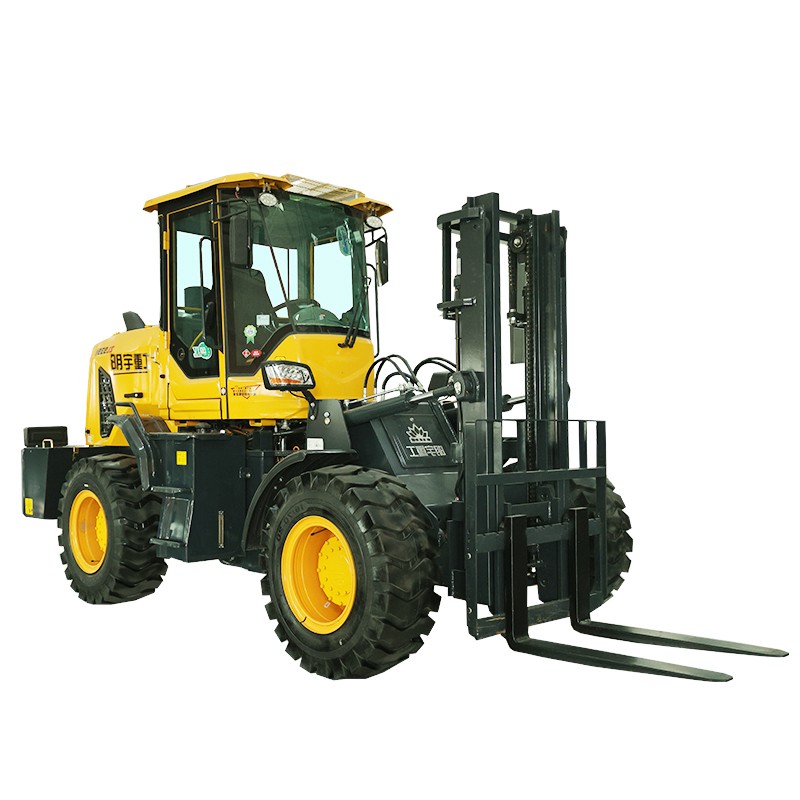

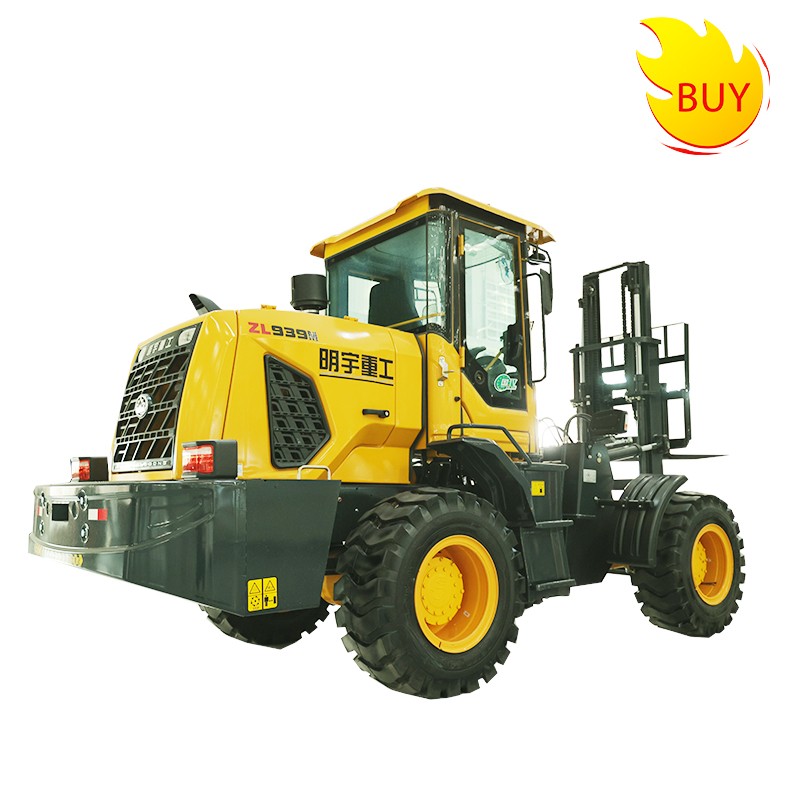

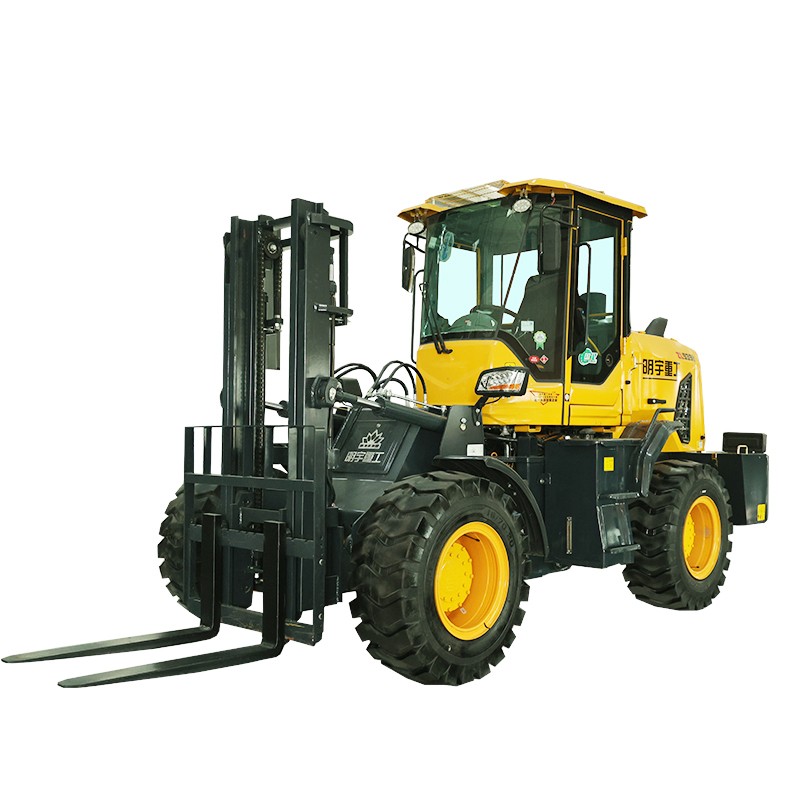

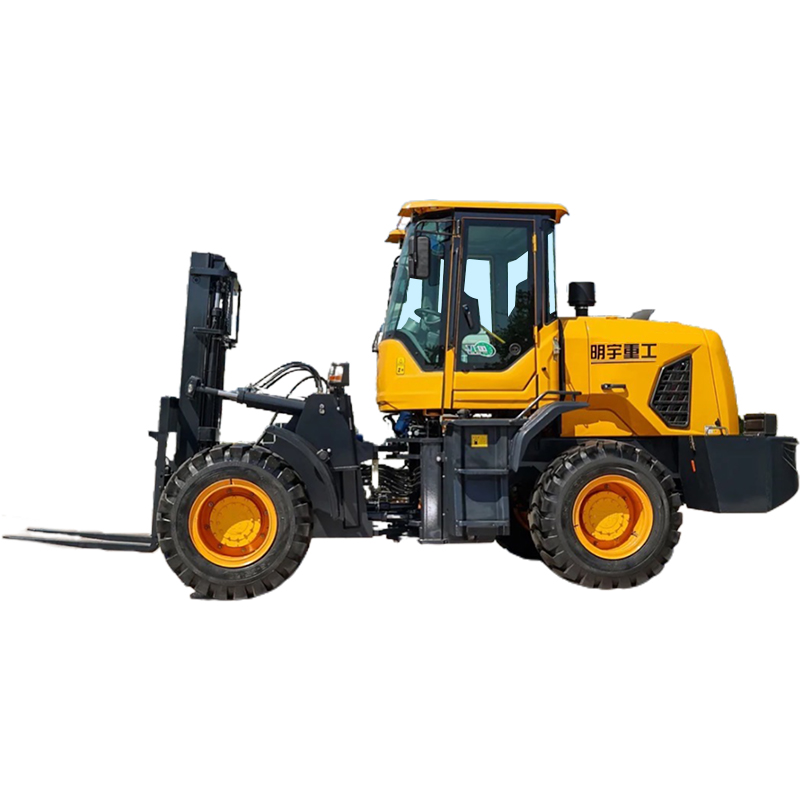

ZL938D Off-road forklift
Product Feature
Using the same technology as JCB，our rough terrain forklifts are put through a stringent testing program.
A QUALITY PROCESS
Our rough terrain forklift hydraulic cylinders have friction-welded eye-ends for extra strength, plus all pivots use hardened pins.
Masts are made from heavy-duty channel and I-section steel, alongside heavy-duty chains and guide roller bearings that are sealed for life.
State-of-the-art manufacturing processes like robot machining, precision paint technology and innovative assembly techniques to achieve the highest levels of quality.
COMFORTABLY SUPERIOR
The large, spacious cab boasts left and right grab handles with wide-opening doors; standard-fit tinted glass and new 3-speed heater fan.
Standard-fit tinted glass reflects 30% of solar energy.
Choose from both suspension and air-suspension seating options.
When lifting or placing loads, our optional sideshift carriage makes things even easier.
Zero tail swing design provides peace of mind when manoeuvring around obstacles.
EFFICIENT BY DESIGN
Our new, larger high-flow hydraulic pump translates the power into efficient lifting for increased productivity; cycle times are up to 51% faster.
ngine maximizes both productivity and efficiency.
The engine doesn't need exhaust after-treatment, so costly heat-resistant lube oils or DEF (Diesel Exhaust Fluid) are unnecessary; in turn, you save on servicing costs.
Parameter
| ZL938D Off-road forklift | |
| rated load lifting capacity | 4800kg |
| total weight | 5850kg |
| engine model | yunnei/quanchai |
| rated speed | 2400r/min |
| Standard lifting height | 3000mm |
| Gantry angle | Front 7°/rear 12° |
| Maximum lifting speed | 0.63 m/s |
| fork length | 120*1200mm |
| minimum ground clearance | 280mm |
| minimum turning radius | 2680mm |
| wheel base | 2445mm |
| Tyre distance | 1705mm |
| dimension | 5740*2130*2870mm |
| Tyre type | 16/70-20 |

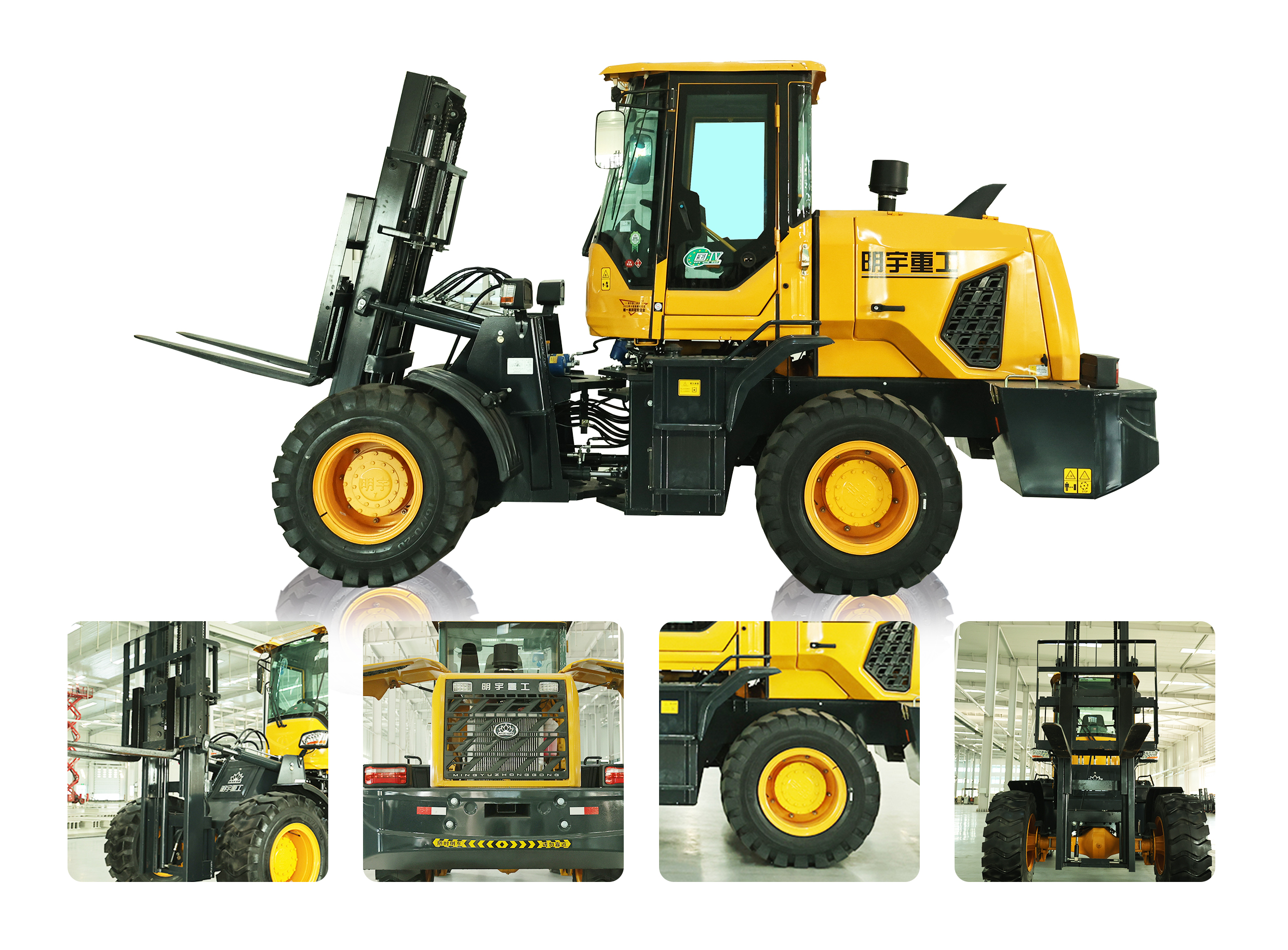

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
