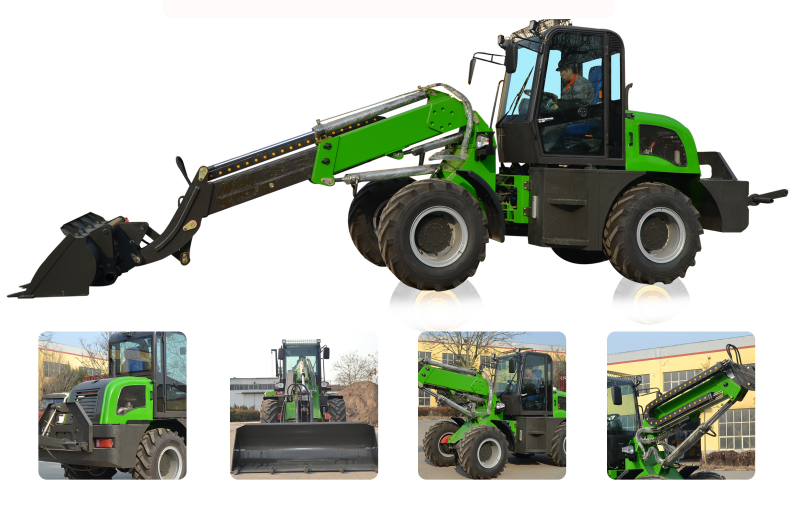

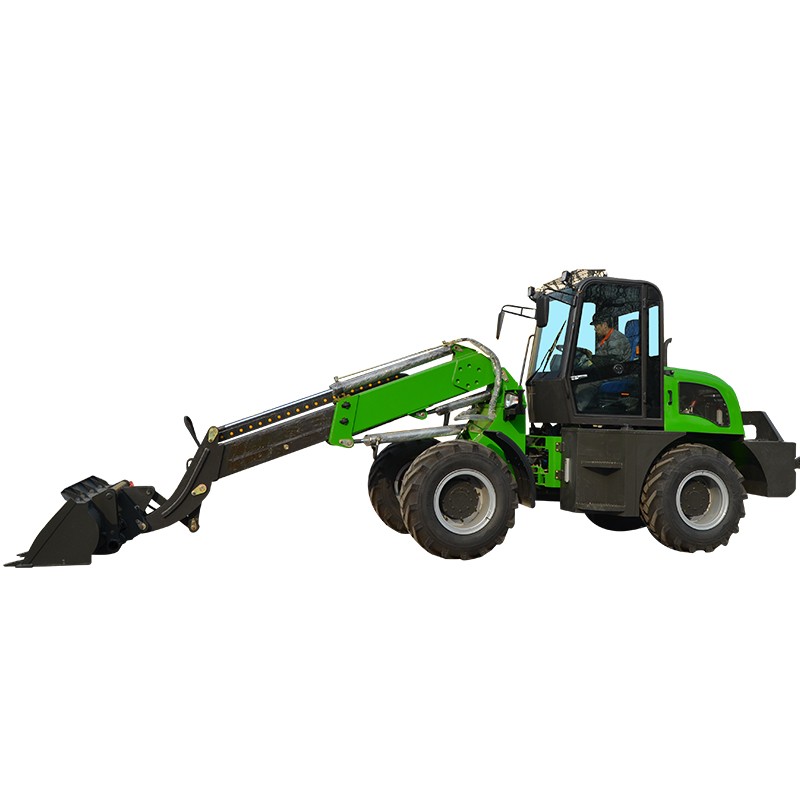

ZL-2000 telescope loader
Product Feature
Tl2000, standard bucket with teeth, full hydraulic torque converter transmission, can be matched with yunnei, Xinchai, Cummins and other engines, air brake, can directly load and unload goods over part of the obstacles.The telescopic boom device can cross ditches, steps, doors and Windows for loading and unloading operations; Because of the negative amplitude Angle, it can also be used for ditching, repairing, leveling and other operations on the stop surface, so it is more suitable for use in field conditions.
Parameter
. Highlights of MYZG Telescopic wheel loader TL2000
. CE Certificated, We have approved Real CE through Germany TUV
. Large Cabin, Nice View
. More Than 30 Durable,Safe and Effective Attachments
. Easy to Drive. All of our Loader Can Be Equipped With Quick Hitch, Joystick etc.
. China MYZG Factory Directly Sale. High Quality with Reasonable Price
rated load capacity | 2000kg |
rated bucket capacity | 1m3 |
operating weight | 5500kg |
engine model |
Yunnei YN27GBZ (STAGE Ⅱ) Xinchai 4E30YG40 (EURO Ⅲ) |
rated pOwer | 58kw/55kw |
dimensions | 6500*2000*2860mm |
Bucket hinge pin Height | 4700mm |
wheel base | 2550mm |
wheeltrack | 1600mm |
tyre size | 16/70-20 |
System pressure | 20Mpa |
~ Compact dimensions give the TL2000 a small turning radius.
~ A variable speed engine crank-driven cooling fan maintains optimum fan speed for all requirements without using any excess engine power.
~ We offer several axle options on the MYZG TL2000 including torque proportioning diffs for hard ground, limited slip diffs for muddy conditions or a fully locking front axle for the best of both worlds.
~ Our 100% switchable front axle diff lock option provides ultimate traction on mud and creates no shear forces, so won’t damage the ground when it’s not in use. It can also be engaged on the move and under load.
Detail
About us
MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
