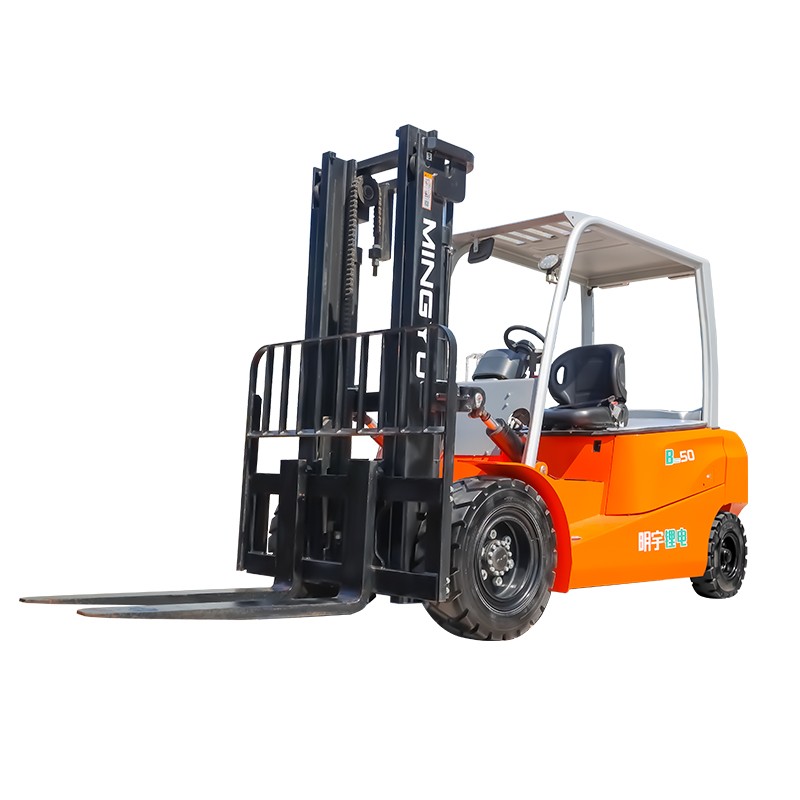

ZGFORKLIFT / MYZG CPD50 5 Ton Lithium Electric Forklift
ZGFORKLIFT / MYZG CPD50 5 Ton Lithium Electric Forklift for Heavy-Duty Work
A high-capacity 5000 kg industrial machine engineered as a 5 ton lithium-ion electric forklift for strong starting torque, demanding outdoor yards, precise warehouse handling and intensive multi-shift logistics.
Overview: industrial 5 ton capacity with clean electric power
The ZGFORKLIFT / MYZG CPD50 is a high-performance lithium battery electric forklift developed by Shandong Zhuogong Machinery Equipment Co., Ltd. to combine diesel-class material handling capability with zero tailpipe emissions, low operating noise and reduced routine battery maintenance. It is intended for stone yards, machinery plants, timber operations, paper mills, logistics terminals and distribution warehouses.
Its high-voltage electric forklift architecture uses a 153.6 V/175 Ah lithium battery. The truck lifts a rated 5000 kg at a 500 mm load center with a 21.6 kW traction motor, 22.6 kW hydraulic pump motor, 180 mm ground clearance and 15% loaded gradeability. This combination supports demanding indoor and controlled outdoor work without exhaust fumes.
MYZG CPD50 factory technical specifications
The following table provides the complete mechanical, electrical, dimensional and operating data set for the CPD50 five-ton lithium electric counterbalance forklift. Final mast, fork, tyre, charger and attachment selections should be confirmed against the intended load and site conditions.
| Model | CPD50 (5 t series) |
| Power type | High-voltage lithium-ion battery |
| Rated lifting capacity | 5000 kg |
| Load center | 500 mm |
| Operator position | Seated operator |
| Overall length with/without forks | 4510 / 3275 mm |
| Overall width | 1430 mm |
| Lowered mast/overhead guard height | 2280 / 2175 mm |
| Maximum working height | 4210 mm |
| Standard/free lift | 3000 / 45 mm |
| Fork adjustment range | 300–1380 mm |
| Minimum turning radius | 2980 mm |
| 90-degree aisle width (1100×1100 pallet) | 4797 mm |
| Mast tilt forward/backward | 6° / 12° |
| Lifting speed unloaded/loaded | 315 / 280 mm/s |
| Travel speed unloaded/loaded | 15 / 13 km/h |
| Maximum gradeability with load | 15% |
| Unladen net weight | 5740 kg |
| Drive/steering wheels | 2 / 2 |
| Tyre type | Pneumatic or solid |
| Front/rear tyre size | 250-15 / 6.50-10 |
| Service/parking brake | Foot / hand |
| Battery voltage and capacity | 153.6 V / 175 Ah |
| Traction motor power | 21.6 kW |
| Hydraulic pump motor power | 22.6 kW |
| Wheelbase/minimum ground clearance | 2215 / 180 mm |
| Front/rear overhang | 517 / 560 mm |
| Front/rear wheel track | 1150 / 1020 mm |
Engineering design and principal advantages
1. 153.6 V/175 Ah lithium system with 44.2 kW combined motor output
The high-voltage lithium-ion battery system operates at lower current for reduced electrical heating and efficient power delivery. The 21.6 kW traction motor and 22.6 kW hydraulic motor provide lifting speeds of 315 mm/s unloaded and 280 mm/s loaded, together with travel speeds of 15 km/h unloaded and 13 km/h at full rated load.
2. 180 mm ground clearance and a reinforced 5740 kg chassis
The 180 mm minimum clearance, 2215 mm wheelbase and optional pneumatic or solid 250-15 front and 6.50-10 rear tyres help the CPD50 move across gravel, industrial joints and controlled unpaved areas. A 5740 kg unladen mass produces a low, stable center of gravity for heavy pallet transport while the operator follows the approved load chart.
3. Fork adjustment from 300 to 1380 mm for wide industrial loads
The broad fork adjustment range accommodates steel bundles, precast pipe, large timber cases, machinery components and stone blocks. The mast reaches a 4210 mm maximum working height with a standard 3000 mm lift and 45 mm free lift, giving buyers a clear baseline for warehouse and yard planning.
4. Low-maintenance lithium power and 15% loaded gradeability
The lithium battery requires no watering or routine gas ventilation and supports convenient opportunity charging when paired with the approved charger. The 15% loaded gradeability helps maintain productive movement on loading ramps and outdoor approaches. Actual runtime depends on load mass, route length, lift frequency, floor condition, ambient temperature and charging practice.
Recommended application environments
A 5000 kg capacity, generous ground clearance and zero tailpipe emissions make the CPD50 suitable for indoor production areas and demanding industrial yards when ventilation, floor loading, clearances and traffic controls have been evaluated.
Stone, concrete and building materials
Move granite packs, precast components, masonry blocks and heavy pallets between storage racks, processing lines, loading bays and gravel yard surfaces using suitable forks or approved attachments.
Heavy machinery plants and foundries
Handle castings, metal moulds, engines, dies and industrial components inside workshops or between covered production areas. Precise electric drive control assists positioning at machine tools, assembly stations and transport vehicles.
Paper mills, timber depots and logistics terminals
Transport large paper rolls, timber packs, plywood cases and export cargo during repeated shifts. Solid tyres can be considered for puncture-prone recycling or glass sites, while pneumatic tyres can improve ride comfort on uneven ground.
Frequently asked questions
What turning radius and aisle width does the CPD50 require?
The minimum turning radius is 2980 mm. The stated 90-degree stacking aisle for a 1100×1100 mm pallet is 4797 mm; always add practical safety clearance for the load, attachment, rack protection and operator skill.
How does 180 mm ground clearance help outdoors?
It reduces the risk of underbody and motor-housing contact when crossing small obstacles, rails, joints or uneven surfaces. It does not replace a site survey, speed control or the use of suitable tyres on rough ground.
Are solid tyres and attachments available for the CPD50? heavy-duty electric forklift
Yes. MYZG can discuss pneumatic or puncture-resistant solid tyres, side shifters, fork positioners, clamps and rotators. Capacity may change with mast height, load center or attachment, so the final data plate and load chart must be confirmed before operation.
Configure a ZGFORKLIFT / MYZG CPD50 for your operation
Send the maximum load, load dimensions, lift height, aisle width, door height, ramp gradient, working hours, indoor or outdoor conditions, local power supply and destination port. The factory team can prepare a suitable CPD50 configuration, attachment proposal, quotation, packing plan and international shipping option.
