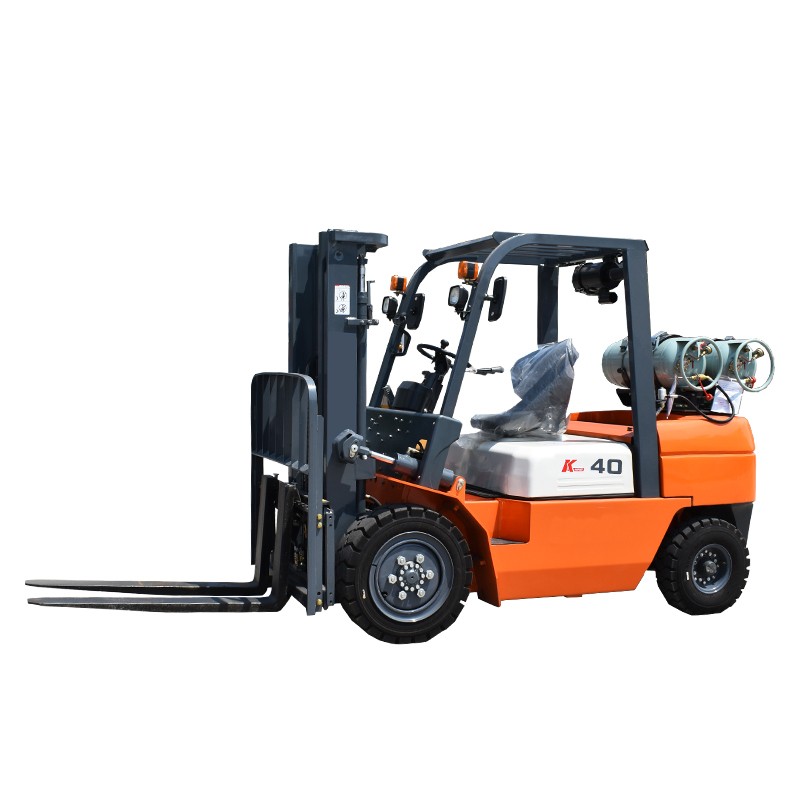

ZGFORKLIFT / MYZG CPC40 4 Ton LPG/Gasoline Forklift for Industrial Material Handling

A robust 4000 kg counterbalance forklift with multiple LPG/gasoline engine options, 20 km/h full-load travel speed, 20% gradeability and a stable 5000 kg chassis for demanding outdoor shifts.

Overview: dependable LPG/gasoline torque for productive material handling

The ZGFORKLIFT / MYZG CPC40 is a 4 ton industrial LPG/gasoline forklift manufactured by Shandong Zhuogong Machinery Equipment Co., Ltd. for logistics yards, building-material plants, timber depots, factories, farms and distribution centers. Its straightforward LPG/gasoline powertrain is designed for continuous work where fast refueling, strong low-speed torque and outdoor durability are operational priorities.

The CPC40 LPG specification corresponds to the CPCY40/CPY40 dual-fuel platform. It lifts a rated 4000 kg at a 500 mm load center and uses a 5000 kg chassis with a 1900 mm wheelbase. Operators can select LPG or gasoline according to site rules, fuel availability and ventilation requirements.

MYZG CPC40 factory technical specifications

The table presents the mechanical, dimensional and performance data for this 4000 kg LPG/gasoline counterbalance forklift. Final mast, fork, tyre, cab, engine-emission and attachment selections should be confirmed for the destination market and actual load.

Engineering design and principal advantages

1. LPG and gasoline dual-fuel flexibility

The CPC40 can operate on LPG or gasoline through a selectable fuel system. Guangqing and Nissan engine options are documented for this series. LPG operation can support cleaner combustion than gasoline, but every indoor site still requires ventilation, emission assessment and compliance with local safety rules.

2. Compact 2620 mm turning radius

A 2620 mm minimum turning radius and 1900 mm wheelbase help the truck maneuver around production cells, loading bays and compact storage zones. The 5000 kg counterbalanced chassis supports controlled handling when operators follow the approved load chart and travel with the load lowered.

3. Pneumatic tyres for mixed surfaces

The 250-15-18PR front tyres and 6.5-10-10PR rear tyres provide cushioning and traction for this compact LPG forklift. Operators should reduce speed on joints, ramps or uneven pavement and confirm that floor strength, tyre pressure and surface condition suit the combined truck-and-load weight.

4. 3000 mm lift and productive hydraulics

The standard lift height is 3000 mm. Loaded lifting speed reaches 330 mm/s and loaded travel speed reaches 20 km/h. A mast lowering damping device, enclosed instrument panel, suspended cab and load-sensing hydraulic steering support comfort and precise load placement.

Recommended application environments

The CPC40 LPG forklift suits warehouses, distribution centers, manufacturing lines, retail logistics, food and beverage storage, truck loading and ventilated mixed indoor/outdoor operations handling loads up to 4000 kg.

Warehouses and distribution centers

Move standard pallets, cartons, packaged goods and retail inventory between receiving, storage, picking and dispatch areas with approved ventilation and traffic separation.

Manufacturing and production supply

Deliver components, packaging and work-in-process materials to production cells while using approved forks or attachments and respecting residual capacity.

Truck loading and mixed operations

Load delivery vehicles and transfer goods between indoor staging zones and outdoor yards while following the facility fuel, ventilation and cylinder-handling procedures.

Frequently asked questions

Which engines are available for the CPC40 LPG forklift?

The source configuration lists Guangqing and Nissan engine choices. Final fuel-system certification, engine model and emission package should be confirmed for the destination market.

What is the turning radius of this 4 ton LPG/gasoline forklift?

The documented minimum turning radius is 2620 mm. Buyers should add clearance for the actual pallet, attachment, fork length, rack protection and operator skill.

Can the CPC40 be supplied with hydraulic attachments?

Yes. MYZG can discuss side shifters, fork positioners, clamps, rotators, duplex or triplex masts and cab options. Residual capacity must be recalculated for the selected mast, load center and attachment.

Configure a ZGFORKLIFT / MYZG CPC40 for your site

Send the load weight and dimensions, lift height, aisle width, operating surface, ramp gradient, working hours, engine-emission requirement, destination port and attachment needs. The factory team can prepare a configuration, quotation, packing plan and shipping proposal.
