The backhoe, a ubiquitous piece of heavy machinery, is a workhorse on construction sites, agricultural fields, and infrastructure projects worldwide. Its versatility stems from its ability to dig, lift, and move materials efficiently. While seemingly simple in operation, the backhoe's functionality relies on a complex interplay of hydraulic systems, mechanical linkages, and structural engineering. This article delves into the technical intricacies of the backhoe, exploring its components, operational principles, and underlying engineering.

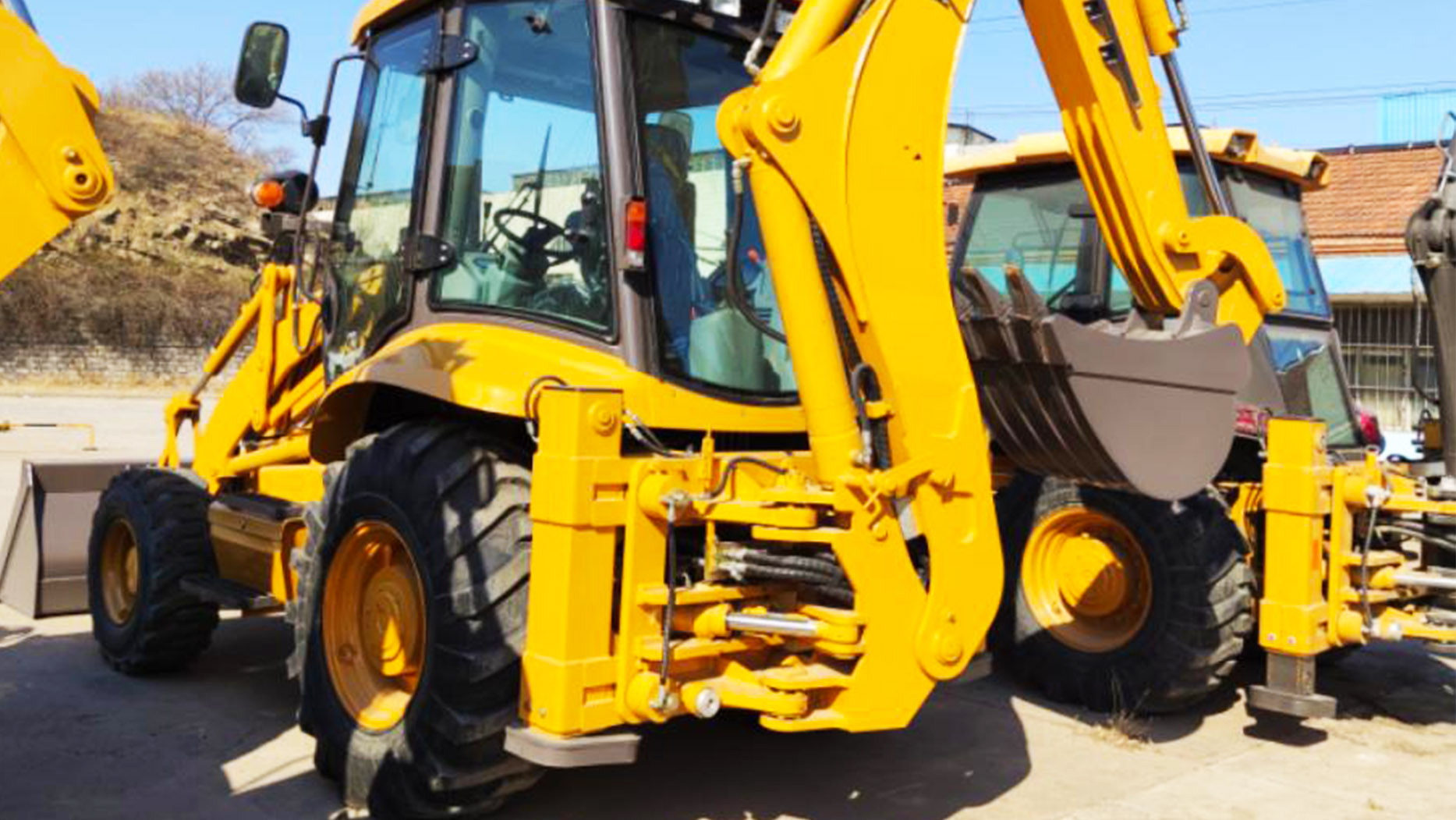

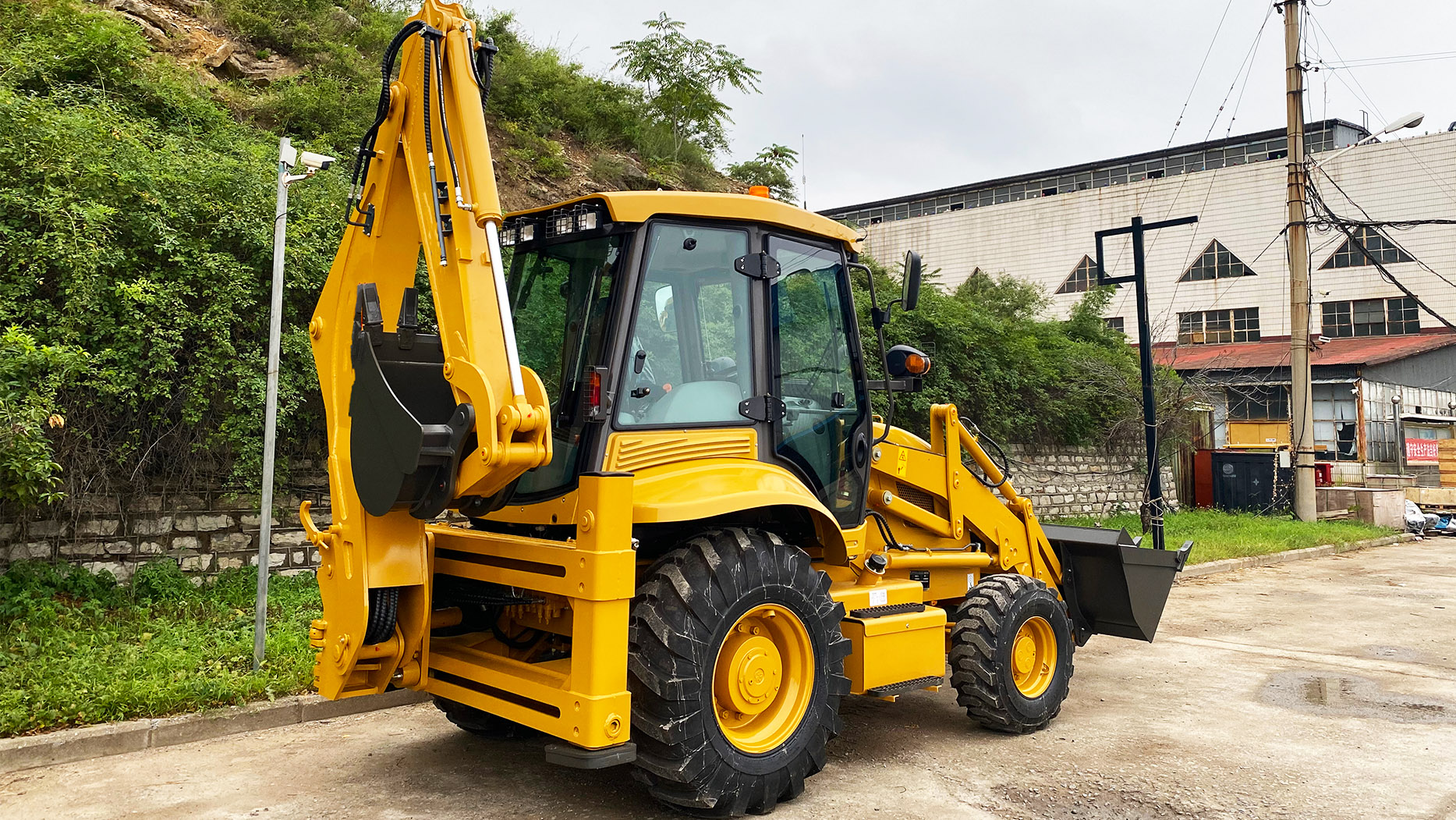

A backhoe, often referred to as a backhoe loader, is a heavy equipment vehicle consisting of a tractor unit fitted with a loader bucket on the front and a backhoe attachment at the rear. The backhoe attachment, the defining feature, is designed for digging below the machine's ground level, a function that distinguishes it from excavators which can dig both above and below. The loader bucket, conversely, is used for scooping, lifting, and transporting materials.
Key Components and Their Functions:
Tractor Unit:
This forms the base of the backhoe, providing mobility and power. It typically includes a diesel engine, transmission, axles, and wheels or tracks.
The engine powers the hydraulic system, which in turn drives the various attachments.
The transmission allows the operator to control the speed and direction of the machine.
The axles and wheels/tracks provide traction and stability.
Loader Bucket:
Mounted on the front of the tractor unit, the loader bucket is used for general material handling.
It's operated by hydraulic cylinders that allow it to lift, tilt, and dump materials.
The bucket's capacity and design vary depending on the specific application.

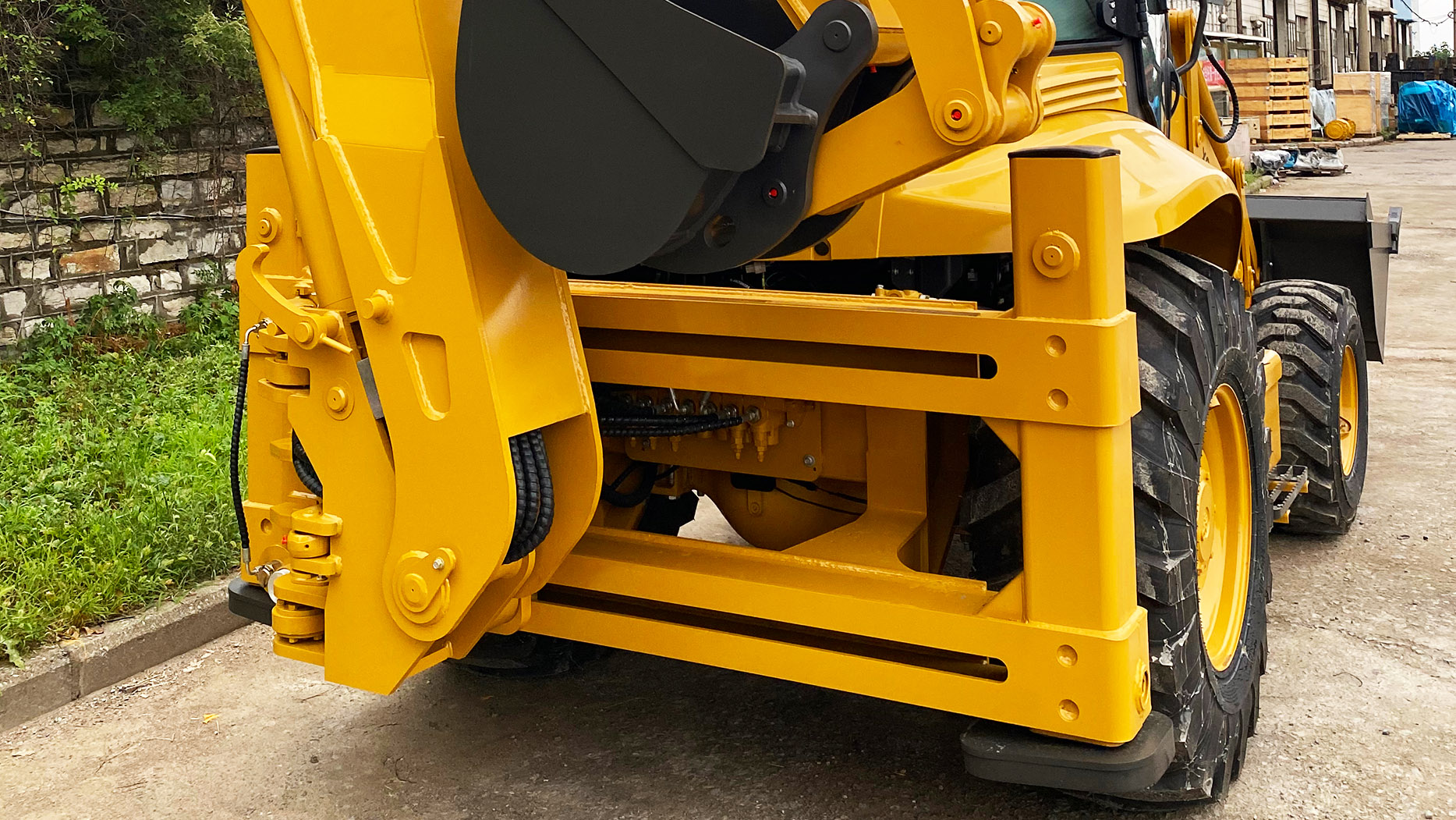

This is the primary digging component, located at the rear of the tractor unit.
It consists of several interconnected components:
Boom: The main structural arm that extends from the tractor.
Dipper Stick (Arm): The secondary arm that connects to the boom and the bucket.
Bucket: The digging tool at the end of the dipper stick.
Swing Mechanism: Allows the boom to rotate horizontally, enabling digging and material placement in a wide arc.
Hydraulic Cylinders: These are the actuators that provide the force for all movements.
Hydraulic System:
The heart of the backhoe's operation, the hydraulic system converts engine power into fluid pressure, which is then used to drive the various cylinders.
Key components include:
Hydraulic Pump: Driven by the engine, it pressurizes the hydraulic fluid.
Hydraulic Fluid Reservoir: Stores the hydraulic fluid.
Control Valves: Regulate the flow of hydraulic fluid to the cylinders, controlling the speed and direction of movement.
Hydraulic Cylinders: Linear actuators that convert hydraulic pressure into mechanical force.
Hoses and Pipes: Transport the hydraulic fluid throughout the system.
Operational Principles:
Hydraulic Power Transmission:
The diesel engine drives the hydraulic pump, which draws hydraulic fluid from the reservoir and pressurizes it.
The pressurized fluid is then directed through control valves to the appropriate hydraulic cylinders.
The control valves are operated by levers or joysticks in the operator's cab, allowing precise control of the backhoe's movements.
The amount of pressure applied to a cylinder dictates the amount of force that cylinder applies.
Mechanical Linkages and Leverage:
The boom, dipper stick, and bucket are connected by mechanical linkages that provide leverage, amplifying the force generated by the hydraulic cylinders.
The geometry of these linkages is carefully designed to optimize digging force and reach.
The design of the linkages also allows for a large range of motion.
Digging Action:
To dig, the operator positions the backhoe bucket over the desired excavation area.
The boom and dipper stick are then lowered, and the bucket is forced into the ground by the hydraulic cylinders.
The bucket's teeth break up the soil, and the bucket scoops it up.
The swing mechanism allows the operator to rotate the boom and deposit the excavated material to the side.
Swing Mechanism:
The swing mechanism, typically a hydraulic motor or cylinder, rotates the boom around a vertical axis.
This allows the operator to dig in a wide arc and deposit material in different locations without moving the entire machine.
Swing dampeners are often used to prevent sudden jolts when the swing
reaches its limits.
Loader Operation:
The front loader is operated by a seperate set of hydraulic cylinders.
These cylinders control the lift, tilt, and dump functions of the loader bucket.
The operator can use the loader to scoop up materials, transport them, and dump them at a desired location.
Technical Considerations:
Hydraulic System Pressure and Flow:
The pressure and flow rate of the hydraulic system are critical factors that determine the backhoe's performance.
Higher pressure allows for greater digging force, while higher flow rate allows for faster movements.
The hydraulic system must be carefully designed to balance these factors.
Structural Integrity:
The backhoe's structure must be strong enough to withstand the stresses generated during digging and lifting.
The boom, dipper stick, and frame are typically made of high-strength steel.
Finite Element analysis is used during the design process to ensure structural integrity.
Stability and Weight Distribution:
The backhoe must be stable to prevent tipping over during operation.
The weight distribution of the machine is carefully designed to ensure stability.
Outriggers are often used to provide additional stability during digging.
Control Systems:
Modern backhoes often incorporate advanced control systems, such as proportional valves and electronic controls.
These systems provide smoother and more precise control of the machine's movements.
Some backhoes use pilot controls, that use a small amount of hydraulic pressure to control a larger amount of hydraulic pressure, allowing for easier control.
Maintenance:
Regular maintenance is essential to ensure the backhoe's reliability and longevity.
This includes checking and changing hydraulic fluid, lubricating moving parts, and inspecting for damage.
Hydraulic lines and connections must be inspected regularly for leaks.
Applications:
Backhoes are used in a wide range of applications, including:
Construction: Excavating foundations, trenches, and utility lines.
Landscaping: Digging holes for planting trees and shrubs, and grading land.
Agriculture: Digging drainage ditches and irrigation channels.
Roadwork: Repairing potholes and digging trenches for utility lines.
Demolition: Breaking up concrete and other materials.
Conclusion:
The backhoe is a testament to the power of hydraulic engineering and mechanical design. Its ability to dig, lift, and move materials efficiently has made it an indispensable tool in numerous industries. By understanding the technical principles behind its operation, we gain a deeper appreciation for the ingenuity and complexity of this versatile machine.
